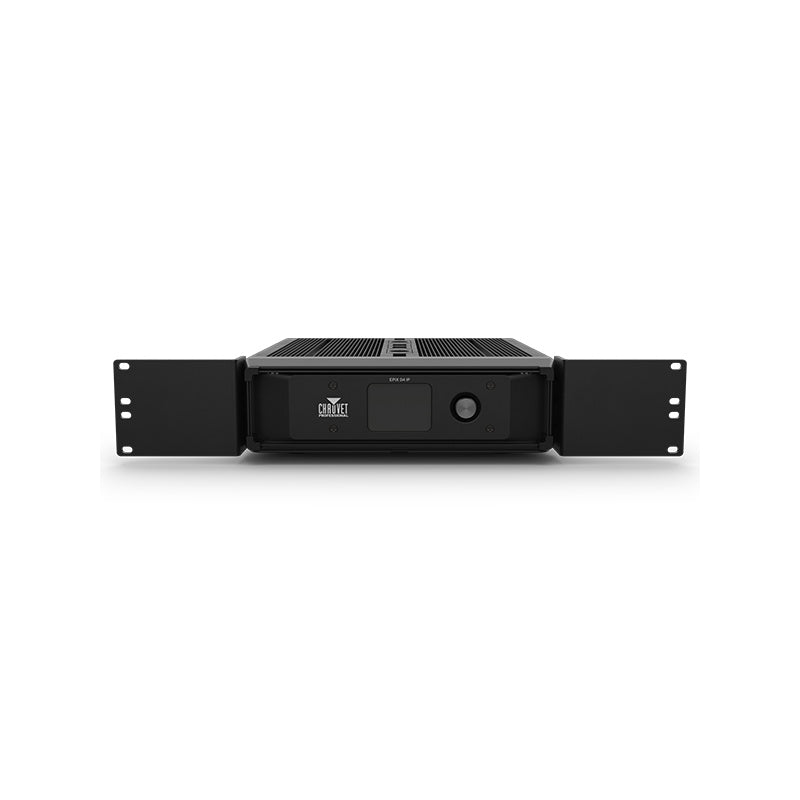

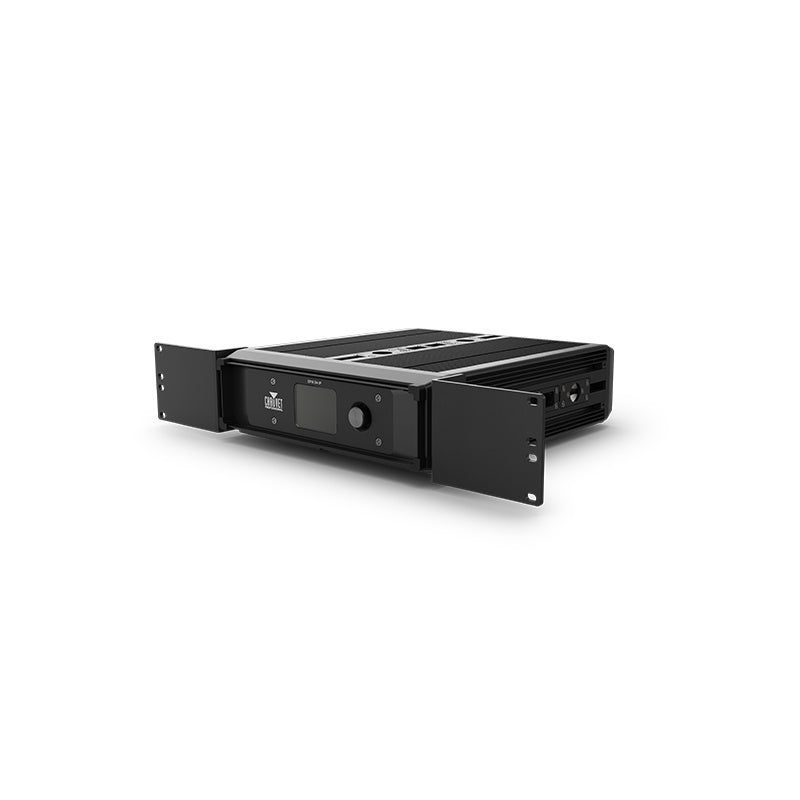

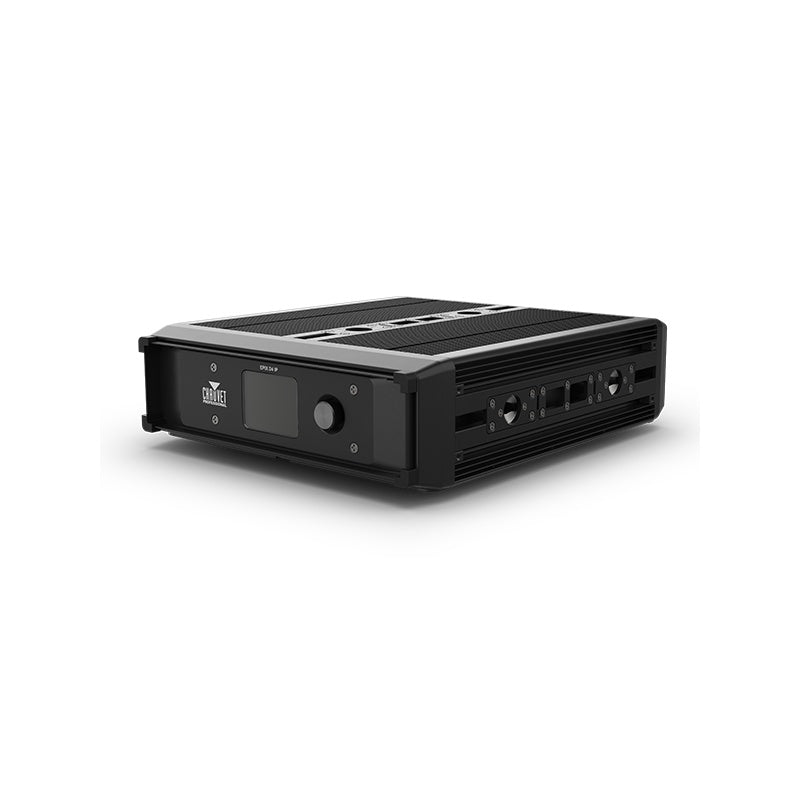

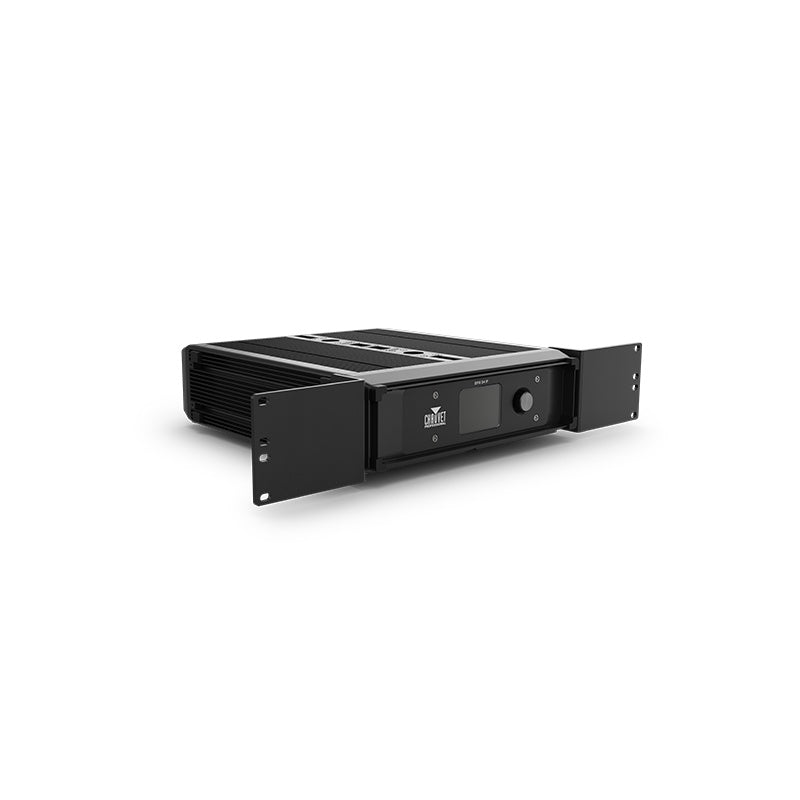

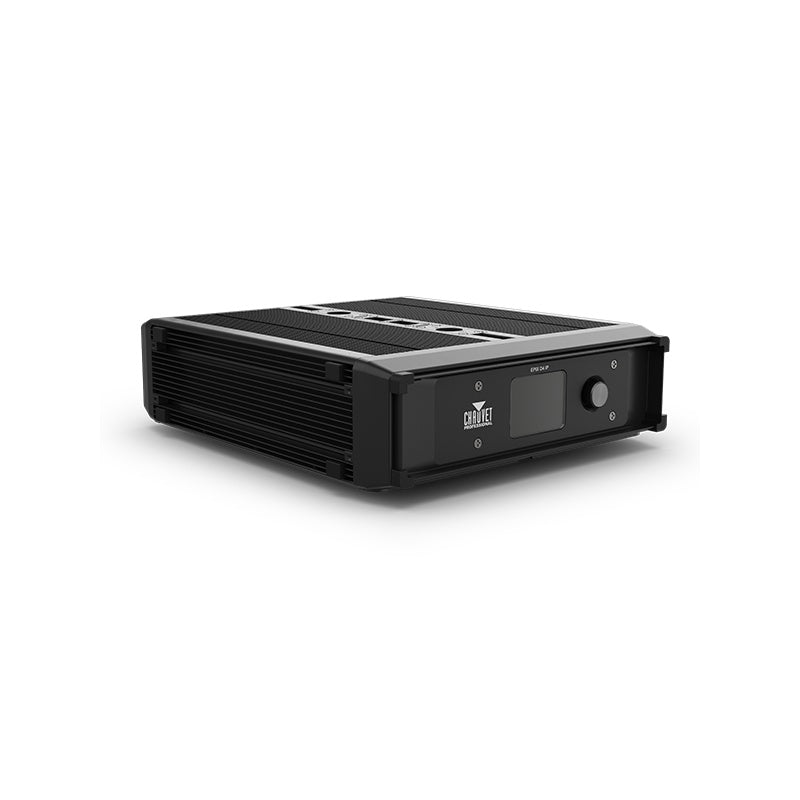

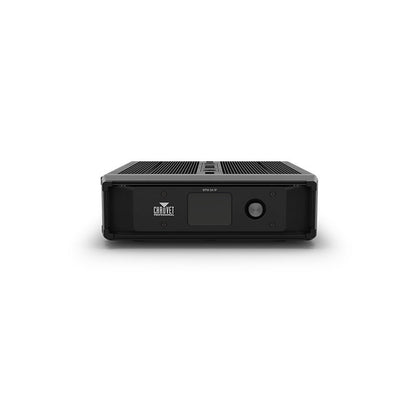

Chauvet Pro EPIX D4 IP 4-Port Driver

Chauvet Pro EPIX D4 IP 4-Port Driver

SoundPro Item: 203117 | Part Number: EPIXD4IP

$3,533.33
$4,505.11 $3,533.33
Your Price Sold out
MSRP: $4,505.11 | MAP: $3,533.33

Usually ships in 5-7 business days

  • Remote power supply and processing module for Epix line products
  • Supports MVR with GDTF onboard, creating a seamless production flow from design to playback at the lighting desk
  • Utilizes Epix Mapping System to detect, configure, and control Epix line products
  • Industrial design accommodates the rental/touring and Installation applications
  • Supports RSTP with automatic signal backup
Log in or register for YOUR best price

ÉPiX D4 IP is a 4-port drive housing the ÉPiX mapping system – built to easily detect, configure, and control outdoor-rated ÉPiX Line 10 IP and ÉPiX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts. ÉPiX D4 IP is the heart of this latest generation ÉPiX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files. Designed with modularity, serviceability, and universal connectivity at its core, ÉPiX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses. *PRELIMINARY SPECIFICATIONS ONLY

View full details

Specifications

Construction / Physical
Dimensions
14.05 x 11.8 x 11.4 in (357 x 300 x 289 mm)

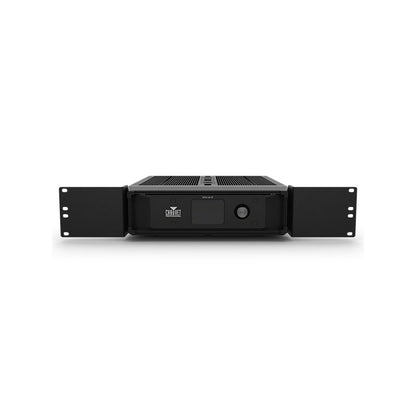

Dimensions (with rackmount brackets)
20.24 x 11.8 x 11.4 in (514 x 300 x 289 mm)
Weight
15lb (6.8 kg)
Exterior Color
Black
Housing Material
Aluminum extrusion, Aluminum die-cast, rubber
Rackmount
2U
IP Rating
IP65

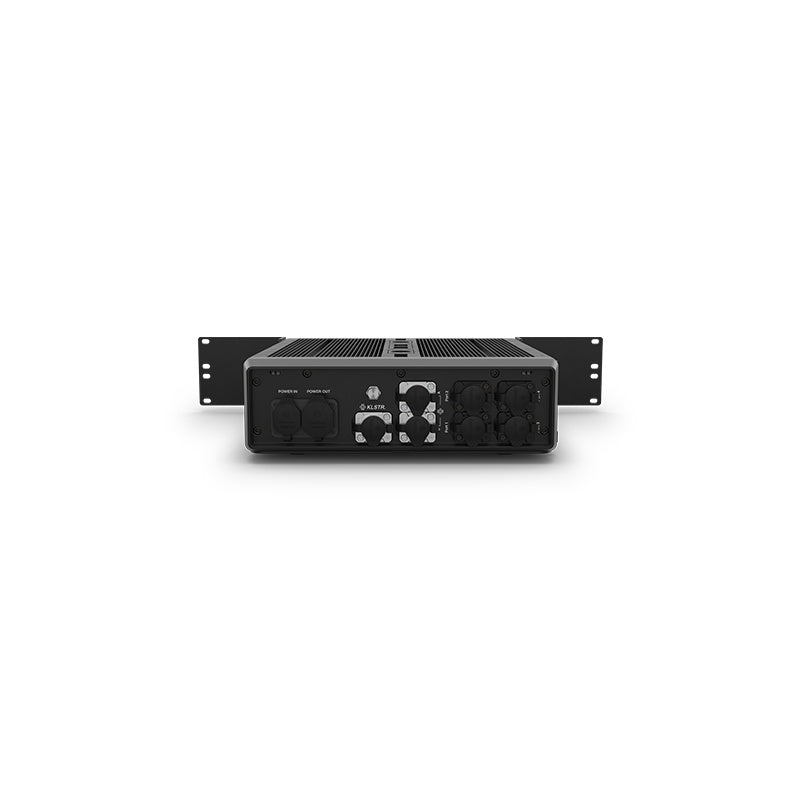

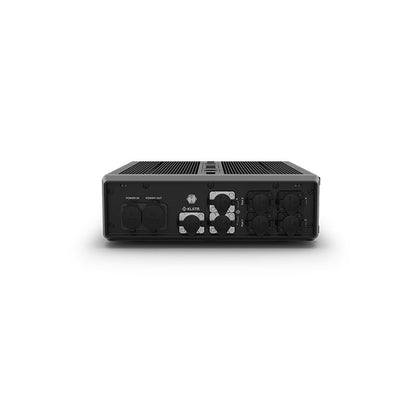

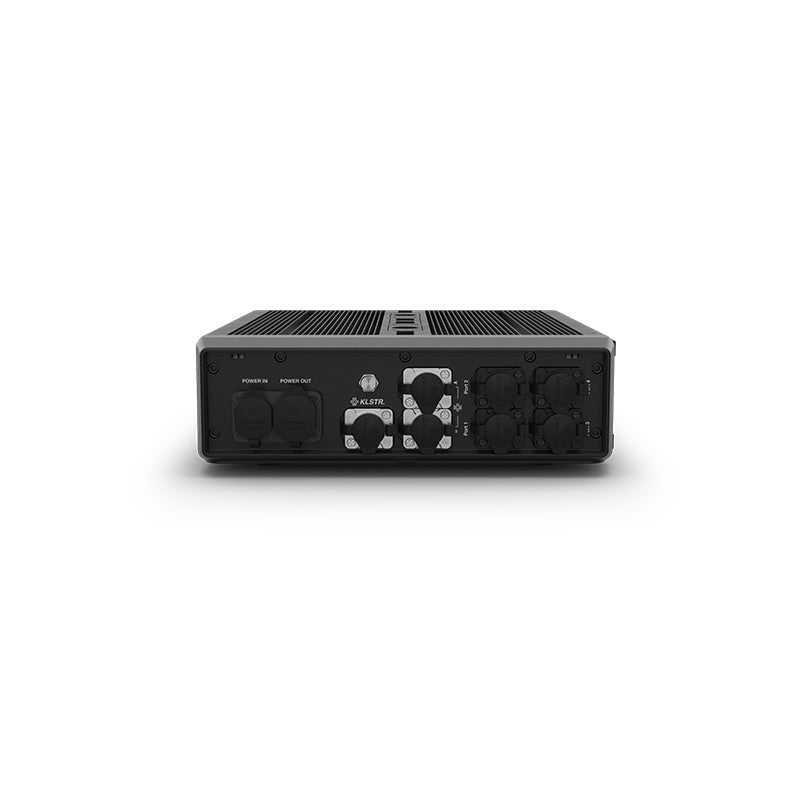

Connections
Power input
Seetronic Powerkon (powerCON Compatible)
Power output
Seetronic Powerkon (powerCON Compatible)
Device output (4)
4-pin XLR (IP65)
Data connectors (3)
Seetronic etherKON (etherCON Compatible)
Intended Load
Epix Line 10 IP, Epix Line 10 IP S
Physical Linking (Standard Mode)
10 inline EPIX Line 10 IP
Physical Linking (Hi Power Mode)
6 inline EPIX Line 10 IP
Physical Linking (Standard Mode)
20 inline EPIX Line 10 IP S
Physical Linking (Hi Power Mode)
13 inline EPIX Line 10 IP S
Minimum required device linking cable size
4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line
210 ft (64 m)
Max. cable length (shielded cables) between Epix D4 IP and first Epix Line
65 ft (20 m)
Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line
300 ft (91 m)
Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line
150 ft (45 m)
Max. cable length (unshielded cables) between each Epix Line
100 ft (30 m)
Control
Control Protocol
[Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
DMX Channels
2, 18, Groups of 5/10/255/50, or 300
Video Refresh Rate
60 Hz
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking
0 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V; 3 units @ 240 V
Power and Current
1,200 W, 12 A @ 100 V, 60 Hz 1,200 W, 10 A @ 120 V, 60 Hz 1,200 W, 5.77 A @ 208 V, 60 Hz 1,200 W, 5.22 A @ 230 V, 50 Hz 1,200 W, 5 A @ 240 V, 50 Hz
Certifications / Qualifications
Compliance
[CE, MET, ROHS]
Operating Temperature
-4 °F to 122 °F (-20 °C to 50 °C)
What's Included
Epix D4 IP
1
Power Cord (Seetronic powerKON)
1
Rack Ears with Screws
2
Omega bracket
1
