Chauvet Pro Epix Line 10 IP

Chauvet Pro Epix Line 10 IP

SoundPro Item: 203118 | Part Number: EPIXL10IP

$586.00
$660.90 $586.00
Your Price Sold out
MSRP: $660.90 | MAP: $586.00

Usually ships in 5-7 business days

  • Outdoor-Rated Pixel Strip – Linear LED strip with 10 mm pixel pitch delivers vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
  • Flexible Connectivity & Optics – Standard 4-pin XLR connectors and three included optical filters support multiple use cases, including wide viewing angles.
  • Compact & Serviceable Design – Slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower service costs.
  • Streamlined Setup – Native compatibility with the Epix Mapping System and MVR support makes configuration fast and intuitive.
Log in or register for YOUR best price

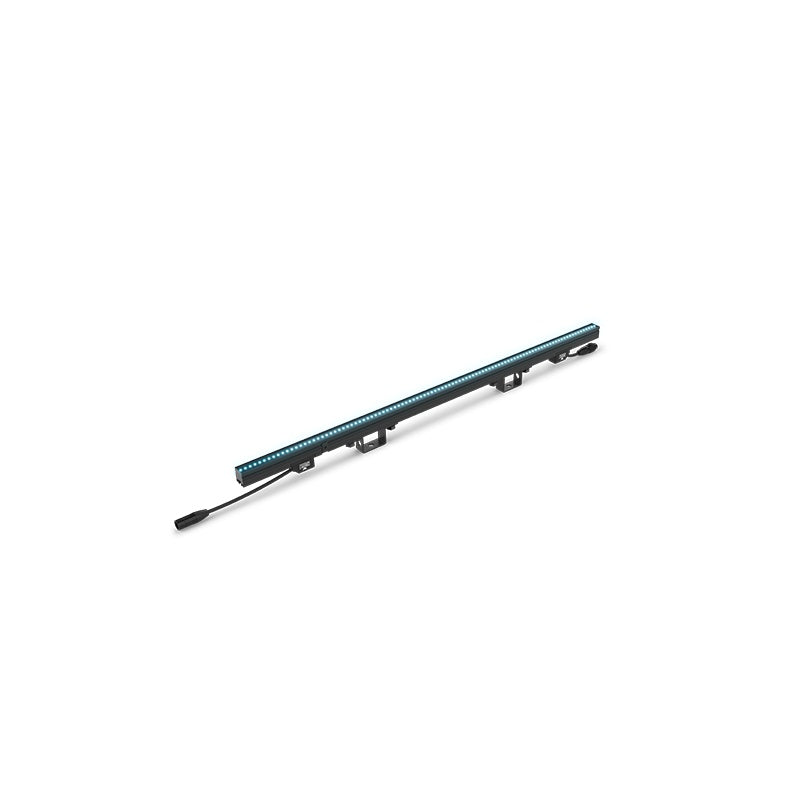

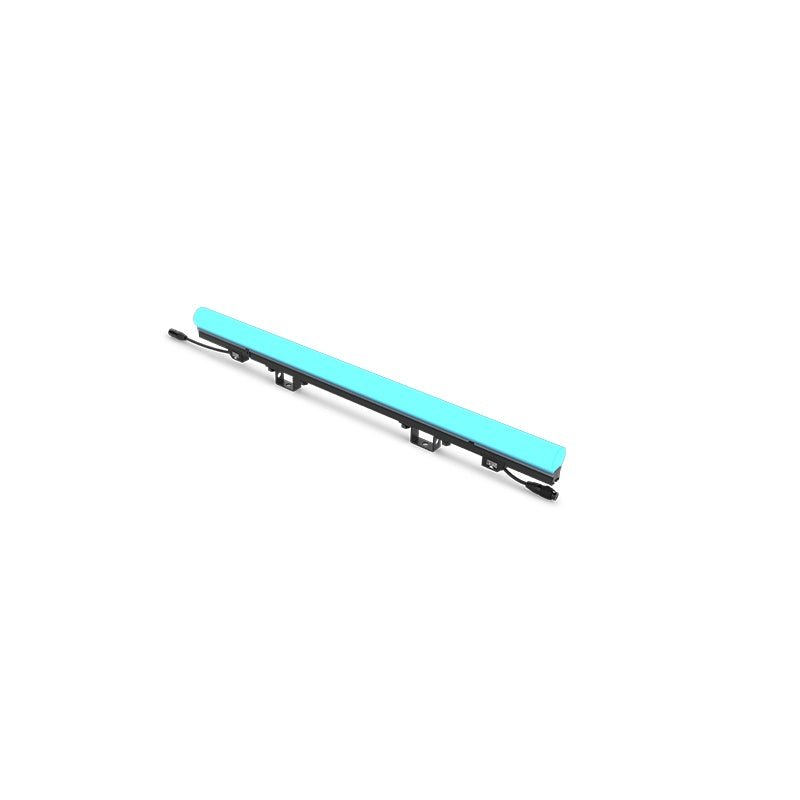

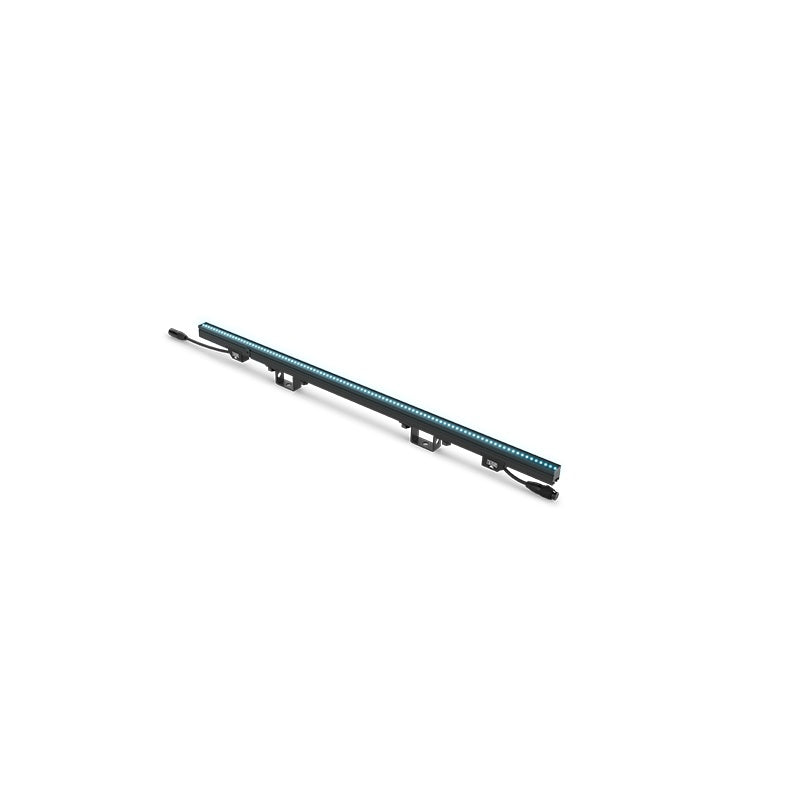

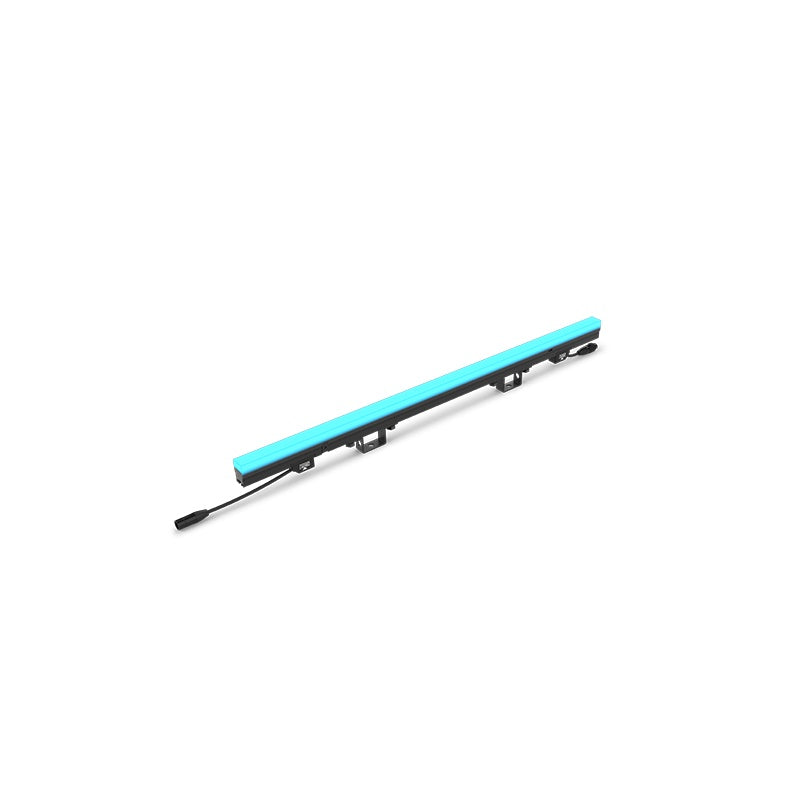

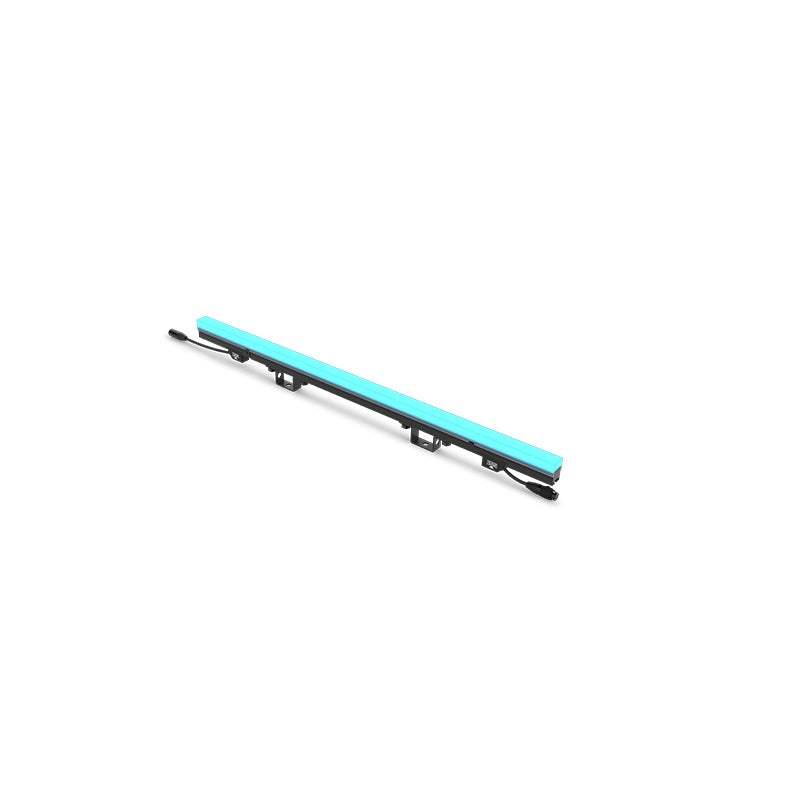

ÉPiX Line 10 IP delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPiX D4 IP Drive, this sleek 1-meter outdoor-rated linear pixel strip offers native compatibility with the Epix Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications. *PRELIMINARY SPECIFICATIONS ONLY

View full details

Specifications

Optical
Light Source
100 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
Beam Angle
114.6°
Field Angle
161.9°
Viewing Angle
170°
Lumens
1,385
Pixel Pitch
10 mm
Display Refresh Rate
4,900 Hz
Dynamic Effects
Strobe Rate
0 to 30 Hz
Construction / Physical
Dimensions (no filter)
39.37 x 1.161 x 2.862 in (1,000 x 29.5 x 72.7 mm)
Dimensions (square filter installed)
39.37 x 1.228 x 2.862 in (1,000 x 31.20 x 72.7 mm)
Dimensions (round filter installed)
39.37 x 1.969 x 2.862 in (1,000 x 50 x 72.7 mm)
Weight
2.89 lb (1.3 kg)
Exterior Color
Black
Housing Material
Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
IP Rating
[IP65]
Connections
Power Supply (remote driver)
Epix D4 IP
Physical Linking (Standard Mode)
10 inline EPIX Line 10 IP
Physical Linking (Hi Power Mode)
6 inline EPIX Line 10 IP
Data Connectors
4-pin IP65 XLR
Minimum required device linking cable size
4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line
210 ft (64 m)
Max. cable length (shielded cables) between Epix D4 IP and first Epix Line
65 ft (20 m)
Max. cable length (shielded cables) between each Epix Line
60 ft (18 m)
Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line
300 ft (91 m)
Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line
150 ft (45 m)
Max. cable length (unshielded cables) between each Epix Line
100 ft (30 m)
Control
Control Protocol
[Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
DMX Channels
2, 18, Groups of 5/10/255/50, or 300
Video Refresh Rate
60 Hz
Electrical
Input Voltage
48VDC
Power and Current (Standard)
21 W, .44 A @ 48 VDC
Power and Current (Hi Power)
32 W, .671 A @ 48 VDC
Certifications / Qualifications
Compliance
[CE, MET, FCC, ETL, UKCA]
Operating Temperature
-4 °F to 122 °F (-20 °C to 50 °C)
What's Included
EPIX LINE 10 IP
1
Interlocking Bracket
1
Milky White Square Filter
1
Black Stealth Square Filter
1
Milky White Round Filter
1
Mounting Brackets
2
Required Accessories
Optional Software (mapping)
KLSTR
Controller (required)
[Epix D4 IP]
Compatible Mounting Options
[EPIXMNTSPIGOT, M12 BOLT]
