Chauvet Pro GeNetix DIN 5 Port Network Switch

Chauvet Pro GeNetix DIN 5 Port Network Switch

SoundPro Item: 203147 | Part Number: GENETIXDINNET

Regular price $230.00
Regular price $255.00 Sale price $230.00
Your Price Sold out
MSRP: $255.00 | MAP: $230.00

Usually ships in 5-7 business days

  • 60w 5 port Unmanaged Gigabit PoE+ Network Switch
  • Supports PoE 802.3af, 802.3at in Modes A & B
  • Ports 2-5 Support 30w per Port, up to 60w total output when powered by a 48v External Power Supply
  • PoE Powered or 12-48v External Power Supply option
  • DIN Rail Mountable

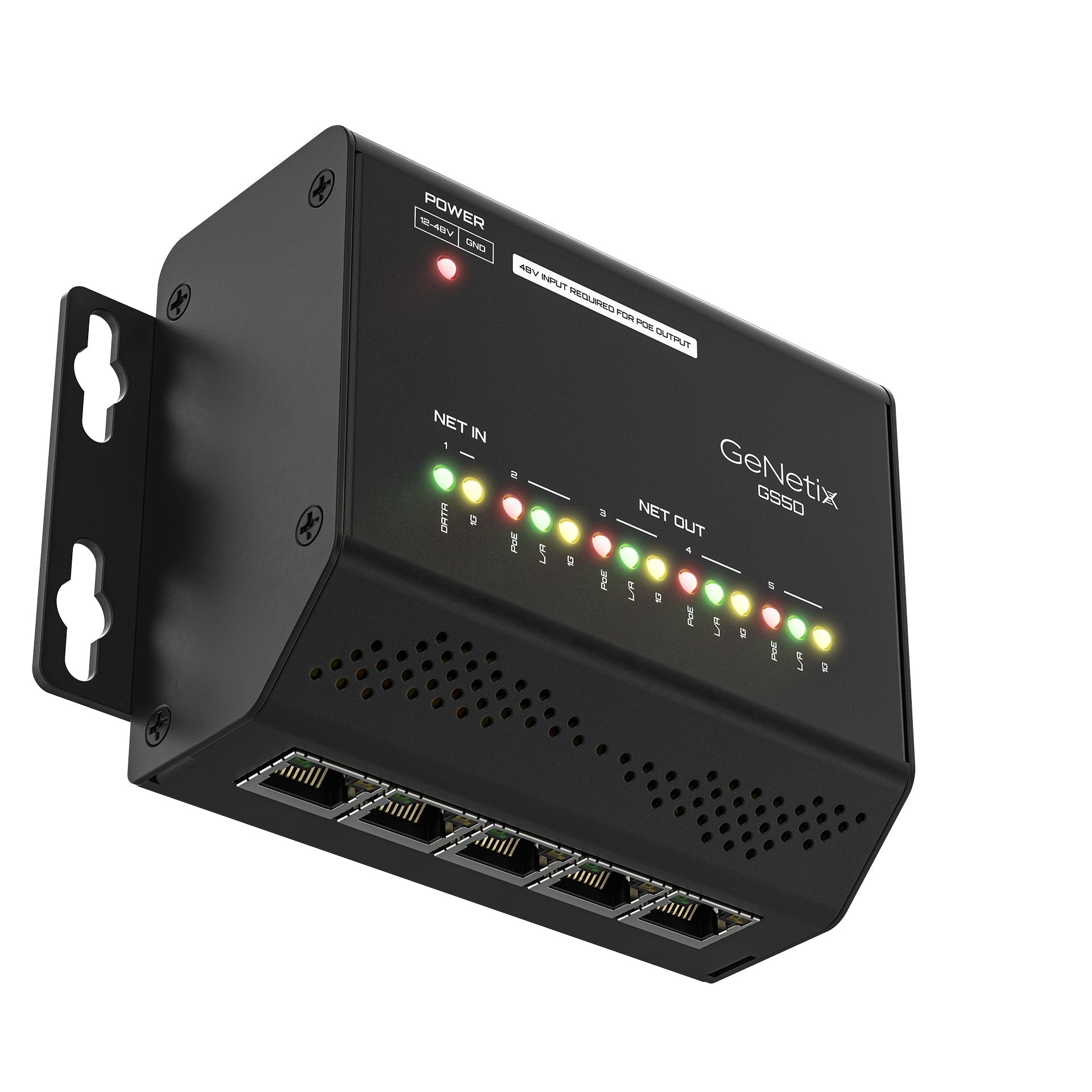

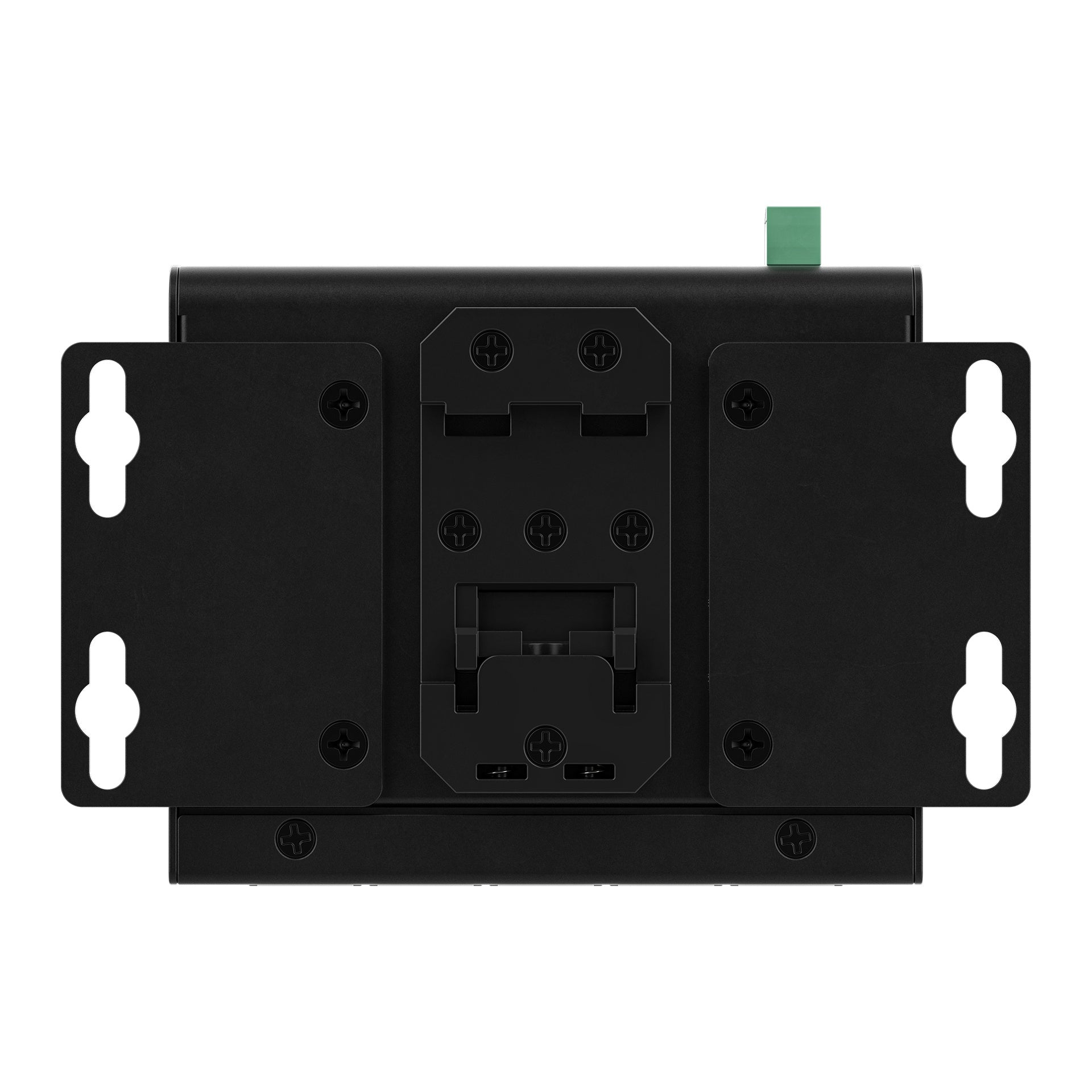

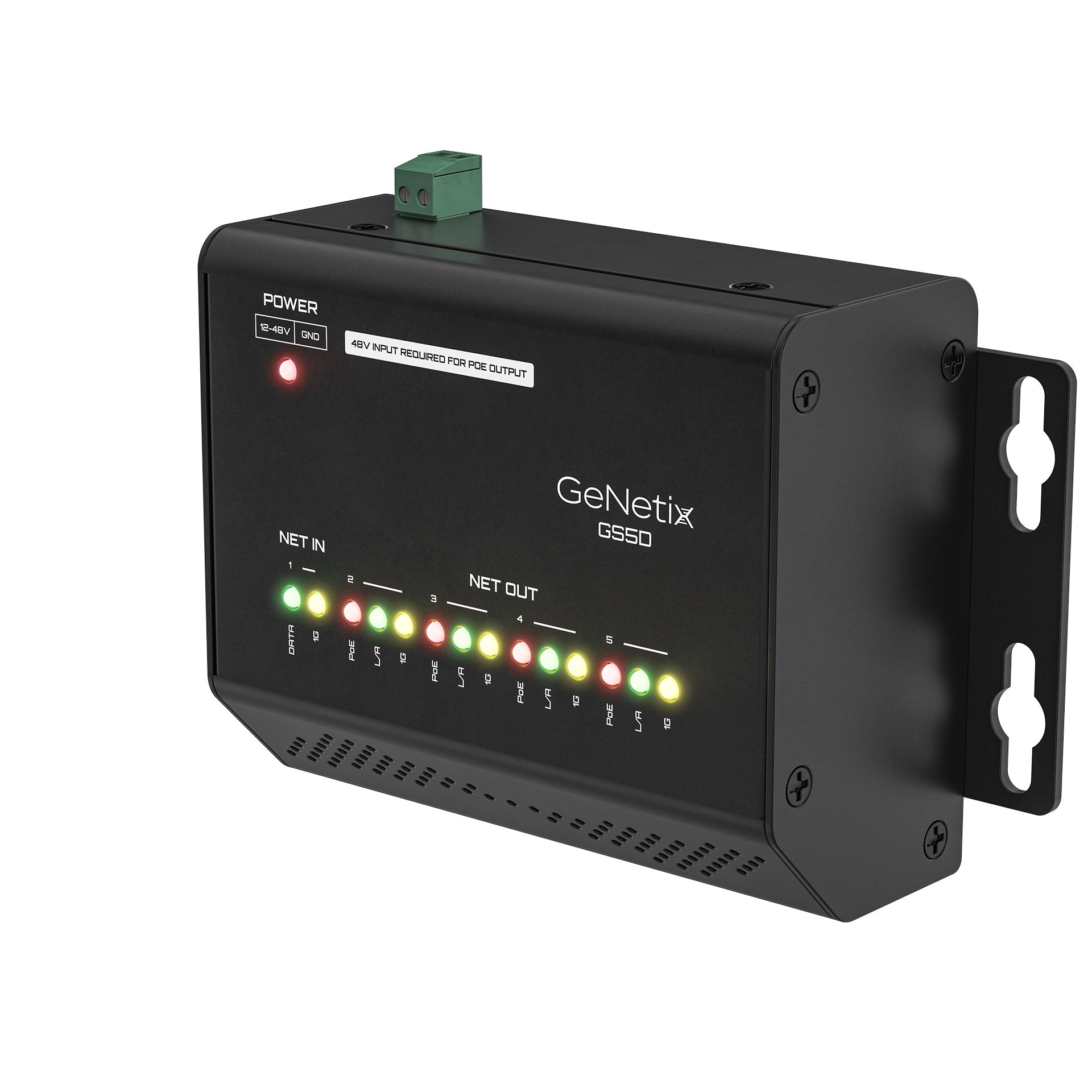

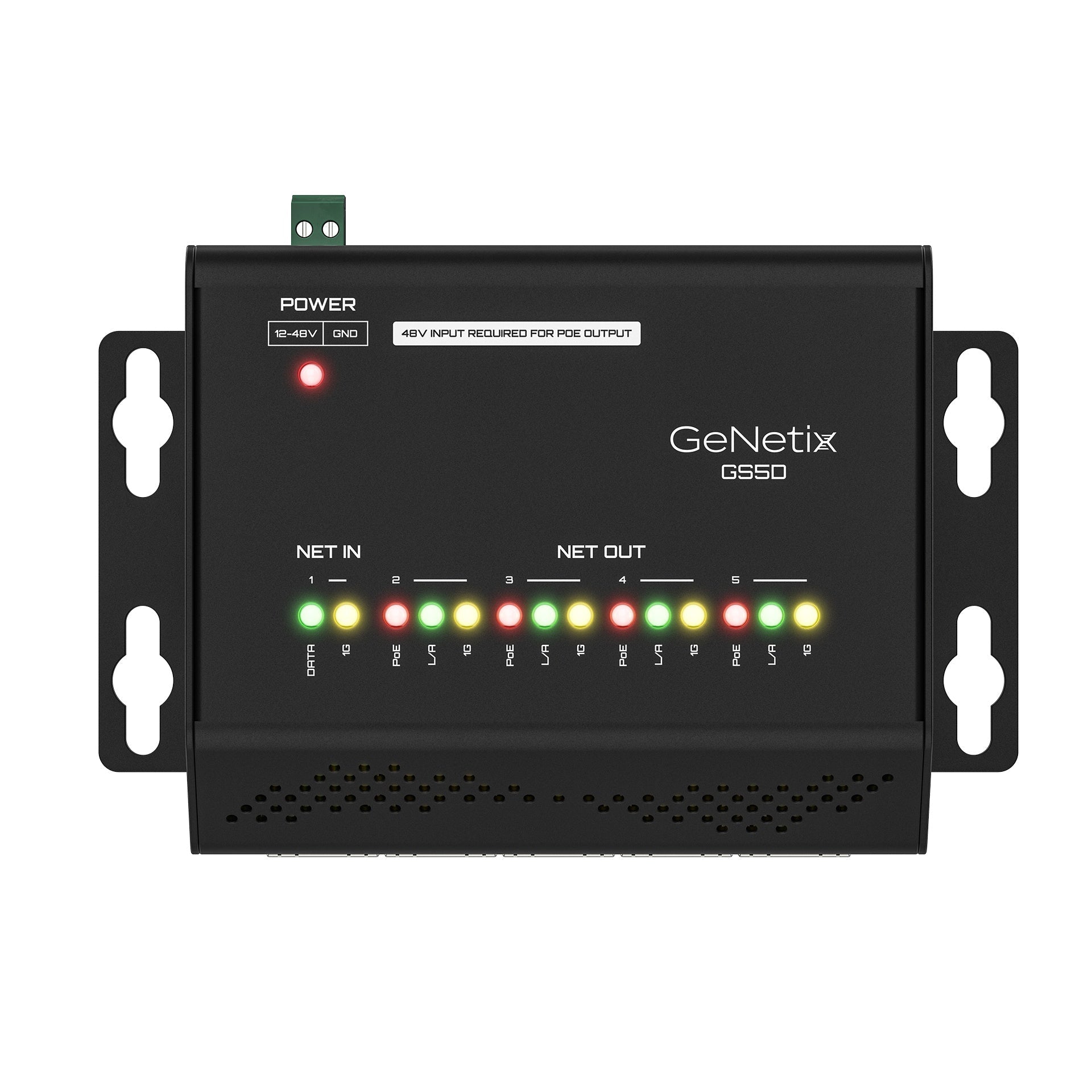

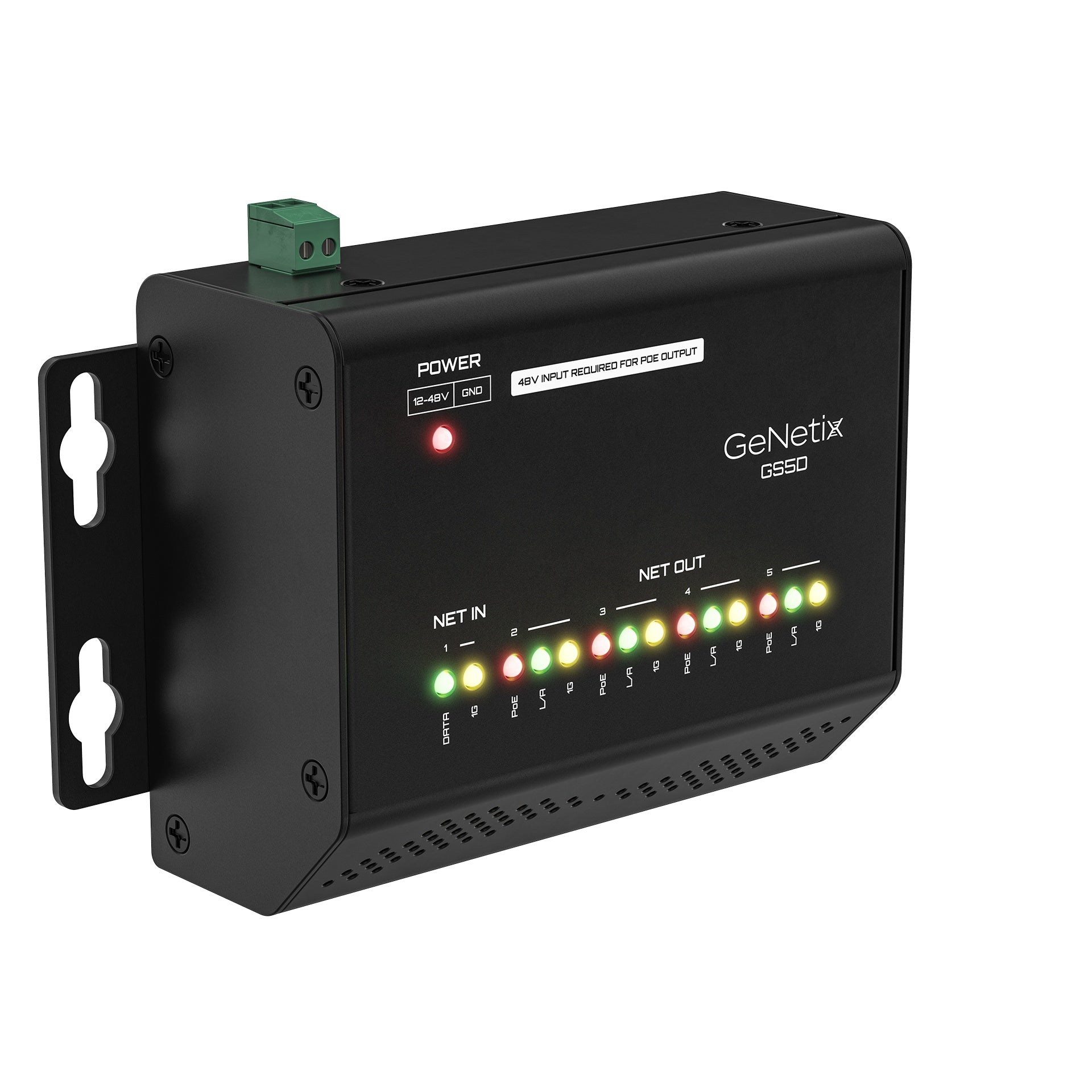

GeNetix Switch 5D is a five-port DIN rail mountable unmanaged Gigabit network switch that can be powered via an external 12-48V power supply (purchased separately). When powered by a 48V power supply, four of its ports support 30W of PoE output per port with a maximum of 60W combined output. Status LEDs provide visual indication to know if the GeNetix GS5D is connected to external power, if its network/PoE ports are connected/active, and if the network is running at Gigabit speed.

View full details

Specifications

Hardware Specifications
Network Ports
5
PoE Output
Yes – When powered by a 48v External Power Supply
PoE+ Outputs Ports
4
DIN Rail Mounted
Yes
Powered via PoE
Yes
Powered via External 12-48v Power Supply
Yes
Software Specifications
Gigabit Ethernet
Yes
Unmanaged Network Switch
Yes
Included Accessories
DIN Rail Mount Clip
1
Quick Start Guide
1
Boxed Weights and Dimensions
Width
185mm (7.28 inches)
Depth
170mm (6.69 inches)
Height
90mm (3.54 inches)
Weight
0.6 KG (1.32 lb)
Unit Weights and Dimensions
Width
104mm (4.09 inches)
Depth
87mm (3.42 inches)
Height Inc DIN Clip
65mm (2.55 inches)
Weight
0.4 KG (0.88 lb)
