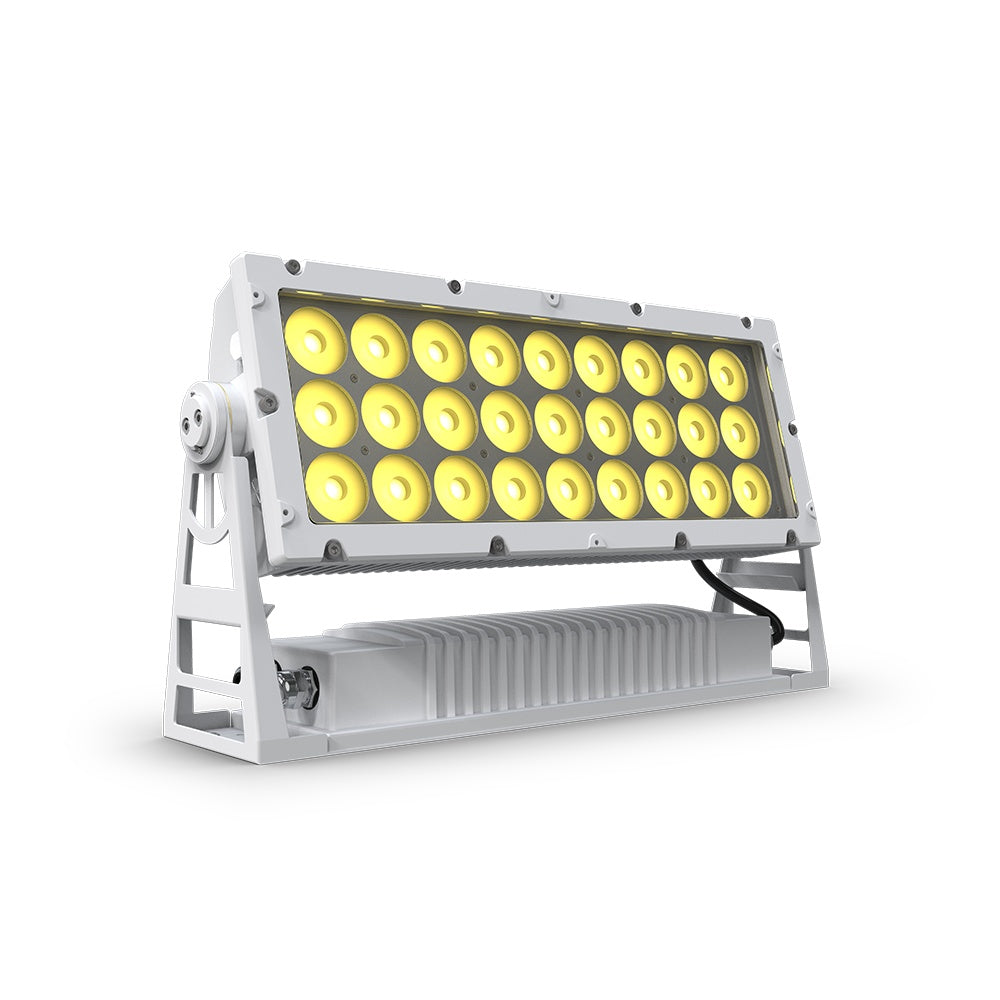

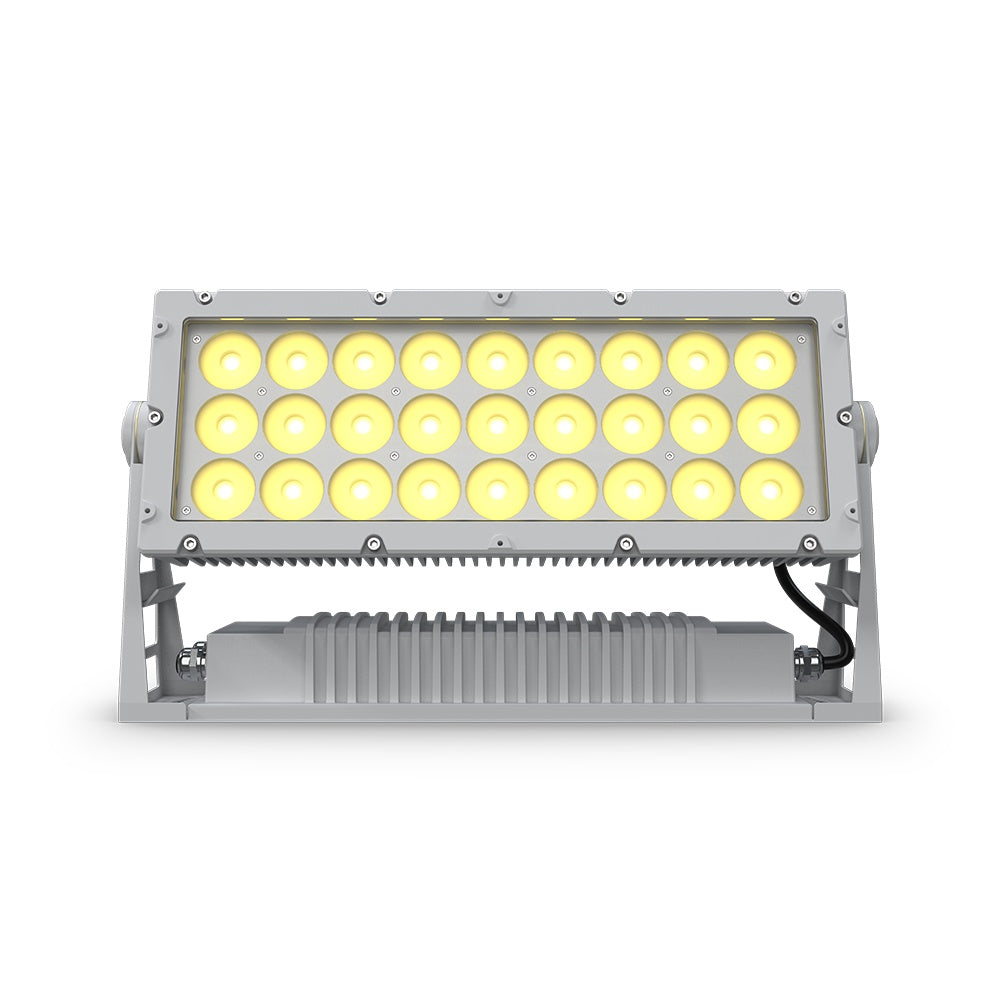

Chauvet Pro Ilumipanel ML2 LED Unit

Chauvet Pro Ilumipanel ML2 LED Unit

SoundPro Item: 203126 | Part Number: ILUMIPANELML2

$1,978.00
$2,082.50 $1,978.00
Your Price Sold out
MSRP: $2,082.50 | MAP: $1,978.00

Usually ships in 5-7 business days

Log in or register for YOUR best price

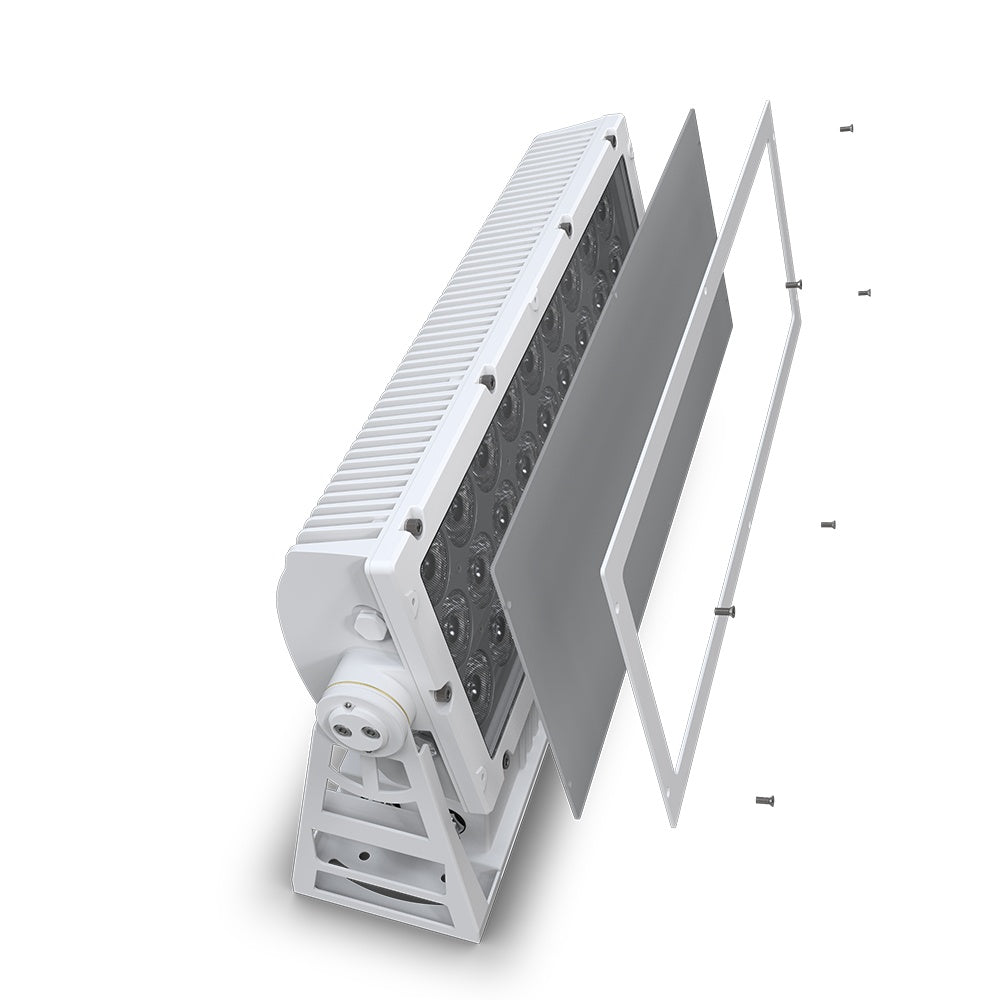

Ilumipanel ML2 from Iluminarc is a large-format LED architectural unit. Perfect for washing the sides of buildings in bold, beautiful colors, it includes a filter frame for attaching a range of optional easy-to-install beam spread filters designed to provide coverage for any size application. Installation is fast and simple, while the sleek chassis blends into the environment. Precision optics eliminate multicolored shadows, and the RGBL (Red, Green Blue, Lime) four-in-one LEDs output clean, true whites and a nearly unlimited palette of striking colors.

View full details

Specifications

LIGHT SOURCE & OPTICAL SPECIFICATIONS
Light Source
27 LEDs (quad-color RGBL) 20 W; (1.5A)
Installed Optics
6°
Optional Optics
Medium filter; Wide filter; Very Wide; Asymmetrical Filter
Beam Angle
Installed optics: 8°; Medium filter: 20.8°; Wide filter: 34.4°; Very Wide filter: 34°; Asymmetrical filter: 40° x 13.9°
Field Angle
Installed optics: 14.6°; Medium filter: 43.7°; Wide filter: 69.1°; Very Wide filter: 70.3°; Asymmetrical filter: 79.8° x 30.9°
Cutoff Angle
Installed optics: 20.8°; Medium filter: 64.7°; Wide filter: 126.2°; Very Wide filter: 151.1°; Asymmetrical filter: 165.3° x 58.9°
Lumens
Installed optics: 11,884; Medium filter: 6,444; Wide filter: 6,597; Very Wide filter: 6,090; Asymmetrical filter: 7,122
Illuminance
Installed optics: 17,205 lux @ 5 m; Medium filter: 1,277 lux @ 5 m; Wide filter: 502 lux @ 5 m; Very Wide filter: 438 lux @ 5 m; Asymmetrical filter: 884 lux @ 5 m
Efficacy At Full
38 lm/W
Color Temperature Presets
1800K – 10000K
CONSTRUCTION & PHYSICAL SPECIFICATIONS
Dimensions
20.51 x 7.32 x 9.12 in (521 x 186 x 232 mm)
Fixture Color
Off white; C5-M
Housing Material
Cast aluminum
Lens Cover
Impact resistant glass
Mounting Options
Bracket; Hole Diameter 13M
Weight
25.4 lb (11.5 kg)
CONTROL SPECIFICATIONS
Control Protocol
USITT DMX-512a; RDM
Operating Modes
Solid (1-Channel); Arc 1 (3-Channel); Arc 1+D (4-Channel); Arc 2 (4-Channel); Arc 2+D (5-Channel); Arc Full (8-Channel); Special 1 (15-Channel); Special 2 (9-Channel)
Data Connections
6.25 ft (1.9 m) waterproof cable; bare wired to hardwired
Fixture Setup
RDM Only
Standalone Control
Yes
Recommended Control Cable
Gepco DLC224
ELECTRICAL SYSTEM SPECIFICATIONS
Input Voltage
100 to 277 VAC; 50/60 Hz (auto-ranging)
Power and Current
315 W; 2.65 A @ 120 V 60 Hz; 312 W; 1.60 A @ 208 V 60 Hz; 312 W; 1.47 A @ 230 V 50 Hz; 255 W; 1.18 A @ 277 V 60 Hz
THERMAL SPECIFICATIONS
BTUs
1,092 BTUs/hr @ 120 V 60 Hz; 1,075 BTUs/hr @ 208 V 60 Hz; 1,075 BTUs/hr @ 230 V 50 Hz; 1,068 BTUs/hr @ 277 V 50 Hz
Cooling
Convection
Maximum Surface Temperature
167 °F (75 °C)
Minimum Distance To Flammable Surface
0.98 ft (0.3 m)
Minimum Distance To Illuminated Surface
3.28 ft (1 m)
Operating Temperature Range
-40 °F to 113 °F (-40 °C to 45 °C)
Startup Temperature Range
-4 °F to 113 °F (-20 °C to 45 °C)
REGULATORY & VOLUNTARY QUALIFICATION
Certification Listings
MET; CE; RoHS; FCC; CB
Environment Locations
IP67; outdoor/wet; pressure equalizing M12 GORE valve
Impact Resistance Rating
IK10
Installation Orientation
Any
Vibration Rating
3G
Warranty
36-month manufacturer’s limited warranty (covered regions only)
Wind Load Rating
1.14 ft²
ACCESSORIES
Included
Filter Frame
Optional
Medium filter; Wide filter; Very Wide; Asymmetrical Filter
Required
RDM Device
