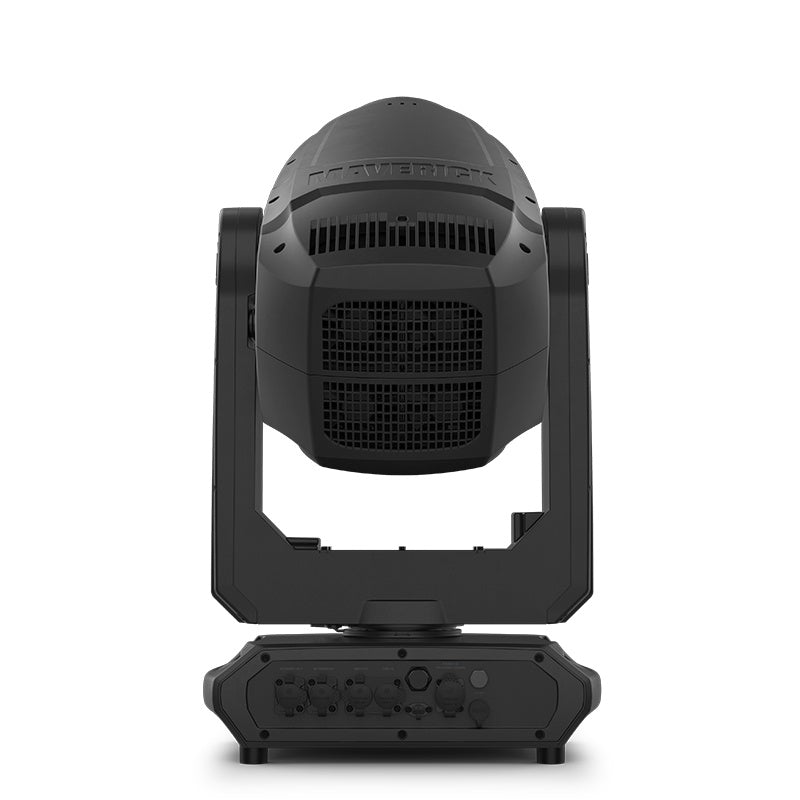

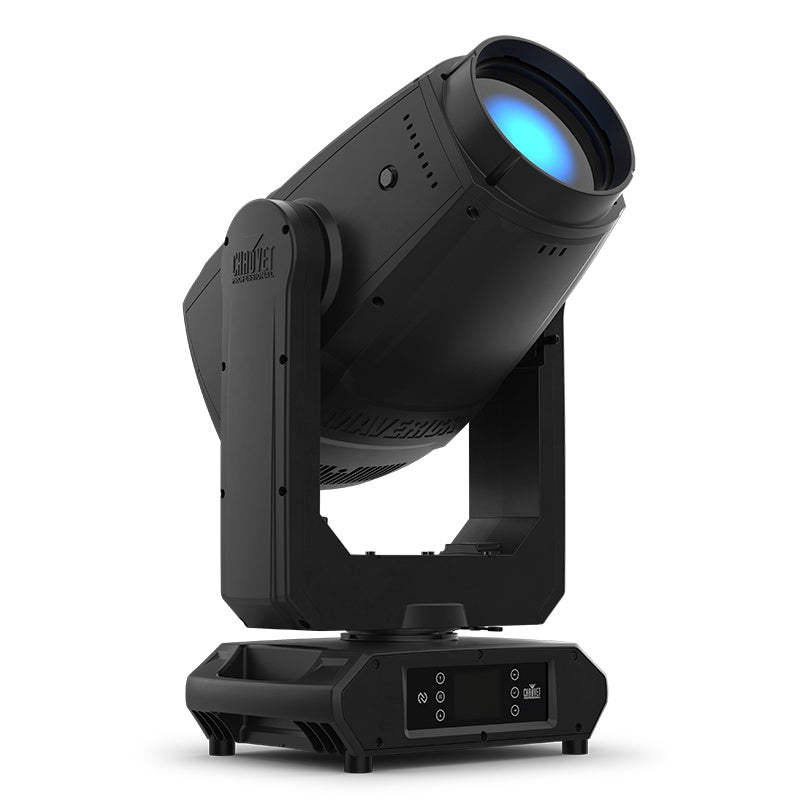

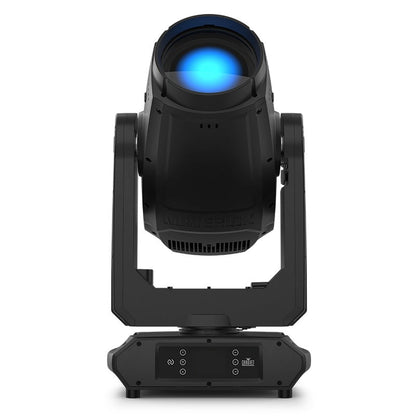

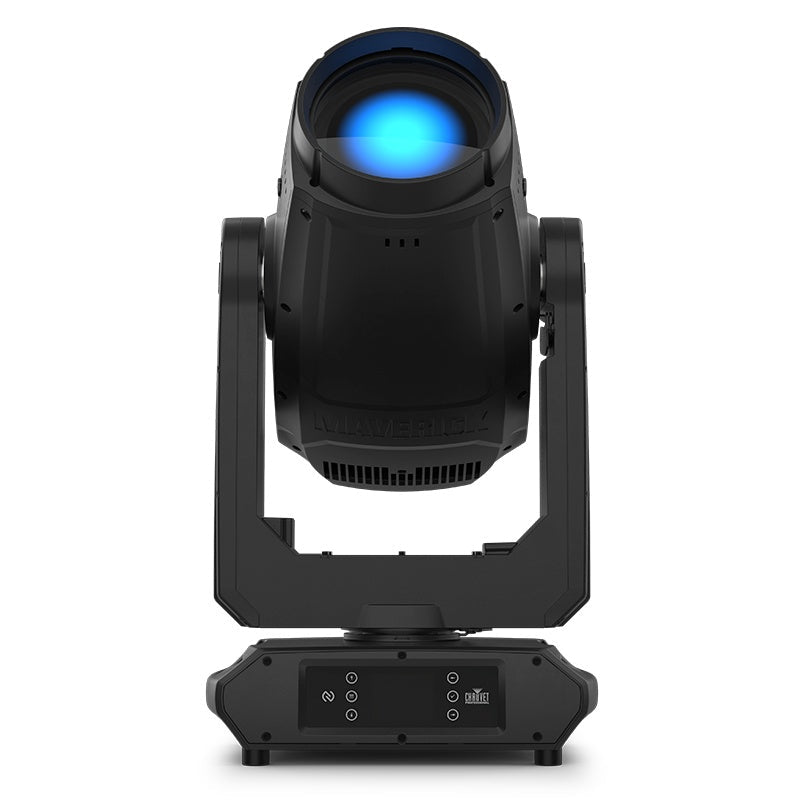

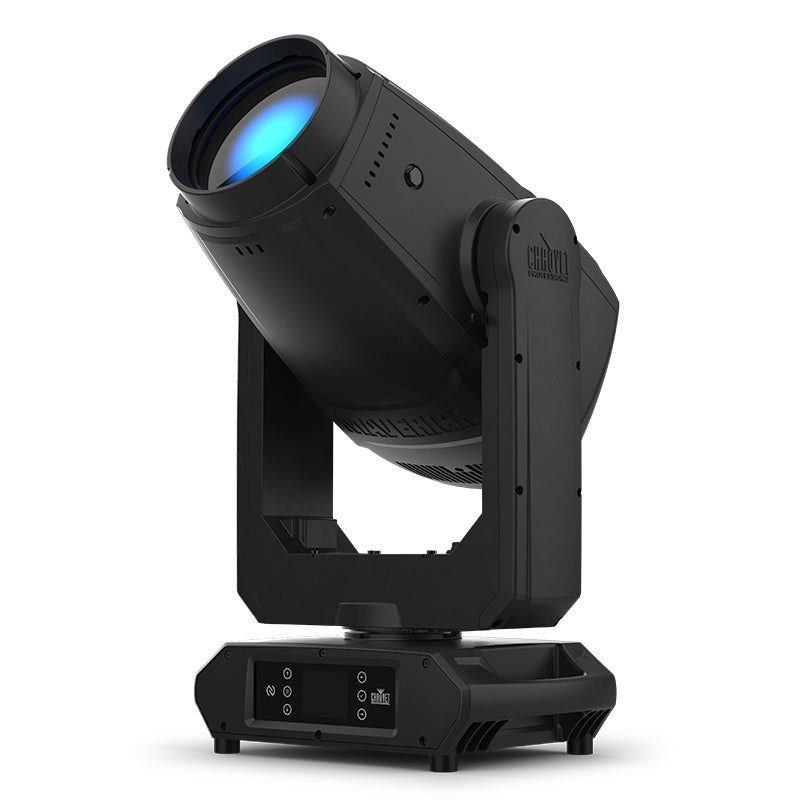

Chauvet Pro Maverick Storm 3 Profile Moving Fixture

Chauvet Pro Maverick Storm 3 Profile Moving Fixture

SoundPro Item: 203104 | Part Number: MAVERICKSTORM3PROFILE

$10,192.50
$11,417.00 $10,192.50
Your Price Sold out
MSRP: $11,417.00 | MAP: $10,192.50

Usually ships in 5-7 business days

  • Fully-featured, compact, and lightweight IP65 620 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 18:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, and integrated sun shield
  • 16-bit dimming of master dimmer for smooth control of fades
  • 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • CRI and CTB filters on color wheel for added flexibility
  • One rotating, indexing, and interchangeable slot and lock gobo wheel
  • One static gobo wheel
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM control over DMX for fixture reporting
  • 3.5° to 57.7° (18:1) zoom range for variable beam sizes
  • Iris, 5-facet prism and frost for beam control
  • True 1 compatible power input
  • Integrated sun shield for protecting the optical path from sunlight when the fixture is off
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation
  • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
  • NFC for quick and easy fixture setup in the shop or in the field
Log in or register for YOUR best price

With an 18:1 zoom and a full armory of features, Maverick Storm 3 Profile is a compact IP65 moving profile with incredible reach. This lightweight powerhouse combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Harness over 30,000 lumens of output as you go from a narrow 3.5° beam to a wide 57.7° spot. Freely create with its exquisitely sharp framing shutter system and a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down

View full details

Specifications

Optical
Light Source
1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
Color Temperature (at full)
7062 K
CRI
72.3
CRI with CRI Filter
90.2
Front Lens Diameter
165 mm
Beam Angle
3.5° to 51.5°
Field Angle
4.1° to 54.3°
Cutoff Angle
4.3° to 57.7°
Zoom Range
3.5° to 57.7°
Lumens – Output
34,500 lm
Illuminance (3.5°) 165,664 lux @ 5 m
Illuminance (56.7°) 2,173 lux @ 5 m
PWM Frequency
600Hz, 1500Hz, 2000Hz, 65,000Hz
Dynamic Effects
Pan and Tilt
540°/270°
Pan and Tilt Ranges
540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors
7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors
CMY wheel, CTO wheel
Gobos (1)
7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2)
9 + open (glass), continuous scroll at variable speeds
Gobo Size
Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
Framing Shutters
4 Blades, each with dual axis movement, Full blackout.
Framing Shutter rotation
+/- 60° rotation.
Dimmer
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized
Focus
Motorized
Frost
Motorized
Iris
Motorized
Animation
Motorized
Prism
5 Facets, motorized, rotating
Strobe Rate
0 to 25 Hz
Move-in-Black
Yes
Dim Curves
4
Construction / Physical
Dimensions
15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
Weight
69 lb (31.3kg)
Exterior Color
Black
Housing Material
Aluminum diecast, High-impact flame-retardant polymer, Steel
Connections
Power Connection
Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Data Connectors
5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
Cable Length (power)
5 ft (1.5 m)
Control
Control Protocol
Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels
34 or 50
Art-Net Channels
34 or 50
Modes/Personalities
2 personalities (34, 50)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
1020 W, 8.5 A @ 120 V, 60 Hz
Power and Current
1020 W, 4.82 A @ 208 V, 60 Hz
Power and Current
1010 W, 4.39 A @ 230 V, 50 Hz
Fuse
F15 AL, 250 V
Battery
Certifications / Qualifications
CE, MET, FCC, CB, UKCA
IP Rating
IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
What's Included
Maverick Storm 3 Profile
1
Seetronic Powerkon IP65 power cord to Edison
1
Omega bracket with mounting hardware
1
