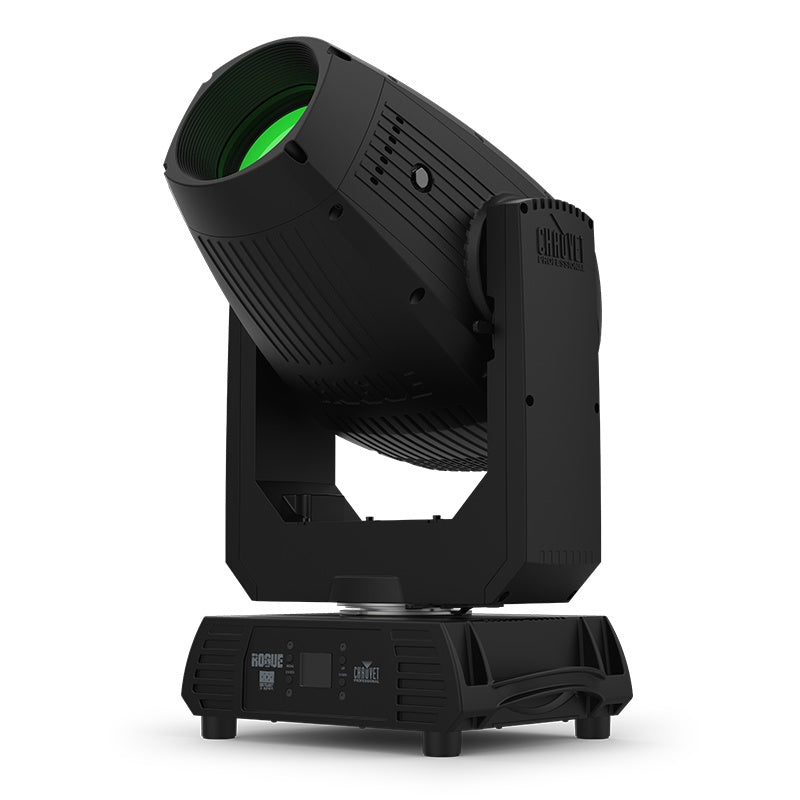

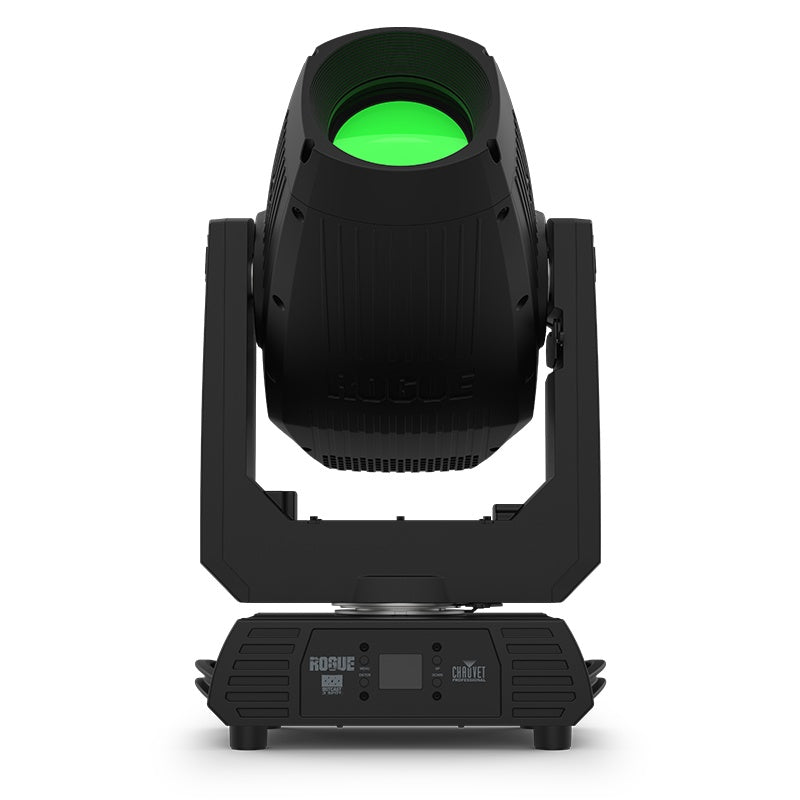

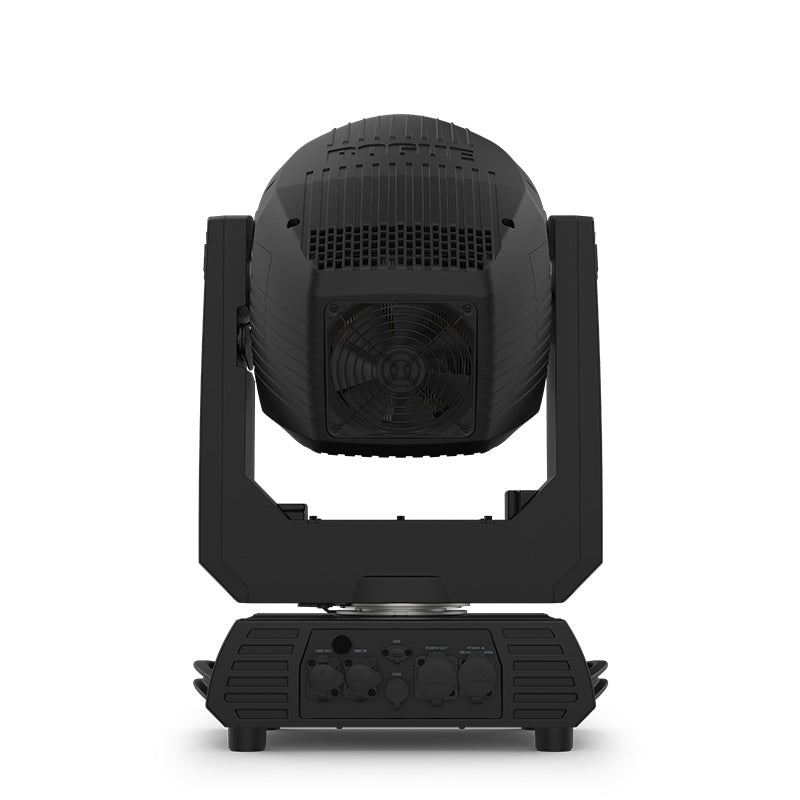

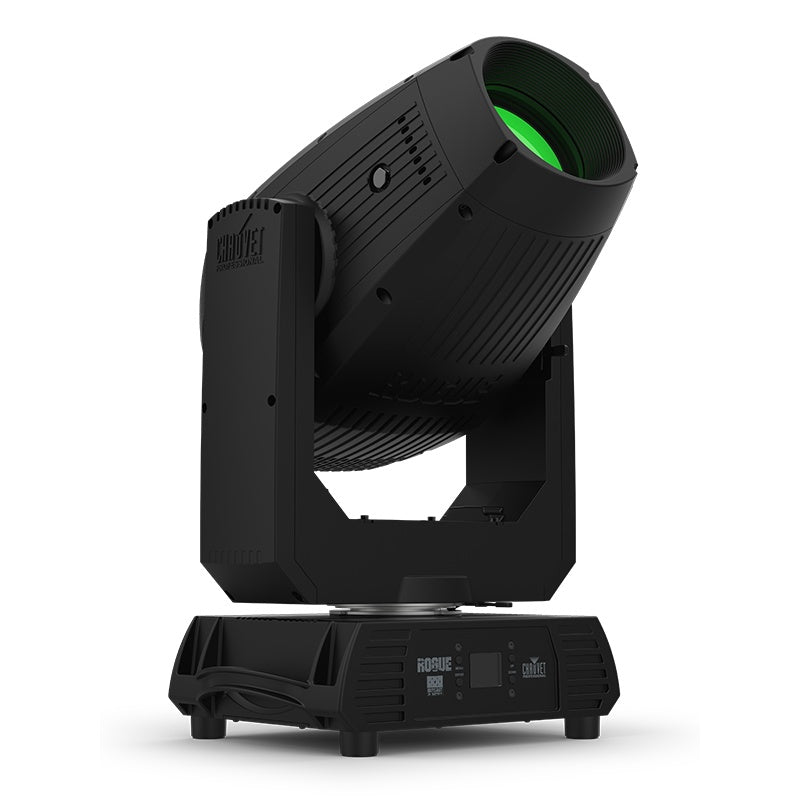

Chauvet Pro Rogue Outcast 3 Spot-2 Moving Head Light

Chauvet Pro Rogue Outcast 3 Spot-2 Moving Head Light

SoundPro Item: 203105 | Part Number: ROGUEOUTCAST3SPOT-2

$3,990.00
$4,788.00 $3,990.00
Your Price Sold out
MSRP: $4,788.00 | MAP: $3,990.00

Usually ships in 5-7 business days

  • IP 65 rated LED Spot with (2) color wheels, a static and rotating gobo wheel, motorized zoom, Iris, 5 facet prism, encased in a lightweight aluminum and magnesium alloy
  • Zoom range of 4.5° to 40.4°to easily cover stages and surfaces from a distance
  • Perfect gobo morphing between gobo wheels
  • Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
  • Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris, 5-facet prism, and frost for beam control
  • Beautiful 16-bit LED dimming for ultimate fade control
  • IP65 rated power input/output connections for power linking
  • 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable PWM settings to maintain flicker free operation on camera
  • Simple and complex DMX channel profiles for programming versatility
  • USB-C port for uploading software
Log in or register for YOUR best price

Rogue Outcast 3 Spot is a compact IP65 LED moving head that combines lightweight alloy technology with a wheelhouse that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage. Iris, prism and frost round out its effects, and its durable housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

View full details

Specifications

Optical
Light Source
1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy
Color Temperature (at full)
7044 K
Front lens diameter
119 mm
CRI
70
Beam Angle
4.9° to 33.7°
Field Angle
5.5° to 38°
Cutoff Angle
5.6° to 38.7°
Zoom Range
4.9° to 38.7°
Lumens – Source
20,000
Lumens – Output
14,989
Illuminance (4.9°)
56,916 lux @ 5 m
Illuminance (38.7°) 2,145 lux @ 5 m
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt
540°/270°
Pan and Tilt Ranges
180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors (1)
7 + white, split colors, continuous scroll at variable speeds
Colors (2)
7 + white, split colors, continuous scroll at variable speeds
Gobos (1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2)
8 + open (8 metal), continuous scroll at variable speeds
Gobo Size
Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
Gobo Size
Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
Dimmer
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized
Focus
Motorized
Frost
Motorized
Iris
Motorized
Prism
5 Facets, motorized, rotating
Strobe Rate
0 to 20 Hz
Move in Black
Yes
Construction / Physical
Dimensions
14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
Weight
51 lb (23.2 kg)
Exterior Color
Black
Housing Material
High-impact flame-retardant polymer
Connections
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin XLR
Cable Length (power)
5 ft (1.5 m)
Control
Control Protocol
DMX, RDM
DMX Channels
20 or 25
Modes/Personalities
2 personalities (20, 25)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking
2 units @ 100 V; 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V; 6 units @ 240 V
Power and Current
510 W, 5.13 A @ 100 V, 60 Hz
Power and Current
506 W, 4.24 A @ 120 V, 60 Hz
Power and Current
493 W, 2.43 A @ 208 V, 60 Hz
Power and Current
494 W, 2.19 A @ 230 V, 50 Hz
Power and Current
494 W, 2.12 A @ 240 V, 50 Hz
Certifications / Qualifications
CE, MET, UKCA
IP Rating
IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve Noise Level (Idle): 24.2 dB(A) @ 1 m Noise Level (Max): 33.9 dB(A) @ 1 m Noise Level (Auto): 34.5 dB(A) @ 1 m Noise Level (Eco): 31.0 dB(A) @ 1 m Noise Level (Full): 46.9 dB(A) @ 1 m
Temperature (Ambient)
-14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc)
80° C / 176° F
Maximum Ambient Temperature (ta)
45° C / 113° F
What's Included
Rogue Outcast 3 Spot
1
Seetronic Powerkon IP65 power cord
1
Omega brackets with mounting hardware
2
