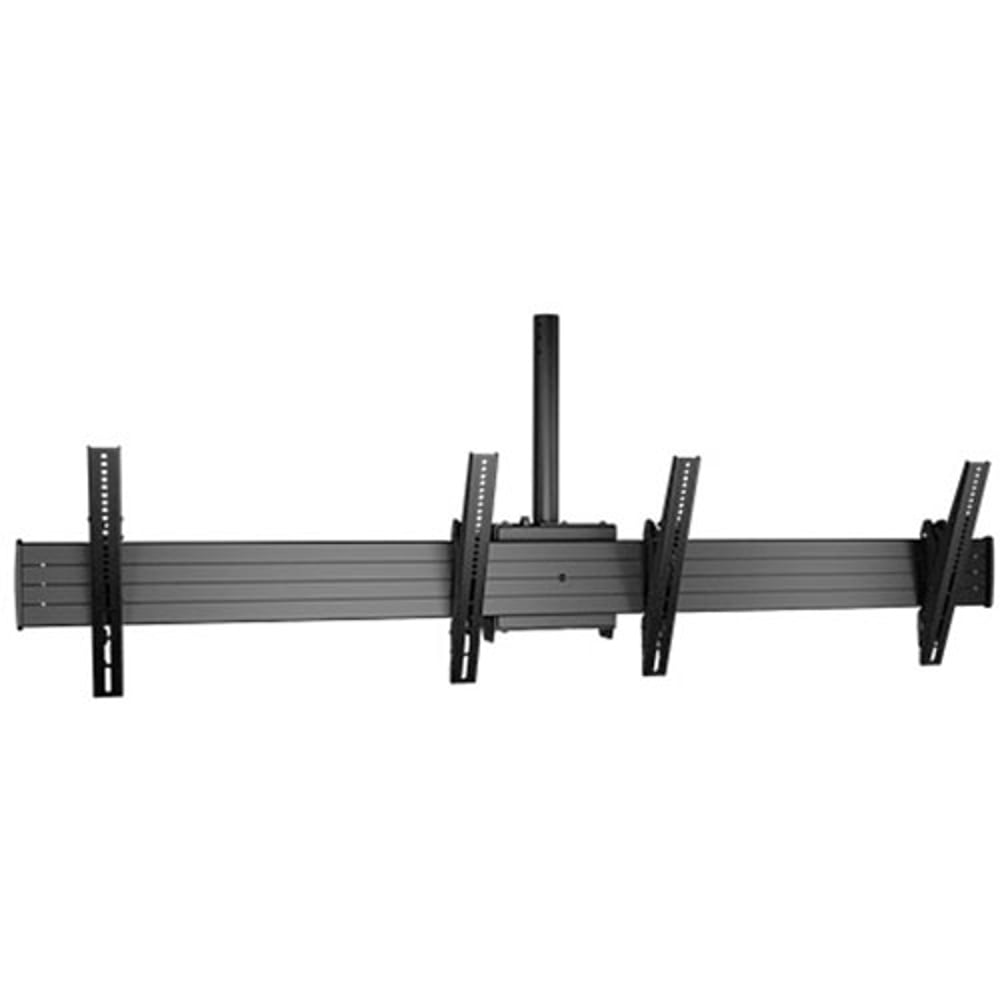

Chief LCM2X1U 2 X 1 Ceiling Mounted 2 X 1 Menu Board Array Assembly

Chief LCM2X1U 2 X 1 Ceiling Mounted 2 X 1 Menu Board Array Assembly

SoundPro Item: 67046 | Part Number: LCM2X1U

$910.40
$1,138.00 $910.40
Your Price Sold out
MSRP: $1,138.00 | MAP: $910.40

Usually ships in 5-7 business days

  • Can withstand a maximum weight of 125 lb
  • Supports the screen size of 55"
  • 360 degree swivel for optimal viewing angles
  • Single horizontal extrusion keeps screens aligned
  • Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
  • Tool-free screen engagement
  • Secure displays with optional pad-lock security
  • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
  • CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
  • See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
  • See CPA ceiling plates and CPA columns for pin conection compatibility
Log in or register for YOUR best price

Chief's FUSION ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations. Screen array configuration: screens wide x screens high. Confirm screen compatibility with MountFinder™

View full details

Specifications

'General Information
Manufacturer
Chief Manufacturing
Manufacturer Part Number
LCM2X1U
Brand Name
Chief
Product Line
FUSION
Product Model
LCM2X1U
Product Name
FUSION Large Ceiling Mounted 2 x 1 Menu Board
Product Type
Ceiling Mount
Product Information
Device Supported
Digital Signage Appliance
Flat Panel Display
Maximum Load Capacity
125.00 lb
Minimum Screen Size Supported
40"
Maximum Screen Size Supported
55"
Features
Tilt
Swivel
Physical Characteristics
Color
Black
Miscellaneous
Package Contents
1 x FUSION Large Ceiling Mounted 2 x 1 Menu Board 2 x Interface Bracket Hardware Kit 4 x Interface Bracket 1 x Back Cover 1 x Bottom Stop Collar 1 x Bottom Coupling Mounting Hardware
Additional Information
Tool-free screen engagement Single drop for fast installation Secure displays with optional pad-lock security Single horizontal extrusion keeps screens aligned Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 400 mm
Compatibility
1.5" NPT Thread Chief CPA Pinned Ceiling Plates Chief CPA Pinned Column Systems
Certifications & Standards
UL
Recycled
Yes
Post-consumer-waste%
30%
Warranty
Limited Warranty
10 Year
