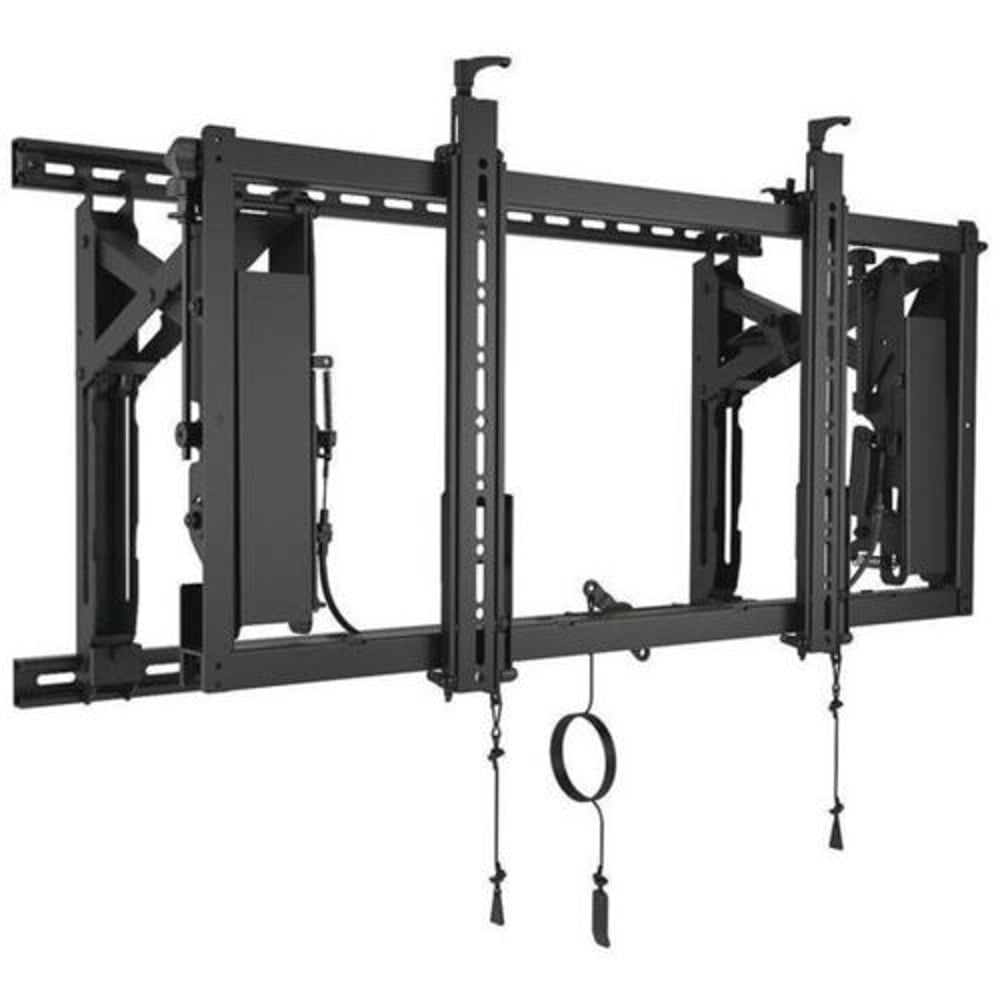

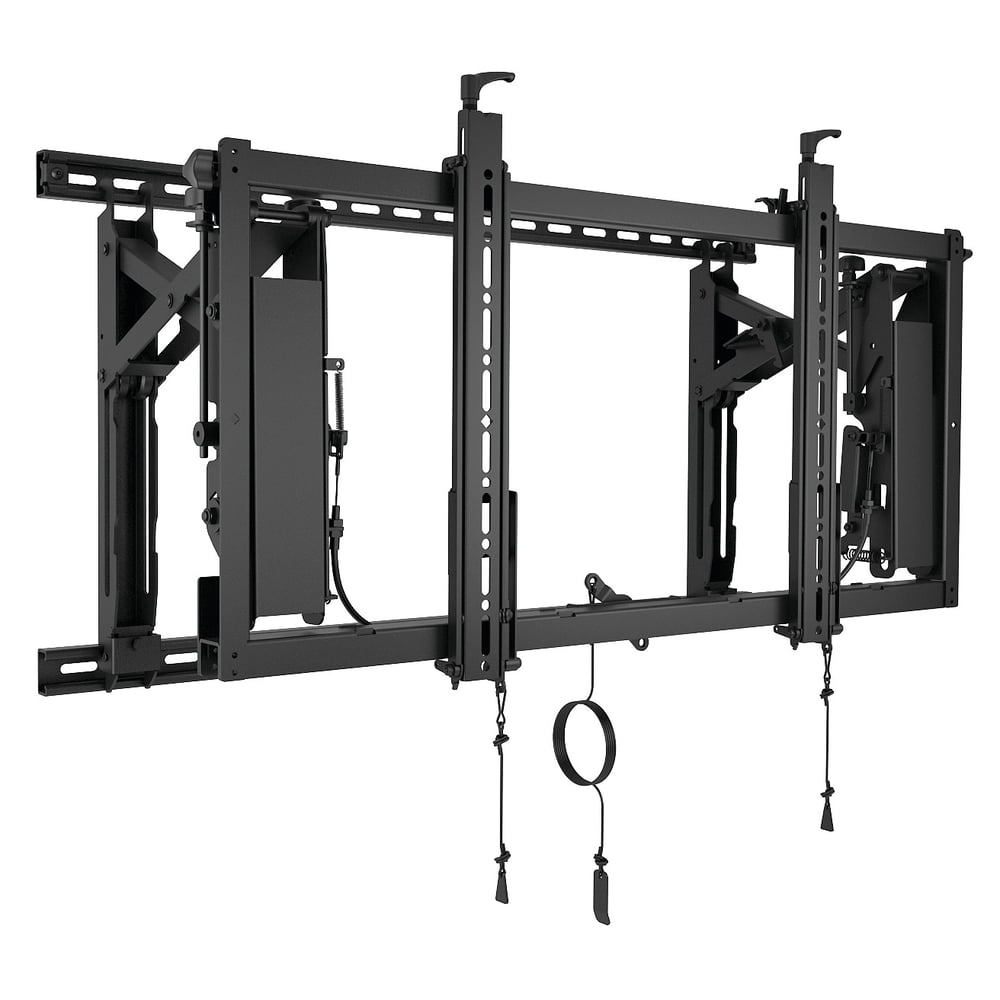

Chief LVS1U Connexsys Video Wall Landscape Mounting System With Rails

Chief LVS1U Connexsys Video Wall Landscape Mounting System With Rails

SoundPro Item: 67150 | Part Number: LVS1U

$743.20
$929.00 $743.20
Your Price Sold out
MSRP: $929.00 | MAP: $743.20

Usually ships in 5-7 business days

  • Sustains a maximum load capacity of 150 lb
  • Supports 80" displays
  • Suits the screens with 200 x 100 mounting hole pattern
  • Tool-free ClickConnect latching secures displays
  • PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount
  • PowerZone Adjustments
  • Tilt adjustment at single pivot point, protects displays from twisting
  • Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
  • Both sides adjust independently, compensating for imperfections in the wall
  • RapidDraw Display Release
  • UL Listed
  • 150 lbs. weight capacity
Log in or register for YOUR best price

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

View full details

Specifications

'General Information
Manufacturer
Chief Manufacturing
Manufacturer Part Number
LVS1U
Brand Name
Chief
Product Line
ConnexSys
Product Model
LVS1U
Product Name
ConnexSys Video Wall Landscape Mounting System with Rails
Product Type
Wall Mount
Product Information
Device Supported
Flat Panel Display
Maximum Load Capacity
150 lb
Minimum Screen Size Supported
42"
Maximum Screen Size Supported
80"
Maximum Adjustable Width
13.40"
Maximum Adjustable Height
1"
Maximum Adjustable Depth
7.40"
Features
Leveling System
Adjustable Height
Tilt
Lateral Adjustment
Lockable
Adjustable Depth
Physical Characteristics
Color
Black
VESA Mount Standard
200 x 100
700 x 400
Height
21.8"
Width
35.5"
Depth
4"
Miscellaneous
Additional Information
SPEED Hang units on a single strut channel for quick row leveling No need for horizontal spacers Vertical measurement is simply the height of the display to the next rail Compatible with most 1-5/8" sizes of channel strut Reduces installation time - especially for XL and recessed configurations Tool-free ClickConnect™ latching secures displays PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount ALIGNMENT PowerZone™ Adjustments Height adjustment ±1" on each interface Tilt adjustment at single pivot point, protects displays from twisting Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations Both sides adjust independently, compensating for imperfections in the wall Walls can be out of alignment by up to 2" (horizontally) 3 levels of lateral adjustment Mount left/right along rail Interface left/right along mount Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions SERVICEABILITY RapidDraw™ Display Release Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service Protects displays by not requiring an aggressive push to release/pop-out Releases only on demand, preventing accidental pop-outs Cord can be set up to pull for release from any 90 degree angle Kickstand provides 20 degrees of bottom tilt access RIGIDITY Rigid frame keeps displays where you set them, even after extending for service Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
Warranty
Limited Warranty
10 Year
