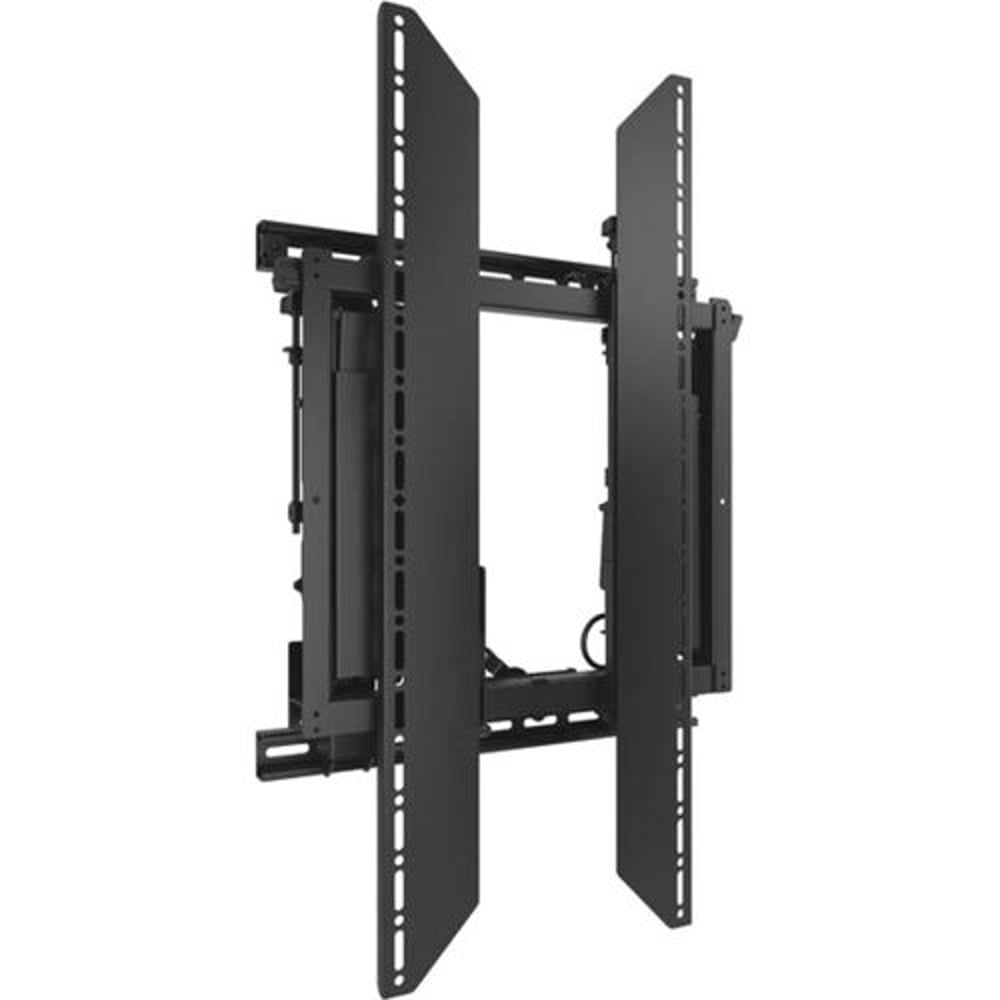

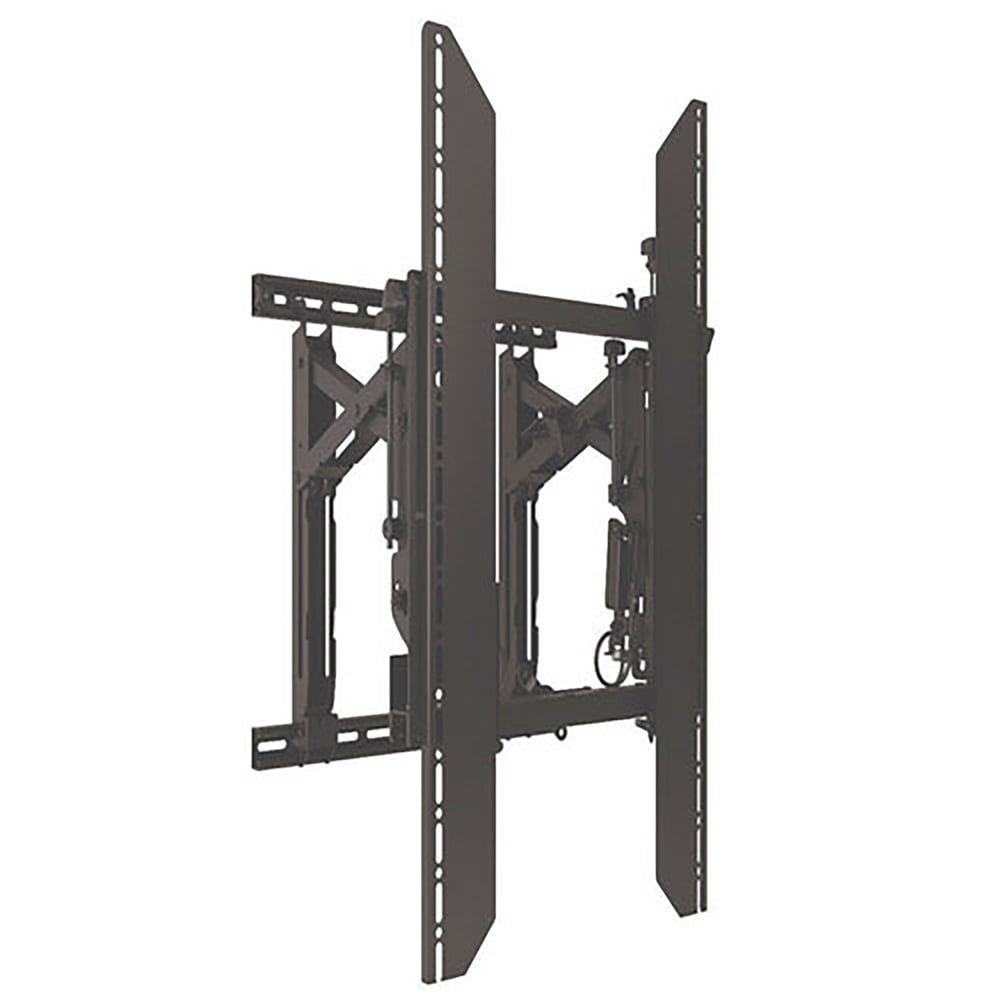

Chief LVS1UP Connexsys Video Wall System Port With Rails

Chief LVS1UP Connexsys Video Wall System Port With Rails

SoundPro Item: 67168 | Part Number: LVS1UP

$743.20
$929.00 $743.20
Your Price Sold out
MSRP: $929.00 | MAP: $743.20

Usually ships in 5-7 business days

  • Device Supported: Flat Panel Display
  • Number of Displays Supported: 1
  • Maximum Load Capacity: 150 lb
  • Minimum Screen Size Supported: 40"
  • Maximum Screen Size Supported: 80"
  • Height Adjustable: Yes
  • Features: Tilt
  • Features: Lateral Adjustment
  • Features: Adjustable Depth
  • Maximum Adjustable Depth: 13.40"
  • Product Color: Black
  • VESA Mount Compatible: Yes
  • Height: 32.5"
  • Width: 19.5"
  • Depth: 4"
  • Compatibility: TV
  • Country of Origin: China
  • Limited Warranty: 10 Year
  • Limited Warranty: 10 Year
  • Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
Log in or register for YOUR best price

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements. The LVS1UP ConnexSys Video Wall system portrait mount ships with rails for each mount.

View full details

Specifications

'General Information
Manufacturer
Chief Manufacturing
Manufacturer Part Number
LVS1UP
Brand Name
Chief
Product Model
LVS1UP
Product Name
ConnexSys Video Wall Portrait Mounting System with Rails
Product Type
Wall Mount
Product Information
Device Supported
Flat Panel Display
Maximum Load Capacity
150 lb
Minimum Screen Size Supported
40"
Maximum Screen Size Supported
80"
Maximum Adjustable Depth
13.40"
Features
Adjustable Depth
Lateral Adjustment
Tilt
Adjustable Height
Physical Characteristics
Color
Black
VESA Mount Compatible
Yes
VESA Mount Standard
800 x 400
200 x 100
Height
32.5"
Width
19.5"
Depth
4"
Miscellaneous
Additional Information
Compatible with most 1-5/8" sizes of channel strut Reduces installation time - especially for XL and recessed configurations Tool-free ClickConnect latching secures displays PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount Height adjustment ±1" on each interface Tilt adjustment at single pivot point, protects displays from twisting Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service Security - pad lock 1/4" shank diameter
Compatibility
TV
Warranty
Limited Warranty
10 Year
