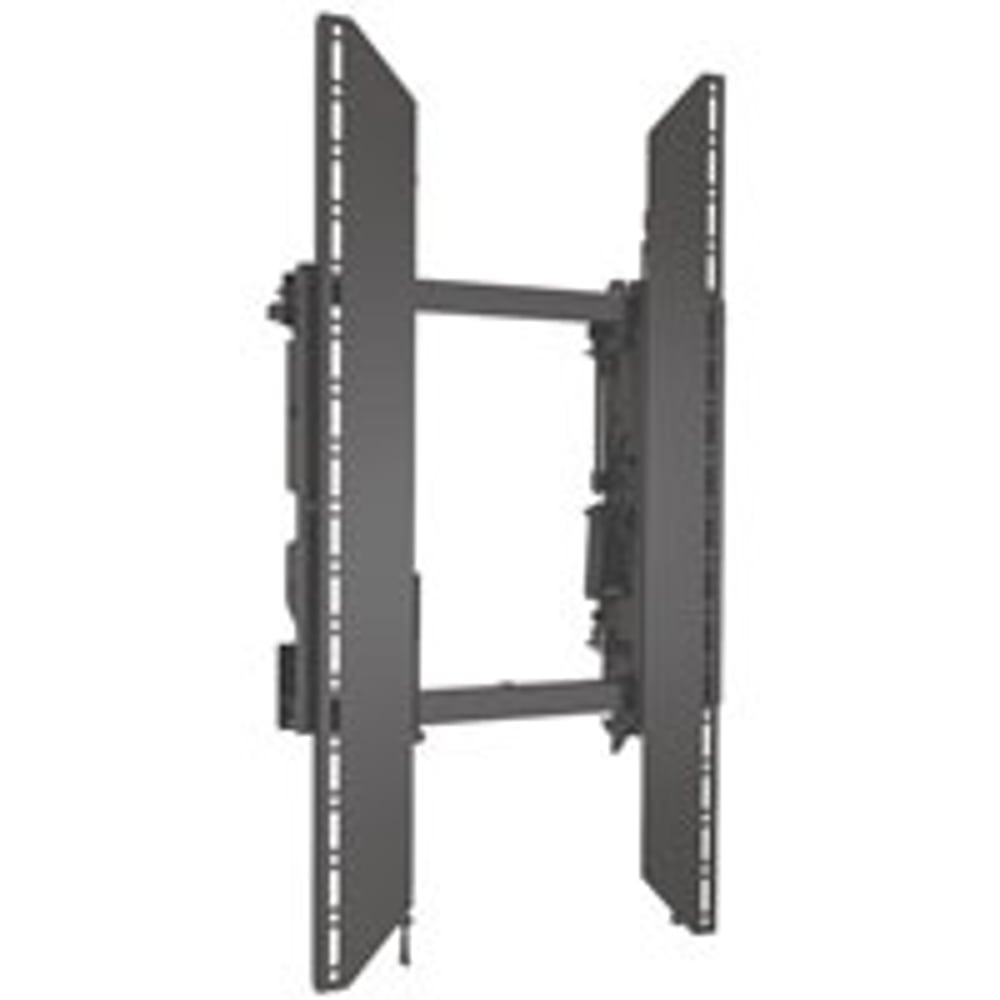

Chief LVSXUP Connexsys Video Wall System Port Without Rails

Chief LVSXUP Connexsys Video Wall System Port Without Rails

SoundPro Item: 67172 | Part Number: LVSXUP

$725.60
$907.00 $725.60
Your Price Sold out
MSRP: $907.00 | MAP: $725.60

Usually ships in 5-7 business days

  • Device Supported: Flat Panel Display
  • Maximum Load Capacity: 150 lb
  • Minimum Screen Size Supported: 40"
  • Maximum Screen Size Supported: 80"
  • Height Adjustable: Yes
  • Features: Leveling System
  • Features: Adjustable
  • Features: Tilt
  • Features: Lateral Adjustment
  • Features: Adjustable Depth
  • Maximum Adjustable Depth: 7.40"
  • Product Color: Black
  • Mounting Pattern: 200 x 100
  • Mounting Pattern: 800 x 400
  • Height: 32.5"
  • Width: 19.5"
  • Depth: 4.1"
  • Country of Origin: China
  • Limited Warranty: 10 Year
  • Security - pad lock 1/4" shank diameter
Log in or register for YOUR best price

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

The LVSXUP ConnexSys Video Wall system portrait mount ships without rails. Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.

View full details

Specifications

'General Information
Manufacturer
Chief Manufacturing
Manufacturer Part Number
LVSXUP
Brand Name
Chief
Product Line
ConnexSys
Product Model
LVSXUP
Product Name
ConnexSys Video Wall Portrait Mounting System without Rails
Product Type
Wall Mount
Product Information
Device Supported
Flat Panel Display
Maximum Load Capacity
150 lb
Minimum Screen Size Supported
40"
Maximum Screen Size Supported
80"
Maximum Adjustable Width
13.40"
Maximum Adjustable Height
4"
Maximum Adjustable Depth
7.40"
Features
Lateral Adjustment
Adjustable Depth
Leveling System
Adjustable
Adjustable Height
Tilt
Physical Characteristics
Color
Black
VESA Mount Standard
200 x 100
800 x 400
Height
32.5"
Width
19.5"
Depth
4.1"
Miscellaneous
Additional Information

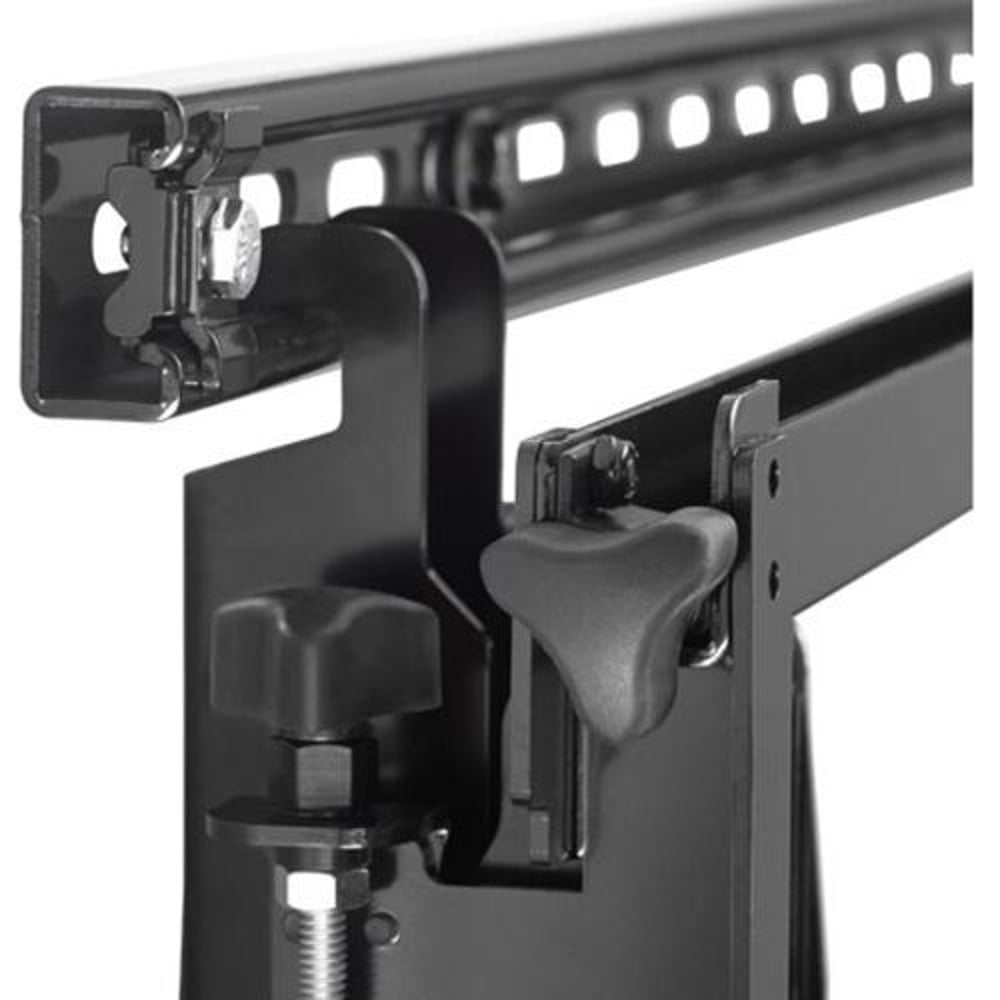

SPEED Hang units on a single strut channel for quick row leveling No need for horizontal spacers Vertical measurement is simply the height of the display to the next rail Compatible with most 1-5/8" sizes of channel strut Reduces installation time - especially for XL and recessed configurations Tool-free ClickConnect™ latching secures displays PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount ALIGNMENT PowerZone™ Adjustments Height adjustment ±1" on each interface Tilt adjustment at single pivot point, protects displays from twisting Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations Both sides adjust independently, compensating for imperfections in the wall Walls can be out of alignment by up to 2" (horizontally) 3 levels of lateral adjustment Mount left/right along rail Interface left/right along mount Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions SERVICEABILITY RapidDraw™ Display Release Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service Protects displays by not requiring an aggressive push to release/pop-out Releases only on demand, preventing accidental pop-outs Cord can be set up to pull for release from any 90 degree angle Kickstand provides 20 degrees of bottom tilt access RIGIDITY Rigid frame keeps displays where you set them, even after extending for service Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
Warranty
Limited Warranty
10 Year
