Chief PDRUB Large Dual Arm W/Universal

Chief PDRUB Large Dual Arm W/Universal

SoundPro Item: 68146 | Part Number: PDRUB

$1,020.00
$1,275.00 $1,020.00
Your Price Sold out
MSRP: $1,275.00 | MAP: $1,020.00

Usually ships in 5-7 business days

  • Sustains a maximum load capacity of 200 lb
  • Supports 71" displays
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation
  • Compatible with 42" - 71" screen size
  • Landscape or portrait orientation
  • UL Listed
Log in or register for YOUR best price

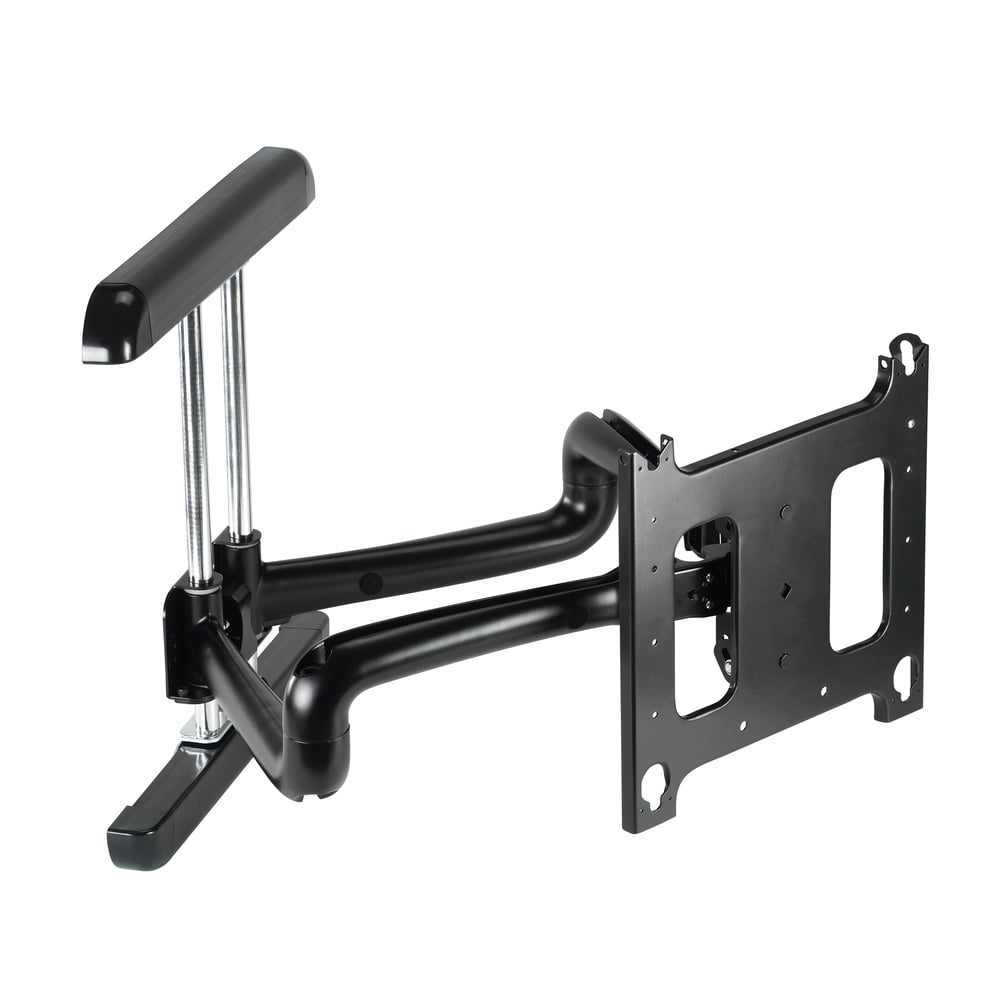

With Chief Manufacturing PDRUB you can view large flat panel displays from any angle with this Dual Arm Wall Mount. This custom mounting solution swings out and extends over 37" (93.98 cm) from the wall, while remaining low profile in the home position! It includes all of the standard features you can expect from a Chief mount, plus several new exclusive features developed specifically for this mount.

View full details

Specifications

'General Information
Manufacturer
Chief Manufacturing
Manufacturer Part Number
PDR-UB
Brand Name
Chief
Product Series
PDR
Product Model
PDR-UB
Product Name
PDR-UB Universal Dual Arm Wall Mount
Product Type
Arm
Product Information
Load Capacity
200 lb Maximum
Physical Characteristics
Color
Black
Dimensions
24.25" Height x 39.5" Width x 2.88" Depth
Miscellaneous
Package Contents
PDR Universal Dual Arm Wall Mount Includes: 2 x Cover Plates 4 x End Caps 12 x Tiewraps 1 x Wrench, Adjustment 1 x Bar, Adjustment
Additional Information
Tilt: +5 degree , -15 degree Roll: 4 degree Easy Installation - Wall bracket can be placed on wall using convenient mount guides Gravity-Centered Tilt No tools necessary for position adjustments Integrated Lateral Shift Up to 9" (229 mm) - 2" (51 mm) left/right of 16" (406 mm) stud system without disassembly Built-In Cable Management Channels inside the arms provide a clean installation Q-Latch Mounting System Used on all Chief Large Flat Panel Mounts, this system uses a lockable latch to safely secure display to the mount Unmatched Extension, Remains Low-Profile in Home Position Extends 37" (93.98 cm) Height Adjustment Post-installation height adjustment up to 3" (76 mm) for ultimate installation flexibility Independently Adjustable Tension at Pivot Points Provides customized control Wall protection Rubber stops protect the wall when arms are collapsed
Compatibility
Large Flat Panel Display
Warranty
Standard Warranty
10 Year
