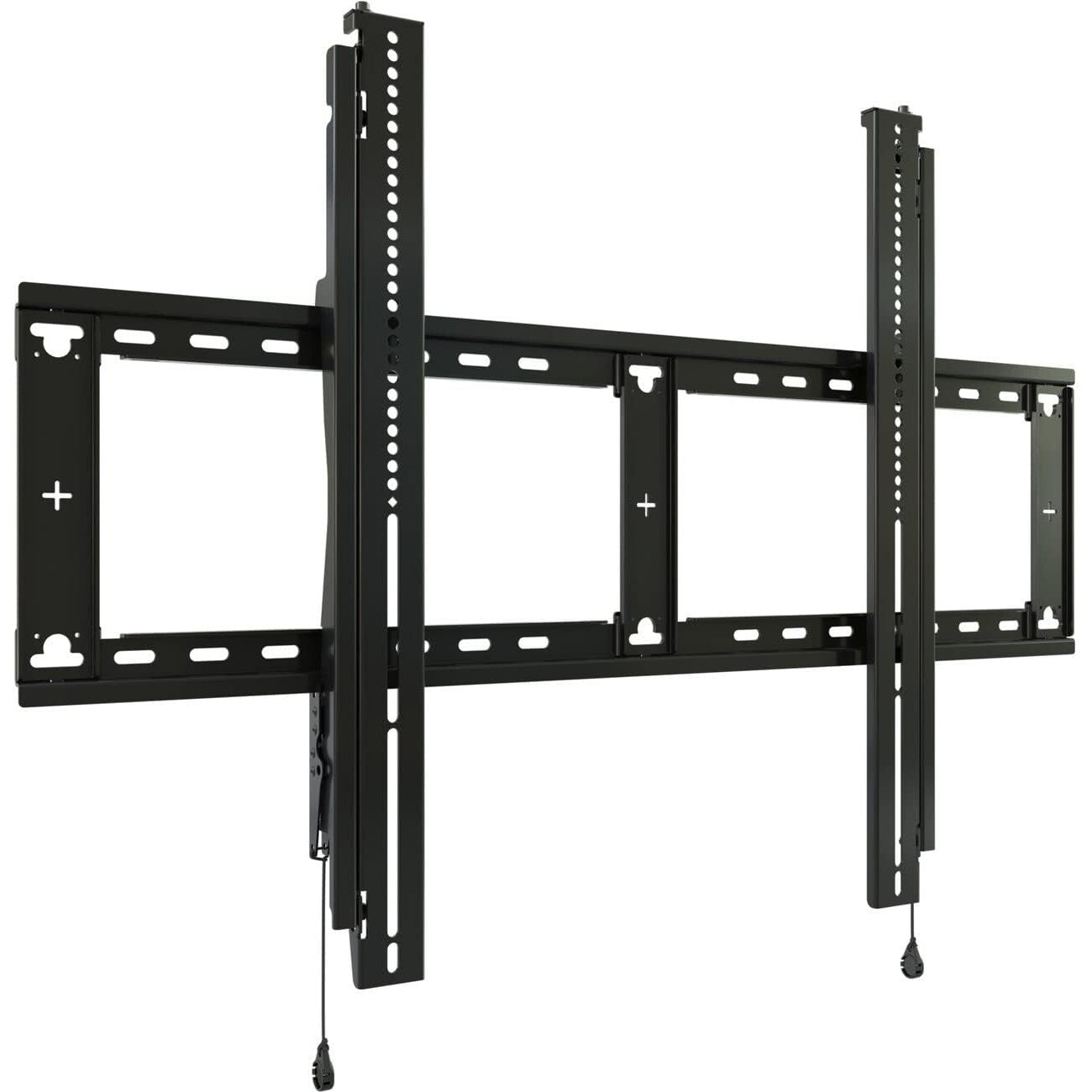

Chief RXF3 Extra Large Fixed Display Wall Mount | 49-98"

Chief RXF3 Extra Large Fixed Display Wall Mount | 49-98"

SoundPro Item: 207205 | Part Number: RXF3

$168.00
$210.00 $168.00
Your Price Sold out
MSRP: $210.00 | MAP: $168.00

Usually ships in 5-7 business days

  • UL Listed Safety Standard Compliance For Certified Installation In Regulated Environments
  • Toolless GlideLock Lateral Shift Enables Precise Screen Centering Without Removing Display
  • Magnetic Quick-Release Pullcords Provide Front-Access Service Without Reaching Behind Panel
  • Fold-Down Kickstand Grants Rear Connection Access During Maintenance Calls
  • Open Wall Plate Design Routes Around Existing Electrical And Data Boxes
  • Triple 16" Stud Compatibility Distributes Weight Across Standard Framing
Log in or register for YOUR best price

The Chief RXF3 delivers enterprise-grade fixed mounting for extra large format displays in commercial AV installations where space constraints and regulatory compliance intersect. Its 1.5" post-installation depth meets ADA projection requirements in most corridor and public space applications, while the open wall plate design routes around in-wall power and data boxes without relocating rough-ins. Integrators gain 0.75" of vertical adjustment after the display is hung, eliminating the need to unmount and reposition when final alignment is required across multi-screen video walls or mixed-use environments.

The redesigned wall plate distributes loads across triple 16" stud spacing and accommodates VESA patterns from 100 x 100 mm through 960 x 650 mm, covering the majority of 49-98" commercial displays at weights up to 250 lbs. GlideLock lateral shift enables centering the screen without tools, and magnetic quick-release pullcords provide access to the mount mechanism from the front of the display. A fold-down kickstand grants service access to rear panel connections without fully unmounting the unit, reducing maintenance time in high-volume deployments.

Downloads

View full details

Specifications

Certifications
UL Listed
Yes
TAA Compliant
No
Dimensions
Depth
1.5"
Height
27.05"
Width
38"
Overall Dimensions
27.05" x 38" x 1.5"
Minimum Depth
1.5"
Weight
Weight Capacity
250 lbs
Mounting
Typical Screen Size
49" - 98"
VESA Mounting Pattern
100 x 100mm - 960 x 650mm
Wall Stud Compatibility
Triple 16"
Orientation
Landscape
Adjustability
Fixed
Manual Height Adjustment
0.75"
Construction
Color
Black
Application
Wall
Solution Type
Universal
Shipping
Shipping Weight
18.04 lbs
Identifiers
UPC
841872176680
