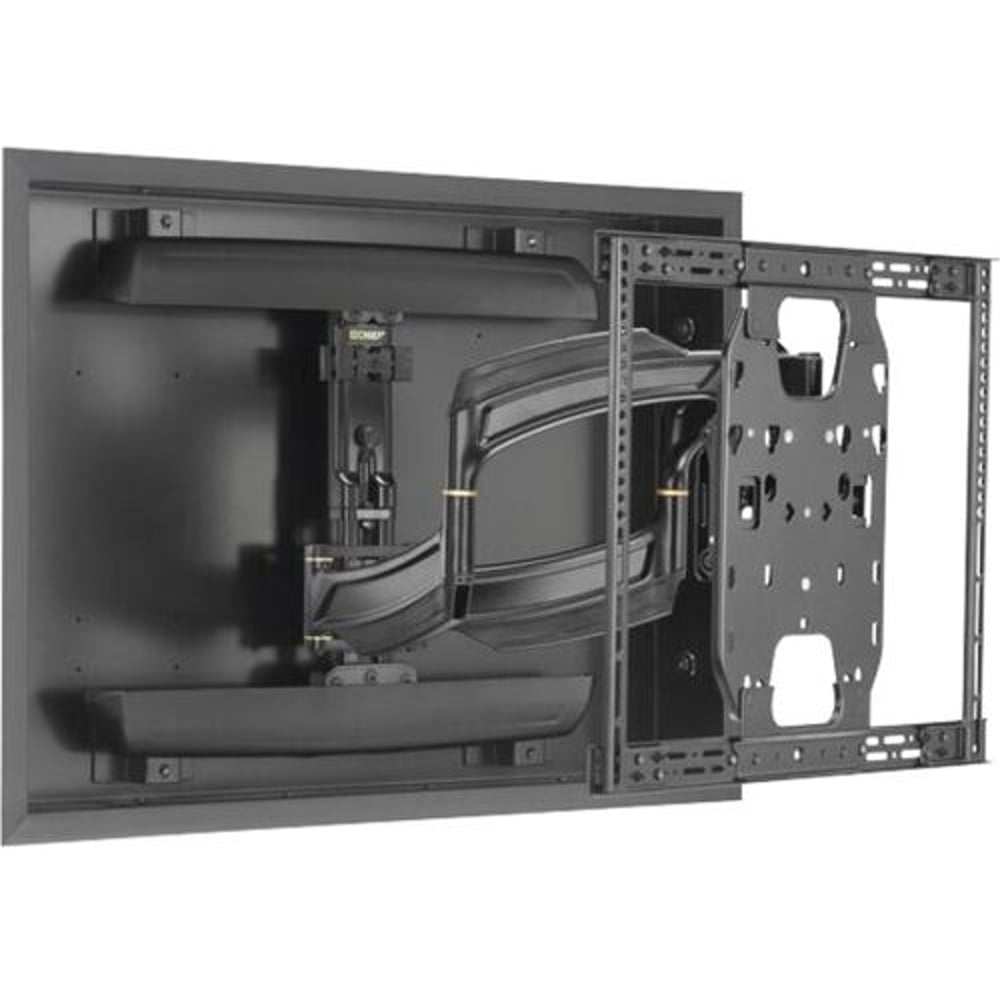

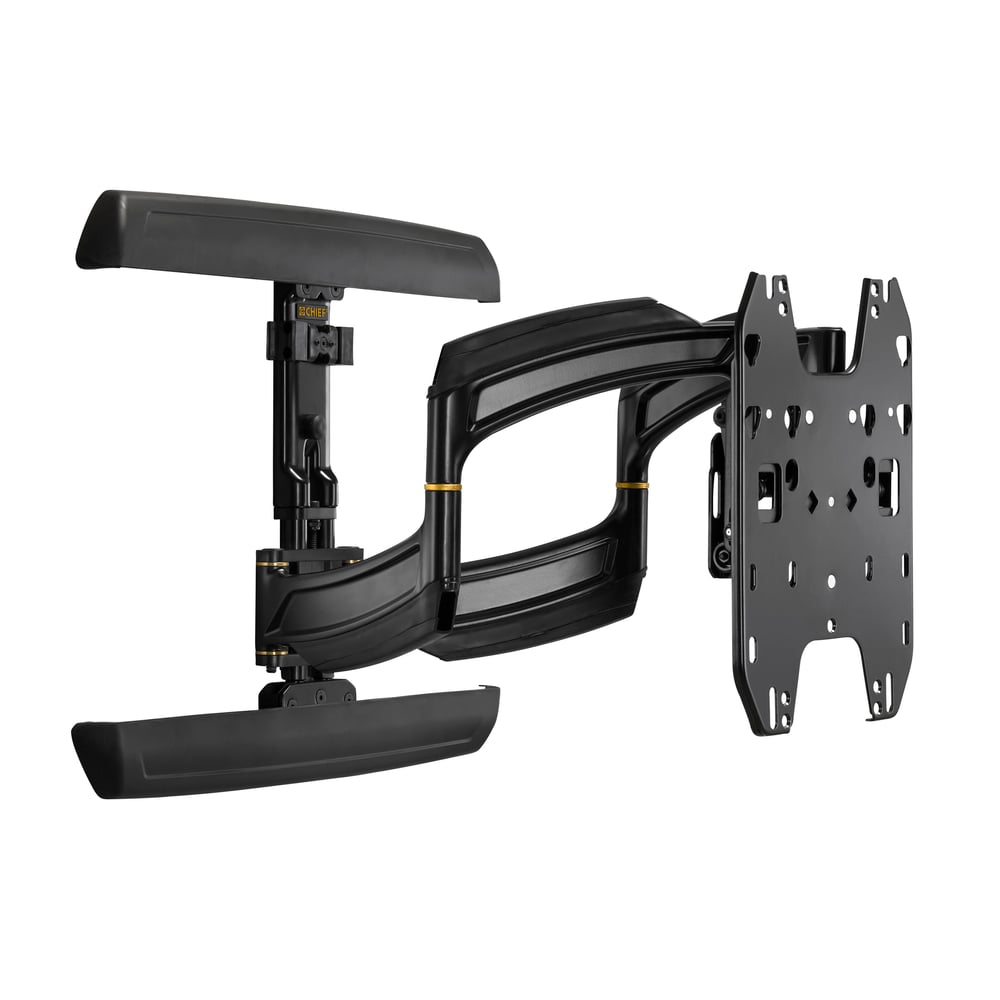

Chief TS318TU Medium Swing Arms, Dual Stud

Chief TS318TU Medium Swing Arms, Dual Stud

SoundPro Item: 65840 | Part Number: TS318TU

$456.00
$570.00 $456.00
Your Price Sold out
MSRP: $570.00 | MAP: $456.00

Usually ships in 5-7 business days

  • Sustains a maximum load capacity of 75 lb
  • Supports the screen size of 65"
  • Suits the screens with 100 x 100 mounting hole pattern
  • Centris low-profile tilt provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
  • Centerless Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
  • Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
  • Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
  • UL listed
  • 75 lbs. weight capacity
  • Landscape orientation
Log in or register for YOUR best price

Chief Manufacturing TS318TU Medium THINSTALL Dual Swing Arm Wall Display Mount - 18" Extension is a lightweight, low-profile full-motion wall mount for TVs 26-52". Easily installs with one person by mounting the top rail and sliding on the assembly. The ultra Low Profile Sleek design collapses to 1.8", providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.

View full details

Specifications

'General Information
Manufacturer
Chief Manufacturing
Manufacturer Part Number
TS318TU
Brand Name
Chief
Product Line
Thinstall
Product Model
TS318TU
Product Name
Thinstall TS318TU Medium Dual Swing Arm Wall Mount
Product Type
Mounting Arm
Product Information
Device Supported
Flat Panel Display
Maximum Load Capacity
75 lb
Minimum Screen Size Supported
32"
Maximum Screen Size Supported
65"
Maximum Adjustable Height
1"
Maximum Adjustable Depth
18.20"
Features
Tilt
Physical Characteristics
Color
Black
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
600 x 400
Height
17.2"
Width
22.6"
Depth
1.3"
Miscellaneous
Package Contents
1 x Main Assembly 1 x Wall Rail 1 x Right Upright 1 x Left Upright 1 x Top Interface Support 1 x Bottom Interface Support 2 x Wall Rail Cover 1 x Rag Screw Cover 1 x Bumper 1 x Latch Spacer 2 x Long Adhesive 4 x Short Adhesive Mounting Hardware
Additional Information
Ultra Low Profile Sleek design collapses to 1.3" (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma Extends up to 18" (457 mm) Full extension maximizes viewing potential Centris low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles Centerless Lateral Shift Post-installation lateral shift allows up to 16" (406 mm) of adjustment for limitless centering capability Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation Orientation: Landscape Solution Type: Universal Tilt: +,- 15
Compatibility
LCD Screen LED Screen Plasma Screen
Recycled
Yes
Post-consumer-waste%
30%
