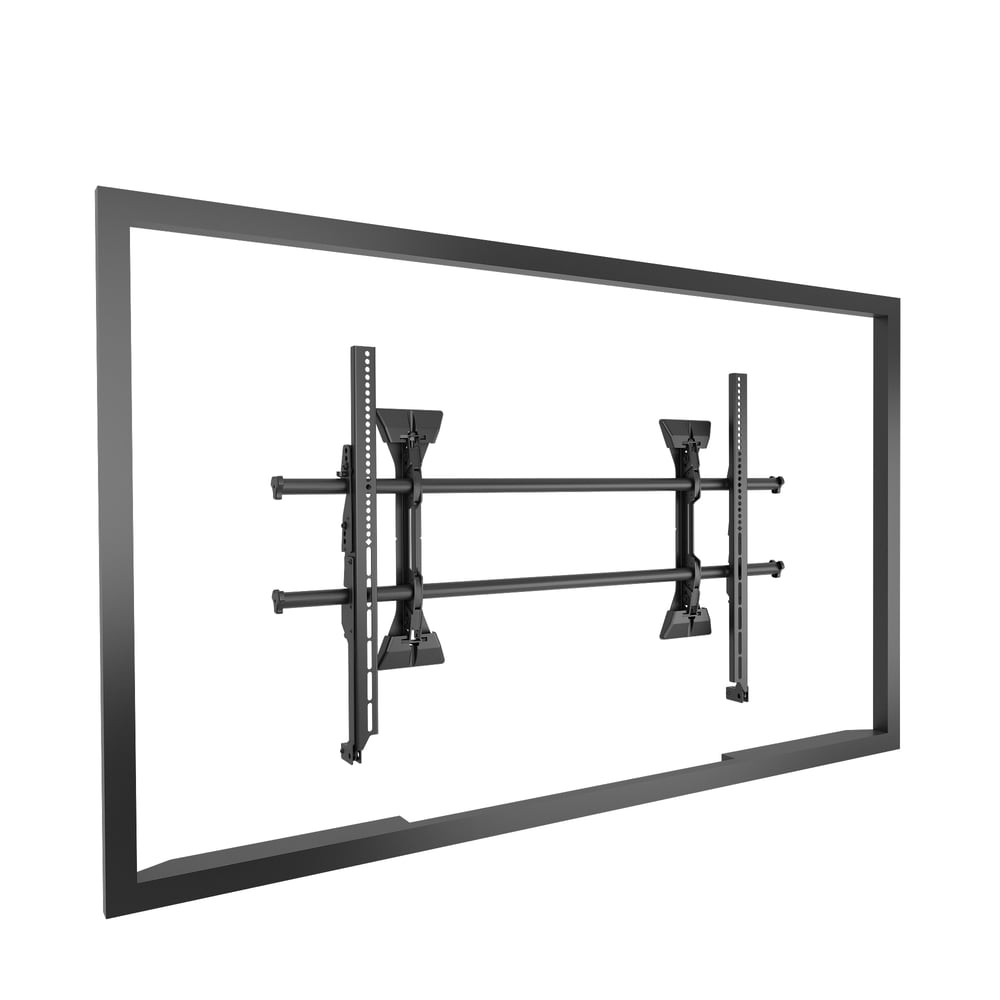

Chief XSM1U Extra Large Static Mount Assembly

Chief XSM1U Extra Large Static Mount Assembly

SoundPro Item: 72894 | Part Number: XSM1U

$313.60
$392.00 $313.60
Your Price Sold out
MSRP: $392.00 | MAP: $313.60

Usually ships in 5-7 business days

  • Sustains a maximum load capacity of 250 lb
  • Supports 100" displays
  • Suits the screens with 100 x 100 mounting hole pattern
  • Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away
  • 250 lbs. Weight capacity
  • UL Listed
Log in or register for YOUR best price

Chief Manufacturing XSM1U Extra Large Fusion Micro-Adjustable Fixed Wall Display Mount includes features like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

View full details

Specifications

'General Information
Manufacturer
Chief Manufacturing
Manufacturer Part Number
XSM1U
Brand Name
Chief
Product Line
Fusion Wall Fixed
Product Model
XSM1U
Product Name
X-Large Fusion Micro-Adjustable Fixed Wall Display Mount
Product Type
Wall Mount
Product Information
Device Supported
Flat Panel Display
Number of Displays Supported
1
Maximum Load Capacity
250 lb
Minimum Screen Size Supported
55"
Maximum Screen Size Supported
82"
Features
Lateral Adjustment
Adjustable Height
Leveling System
Cable Management
Flexible
Physical Characteristics
Color
Black
Miscellaneous
Package Contents
X-Large Fusion Micro-Adjustable Fixed Wall Display MountHardware Kit
Additional Information
Mounting pattern compatibility (universal versions): 100 x 100 mm - 1080 x 600 mm
Certifications & Standards
UL
Warranty
Limited Warranty
10 Year
