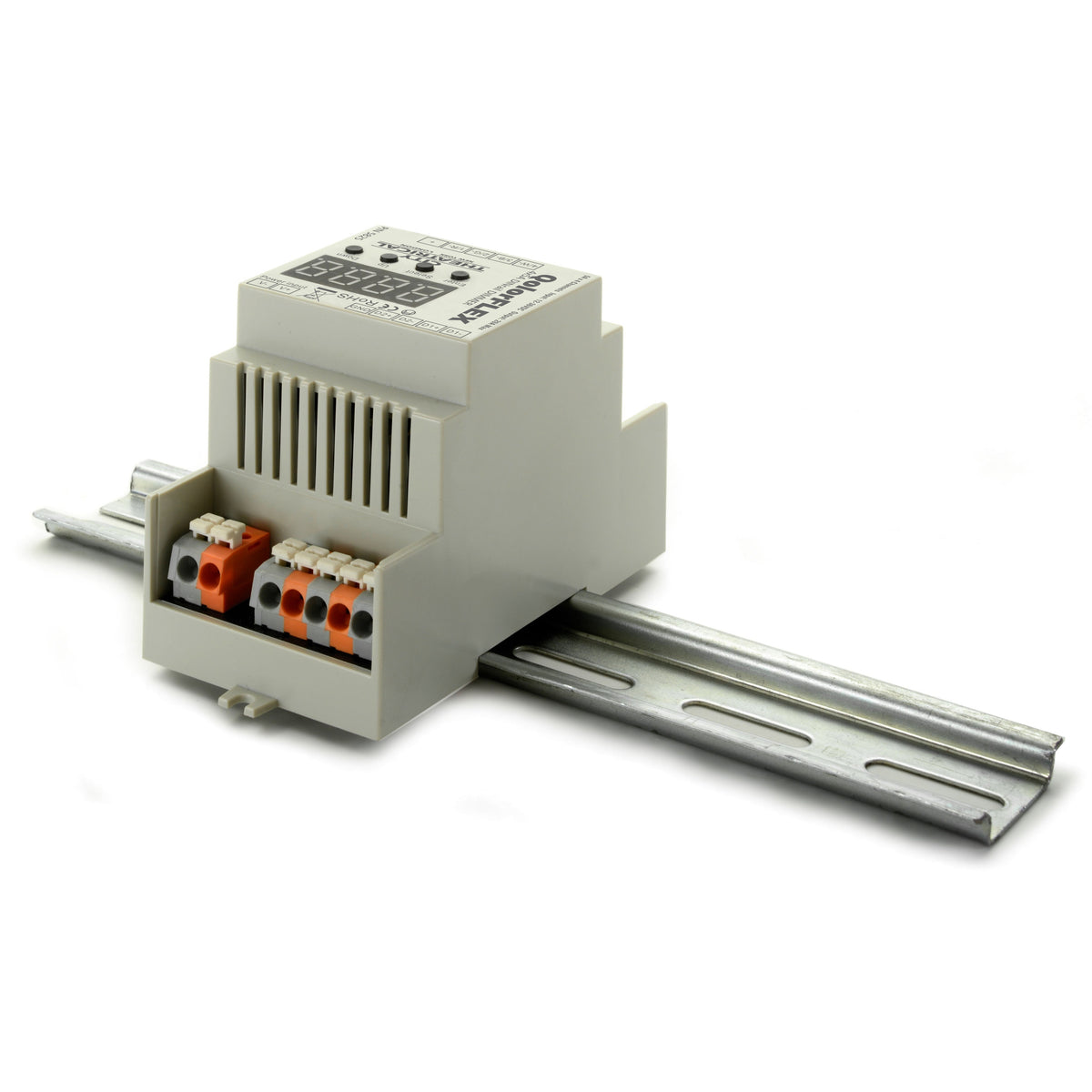

• QolorFLEX 5825 4x5A DINrail dimmer angled view mounted on metal DIN rail with orange terminal blocks, City Theatrical

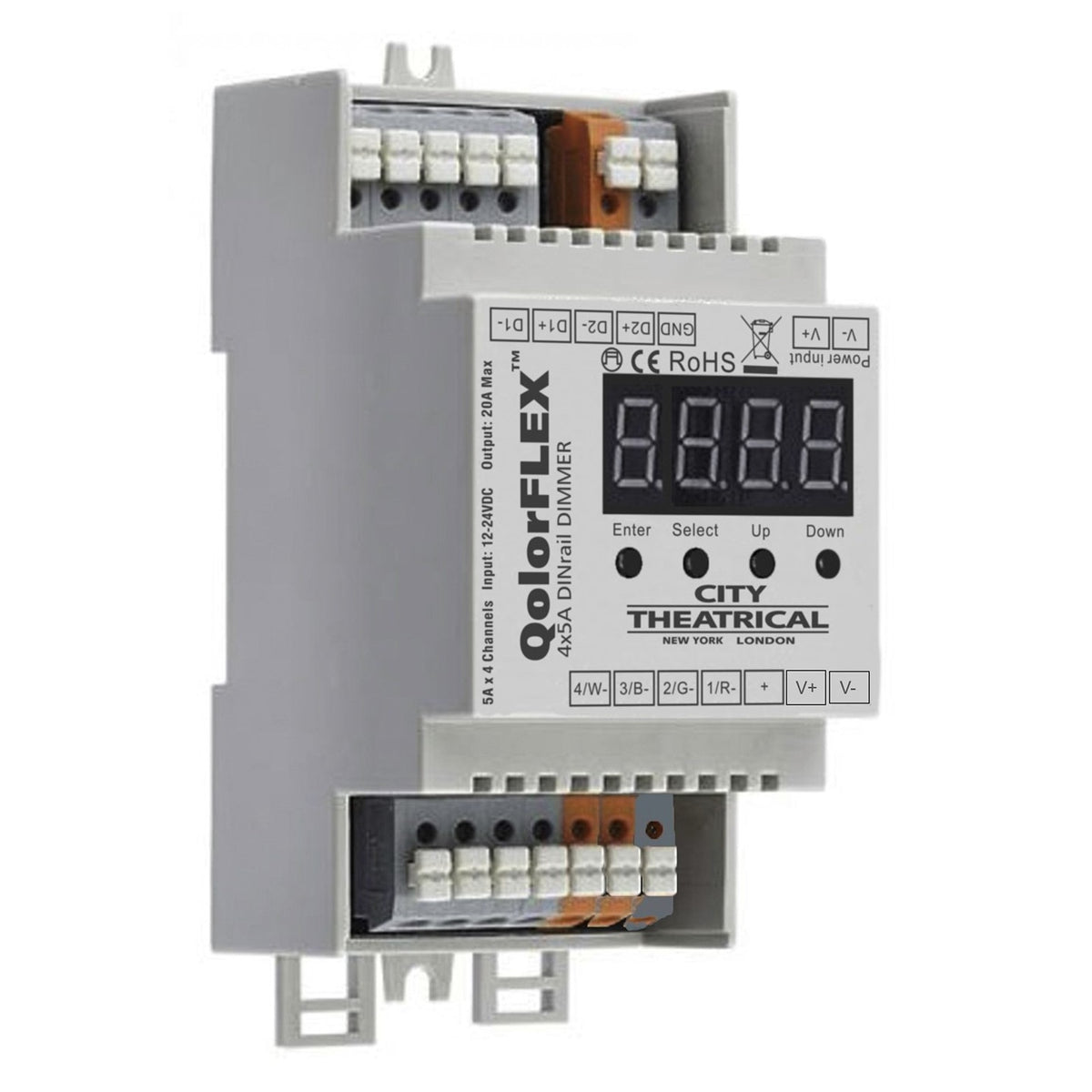

  • QolorFLEX 5825 DINrail dimmer front panel showing 4-digit LED display, Enter/Select/Up/Down buttons and labeled DMX and power terminals, City Theatrical

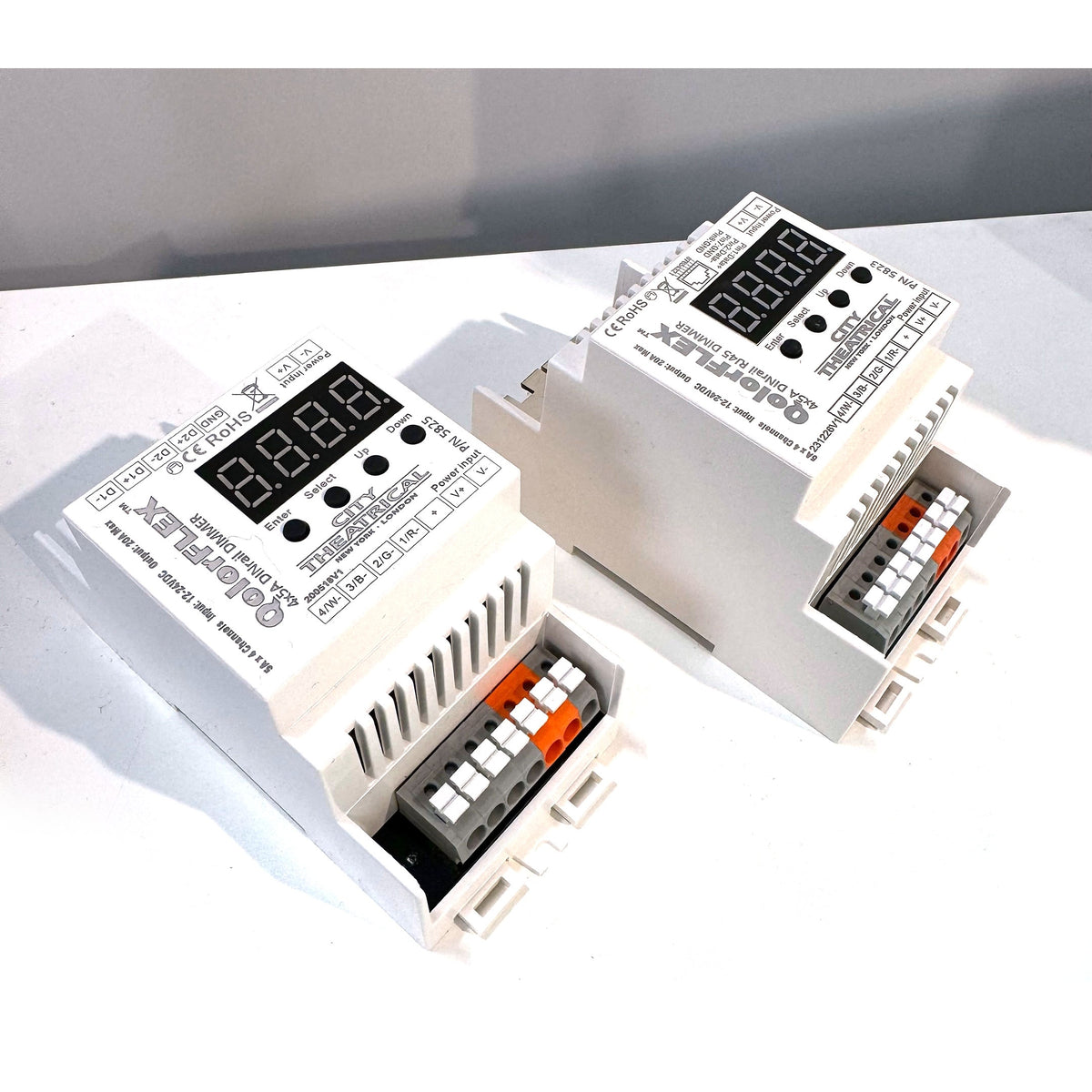

  • QolorFLEX 5825 and 5823 DINrail dimmers shown together with push-in terminal connectors and address displays, City Theatrical
1 3

City Theatrical 5825 QolorFLEX 4-Channel DINrail LED Tape Dimmer

City Theatrical 5825 QolorFLEX 4-Channel DINrail LED Tape Dimmer

SoundPro Item: 122355 | Part Number: 5825

$119.60
$140.70 $119.60
Your Price Sold out
MSRP: $140.70 | MAP: $119.60

Usually ships in 5-7 business days

  • Multi-Channel Output Controls Several Tape Runs From One Device
  • DMX Control Lets Existing Lighting Consoles And Controllers Drive The Dimmer
  • Hat Section DINrail Mounting Fits Standard Enclosure Layouts
  • Terminal Block Connections Keep Power And Signal Wiring In One Place
  • External Power Supply Design Lets You Size Power To The Tape In Use
Log in or register for YOUR best price

Built for integrators, electrical contractors, and lighting designers who need to dim low voltage LED tape from a DMX source inside a panel or enclosure. One module handles a full 20A of load divided across four 5A channels, so a multi-run installation can be controlled from a single DIN-mounted device instead of several smaller dimmers. That keeps panel space and parts counts down on projects with many tape runs.

Standard hat section mounting lets the dimmer sit alongside power supplies and other control gear in the same enclosure. Terminal blocks handle all electrical and DMX connections, which keeps field wiring in one place and simplifies commissioning and later service.

Plan the power side before you order. This is a constant voltage dimmer, so it needs an external power supply chosen to suit the tape you are running. Because the unit carries only the dimming stage, supply sizing and tape selection stay with the designer. It is intended for indoor use, which fits architectural, retail, display, and theatrical installs.

Downloads

View full details

Specifications

Electrical
Output Channels
4
Current Per Channel
5A
Total Output Current
20A
Output Type
Low Voltage, Constant Voltage
Power Supply
External supply required
Connectivity
Control Protocol
DMX
Connection Type
Terminal blocks for all electrical and DMX connections
Construction
Mounting Type
Standard hat section DINrail
Environment
Indoor use
