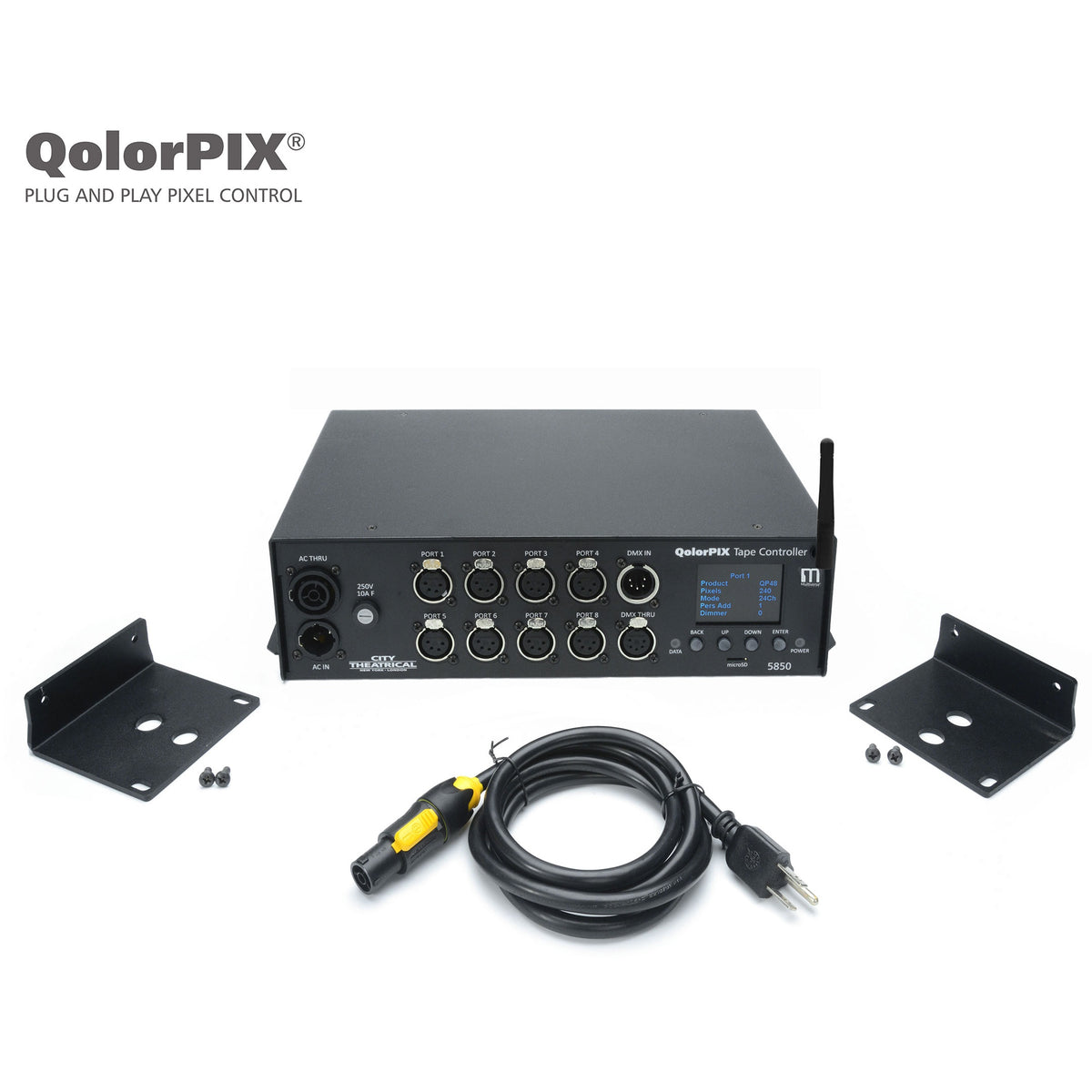

• QolorPIX 5850 Tape Controller with included rack ears, mounting screws and powerCON-to-Edison cable, City Theatrical

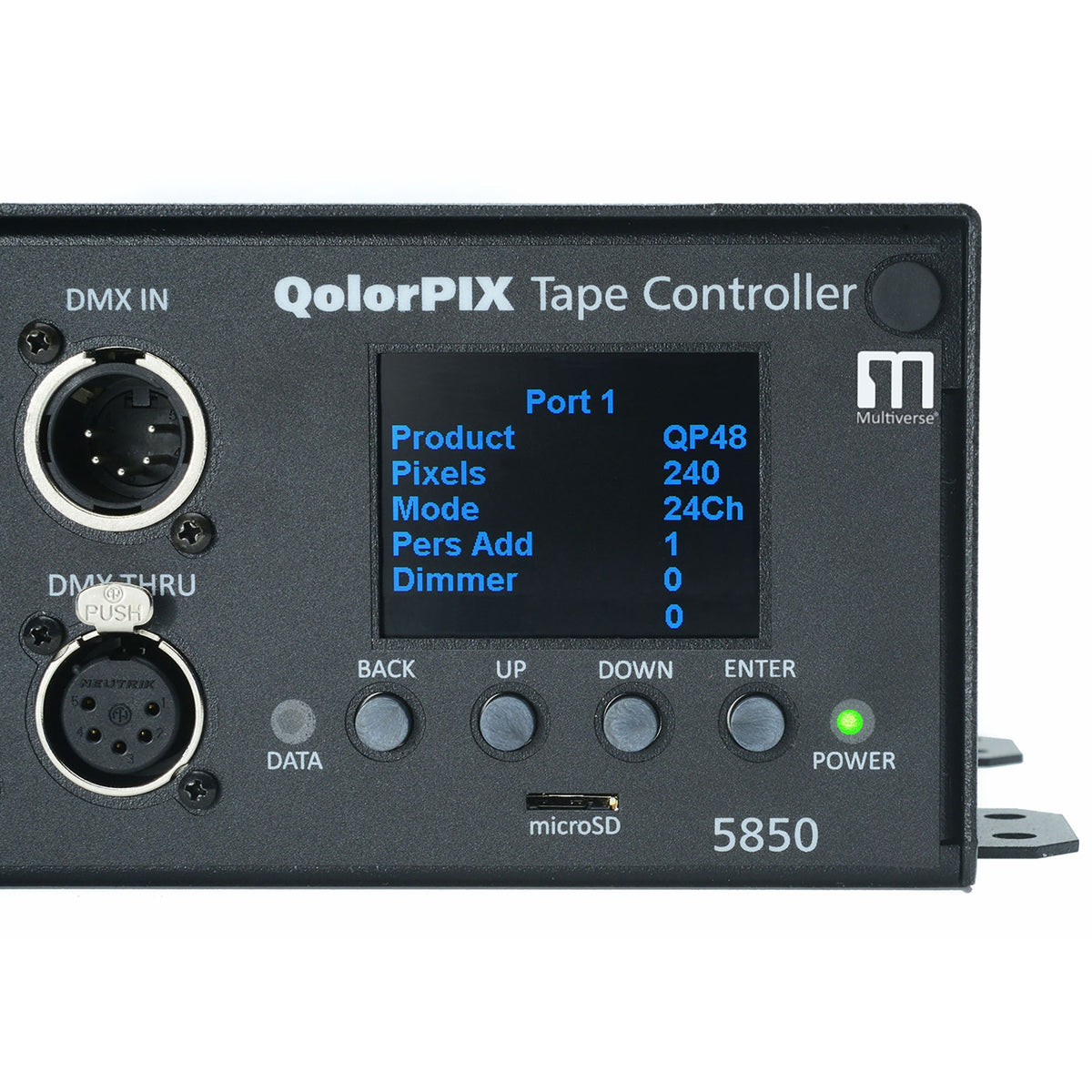

  • QolorPIX 5850 close-up of OLED display showing Port 1 QP48 pixel settings beside DMX In and DMX Thru XLR connectors, City Theatrical

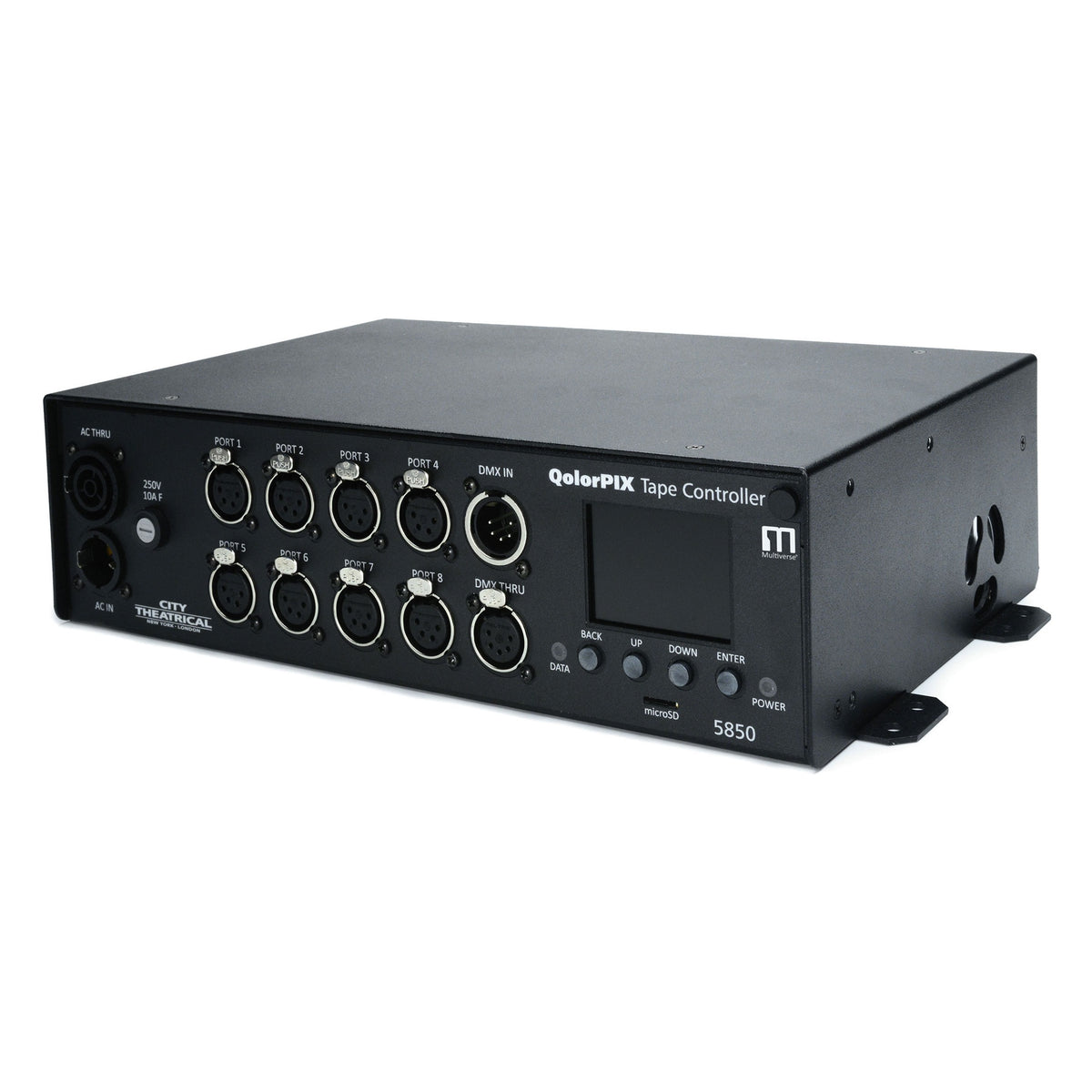

  • QolorPIX 5850 Tape Controller left front three-quarter view showing eight output ports and mounting brackets, City Theatrical

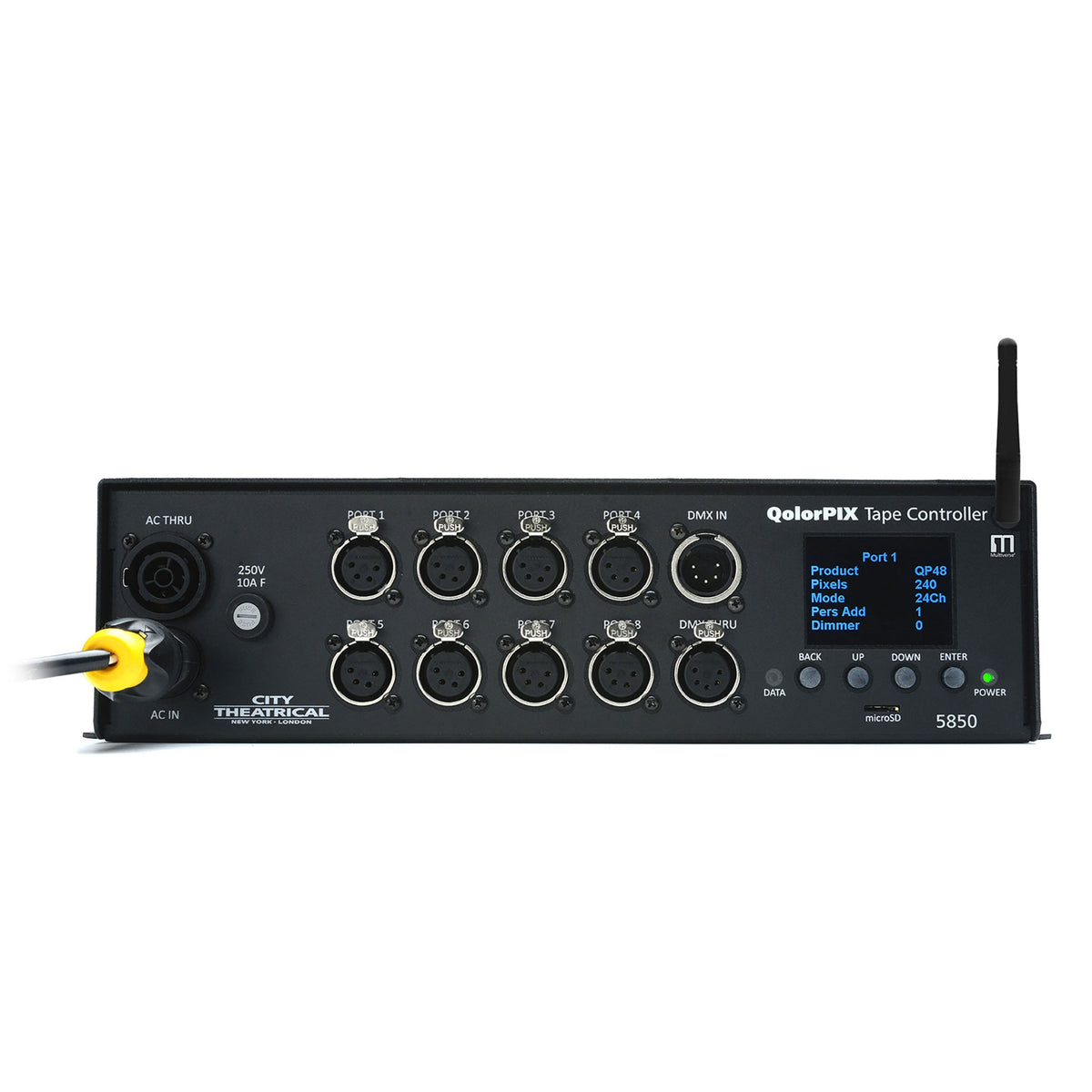

  • QolorPIX 5850 Tape Controller front panel with eight XLR output ports, powerCON AC in and Multiverse antenna, City Theatrical

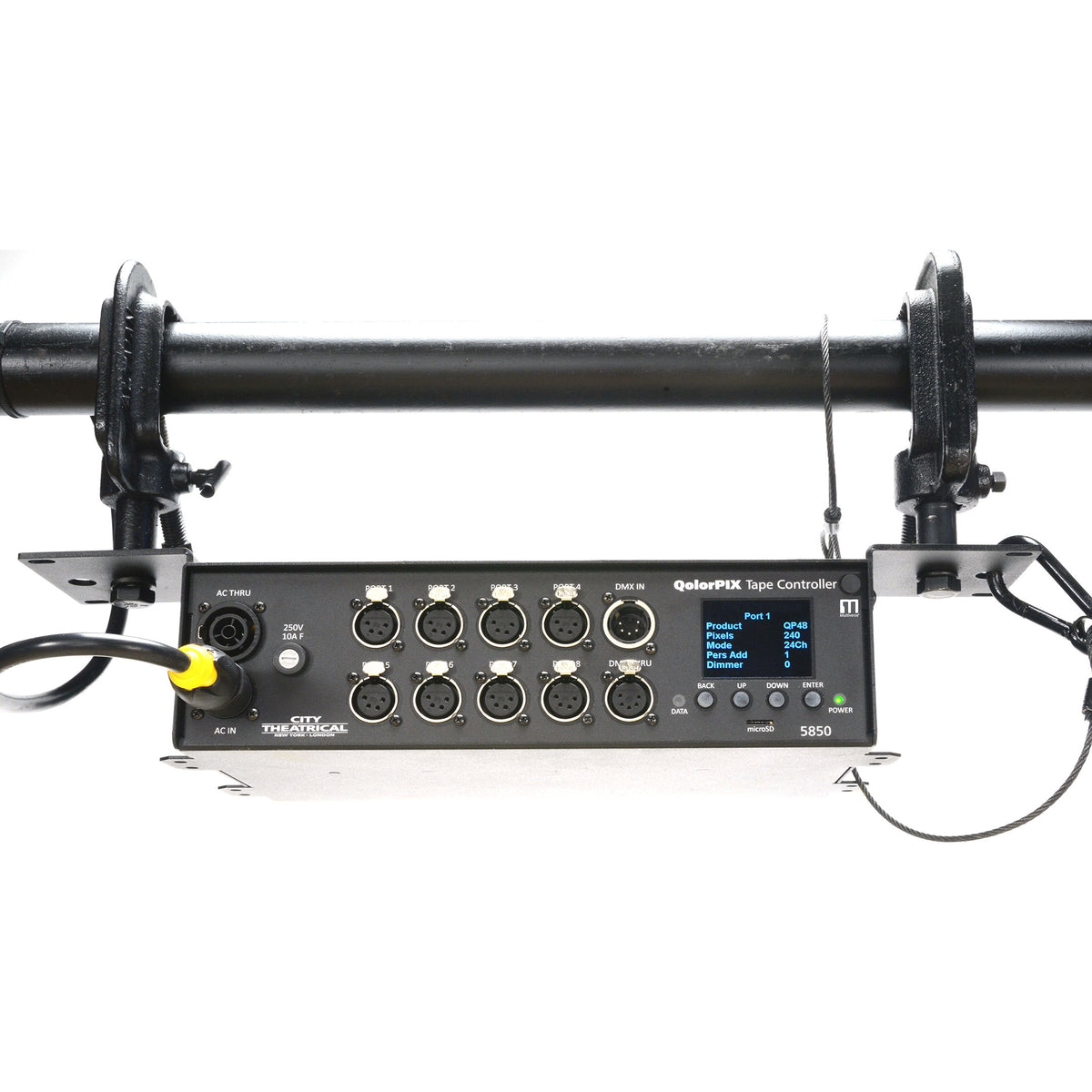

  • QolorPIX 5850 Tape Controller mounted under a pipe with C-clamps and safety cable, City Theatrical

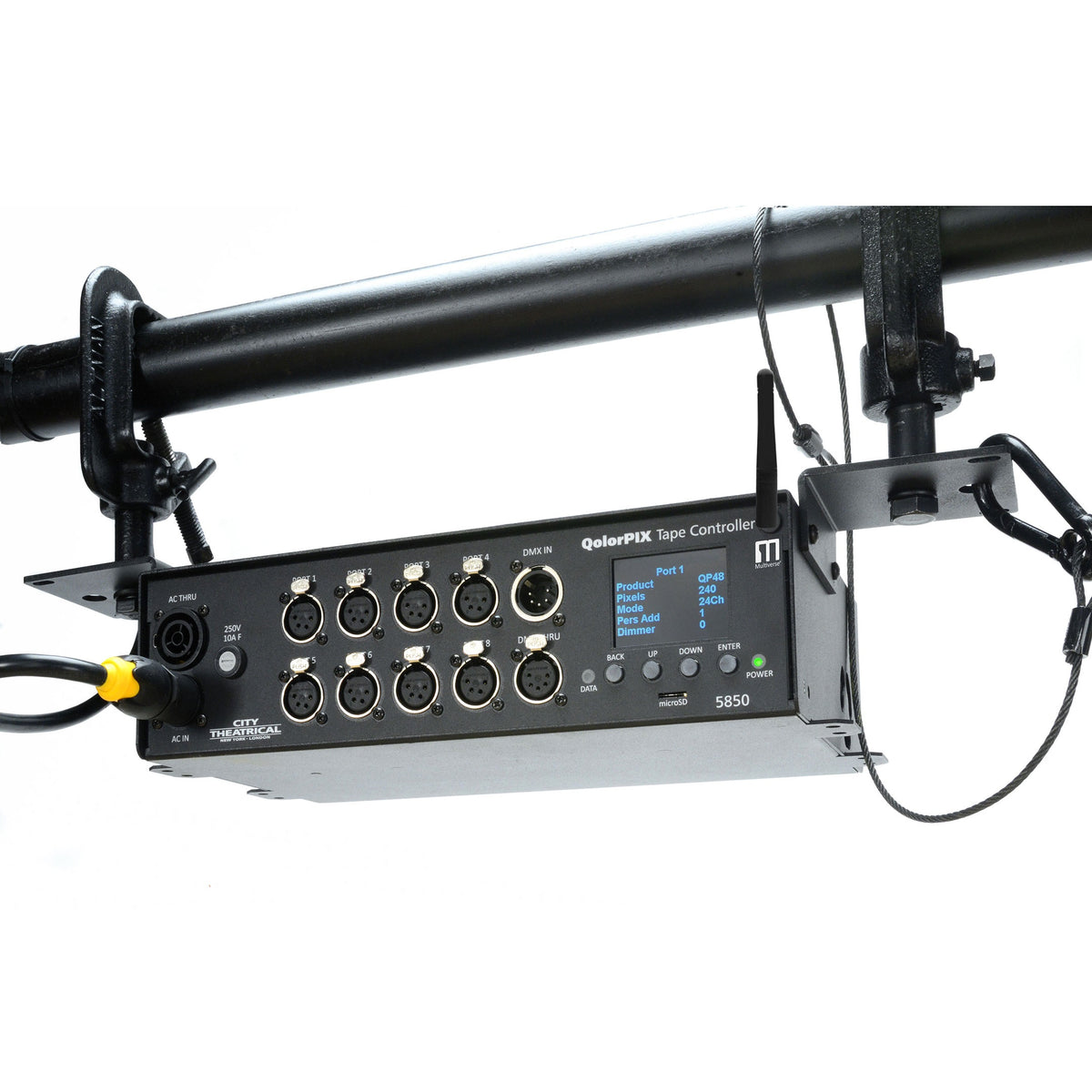

  • QolorPIX 5850 Tape Controller rigged to lighting pipe at an angle with antenna raised and safety cable attached, City Theatrical

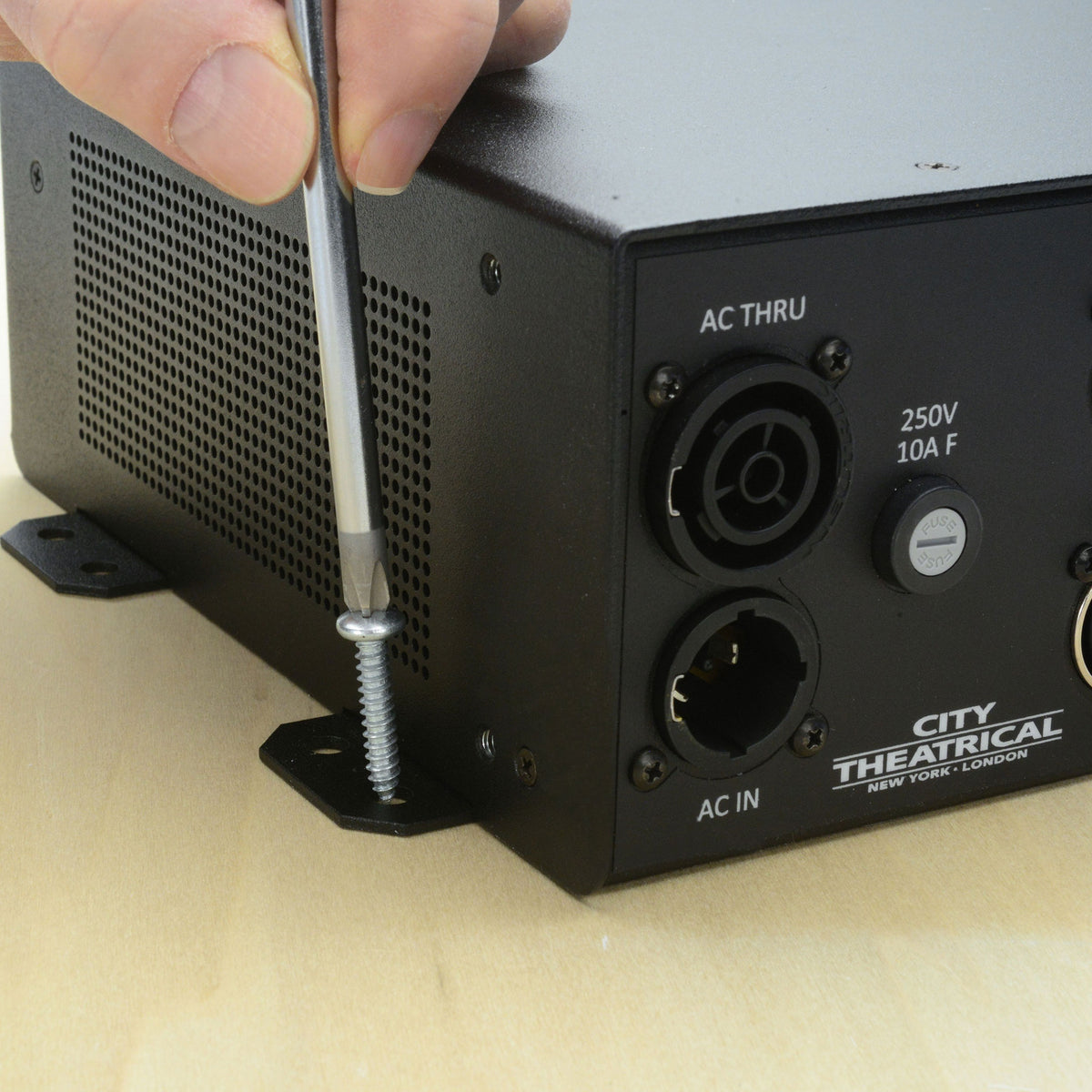

  • QolorPIX 5850 Tape Controller being screw-mounted to a wood surface through side bracket, next to AC In and fuse, City Theatrical

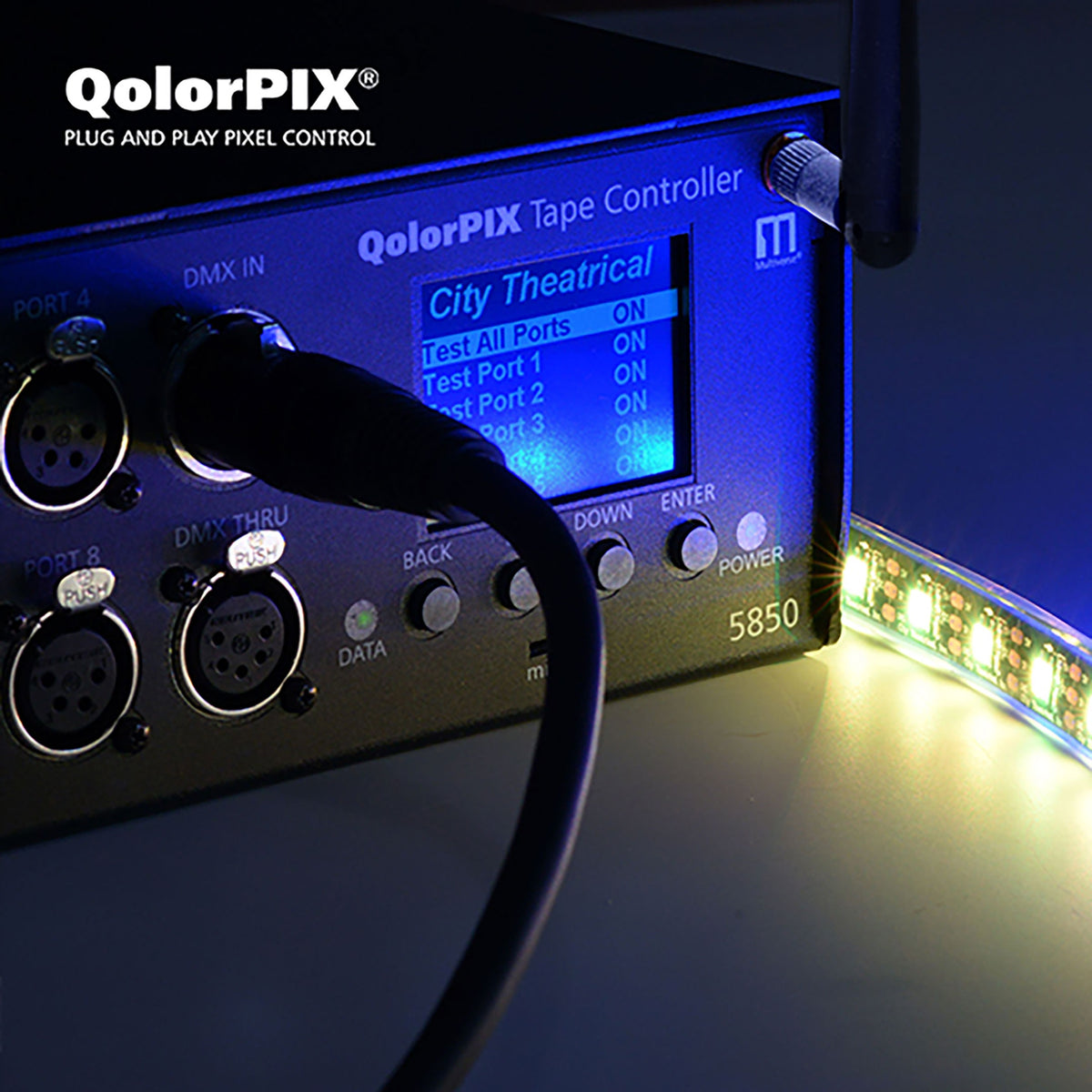

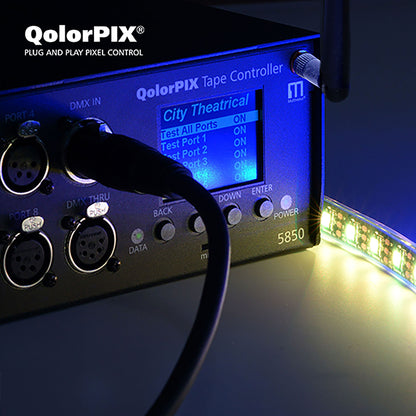

  • QolorPIX 5850 Tape Controller test menu on screen driving lit RGB LED tape, City Theatrical
1 8

City Theatrical 5850 QolorPIX Eight Output LED Tape Controller

City Theatrical 5850 QolorPIX Eight Output LED Tape Controller

SoundPro Item: 122377 | Part Number: 5850

$2,432.11
$2,861.30 $2,432.11
Your Price Sold out
MSRP: $2,861.30 | MAP: $2,432.11

Usually ships in 5-7 business days

  • Effects Engine Drives Full Tape Runs From A Minimal Number Of DMX Addresses
  • Individual Pixel Control On Every Output Port For Detailed Animated Looks
  • Effects Engine, RGB, And Pixel Address Modes Match Control To The Look You Need
  • Recordable Presets And Test Routine Speed Up Programming And Troubleshooting
  • User Updateable Firmware Through Micro-SD Slot Keeps The Controller Current
  • Wireless DMX Via Multiverse Technology Reduces Cable Runs To The Controller
  • Rack Mounting Accessories Included For Standard Rack Installation
Log in or register for YOUR best price

The 5850 is built for lighting designers, programmers, and installers who need animated pixel looks without consuming a pile of DMX addresses. Preconfigured personality profiles can be combined and adjusted, so a handful of channels yields thousands of variations, from subtle color transitions to aggressive animated sequences, and new looks come together in minutes instead of hours of pixel mapping. It suits theatrical, architectural, and event applications where tape needs to do more than hold a static color.

Setup is handled through the control interface. Change mode, pixel length, dimmer, personality start address, strip type, fixture ID, and direction on the unit, which keeps adjustments quick during load-in, focus, and tech rehearsals. A test function and flicker finder help track down problems early, before a show depends on the run.

Eight ports support a combined 40 meters of QolorPIX tape, and onboard power means no separate supply to source, mount, or wire. Unlike generic pixel drivers, this controller is purpose-matched to QolorPIX tape, so strip types and personalities are ready to use out of the box.

Downloads

View full details

Specifications

Dimensions
Rack Mount Width
19"
Rack Space
2U
Electrical
Power Supply
Integrated
Performance
Maximum Tape Length
40 meters
DMX Addresses Required
16 or 32
Control Modes
Effects Engine, RGB, Pixel Address
Connectivity
Output Ports
8
Control Protocol
ANSI E1.11 DMX512-A
Wireless DMX
Multiverse
Firmware Update Slot
Micro-SD
