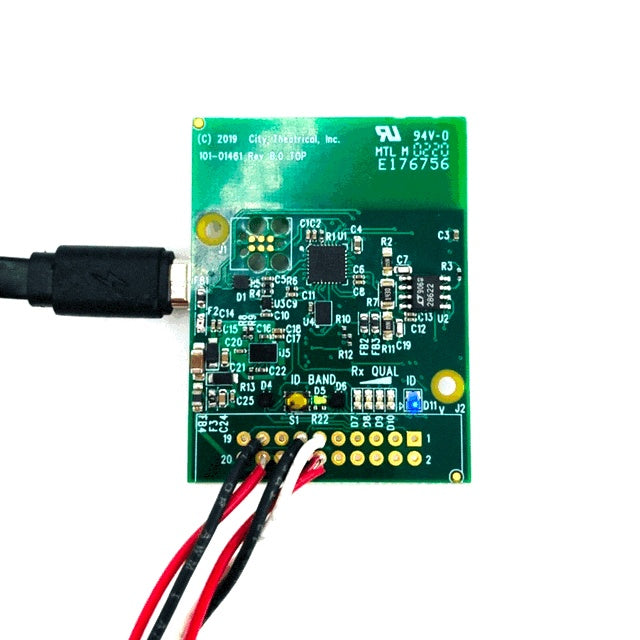

• Multiverse 5906 receiver card top view with micro USB cable connected and red/black wire leads on the 20-pin header, City Theatrical

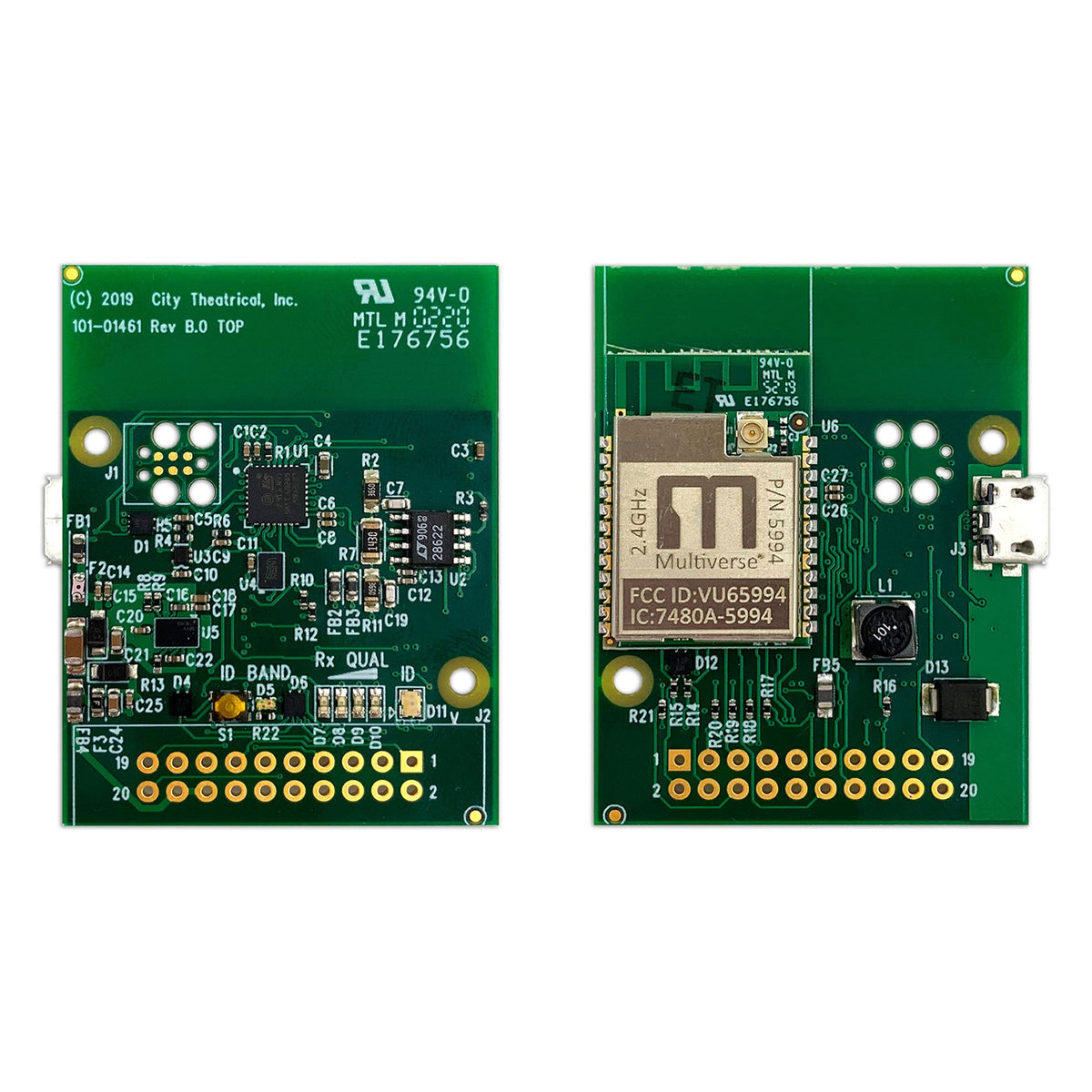

  • Multiverse 5906 2.4GHz receiver card top and bottom views showing ID/BAND indicators and the shielded Multiverse radio module with FCC ID marking, City Theatrical

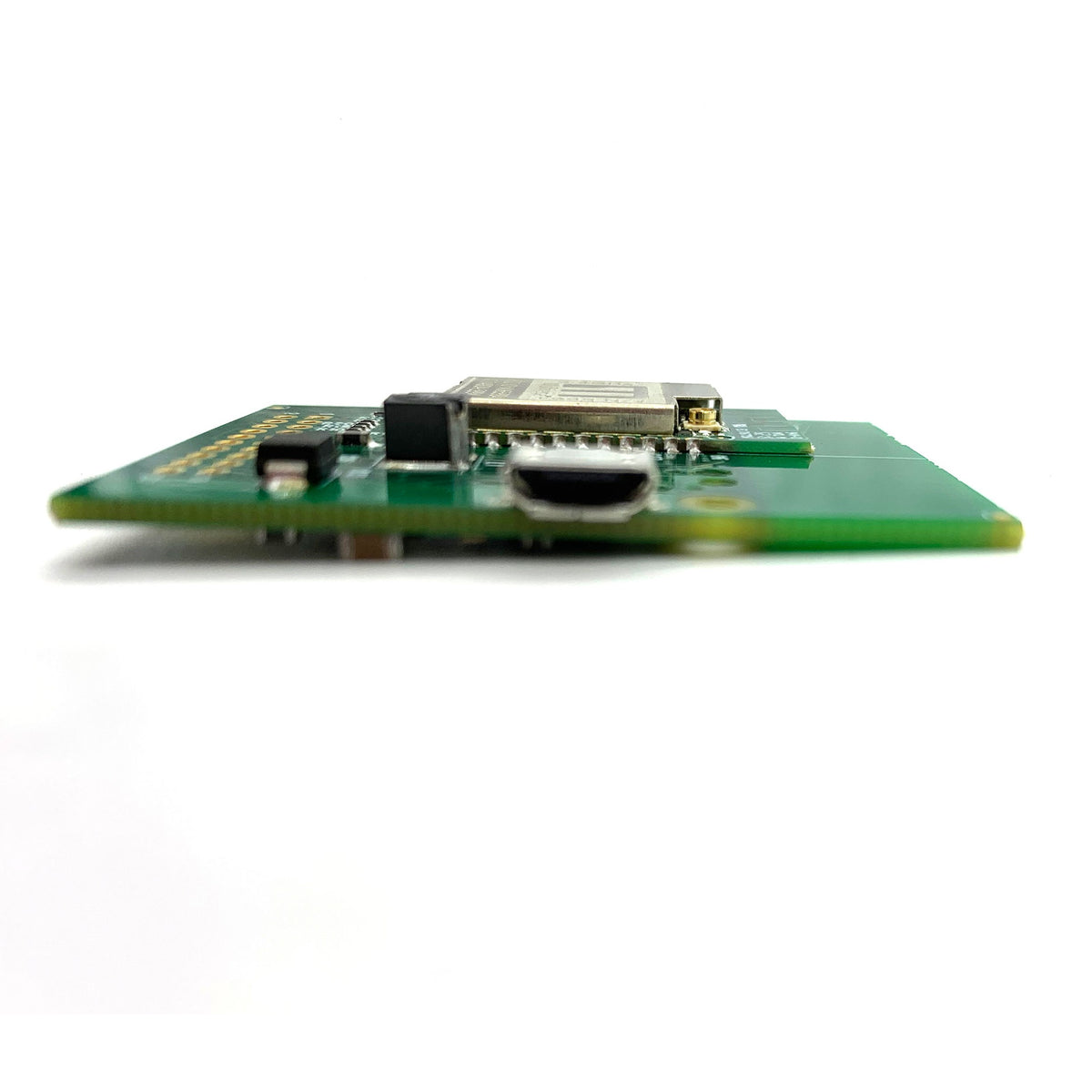

  • Multiverse 5906 receiver card edge-on side view showing low-profile board stack with micro USB port and shielded radio can, City Theatrical

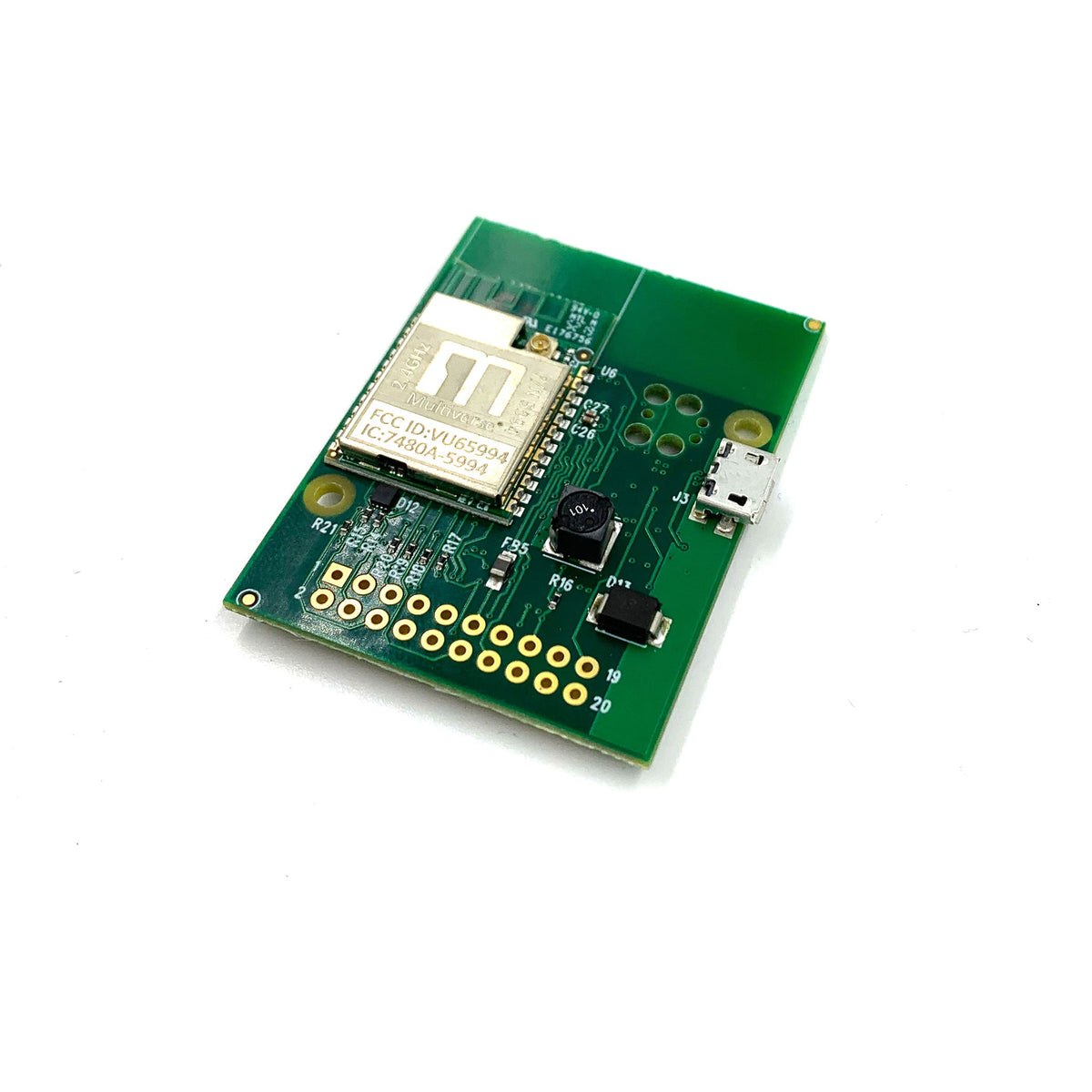

  • Multiverse 5906 receiver card angled view of the underside with 2.4GHz Multiverse module, inductor and gold-plated pin pads, City Theatrical
1 4

City Theatrical Multiverse Receiver Card | 2.4GHz

City Theatrical Multiverse Receiver Card | 2.4GHz

SoundPro Item: 122252 | Part Number: 5906

$286.83
$337.45 $286.83
Your Price Sold out
MSRP: $337.45 | MAP: $286.83

Usually ships in 5-7 business days

  • Supports ANSI E1.11 DMX512-A And E1.20 RDM For Standards-Based Wireless Control
  • Onboard DMX RS-485 Driver With Built-In Protection For Wired Outputs
  • Signal Quality, SHoW ID, And Band LEDs Give Quick Status Checks On Board And Externally
  • Wide Input Voltage Range Adapts To A Variety Of Host Power Sources
  • Low-Voltage Output Powers Low Current Host Electronics Without A Separate Supply
  • USB Micro B Port Handles Configuration And Firmware Updates Without Replacing Hardware
  • Advanced Mode Adds Analog And PWM Control Outputs For Direct Fixture Integration
Log in or register for YOUR best price

Multiverse Receiver Cards give lighting designers, technicians, and fixture builders a way to bring City Theatrical's wireless DMX/RDM link into custom gear. Each card is a complete Multiverse receiver stripped of the housing, XLR connectors, and user interface found on units like the Multiverse Node and Multiverse SHoW Baby, so it can be built directly into a prop, a costume piece, or a lighting fixture.

Unlike Multiverse Modules, which call for full circuit board level integration by professional lighting manufacturers, these cards are approachable for any lighting user. That makes them a practical fit for entertainment lighting projects where a one-off rig needs dependable wireless control. Cards work as part of a full Multiverse system, linking up to 10 universes of wireless DMX/RDM from a single Multiverse Transmitter. Fixture manufacturers can also use the 0-10V and PWM outputs to add wireless control to a product quickly.

The family is offered in 2.4GHz and 900MHz bands. Pick the band that fits your region and the rest of your wireless system, keeping in mind that the 900MHz band is licensed for North America only.

Downloads

View full details

Specifications

Dimensions
Footprint
50mm (2") x 38mm (1.5")
Electrical
Input Voltage Range
5V to 30Vdc
Auxiliary Output Voltage
+3.3Vdc
DMX Driver Protection
±60V
Performance
Frequency Band
2.4GHz
Supported Protocols
ANSI E1.11 DMX512-A, E1.20 RDM
Advanced Mode Analog Output
0-10V
Advanced Mode PWM Control Outputs
4
Maximum Universes Per Transmitter
10
Usage
Worldwide
Connectivity
DMX Driver
RS-485
Configuration Port
USB micro B
Firmware Update Port
USB micro B
Antenna
Internal, with connection for optional external antenna
