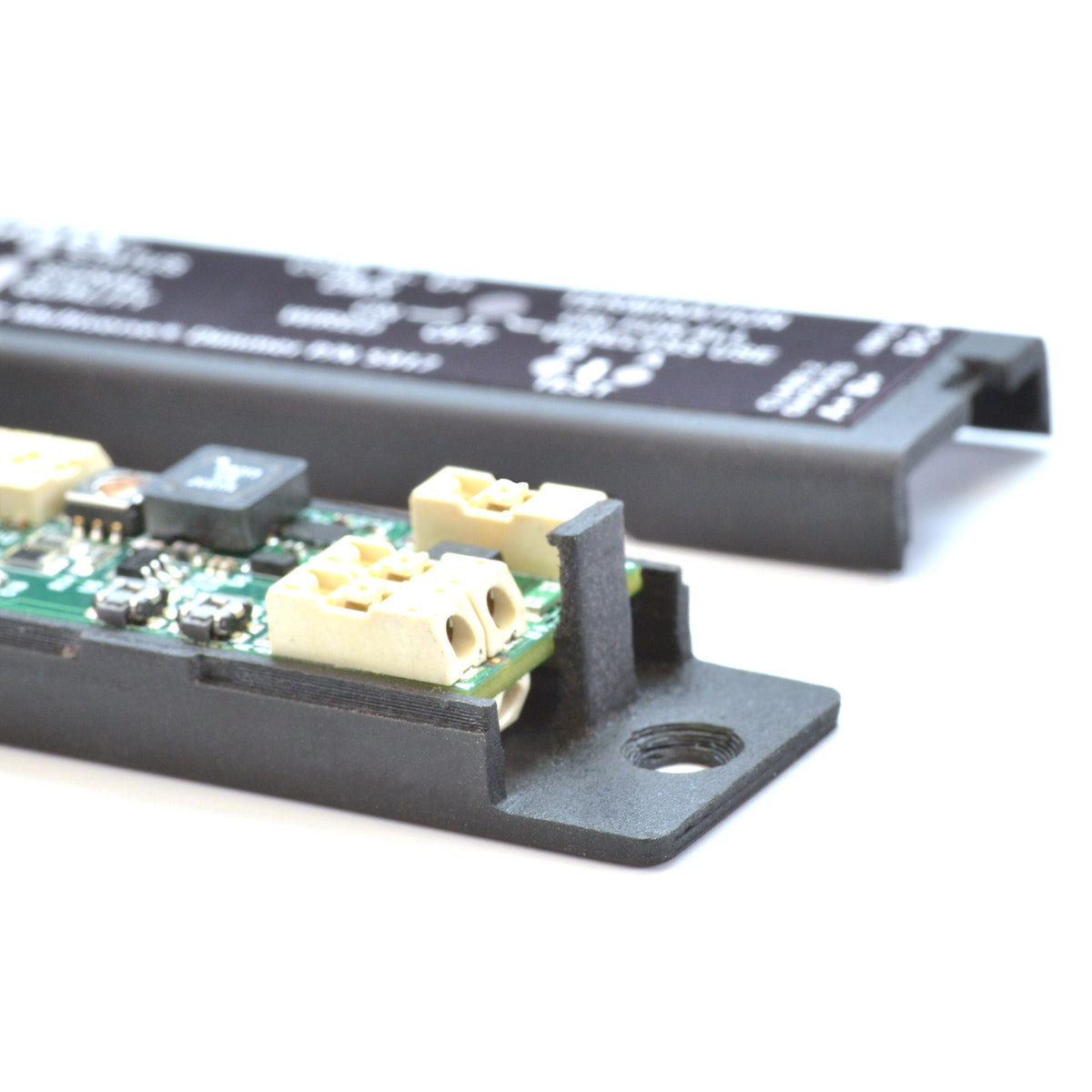

• Multiverse 5916 2x2.5A dimmer opened up, close-up of green PCB with ivory screw terminal blocks and mounting flange, City Theatrical

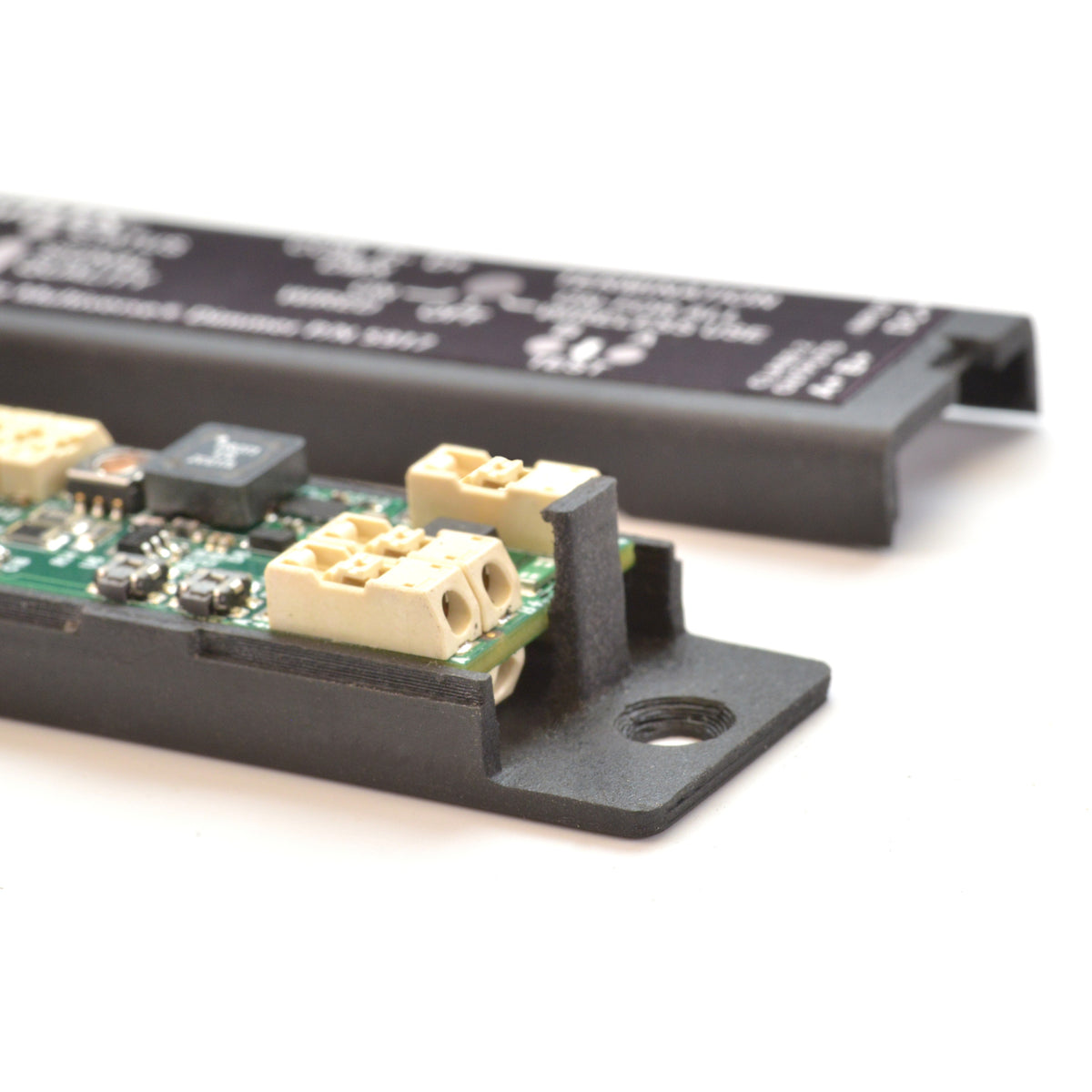

  • Multiverse 5916 dimmer with top cover removed beside chassis, showing terminal block wiring points and keyhole mounting tab, City Theatrical

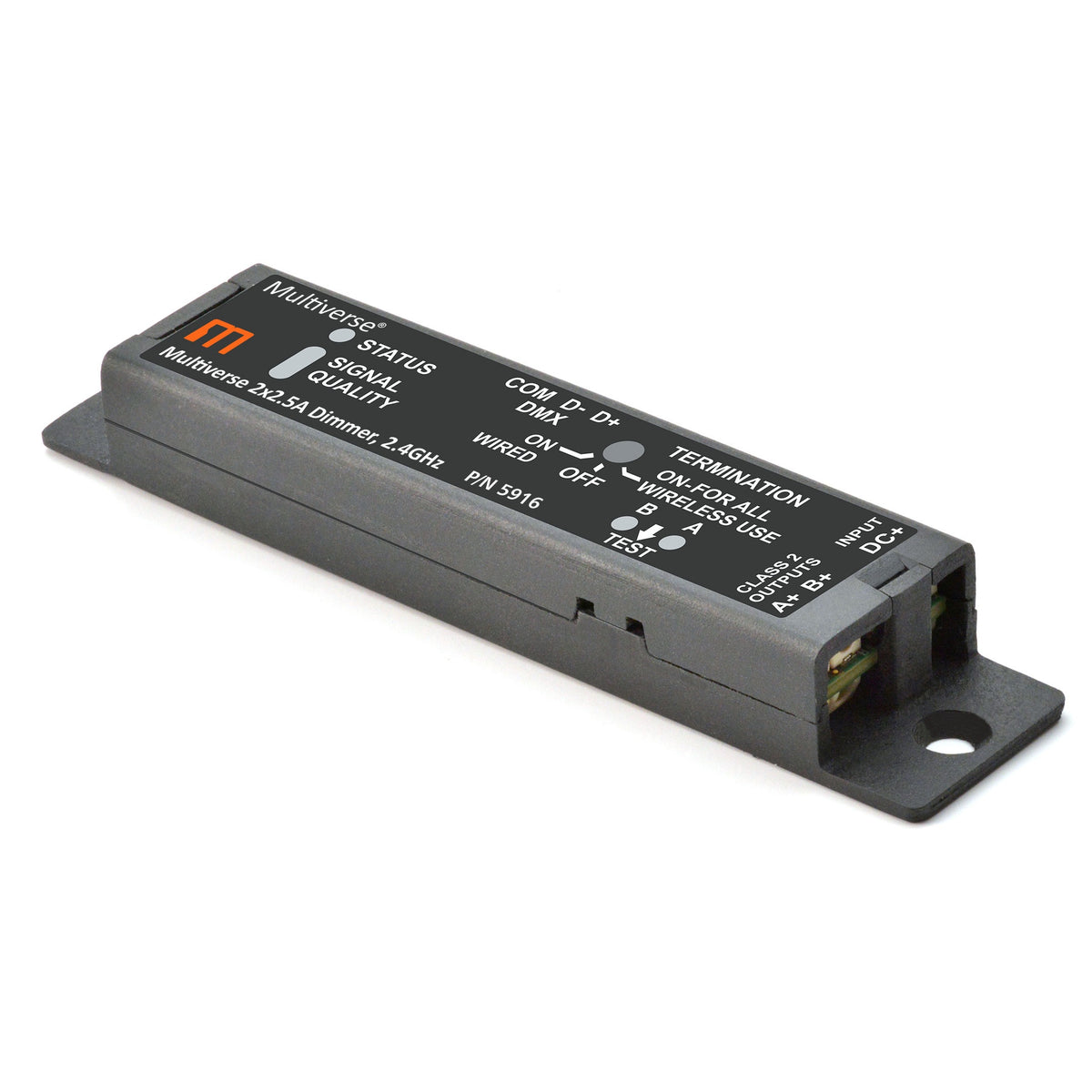

  • Multiverse 5916 2x2.5A dimmer three-quarter view with status and signal quality LEDs, DMX termination switch and output terminals, City Theatrical

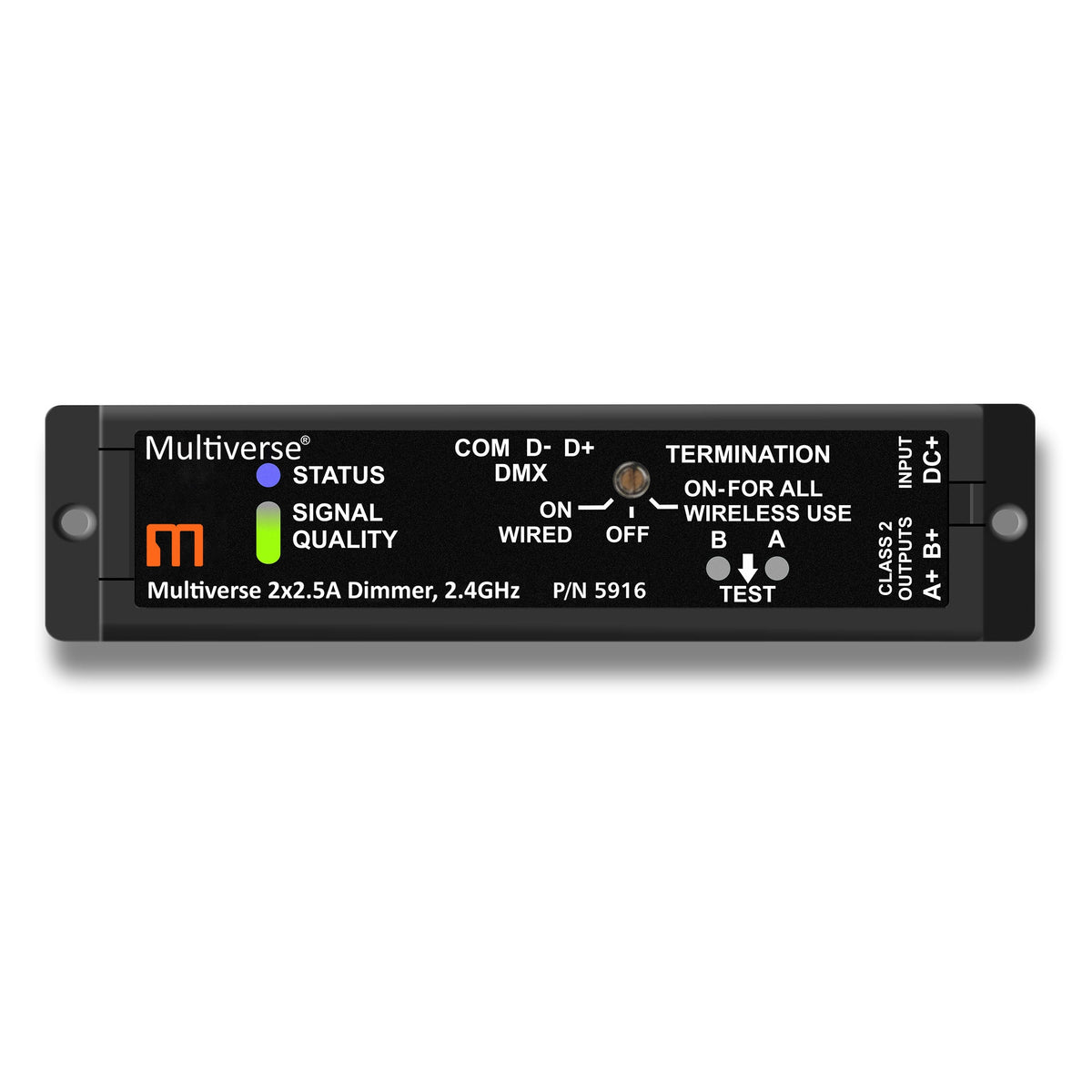

  • Multiverse 5916 dimmer top view of labeled control panel with blue status LED, green signal quality indicator and A/B test buttons, City Theatrical

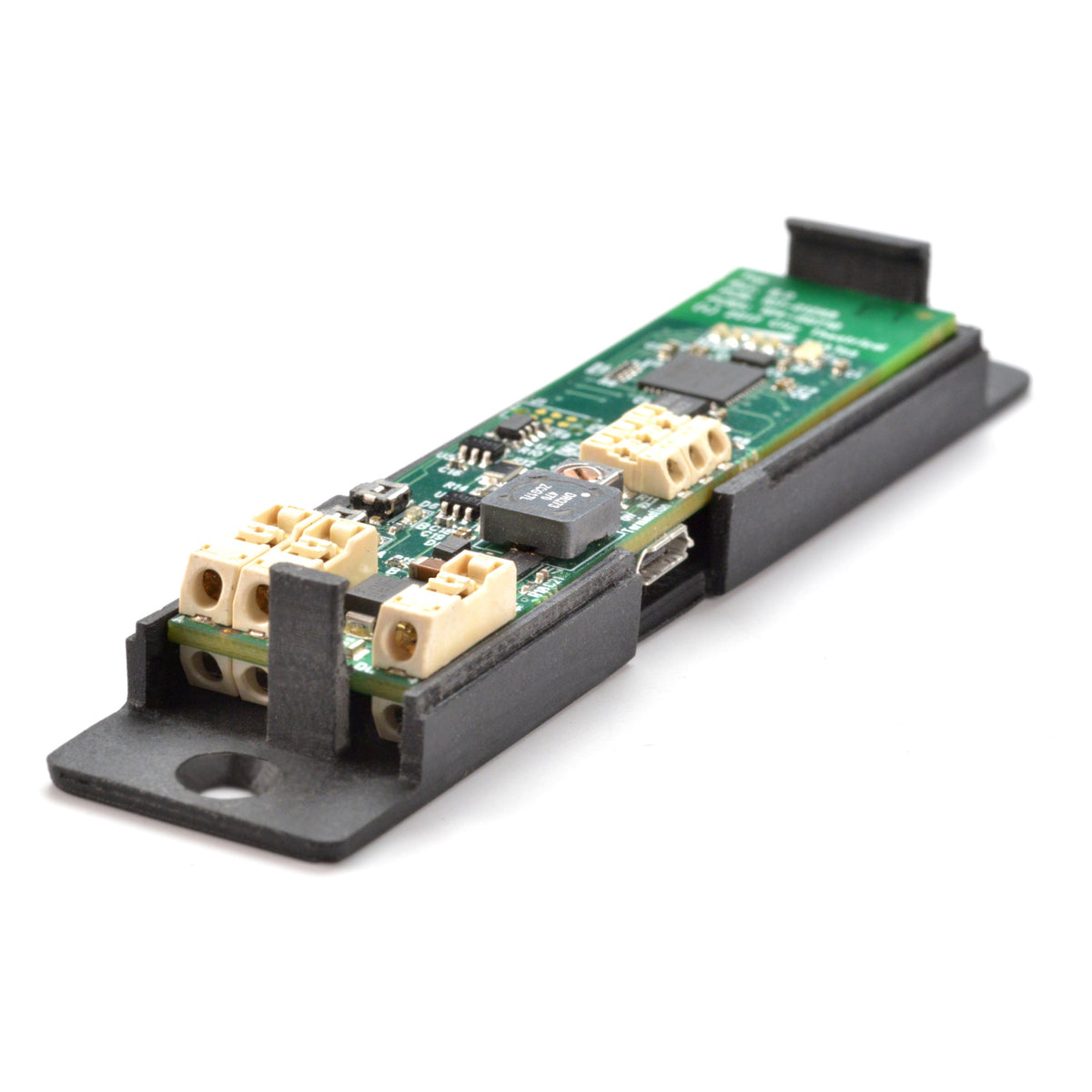

  • Multiverse 5916 dimmer end view of exposed circuit board showing DC input and Class 2 output terminal blocks, City Theatrical

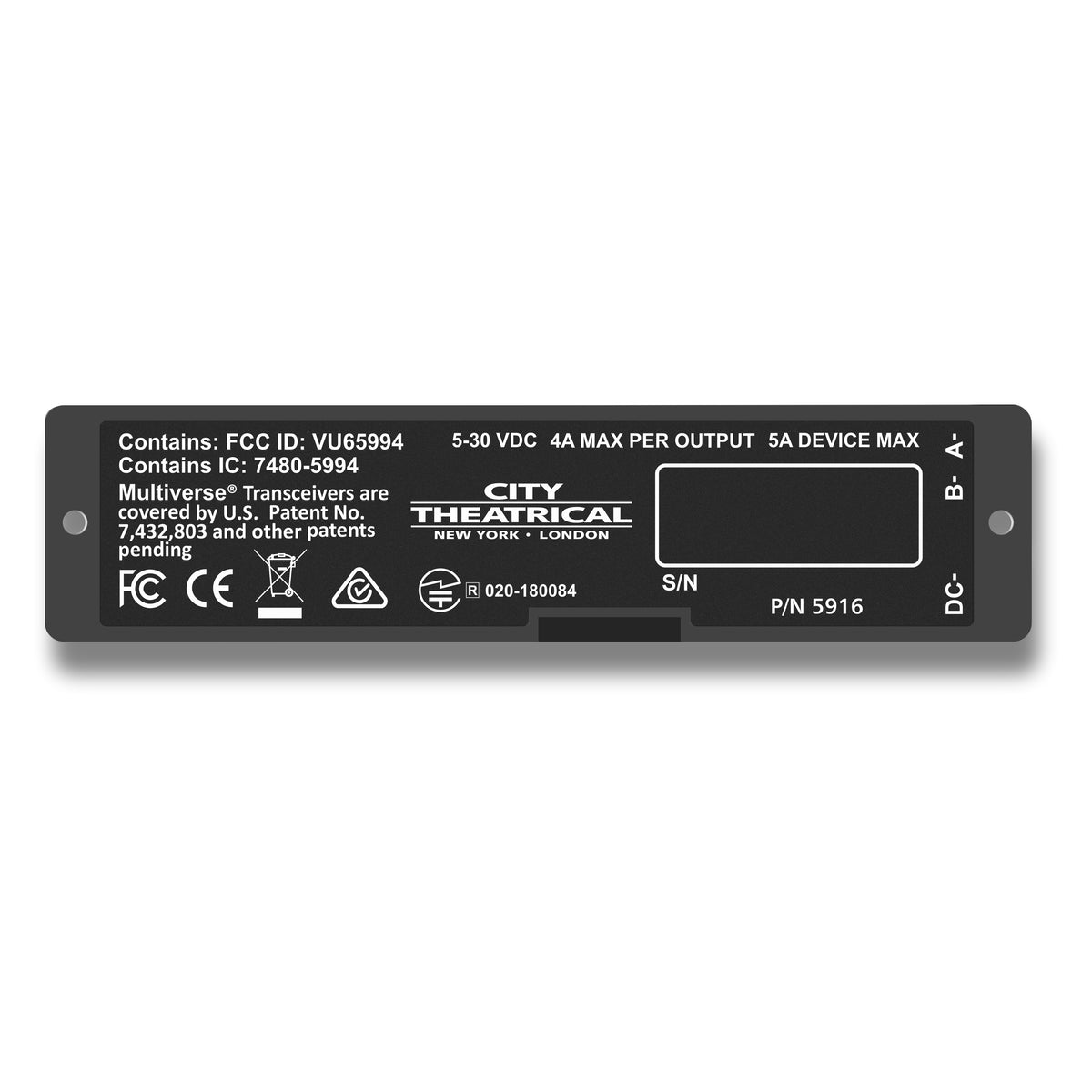

  • Multiverse 5916 dimmer bottom view with spec label listing 5-30 VDC input, 4A max per output and FCC/IC IDs, City Theatrical
1 6

City Theatrical Multiverse 2x2.5A Dimmer | 2.4GHz

City Theatrical Multiverse 2x2.5A Dimmer | 2.4GHz

SoundPro Item: 122348 | Part Number: 5916

$484.17
$569.61 $484.17
Your Price Sold out
MSRP: $569.61 | MAP: $484.17

Usually ships in 5-7 business days

  • Low Profile Latch Connections Keep Wiring Compact Inside Props And Costumes
  • Output Port Test Buttons Let You Verify Each Output Without Console Control
  • Built-In Short Circuit, Reverse Polarity, And Over Temperature Protection For Safer Installs
  • Supports ANSI E1.11 DMX512-A For Compatibility With Standard Control Consoles
  • Compatible With All Multiverse And SHoW DMX Transmitters For Easy System Integration
  • RDM Configuration Enables Remote Setup From Compatible Controllers
Log in or register for YOUR best price

Built for lighting designers, prop masters, wardrobe technicians, and electricians who need dimming in places a conventional dimmer pack will never fit. The Multiverse 2x2.5A family drives two constant voltage outputs from a board small enough to disappear inside a costume piece, wand, candle, or set prop, so practical effects can be programmed from the same console as the rest of the show.

Control comes over City Theatrical Multiverse or SHoW DMX Neo wireless DMX/RDM, or over a wired DMX line when a cable run is the better choice. That flexibility suits touring productions, theatre, themed attractions, and film or broadcast sets where wiring a performer or a moving scenic piece is impractical. Four DMX personalities and 20-bit PWM resolution deliver fine fades at the bottom of the dimming curve, which is where steps are most visible. Setup is handled over RDM, with a DMXcat or the free USB configuration program for PC and Mac.

What sets the range apart is that it is designed and built in the USA by City Theatrical and pairs directly with the Multiverse and SHoW DMX ecosystem. Choose the radio band that fits your venue and region: versions are offered for 2.4GHz and 900MHz, with the 900MHz band licensed for North America only.

Downloads

View full details

Specifications

Electrical
Outputs
2
Output Current Per Channel
2.5A
Power Draw Wireless Mode
0.36W
Power Draw Wired Mode
0.27W
Performance
PWM Resolution
20-bit
DMX Personalities
4
Connectivity
Frequency Band
2.4GHz
DMX Standard
ANSI E1.11 DMX512-A
Configuration
RDM
Construction
Included Case Material
Plastic
Country Of Manufacture
USA
