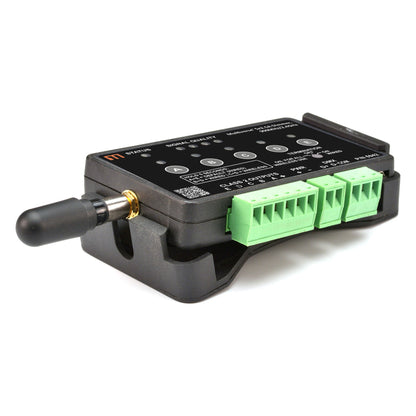

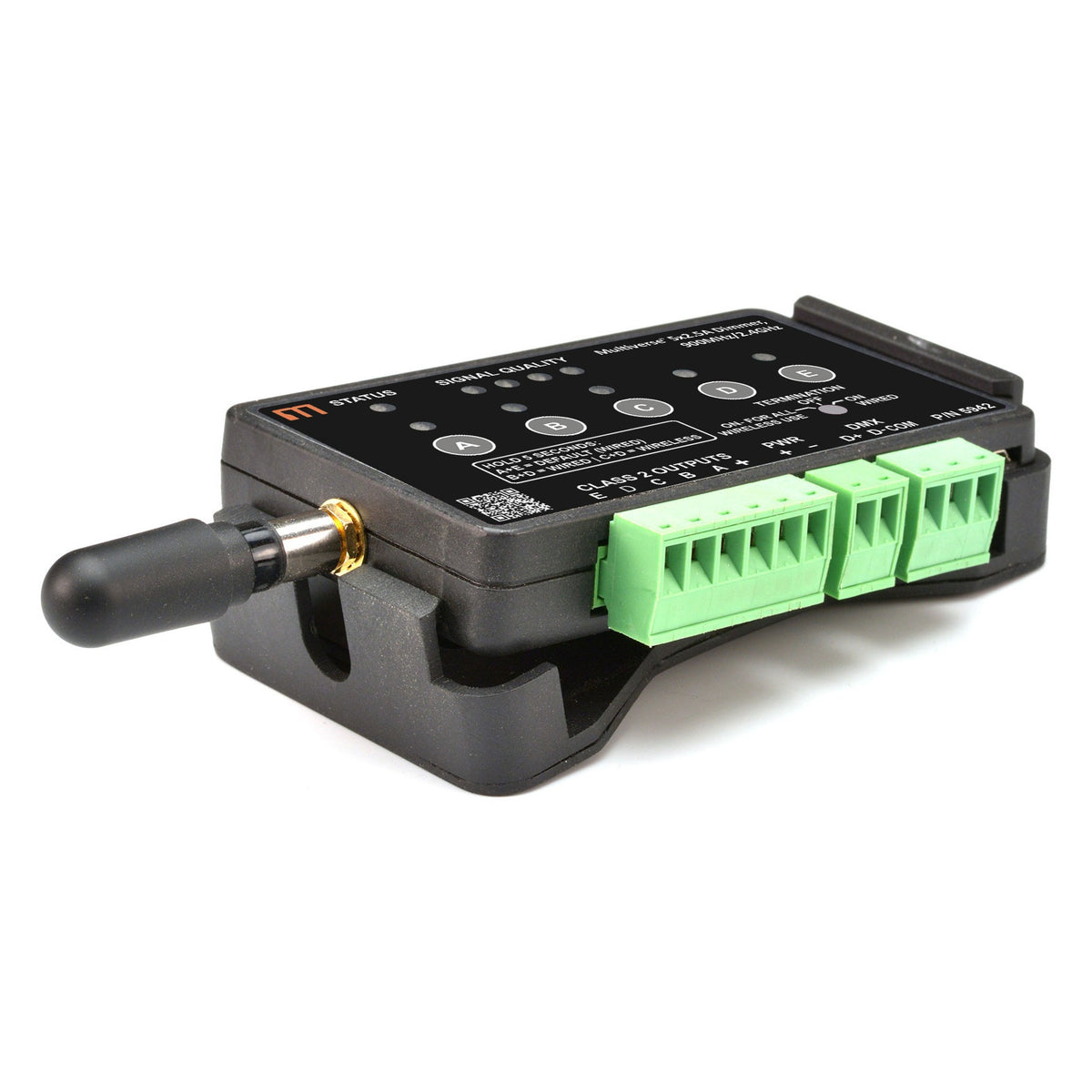

• Multiverse 5x2.5A Dimmer 5942 angled view on mounting bracket with antenna and green Class 2 output terminal blocks, City Theatrical

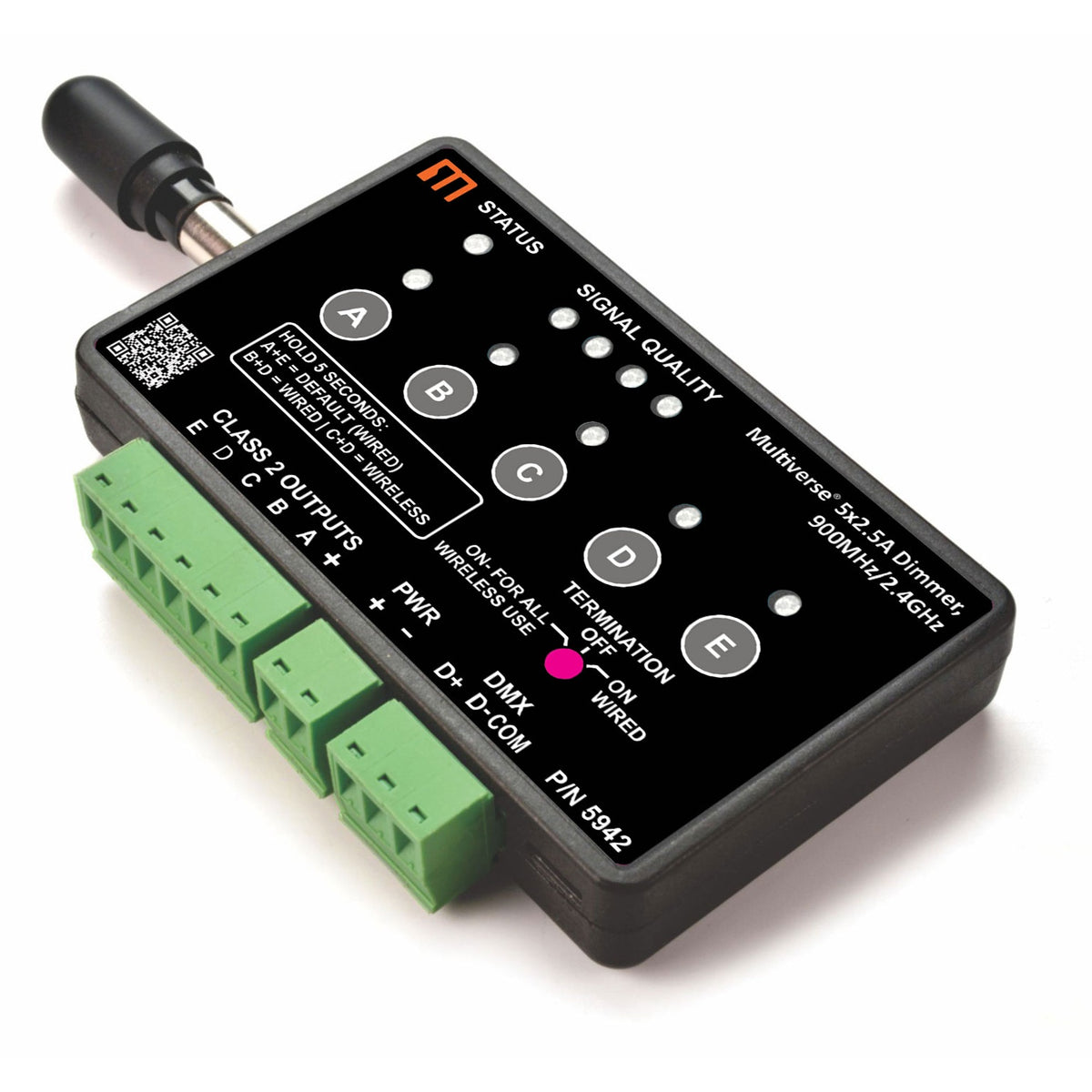

  • Multiverse 5x2.5A Dimmer 5942 three-quarter view showing status and signal quality LEDs, A-E buttons and termination switch, City Theatrical

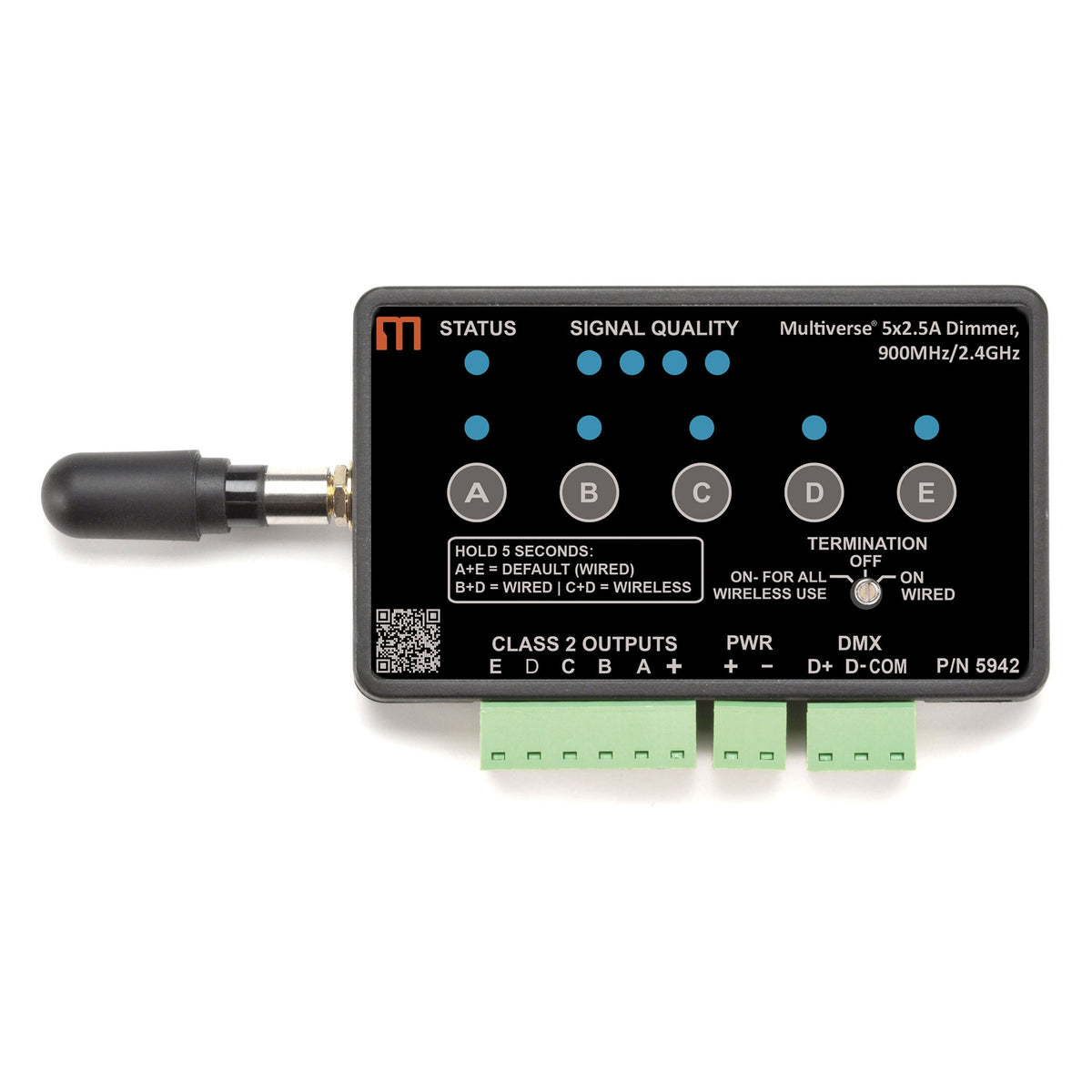

  • Multiverse 5x2.5A Dimmer 5942 front view with 900MHz/2.4GHz antenna, lit LED indicators and PWR/DMX terminal connectors, City Theatrical
1 3

City Theatrical 5942 Multiverse 5x2.5A Wireless DMX Dimmer

City Theatrical 5942 Multiverse 5x2.5A Wireless DMX Dimmer

SoundPro Item: 122350 | Part Number: 5942

$749.32
$881.55 $749.32
Your Price Sold out
MSRP: $881.55 | MAP: $749.32

Usually ships in 5-7 business days

  • Wireless Or Wired DMX Input Fits Both Cable-Free And Hardwired Rigs
  • Compatible With All Multiverse And SHoW DMX Neo SHoW IDs For Easy System Integration
  • Per Channel Offsets Balance The Point Where Each Output Turns On For Even Low End Fades
  • Per Channel Bump Buttons With Disable Function Speed Up Testing And Prevent Accidental Use
  • Selectable PWM Frequency, Response Time, And Curve Let You Tune Each Channel's Dimming Feel
  • Error Detection And Signal Light Flag Shorts, Over Current, Voltage, And Temperature Faults
  • DMX Termination Selector Switch And Detachable Connectors Simplify Line Setup And Wiring
Log in or register for YOUR best price

Built for lighting designers, electricians, and production teams who need to dim constant voltage loads on scenery, set pieces, and architectural details where running a data home run is impractical. The 5942 accepts control over City Theatrical's Multiverse or SHoW DMX Neo wireless links as well as conventional wired DMX, so it fits touring rigs, theatrical builds, themed installs, and corporate stages without forcing a single control path.

The dimming engine is aimed at fine low level control. Six DMX personalities cover single color and tunable white fixtures at standard or high resolution, which keeps fades smooth when a scene lives near black. Setup happens over RDM with a tool like the DMXcat, or through the free USB Configurator for PC and Mac, so changes can be made on site without opening the unit.

This dimmer is designed and built in the USA by City Theatrical, keeps power consumption low in both wireless and wired modes, and mounts to scenery with the supplied bracket. On this model the radio band is user selectable. Note that the 900MHz band is licensed for North America only.

Downloads

View full details

Specifications

Electrical
Output Channels
5
Output Current Per Channel
2.5A
Output Type
Constant Voltage
Output Class
Class 2
Power Draw Wireless Mode
0.45W
Power Draw Wired Mode
0.35W
Performance
PWM Resolution
20-bit
DMX Personality Count
6
DMX Personalities
8-bit (2ch), 16-bit (4ch), 8-bit Tunable White Single (2ch), 16-bit Tunable White Single (4ch), 8-bit Tunable White (4ch), 16-bit Tunable White (8ch)
Connectivity
DMX Input
Wireless or Wired
DMX Output
Wired
Wireless Technology
Multiverse Wireless DMX/RDM, SHoW DMX Neo Wireless DMX/RDM
Radio Band
2.4GHz or 900MHz (user selectable)
Configuration Port
Micro USB
Construction
Mounting Bracket Included
Yes
Country of Manufacture
USA
