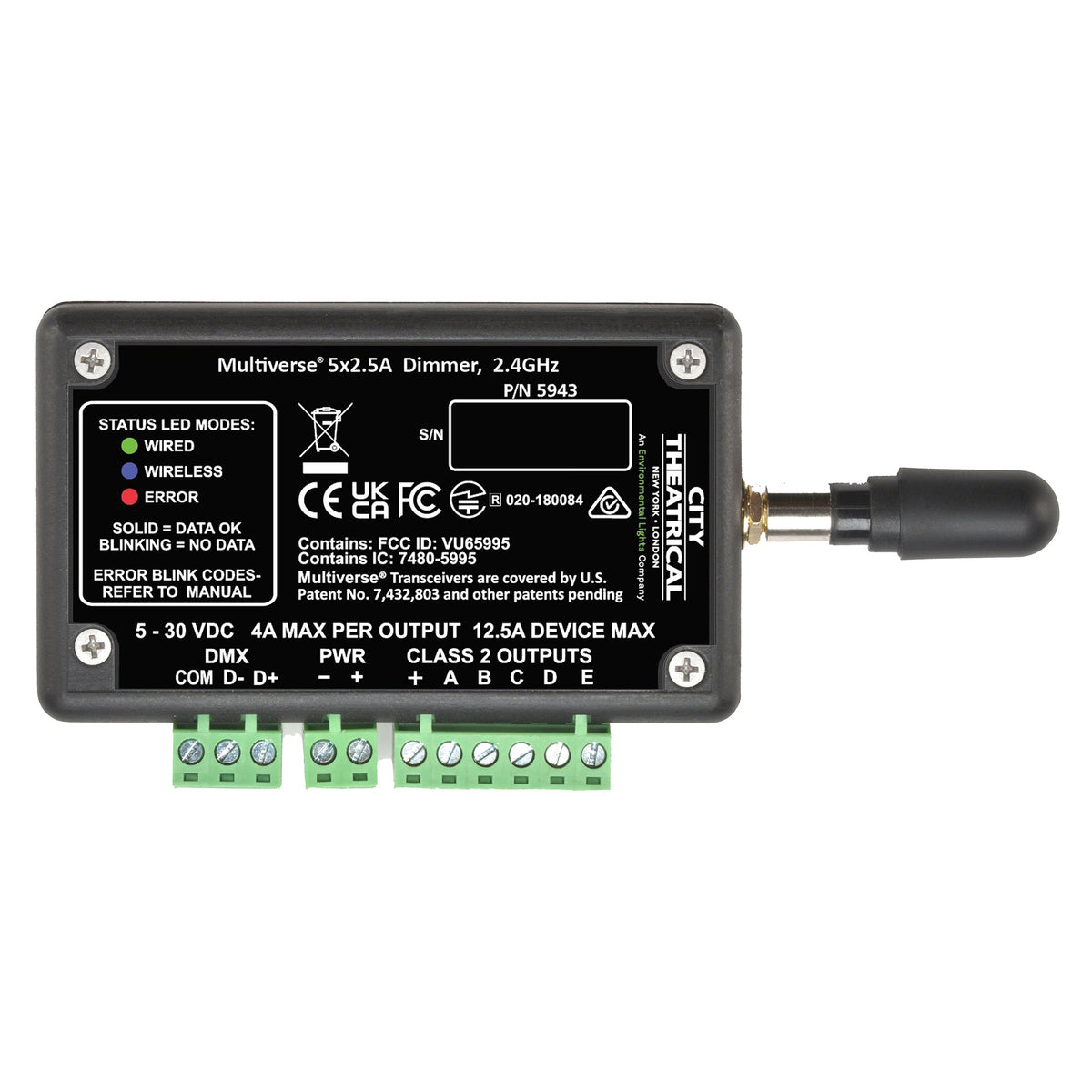

• Multiverse 5x2.5A 2.4GHz dimmer P/N 5943 rear view with spec label, status LED legend and green Class 2 output, PWR and DMX terminal blocks, City Theatrical

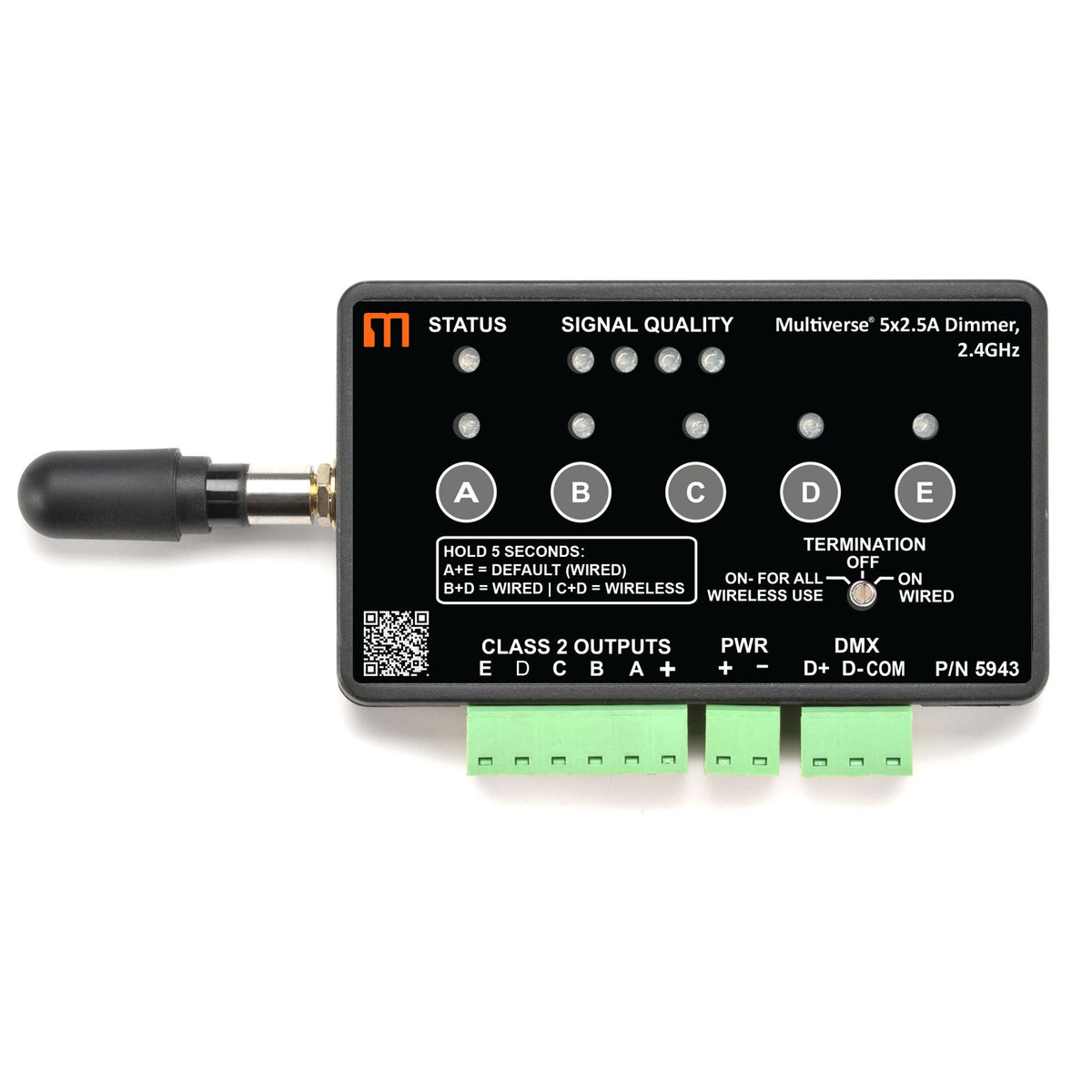

  • Multiverse 5x2.5A 2.4GHz dimmer P/N 5943 front view showing status and signal quality LEDs, A-E buttons, termination switch and antenna, City Theatrical
1 2

City Theatrical 5943 Multiverse 5x2.5A Wireless DMX Dimmer

City Theatrical 5943 Multiverse 5x2.5A Wireless DMX Dimmer

SoundPro Item: 122351 | Part Number: 5943

$749.32
$881.55 $749.32
Your Price Sold out
MSRP: $881.55 | MAP: $749.32

Usually ships in 5-7 business days

  • Wireless Or Wired DMX Input For Flexible Control In Any Rig
  • Per Channel Offsets Balance Low End Turn On Across All Outputs
  • Per Channel PWM Frequency, Response Time, And Curve Selections For Tuned Dimming
  • Error Detection With Signal Light For Short Circuits, Over Current, And Voltage Faults
  • Micro USB Port Simplifies Firmware Updates And Configuration
  • Included Mounting Bracket Speeds Installation To Scenery
  • Per Channel Bump Buttons With Disable Function For Fast Output Checks
Log in or register for YOUR best price

Built for lighting designers, electricians, and production teams who need to dim constant voltage loads where running cable is impractical. This dimmer suits theatrical scenery, themed environments, and live production rigs where a compact unit has to blend into the build and still respond reliably to the console. Five outputs let one dimmer cover a small cluster of channels instead of requiring multiple single-channel units.

Control options cover City Theatrical wireless DMX/RDM, SHoW DMX Neo systems, and standard wired DMX, so a single unit adapts to a touring package, a venue install, or a mixed wireless and wired plant. High-resolution PWM and multiple personality choices let you match the channel footprint to single-color or tunable white fixtures, while fine control at the bottom of the curve keeps slow fades smooth.

Setup stays in the field. Configure over RDM with a City Theatrical DMXcat, or use the free USB configuration program for PC and Mac. Detachable connectors keep wiring clean, and the unit is designed and built in the USA by City Theatrical, which suits buyers standardizing on the Multiverse ecosystem.

Downloads

View full details

Specifications

Electrical
Output Channels
5
Output Current Per Channel
2.5A
Output Type
Constant Voltage
Output Class
Class 2
Power Draw Wireless Mode
0.45W
Power Draw Wired Mode
0.35W
Performance
PWM Resolution
20-bit
DMX Personality Options
6
DMX Personalities
8-bit (2ch), 16-bit (4ch), 8-bit Tunable White Single (2ch), 16-bit Tunable White Single (4ch), 8-bit Tunable White (4ch), 16-bit Tunable White (8ch)
Connectivity
DMX Input
Wireless or Wired
DMX Output
Wired
Wireless Technology
Multiverse, SHoW DMX Neo
Configuration Port
Micro USB
Included Items
Mounting Bracket
Yes
