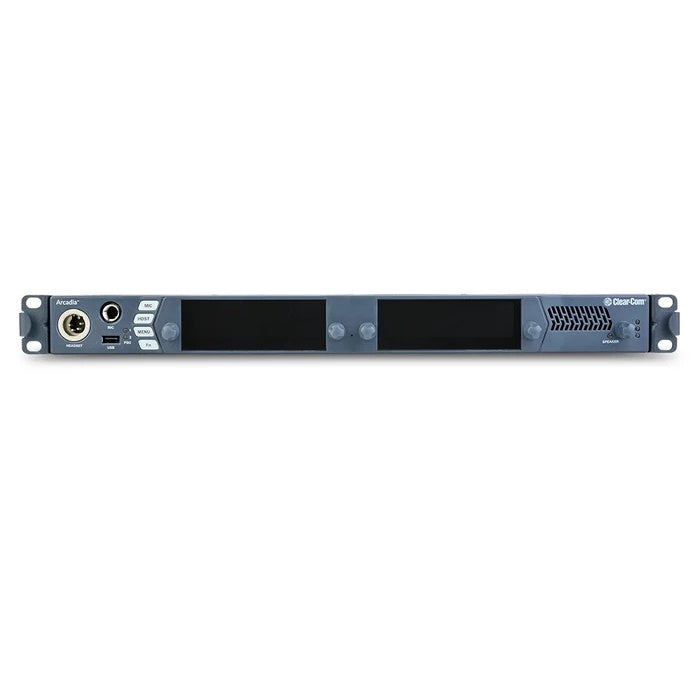

Clear-Com ARCADIA-X4-32P Scalable 1RU Intercom Core | 32 Ports

Clear-Com ARCADIA-X4-32P Scalable 1RU Intercom Core | 32 Ports

SoundPro Item: 201036 | Part Number: ARCADIA-X4-32P

$17,410.00
$17,410.00 $17,410.00
Your Price Sold out
MSRP: $17,410.00 | MAP: $17,410.00

Usually ships in 5-7 business days

  • FreeSpeak II And HelixNet Integration Consolidates Wireless Beltpacks And Wired Stations On Single Platform
  • Dual Redundant Power Supply Support With Optional External PSU Ensures Continuous Operation
  • Dante AES67 Audio Networking Eliminates Conversion Hardware In IP Production Facilities
  • Software-Selectable 4-Wire Crossover Modes Support AES-72 Type 3M Pinout Standards
  • GPIO Relay Outputs Trigger Tally Systems And Production Automation Controllers
  • Auto-Calibration Nulling Removes Crosstalk In High-Density Intercom Deployments
  • Dual SFP Cages Accept Multimode And Singlemode Fiber For Long-Distance Connectivity
Log in or register for YOUR best price

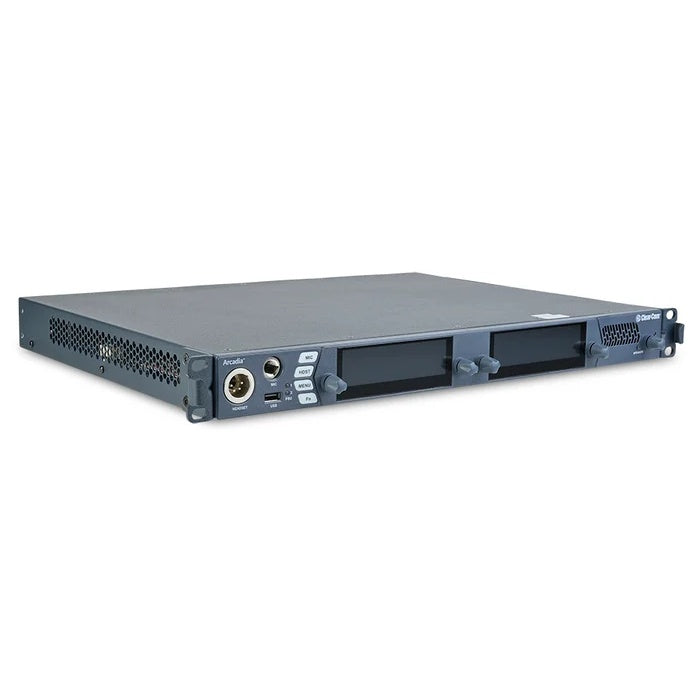

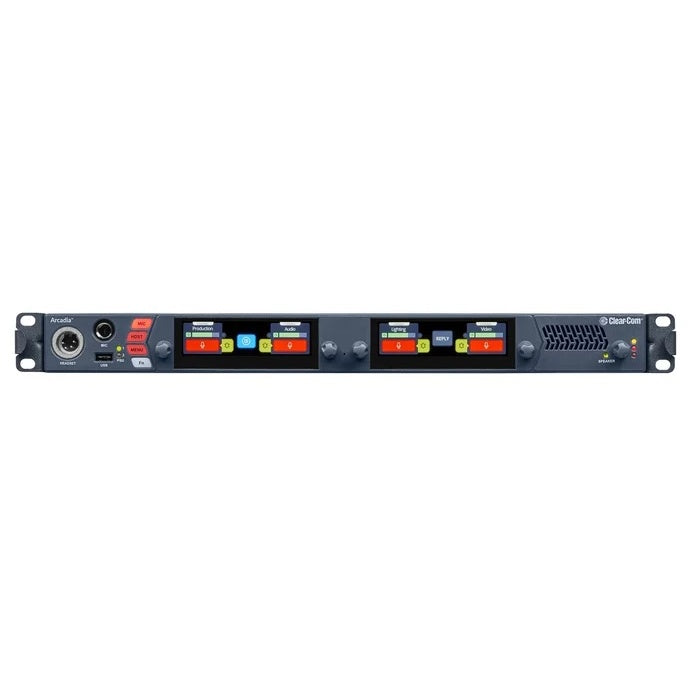

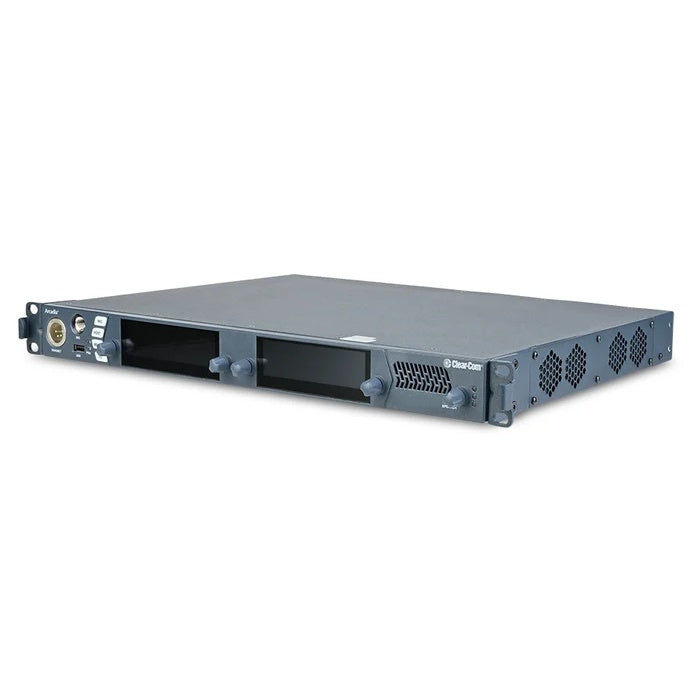

The Clear-Com Arcadia central station delivers a modular 1RU intercom platform built for complex multi-format production workflows. Engineered to bridge wireless FreeSpeak II beltpacks, HelixNet wired stations, V-Series keypanels, Dante AES67 streams, and traditional analog partyline systems, it provides a single point of integration for broadcast trucks, live event venues, and permanent installation control rooms. Auto-calibration nulling exceeds 60dB at 1kHz to eliminate crosstalk in dense signal environments.

Licensed port architecture allows system expansion from 16 to 200 ports via software unlock, eliminating hardware swap-outs during facility growth. Dual redundant PSU support and dual Gigabit Ethernet interfaces with SFP compatibility ensure uptime in mission-critical broadcast and sports production environments. GPIO relay closures enable tally integration with production switchers and automation controllers.

Native Dante connectivity embeds 200Hz–12kHz intercom audio into IP workflows without external adapters, while I.V. Direct ports maintain compatibility with legacy Eclipse-IPA systems during infrastructure transitions. Four-wire breakout cables interface with IFB transmitters and hybrid telephone systems, and 2-wire XLR ports connect existing analog partyline networks for staged migration paths.

View full details

Specifications

Licensed Ports
Capacity
32 Ports
Upgrade Method
Software License Via CCM Online Or Offline Activation
Maximum System Capacity
200 Ports
Transferability
Fixed To Host Unit, Non-Transferable

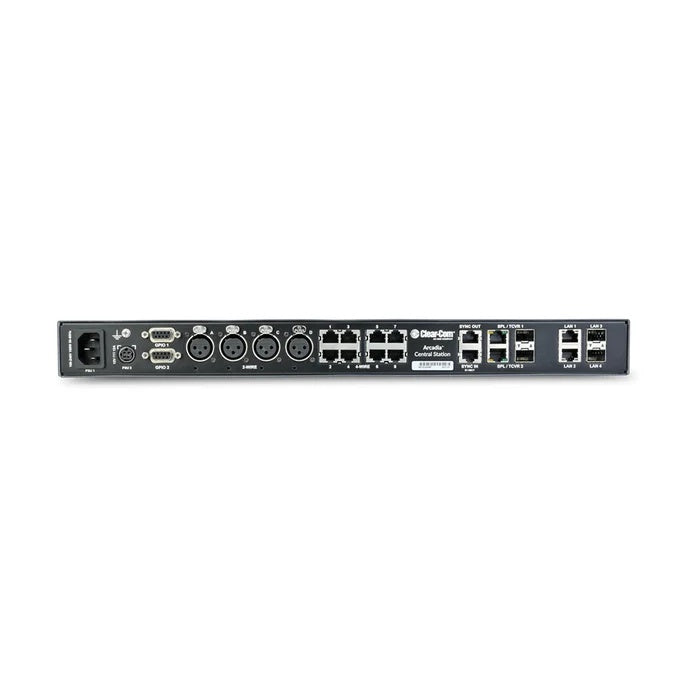

Connectivity
Headset Connector
4-pin XLR-M
Gooseneck Microphone
¼" TRS 7/16UNF-2A Threaded
2-Wire I/O
(4) XLR-3F
4-Wire I/O
(8) RJ45
Program In / Stage Out
XLR-3F, XLR-3M
FreeSpeak II E1 Transceiver / Splitter
(2) RJ45, (2) SFP
FreeSpeak II DECT Sync
(2) RJ45 Input And Output
LAN
(2) RJ45, (2) SFP Function Assignable
AC Power
IEC-C14
DC Power
KPJX-4S-S
Audio
Headset Mic Input Type
Dynamic / Electret Selectable
Headset Mic Voltage
5V
Headset Mic Input Level Nominal
-45dBu
Headset Mic Input Level Max
-10dBu
Headset Mic Limiter Threshold
-35dBu ±3dB
Headset Mic Limiter Range
≥ 20dB
Speaker Size
1.6" x 2.8"
Speaker Load
4Ω
Max Speaker Level
87dB ± 2dB SPL A At 3' / 1m
4-Wire Nominal Level
0dBu Adjustable -12dB To +12dB
4-Wire Maximum Level
+18dBu
4-Wire Impedance
>= 10KΩ
2-Wire Impedance
200Ω + 10%
2-Wire Compatibility
Clear-Com, RTS-TW With Call And Remote Mic Kill
2-Wire Termination
Optional Per Pair A/B Or C/D
2-Wire Nulling
User Initiated Auto-Calibration
2-Wire Null Depth
>60dB At 1kHz
2-Wire Nominal Level
-18dBu Clear-Com, -12dBu RTS-TW
2-Wire Power Voltage
25-28V DC
2-Wire Power Current
560mA Optional Per Pair A/B Or C/D
Frequency Response
Headset Microphone
200Hz To 12kHz ±3dB
Gooseneck Microphone
200Hz To 12kHz
Speaker
100Hz To 10kHz
FreeSpeak Edge
200Hz To 12kHz
FreeSpeak II
200Hz To 7.1kHz
HelixNet
200Hz To 10kHz
I.V. Direct
50Hz To 7.1kHz
Dante
20Hz To 20kHz
4-Wire
80Hz To 20kHz ±3dB
2-Wire
200Hz To 12kHz
GPIO
Inputs
(2)
Input Style
Optically Isolated
Input Voltage Range
4 - 30V DC Or AC
Input Current
>=1.2mA Required
Outputs
(4)
Output Style
SPDT / Power Relay
Normalized
Open Or Closed Separate Pins
Switching Voltage Max
30V DC
Switching Current Max
1A
Output Voltage
12V Separate Pin
Output Current Max
2mA
Power
AC Input Voltage Range
100 - 240V AC
AC Input Frequency Range
50 - 60Hz
AC Input Power Max
160W
AC Input Current Max
12A
AC BTU Max
545BTU/h
DC Input Voltage Range
12V DC ± 5%
DC Input Power Max
144W
DC Input Current Max
12.5A
DC BTU Max
491BTU/hr
External PSU Output Voltage
12V DC ± 5%
External PSU Output Current Max
12.5A
External PSU Output Power Max
150W
Environmental
Operating Temperature
32° To 113°F (0° To 45°C)
Storage Temperature
-22° To 158°F (-30° To 70°C)
Humidity
20-90% Non-Condensing
Physical
Rack Size
1RU
Included Items
Four-Wire PGM/SA Breakout Cable
CAB-RJ45-PGM-SA
External PSU
PSU-EXT-001
