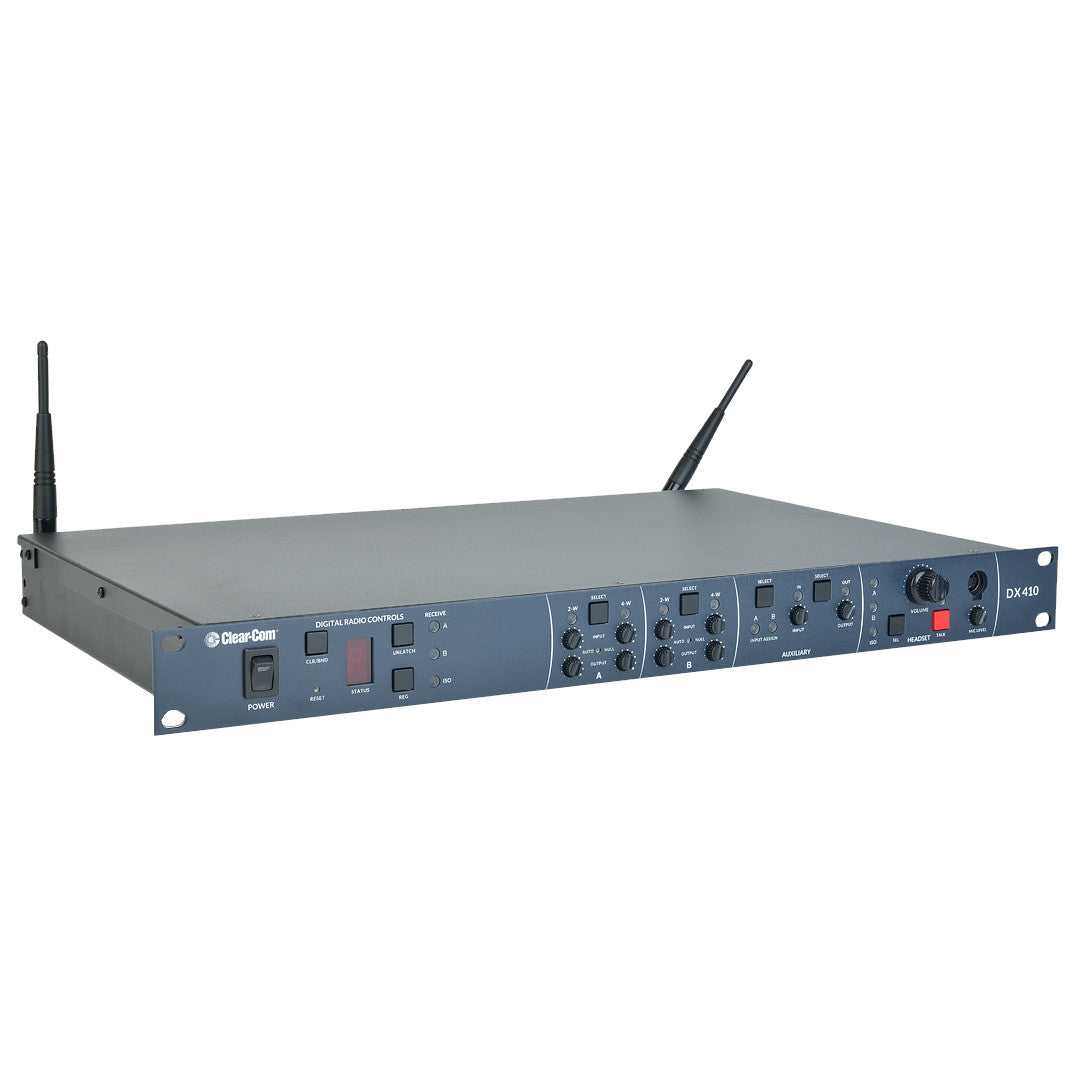

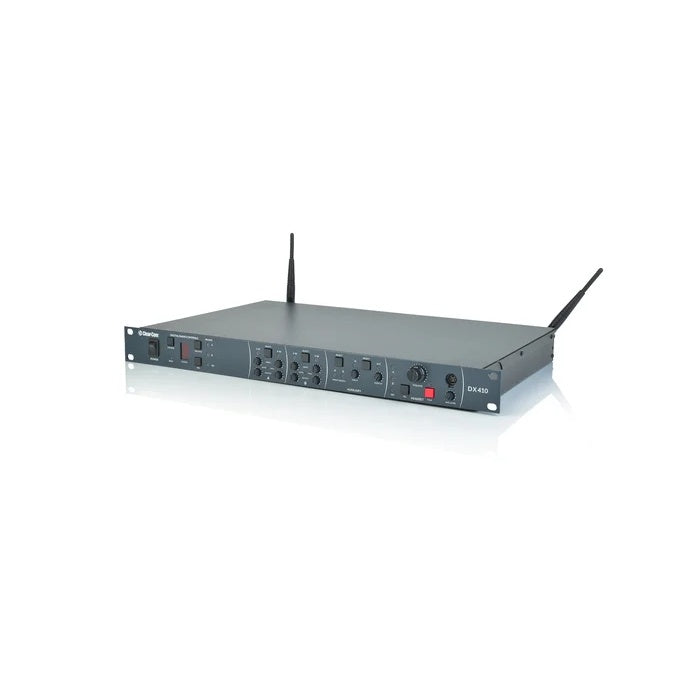

Clear-Com BS410 DX410 2.4GHz Base Station

Clear-Com BS410 DX410 2.4GHz Base Station

SoundPro Item: 42553 | Part Number: CZ-BS410

$4,995.00
$4,995.00 $4,995.00
Your Price Sold out
MSRP: $4,995.00 | MAP: $4,995.00

Usually ships in 5-7 business days

  • Two-channels
  • 7kHz wideband audio
  • 2-wire and 4-wire bridging
  • 2-wire auto-nulling
  • Lost packet concealment
  • Upgraded radio
  • Supports up to 15 beltpacks and/or wireless headsets
Log in or register for YOUR best price

The BS410 is the base station for the DX410 wireless system, supporting up to 15 registered BP410 beltpacks and/or WH410 all-in-one wireless headsets. The system operates in the 2.4GHz frequency band and features high quality 7kHz wideband audio. The BS410 allows the option for audio bridging by combining 2-wire and 4-wire audio together on A or B channels.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
1.75x19x17.13" (44x483x435mm)
Electrical
Power Requirements
100 – 240V AC, 50 – 60Hz or 12 – 14V DC
Audio
Channels
2 audio channels
Audio Frequency
200 Hz – 7kHz
System Distortion
<2%
RF Sensitivity
<-90dBm w 10-3 BER
Distortion
<2%
Connectivity
Aux Input
XLR-3F with ¼” (6.35mm) combo jack, 600 Ohms balanced, level adjustable
Aux Output
XLR-3M, 600 Ohms balanced, level adjustable
Headset Connector
4-pin mini-DIN, Electret microphone
Headset Output
200mW into 32 Ohms
Shipping
Weight
9 lbs (4.1kg)
General
Capacity
Up to 15 BP410 and/or WH410 per base station
Full-Duplex
Yes. Single-channel = 4 in simultaneous full-duplex. Dual-channel = 3 in simultaneous full-duplex.
Radio Frequency Range
2400 – 2483.5 MHz
4-wire I/O
RJ45, 600 Ohms balanced, level adjustable, simultaneous operation with 2-wire
2-wire I/O
XLR-3M, XLR-3F, externally-switchable RTS or Clear-Com, 200 Ohms, level adjustable, null adjustable to 50dB attenuation, typical
Communication Security
dual-slot diversity
Type
Frequency Hopping, Spread Spectrum (FHSS)
Transmit Power
100mW burst
Modulation Type
Gaussian filtered FSK, TDMA
Harmonics/Spurious
Exceeds FCC and ETSI specifications over temperature
Environmental
Temperature: +32° – +122°F (0° – +50°C)
RF
Antenna Type
External ½-wave dipole (R-TNC connector), RX/TX horizontal/vertical diversity
Frequency Stability
13 ppm
