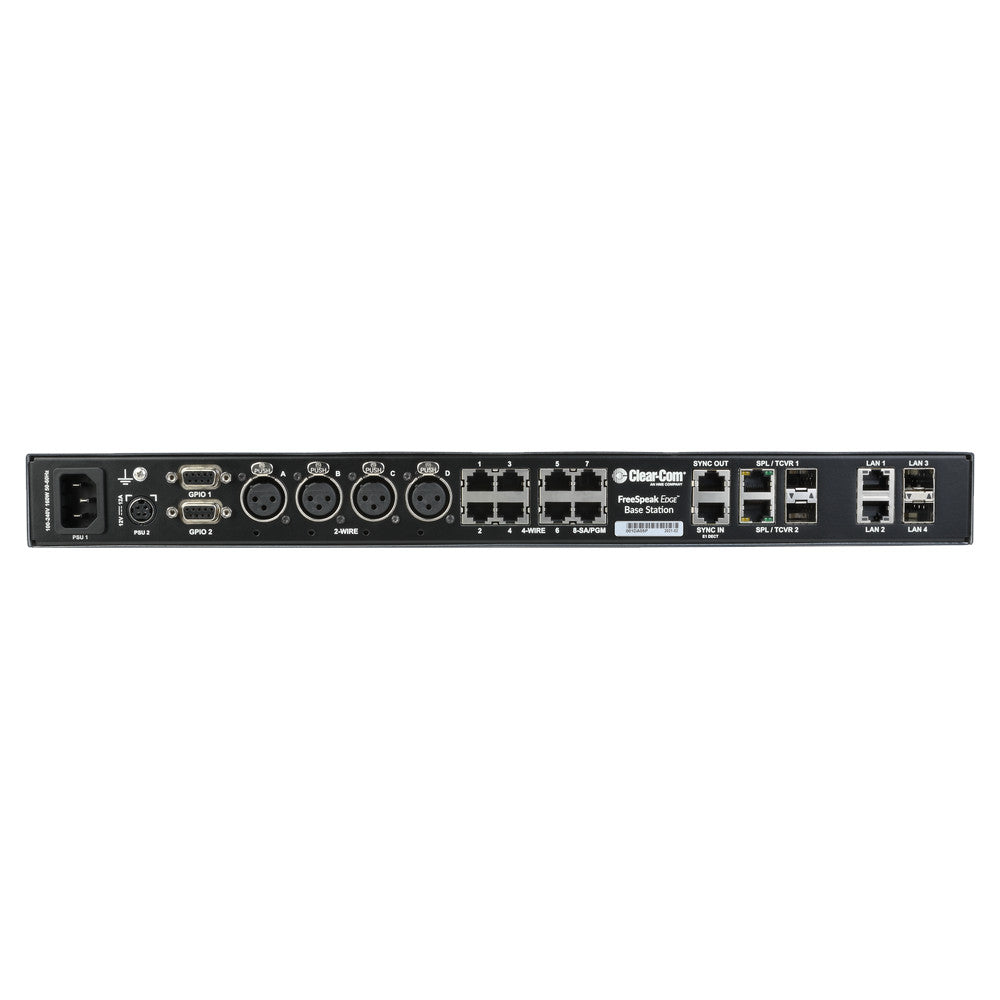

  • Clear-Com FSE-BASE FreeSpeak Edge Base Station back

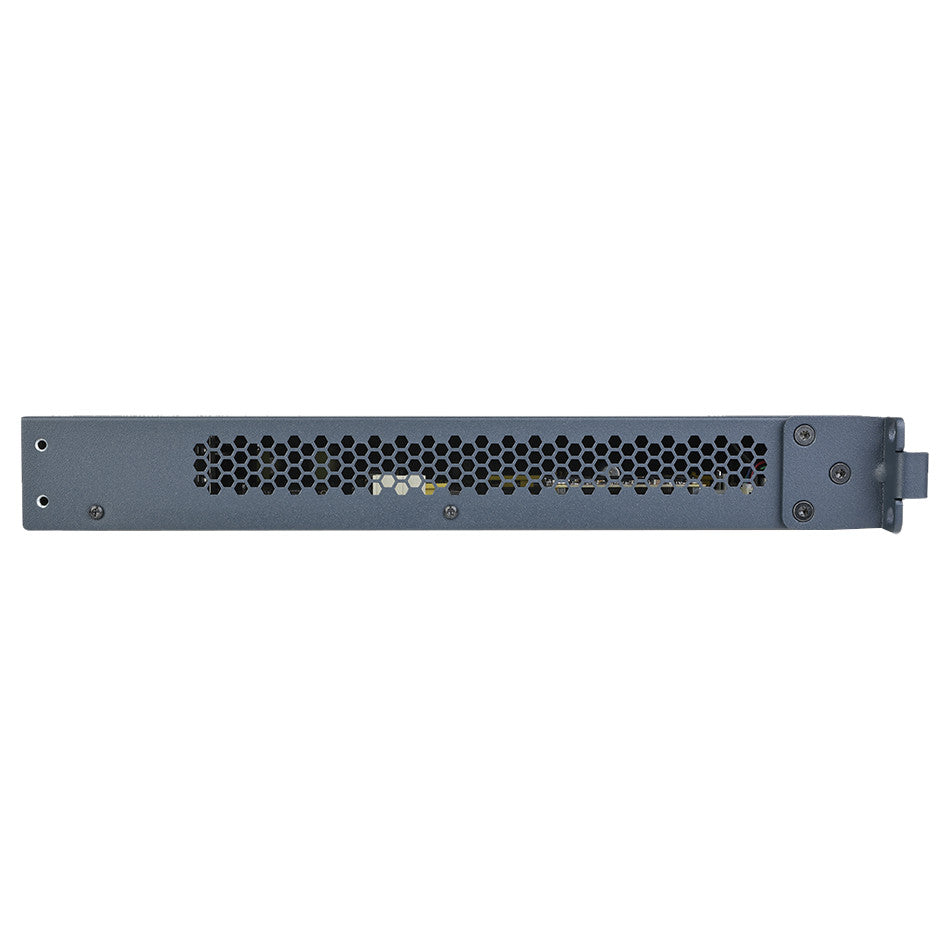

  • Clear-Com FSE-BASE FreeSpeak Edge Base Station side
1 4

Clear-Com FSE-BASE FreeSpeak Edge Base Station

Clear-Com FSE-BASE FreeSpeak Edge Base Station

SoundPro Item: 129811 | Part Number: FSE-BASE

$11,470.00
$11,470.00 $11,470.00
Your Price Sold out
MSRP: $11,470.00 | MAP: $11,470.00

Usually ships in 5-7 business days

  • Supports up to 6 IPT or FSE transceivers and up to 10 E1 transceivers (1.9 or 2.4GHz)
  • Supports up to 100 channels
  • Standard 1 rack unit (RU) device
  • High quality 12kHz audio to FS Edge beltpacks
  • 2 large full-color touch screen TFT displays
  • 4 rotary encoders for gain and menu operation
  • Headset connection
  • Stage Announce and Prog. Audio cable included
  • Functions as PTP Leader Clock
Log in or register for YOUR best price

The FreeSpeak Edge base station is a standalone 1RU device that provides extensive connectivity to a wide range of Clear-Com endpoints along with third-party Dante devices. Built primarily to deploy digital audio connections and IP transceivers, the base station also provides support to FreeSpeak II and Edge beltpacks, 1.9 GHz E1 and IP transceivers*, and 2.4 GHz E1 transceivers.

*Note: A 1.9 GHz beltpack cannot roam between and E1 1.9 GHz transceiver and an IP 1.9 GHz transceiver. Beltpacks on each system can communicate through the base station.

View full details

Specifications

Dimensions
Dimensions
1RU
Depth
260mm
Electrical
Headset Mic Voltage
5V (Electret selectable)
Load Impedance
> 32Ω
Total Harmonic Distortion (THD)
< 0.1% THD at 1kHz
2W Output Voltage
25 – 28V DC, 560 mA per pair (A/B or C/D)
2W Impedance
>10kΩ
2W Total Harmonic Distortion (THD)
< 0.1% THD at 1 kHz
Relay Contact Voltage Rating
30V DC
Relay Contact Current Rating
1A
Input Voltage Range
4 – 30 volts DC or AC
Input Current
>=1.2mA required
External AC/DC Power Supply (453G020-1 Supplied)
Input: 100-240V AC, 50-60Hz, 2.2A Max, IEC60320 C14 inlet.Output: 12V DC +/- 5%, 12.5A
Audio
Frequency Response
Headset Mic –
Output Impedance
33Ω
Audio/Radio
Frequency Response Base-to-Beltpack:
2W Frequency Response
200 to 12kHz. ±3dB
Audio Sampling
24 bit Linear 48KHz
Connectivity
Input Type
Dynamic /Electret – Selectable
Max Input Level
-25dBu
Input Level
-60dBu nominal; -25dBu MAX
Max Output Level Before Distortion
> 13dBu
Connector Type
2 x DB9
Input Quantity
2
Program Input
XLR-3M, provided using cable assembly CAB-RJ45-PGM-SA
Stage Announce Output
XLR-3F, provided using cable assembly CAB-RJ45-PGM-SA
USB
USB type A Receptacle
Number of E1 Antenna Ports
2 x RJ45, 2 x Fiber (2 active at any time)
Network Timing
PTPv2 (AoIP) / PTP v1 (Dante)
Network Specifications: AoIP Interfaces
Minimum Network Bandwidth Required, Network Protocols Ethernet IPv4 Unicast Audio and ControlmDNS–Multicast Device Discovery
Network Jitter Tolerance
< 1us required for RF Syncing of Transceivers
Controls
Displays
(2) 480 x 128 color TFT LED Touch Screen displays
Protocols
RTSP/SAPAES67Dante
Compatibility
Network Compatibility
Layer 2 & 3 LAN only
Environmental
Humidity
20-90% Non-Condensing
Shipping
Weight
7.25lbs (3.29kg)
General
Connectivity
Wireless 5GHz Edge transceivers and beltpacks, Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks, Dante enabled audio devices, AES67 devices via Dante controller, 4-wire ports (8 ports RJ45), 2-wire ports (4 XLR-3F), GPIO (D-type 9 pin), LAN – 2 x RJ45, 2 x SFP
Beltpacks per Base Station
16 BPs (FSII or FSE)
Transceivers/Antennas Supported by Base
6 x IPT or FSE TCVR and 10 x E1 TCVRs (1.9 or 2.4GHz)
Partyline
200Hz – 12kHz + 3dBu
Line Out
200Hz – 20kHz + 3dBu
Mic Limiter Threshold
-50dBu ±3dB
Mic Limiter Range
≥ 20dB
Headset Mic – Partyline
-78dBu (Clear-Com mode)
Headset Mic – Line Out
-60dBu
Headset Out
200Hz – 10kHz + 3dBu
4-wire I/O
Output Impedance >10kΩ, Input Impedance 200Ω + 10%, transformer isolated balanced input and output.
4-wire Operating Levels
0dBu Nominal, 18dBu headroom
2-wire I/O
Selectable RTS or Clear-Com mode, Software controlled auto-null, null depth >60dB at 1kHz
2-wire Operating Levels
-18dBu nominal (Clear-Com Mode), -12dBu nominal (RTS Mode), Headroom 18dB
Freespeak Edge Beltpack
200Hz – 12kHz
Freespeak II Beltpack
200Hz – 7.1kHz
2W Power On/Off
A/B, C/D paired- software controlled
Relay Contact Type
SPDT
Relay Quantity
4
Headset
Freespeak Edge Base: 4-pin XLR-M, auto headset detect
DECT Radio Frequency Sync
Rear RJ45 input and output RF sync connectors
Front Panel Indicators & Function
(2) Power Supply Status LEDs1) Status LED (Edge)1) Three Color Level Control LED Array
Operating
32° to 113°F (0° to 45°C)
Storage
86° to 158°F (30° to 70°C)
(WxHxL)
19x1.72x13.929in (43.6x482.6x353.8mm)
Quality of Service
DiffServ RFC2474
IGMP
On (AoIP)
Perduplex Connection
1 x FS
II IPT Bandwidth Usage
~7 Mbps.1 x
FS Edge IPT
~ 9.6 Mbps
Unicast
Port 80 TCP–Web Interface, System Management, ExpansionPort 443 for HTTPSPort 6001 UDP–AES67 DataPort 15000 – 15256 UDP – AES67 Audio
Recommended Ethernet Switches
Managed Ethernet Switch – Layer 3, 100/1000 Base-T ports for endpoints, 1000 Base IP Trunks between switches, QoS Configuration, Energy Efficient Ethernet bypass option, IGMP Snooping bypass option
Cable
Configuration
CCM browser-based configuration tool, Direct management with encoders and display
Power
Power
AC Mains input: 100-240V AC, 50-60Hz, 160W Max, IEC60320 C14 inlet.DC Low Voltage Input: 12V DC +/- 5%, 12A
Network
IP Addressing
Static, DHCP
Multicast
On (AoIP)
