Specifications
Audio
Audio Bandwidth
200Hz - 7.5KHz
Full-Duplex Audio Paths
Up to 9 keys
Mode of Operation
Full duplex on all routes

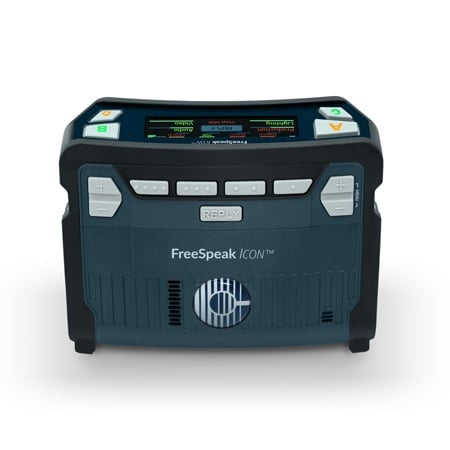

Level/Talk Controls
8 pushbuttons (A/B/C/D top, 1/2/3/4 front), 1 reply button, 2 rotary encoders, 2 level up/down controls, 1 main level control
Reply Button
1
Bluetooth Codec
MSBC using HFP (Hands Free Profile)
Connectivity

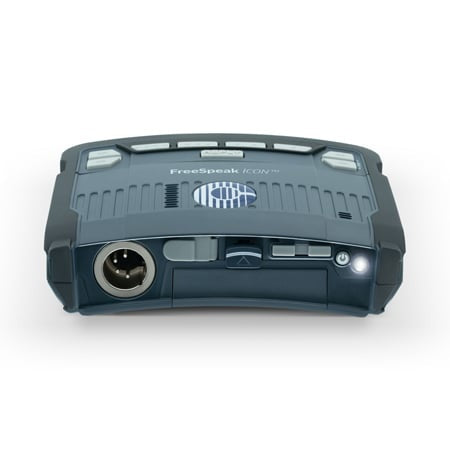

Headset Connector
4-pin male, Clear-Com standard
Headset Voltage
Maximum of ~+8dBu
Microphone Type
Electret and Dynamic, selectable
Electret Mic Level
-40dBu
Electret Mic Bias
4.4V
Dynamic Mic Level
-55dBu
Dynamic Mic Bias
1.8V
Headset Limiter
Selectable from menu
Bluetooth
Bluetooth 5.3 Headset Profile
BLE Radio
Yes
Performance
USA/Canada Frequency Range
1920 - 1930 MHz
USA/Canada Output Power
100mW
EU/Singapore/Hong Kong/Australia/New Zealand/South Africa Frequency Range
1880 - 1900 MHz
EU/Singapore/Hong Kong/Australia/New Zealand/South Africa Output Power
250mW
Japan Frequency Range
1893 - 1906 MHz
Japan Output Power
250mW
Modulation
GFSK, TDMA frame 10ms Full and Long slot
Max Distance Indoor (Beltpack To Transceiver)
~300 - 400 ft (90 - 122 m)
Max Distance Outdoor (Beltpack To Transceiver)
~600 - 800 ft (183 - 450 m)

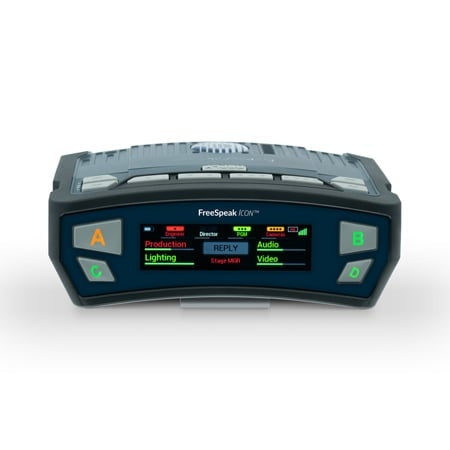

Display

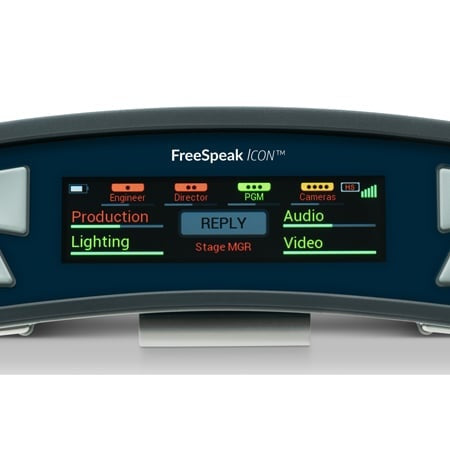

Display Type
TFT color display
Display Resolution
120 x 480
Power
Battery Type
Li-Ion
Battery Life
18+ hours
Charging
Drop-in charger (AC80) or USB-C
Construction
Environmental Rating
IP54 water and dust resistance
Environmental
Operating Temperature
14º - 125ºF (-10º - 50ºC)
Storage Temperature
-22º - 150ºF (-30º - 70ºC)
Humidity
20% - 90%, non-condensing
Dimensions
Dimensions (W x H x D)
5.31" x 4.27" x 1.92" (134.87 x 108.46 x 48.77 mm)
Note
Tapered design at largest points
Weight
Weight Without Battery
12.31 oz (349 g)
Weight With Battery
16.23 oz (460 g)
Certifications
Regulatory Model
1414
