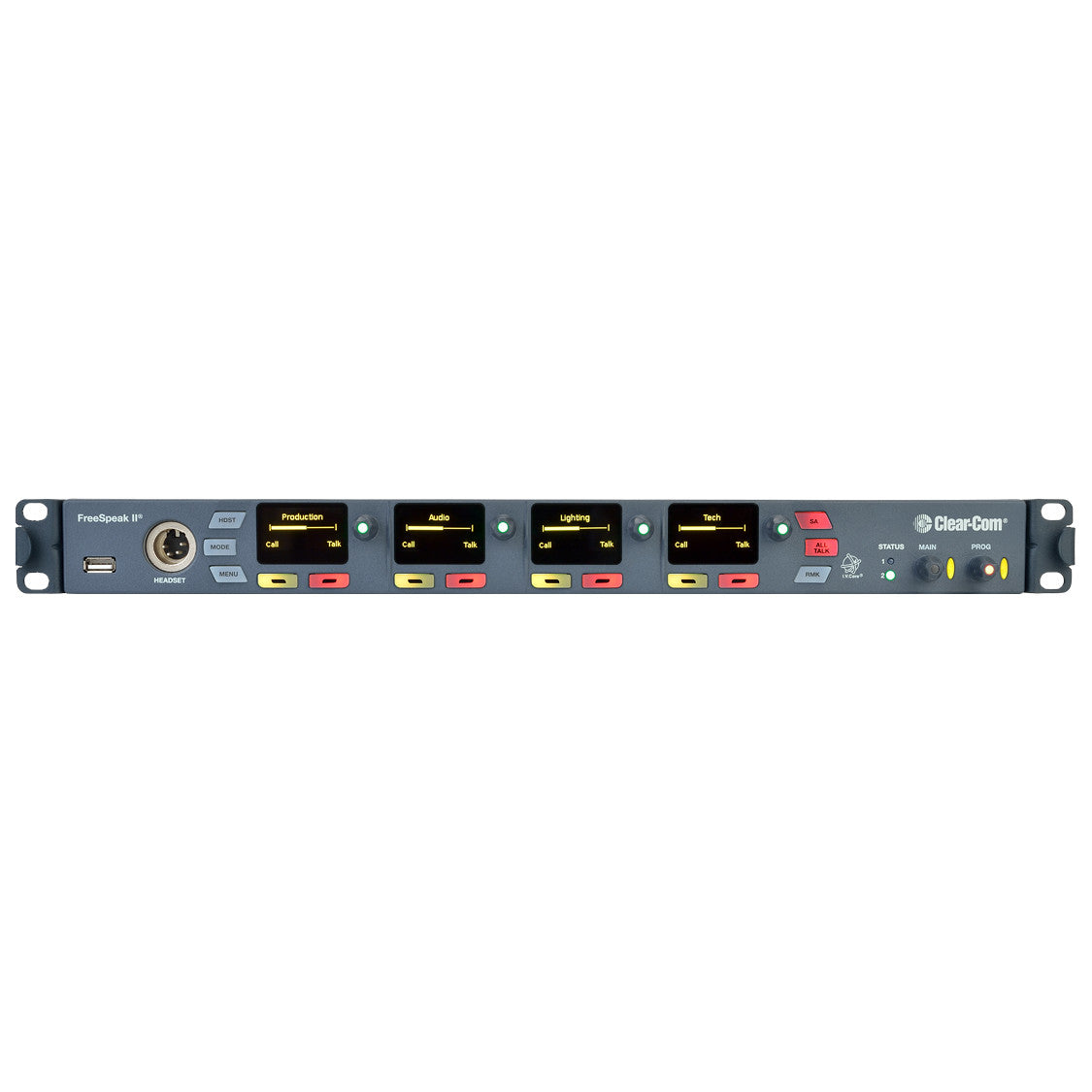

• Clear-Com FSII-BASE-II-5 front
1 4

Clear-Com FSII-Base-II-5 FreeSpeak Wireless Base Station

Clear-Com FSII-Base-II-5 FreeSpeak Wireless Base Station

SoundPro Item: 51956 | Part Number: FSII-BASE-II-5

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Routing and configuration of up to 5 FSII belt packs
  • Browser-based configuration tool
  • Four 2-wire ports with call signal, auto-nulling
  • Four 4-wire ports with call signal
  • Matrix and party line configurations support up to 12 channels and/or groups
Log in or register for YOUR best price

The base station can be used in Main Station mode with Talk and Call soft keys or as a Headset Station for communication and monitoring from the panel.

View full details

Specifications

Dimensions
Dimensions (H X W X D)
1.75 x 19 x 10.2 in (44 x 483 x 259 mm)
Electrical
Partyline Output Voltage
26 - 28VDC, 850mA per pair (A/B or C/D)
External Power Supply Connection
12VDC
Audio
Base-to-Beltpack Frequency Response
100Hz - 7.1kHz
Connectivity
No. of Active Transceiver Ports
2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
PC Programming Port
2 LAN RJ45
Relay Port
DB15, supports one relay assigned to the SA out
Program Input
XLR-3F, transformer isolated, line-level input
Stage Announce Output
XLR-3M, transformer isolated, line-level output
Controls
Front Panel Displays
4 OLED’s with encoders and assignable soft keys
Shipping
Weight
5.57 lbs (2.5 kg)
General
No. of Beltpacks per Base Station
5
No. of Transceiver/ Antennas Supported by Base
10
Partyline a ,B,C,D (each)
XLR-3F, on/off termination switch, Clear-Com and RTS compatible
Partyline Power On/Off
A/B, C/D paired
Four-Wire/Matrix Connection
4 RJ-45
Front Panel Headset
4-pin male and 5-pin female options
Front Panel Indicators
Antenna Status, Beltpack Status
Base Station Programming/Editing
Push-to-enter rotary encoder
