Clear-Com FSII-BASE-II Wireless Intercom Base Station | 5 Beltpack

Clear-Com FSII-BASE-II Wireless Intercom Base Station | 5 Beltpack

SoundPro Item: 118425 | Part Number: FSII-BASE-II-5-X5

$7,830.00
$7,830.00 $7,830.00
Your Price Sold out
MSRP: $7,830.00 | MAP: $7,830.00

Usually ships in 5-7 business days

  • Browser-Based CCM Management Enables Remote Configuration And Real-Time System Monitoring
  • Four Independent Partyline Ports Bridge Legacy Systems With Wireless Workflows
  • Fifty Programmable Roles Provide Adaptive Talk-Path Assignments For Evolving Production Needs
  • Dual RJ45 And SFP Ports Support Fiber-Optic Transceiver Distribution Across Coverage Zones

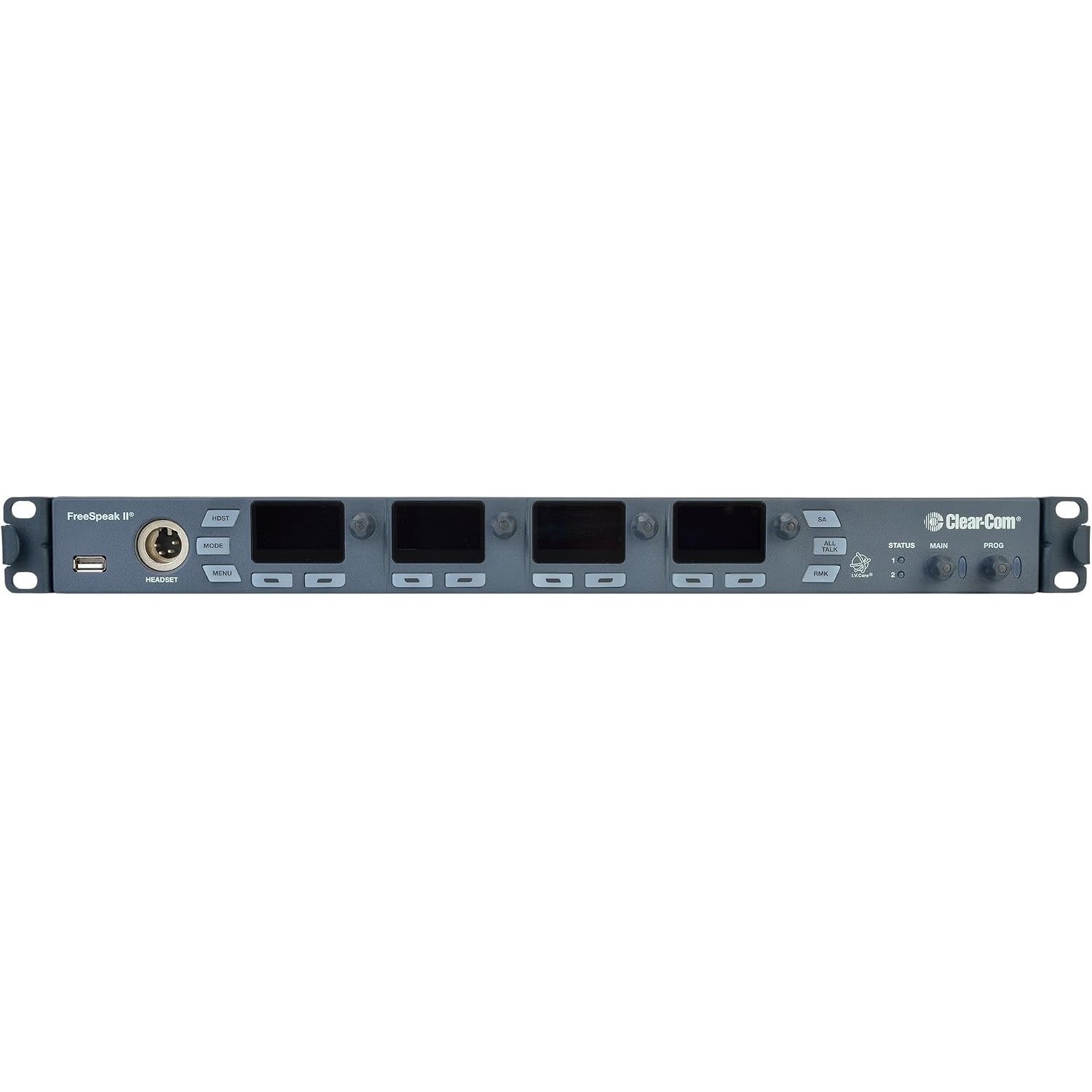

  • OLED Displays Deliver Immediate Visual Feedback On Channel Activity And Beltpack Status
  • Dedicated Stage Announce And Program Audio Connections Preserve Intercom Channel Capacity
Log in or register for YOUR best price

The Clear-Com FSII-BASE-II serves as the command center for FreeSpeak II digital wireless intercom networks, supporting production environments where real-time coordination across multiple communication channels is essential. Designed for broadcast studios, live events, and installed AV systems, it bridges analog partyline circuits with wireless beltpacks and provides dedicated headset stations for technical directors and production crew.

Four independent two-wire partyline connections integrate legacy Clear-Com and RTS-TW systems, while four line-level four-wire ports enable matrix intercom interfacing. Twelve configurable channels and groups support complex talk-path assignments, with fifty programmable roles allowing crews to adapt communication workflows on the fly. Dedicated stage announce output and program audio input deliver essential broadcast coordination without consuming intercom channels.

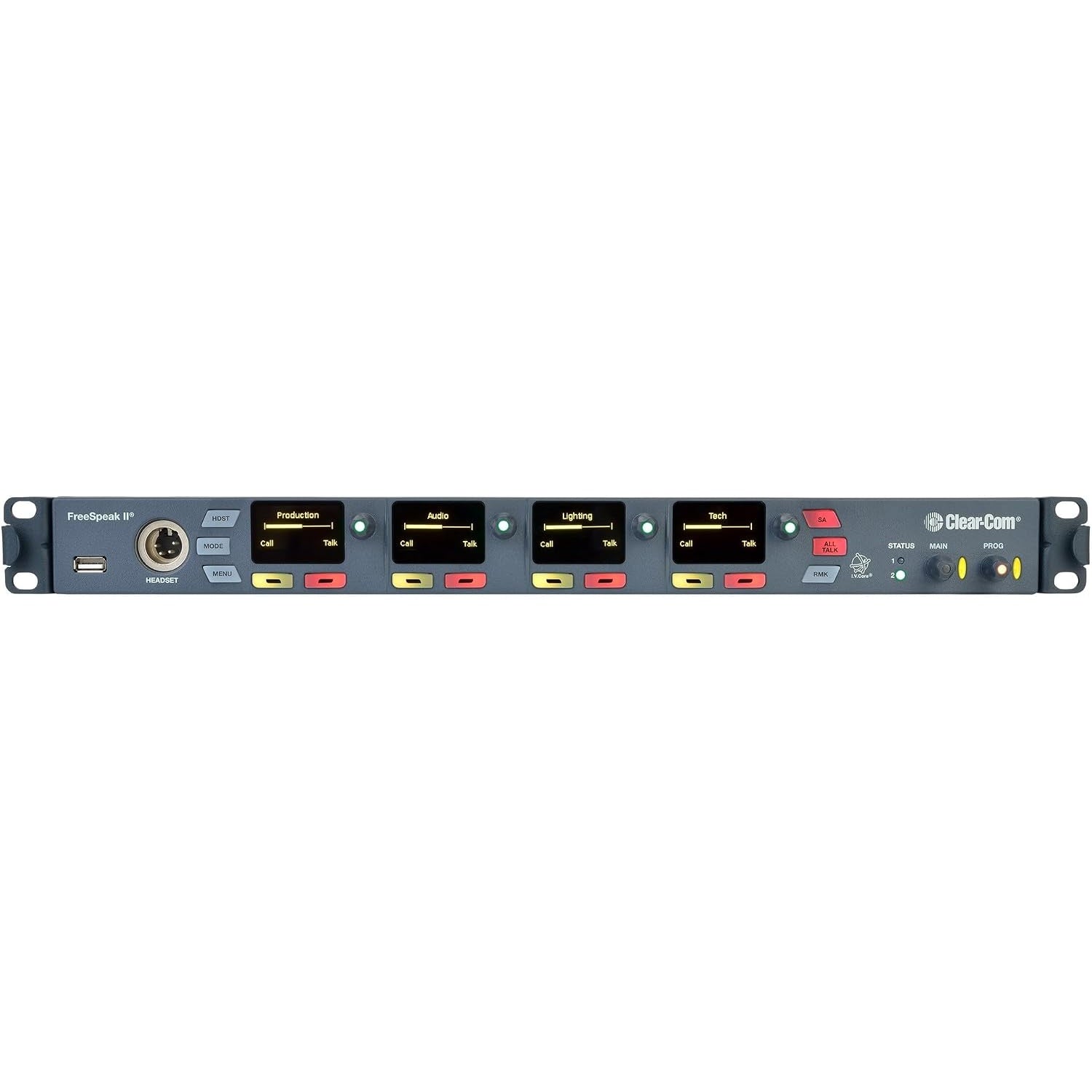

CCM browser-based management offers remote configuration and real-time monitoring of transceiver health, beltpack status, and audio routing from any networked device. Front-panel OLED displays provide immediate visual feedback on channel activity, battery levels, and system alerts. Dual RJ45 and SFP ports accommodate fiber-optic transceiver links for extended coverage zones, while GPI and GPO relay contacts automate tally and cueing systems across production infrastructure.

View full details

Specifications

Capacity
E1 Transceivers (1.9, 2.4 GHz)
10
Beltpacks (1.9, 2.4 GHz)
5
Configuration
Channels
12
Groups
12
Roles for FreeSpeak
50

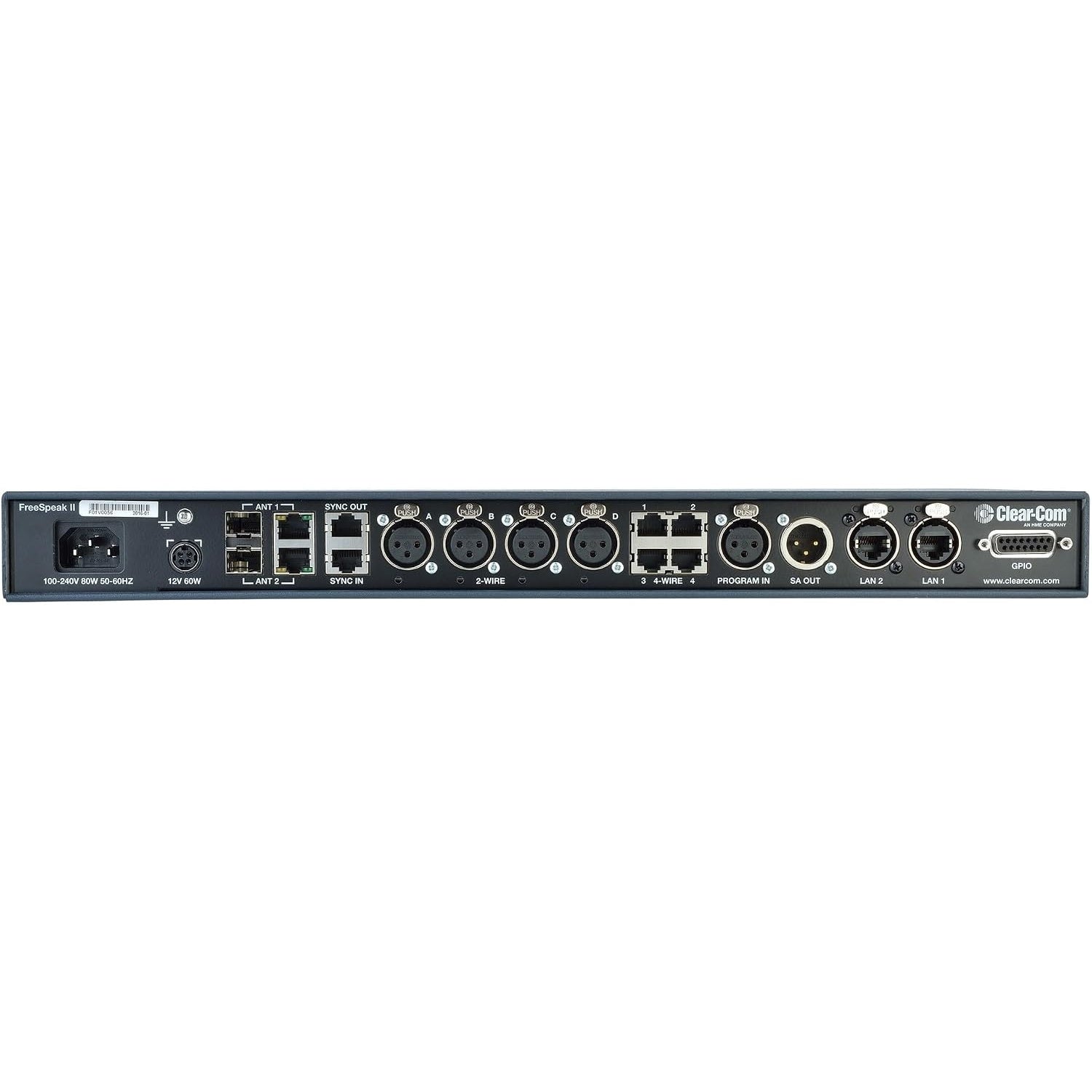

Connectivity
4-Wire Line-Level Ports
4
2-Wire Partyline Ports (400mA per pair)
4
Program Audio Input
XLR-3F
Stage Announce Output
XLR-3M
GPI Input
2
GPO Relay
4
FreeSpeak E1 (RJ45/SFP switchable)
2
LAN (Pass Through for Management)
2
Headset Connector
5-pin XLR-F (X5)
GPIO
DB15F (2 GPI, 4 GPO)
FSII DECT Synchronization
2 RJ45 (Input and Output)
AC Power Connector
IEC-C14
DC Power Connector
KPJX-4S-S
Grounding Screw
Terminal
Audio
4-Wire Nominal Level
0dBu (adjustable -12dB to +12dB)
4-Wire Maximum Level
+18dBu
4-Wire Frequency Response
80Hz to 22kHz ±3dB
4-Wire Input Impedance
>= 10KΩ
4-Wire Output Impedance
120Ω + 10%
2-Wire Compatibility
Clear-Com, RTS-TW with Call and Remote Mic Kill
2-Wire Nominal Level
CC: -18dBu, RTS-TW: -12dBu (adjustable -3dB to +3dB)
2-Wire Headroom
18dB
2-Wire Frequency Response
80Hz to 12kHz ±3dB
2-Wire Impedance
>= 10KΩ bridging
2-Wire Total Harmonic Distortion
< 0.1% THD @ 1 kHz
2-Wire Power
400mA optional per pair (A/B or C/D)
2-Wire Voltage
26-28V DC
2-Wire Null Depth
>60dB at 12kHz
Mic Input Type
Dynamic/Electret – Selectable
Headset Mic Voltage
5V
Mic Input Level (nominal)
-58dBu
Mic Input Level (max)
-10dBu
Mic Frequency Response
300Hz to 22kHz ±3dB
Mic Limiter Threshold
-35dBu ±3dB
Mic Limiter Range
≥ 20dB
Headset Speaker Frequency Response
50Hz to 18kHz
FreeSpeak II Frequency Response
200Hz to 7.1kHz
Control
GPI Style
Opto-Isolated, Powered input, close contact to ground
GPI Input Voltage Range
0 - 12V DC or AC
GPI Input Current
>=1mA required
GPO Style
SPDT / Power Relay
GPO Switching Voltage (Max)
60V DC
GPO Switching Current (Max)
2A
Electrical
AC Input Voltage Range
100 - 240V AC
AC Input Frequency Range
50 - 60Hz
AC Input Power (Max)
48W
AC BTU (Max)
164BTU/h
DC Input Voltage
12V DC ± 5%
DC Input Current (Max)
4A
DC Input Power (Max)
48W
DC BTU (Max)
164BTU/hr
Included AC Adapter
PSU-EXT-002
Adapter Output Voltage
12V DC ± 5%
Adapter Output Current (Max)
5A
Adapter Output Power (Max)
60W
Environmental
Operating Temperature
32° to 113°F (0° to 45°C)
Storage Temperature
-22° to 158°F (-30° to 70°C)
Humidity
20-90% Non-Condensing
Dimensions
Rack Unit
1RU
Width x Height x Depth
19" x 1.7" x 10.2" (482.6 x 43.2 x 259.0mm)
Weight
Product Weight
5.57 lbs (2.5kg)
