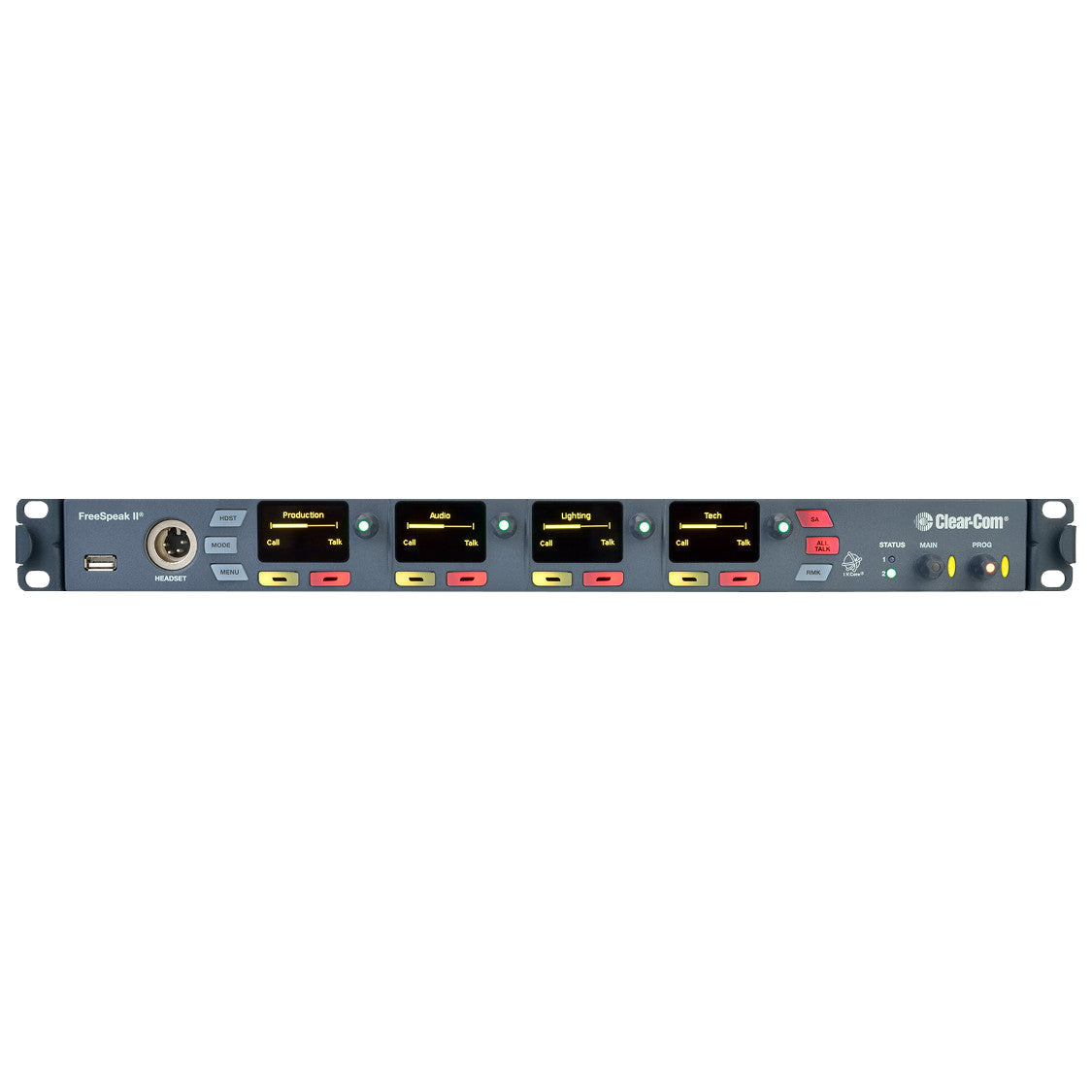

• Clear-Com FSII-Base-II Digital Wireless Base Station

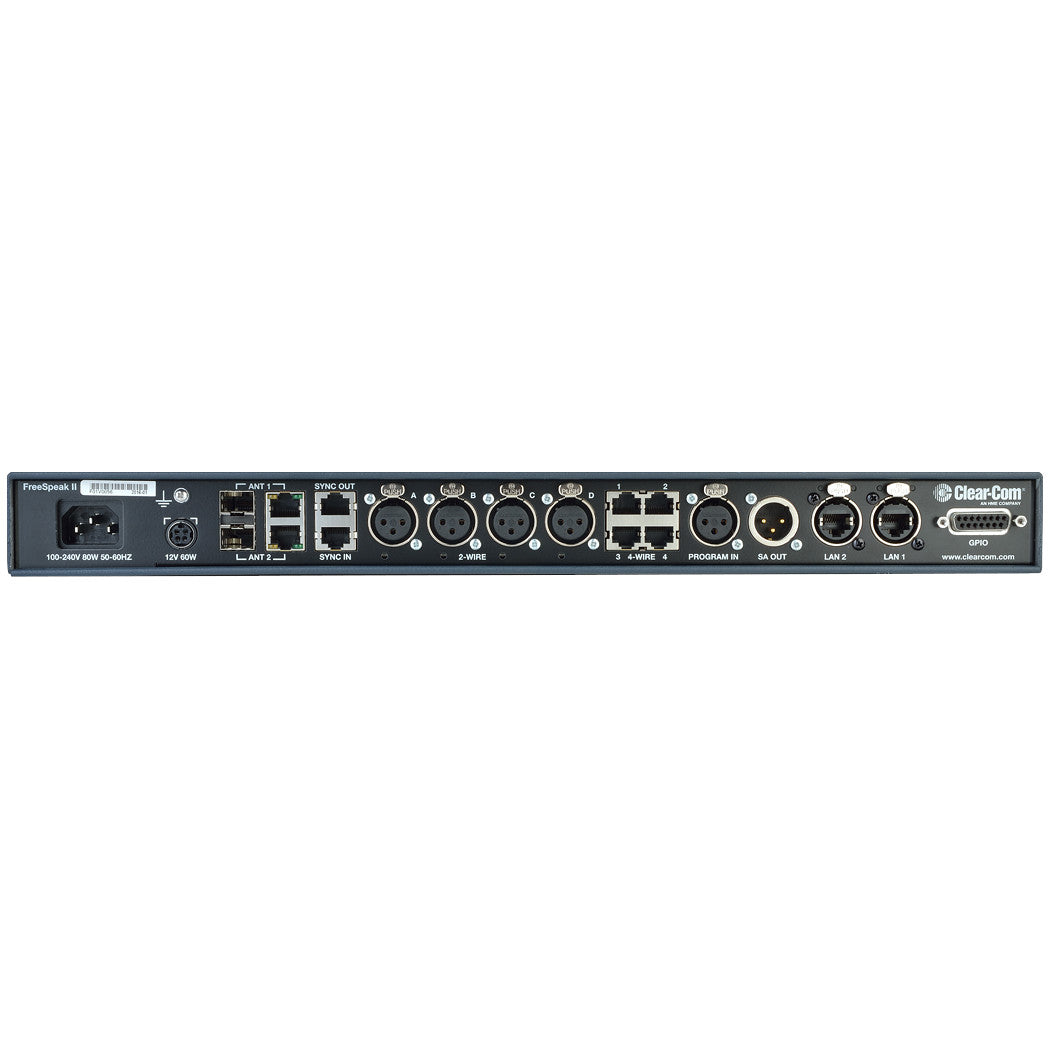

  • Clear-Com FSII-Base-II Digital Wireless Base Station back
  • Clear-Com FSII-Base-II Digital Wireless Base Station angle
  • Clear-Com FSII-Base-II Digital Wireless Base Station side
1 4

Clear-Com FSII-Base-II FreeSpeak Wireless Base Station

Clear-Com FSII-Base-II FreeSpeak Wireless Base Station

SoundPro Item: 75735 | Part Number: FSII-BASE-II

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • FreeSpeak II-Base-II Digital Wireless Base Station
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Routing and configuration of up to 25 FreeSpeak II beltpacks
  • Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
  • Fiber transceiver connections, supports two fiber-enables FSII splitters
  • Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
  • GPIOs allow assignment to trigger cue lights, tally or radios
  • Matrix and partyline configurations support up to 12 channels and/or groups
  • DECT Sync ports for optimizing co-located systems
  • RF Audio Filter improves system performance in hard RF environments
  • Browser-based Core Configuration Manger (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
  • Text messaging from CCM to wireless beltpacks
Log in or register for YOUR best price

The FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.

A single base station can operate using a mix of both 1.9GHz and 2.4GHz FreeSpeak II active antenna transceivers to support up to 25 1.9 GHz and/or 2.4GHz beltpacks and 10 active transceiver antennas via two transceiver splitters (FSII-SPL). The user interface supports system configuration and system monitors along with a main station mode with Talk and Call soft keys. A dedicated headset jack is included for communications and monitoring from the front panel. Access to channels and other functions are assignable through the menu on the base station or through the Core Configuration Manager (CCM) browser-based tool.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
1.75x19x10.2" (44x483x259 mm)
Electrical
Partyline Output Voltage
26 – 28VDC, 800mA per pair (A/B or C/D)
External Power Supply Connection
12VDC
Current Draw
12V, 4A max, 48W max
Audio
Base-to-Beltpack Frequency Response
100Hz – 7.1kHz
Output
12V DC, 60W, 5A
Connectivity
No. of Active Transceiver Ports
2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
PC Programming Port
2 LAN RJ45
Relay Port
DB15, supports one relay assigned to the SA out
Program Input
XLR-3F, transformer isolated, line-level input
Stage Announce Output
XLR-3M, transformer isolated, line-level output
Input
100-240V AC, 1.4A max
Controls
Front Panel Displays
4 OLED’s with encoders and assignable soft keys
Shipping
Weight
5.57 lbs (2.5 kg)
General
No. of Beltpacks per Base Station
25
No. of Transceiver/ Antennas Supported by Base
10
Partyline a ,B,C,D (each)
XLR-3F, on/off termination switch, Clear-Com and RTS compatible
Partyline Power On/Off
A/B, C/D paired
4-Wire/Matrix Connection
4 RJ-45
Front Panel Headset
4-pin male and 5-pin female options
Front Panel Indicators
Antenna Status, Beltpack Status
Base Station Programming/Editing
Push-to-enter rotary encoder
