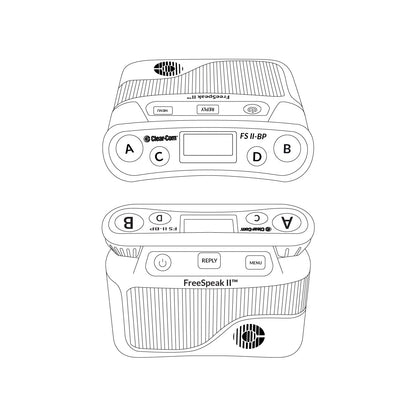

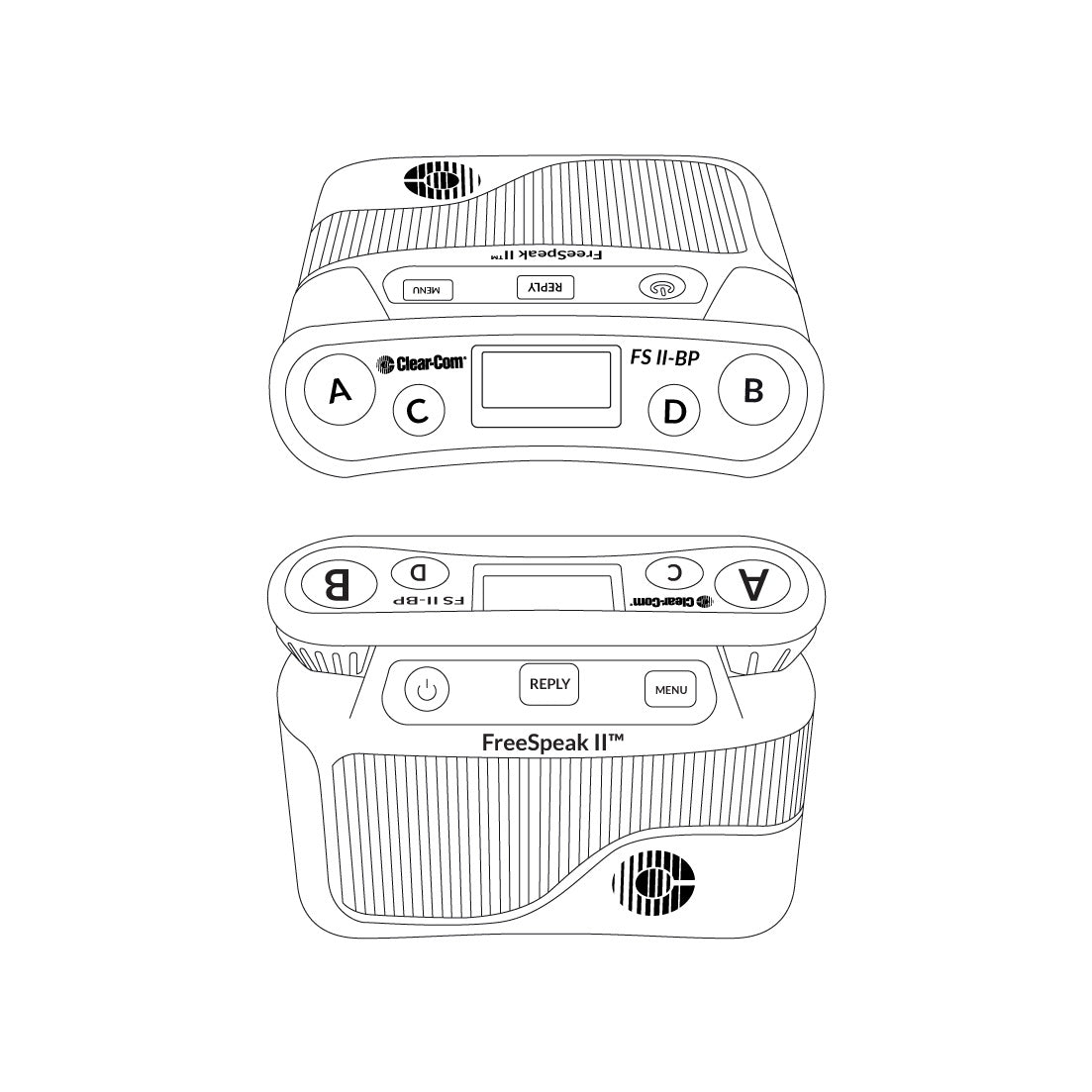

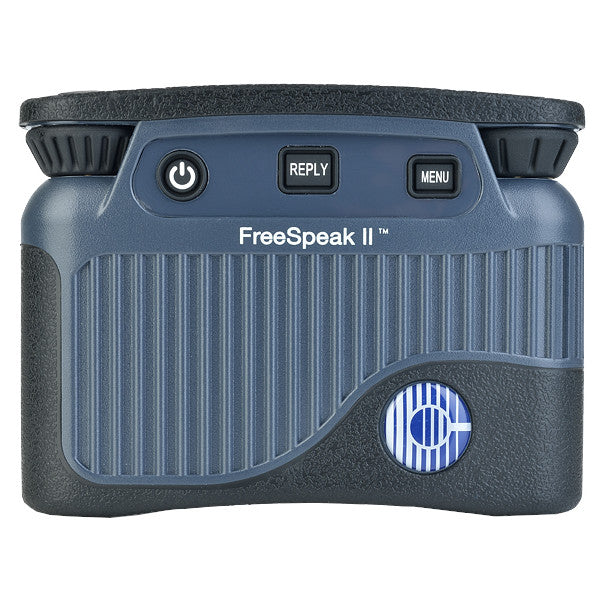

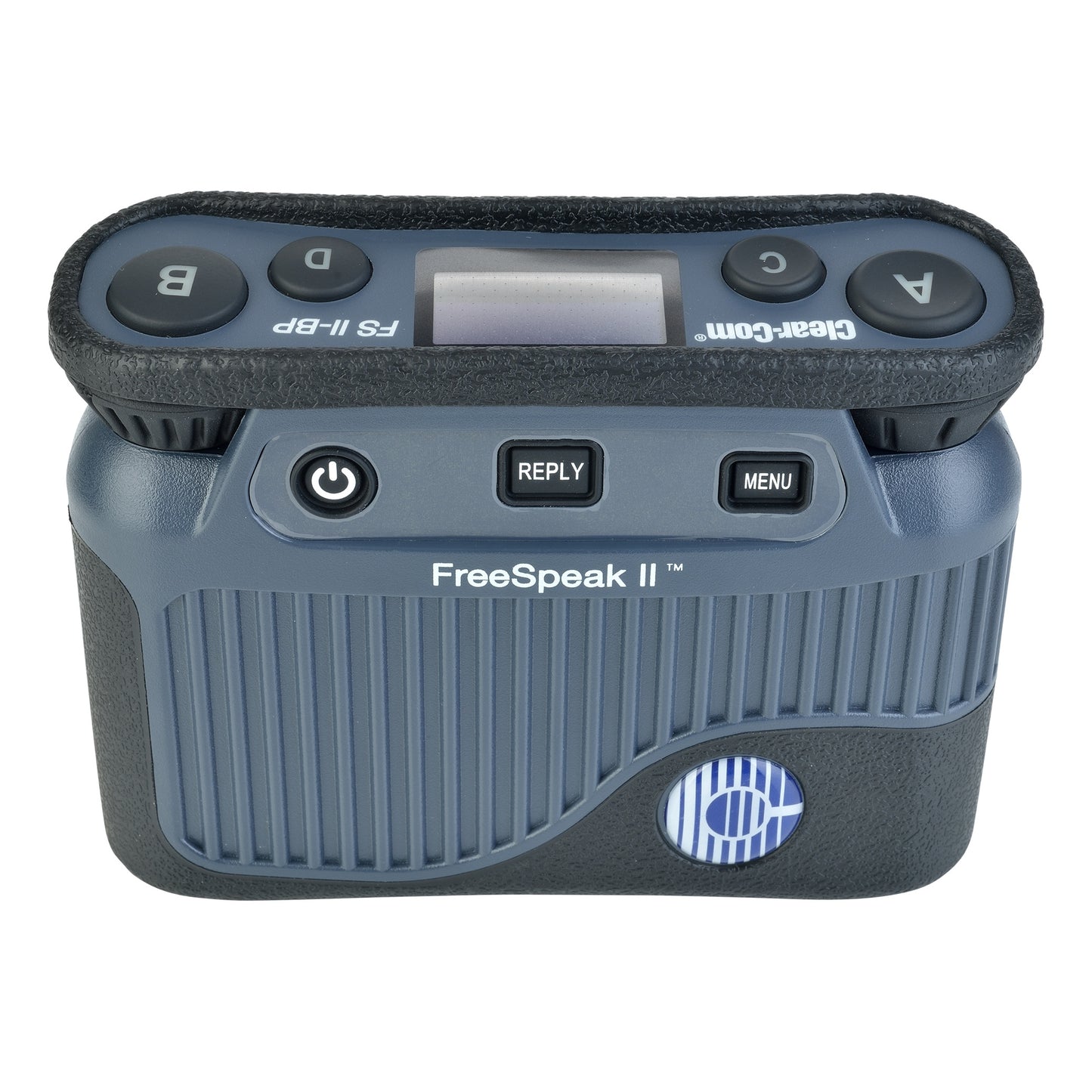

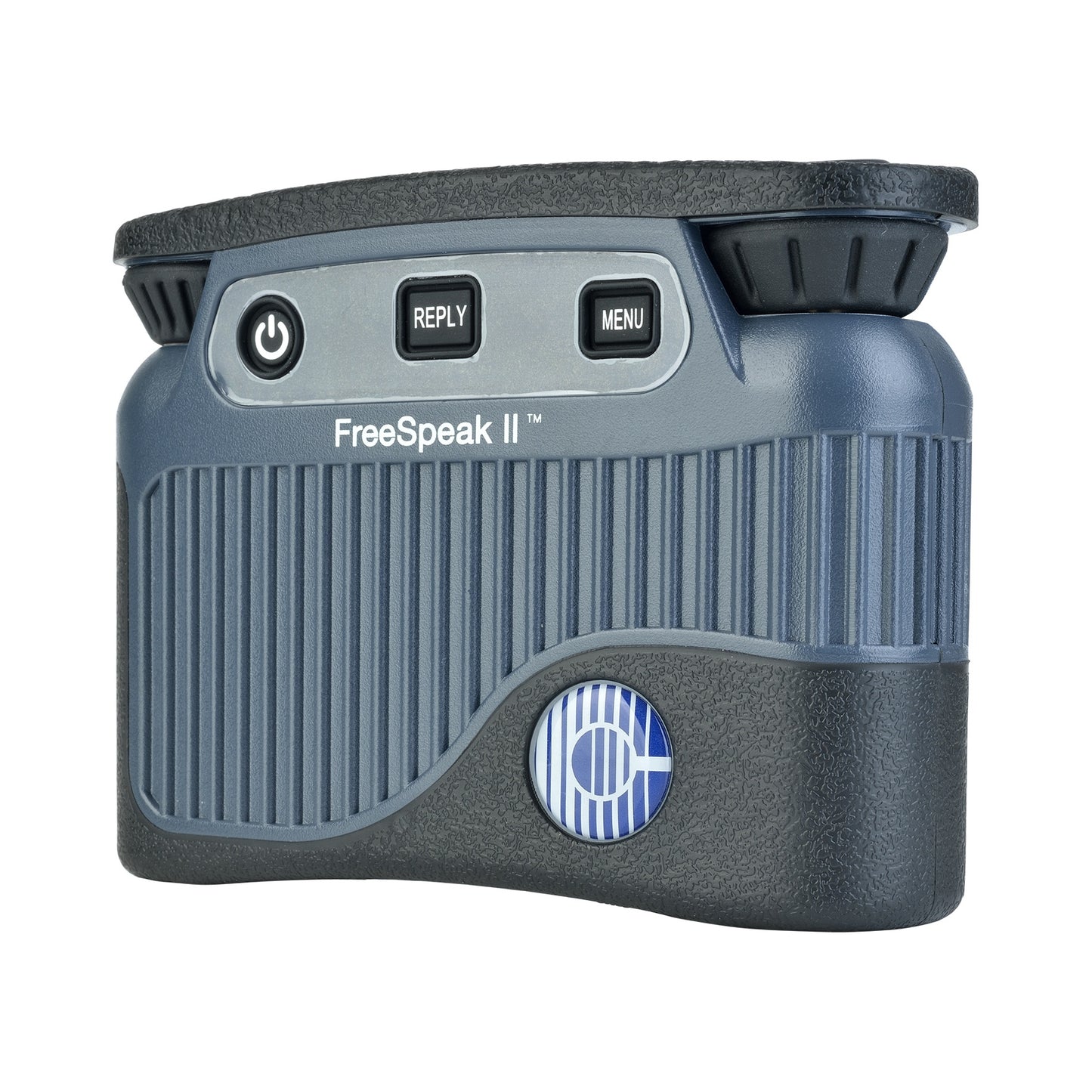

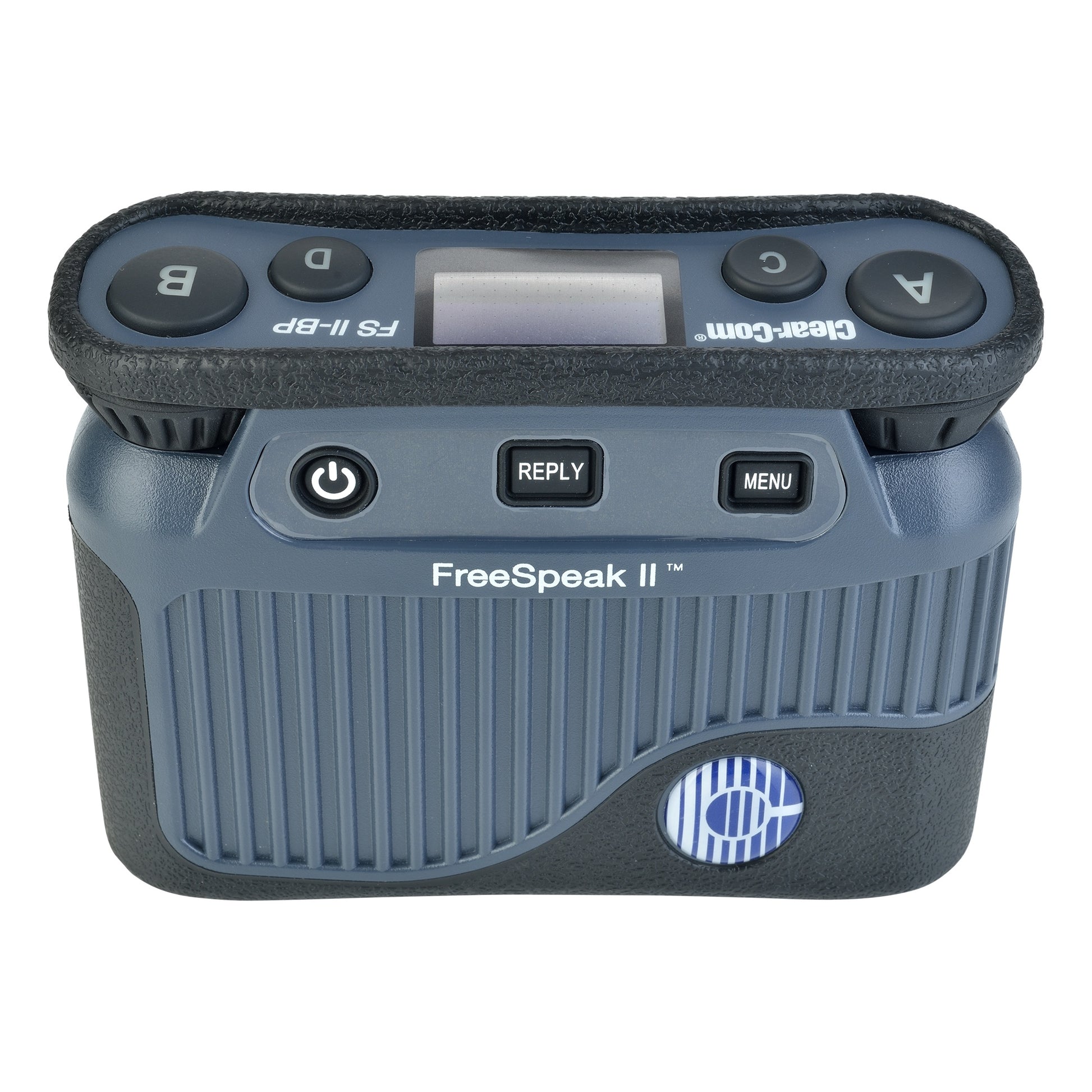

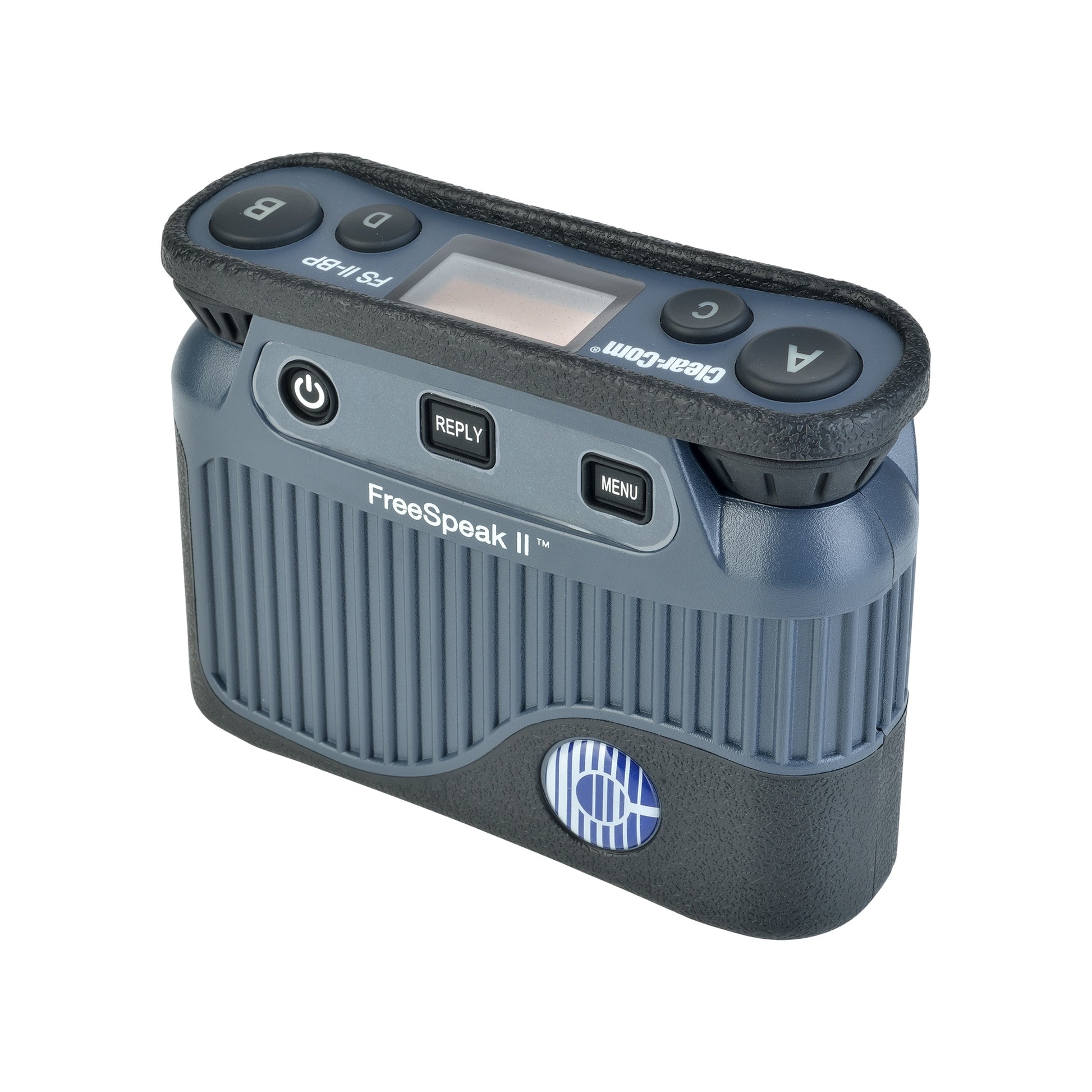

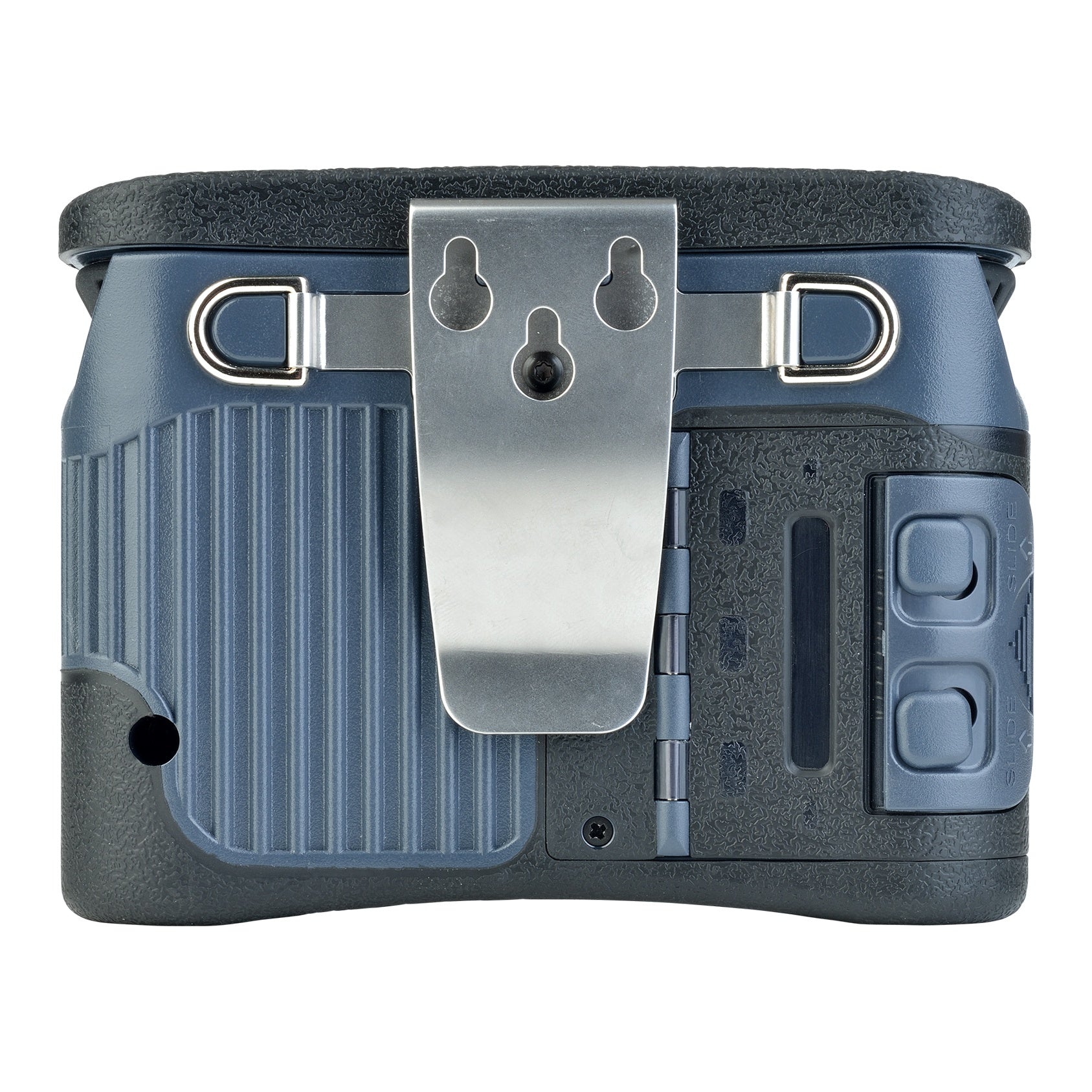

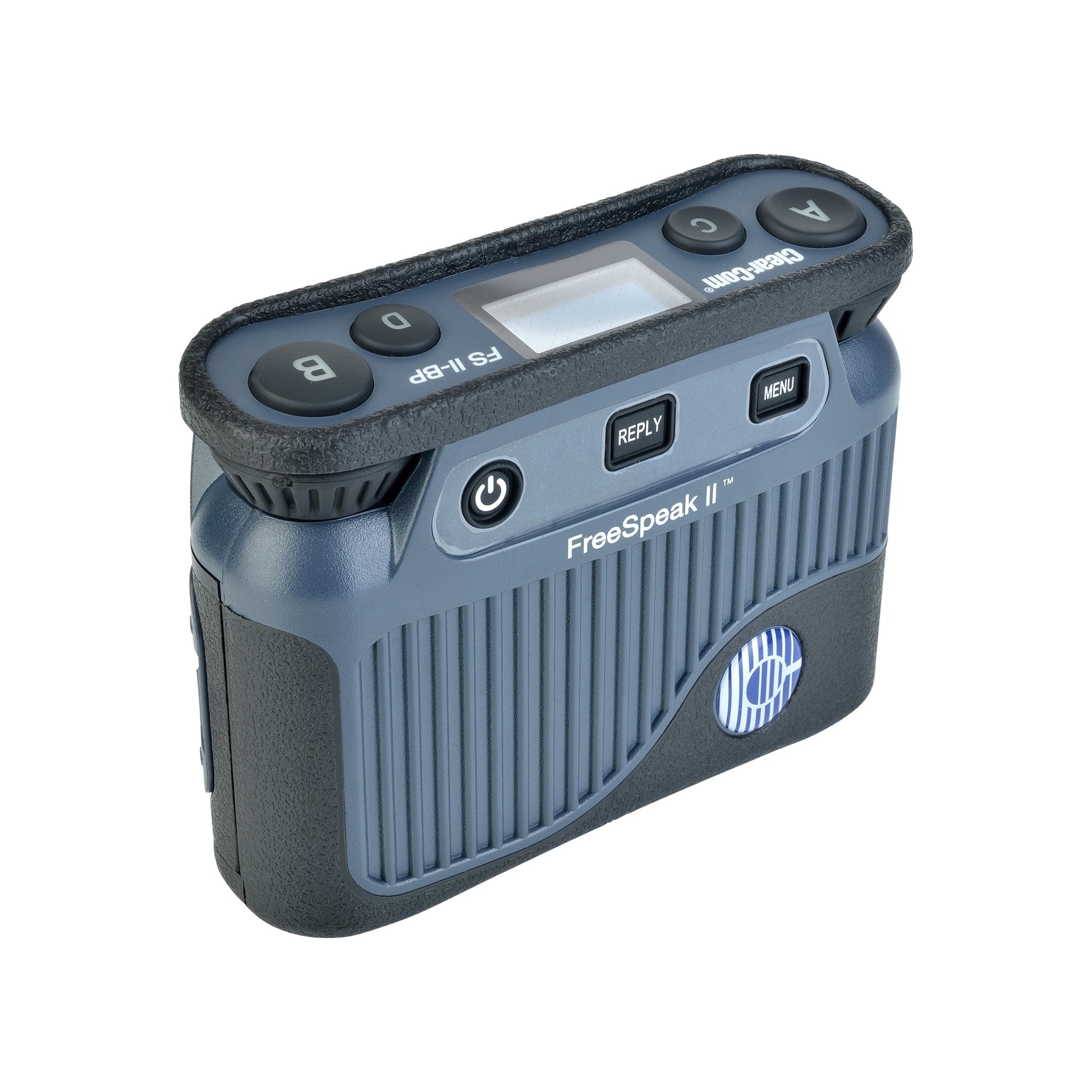

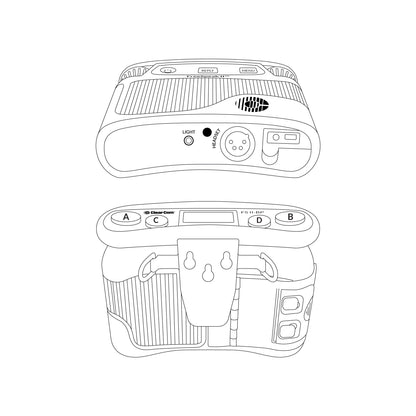

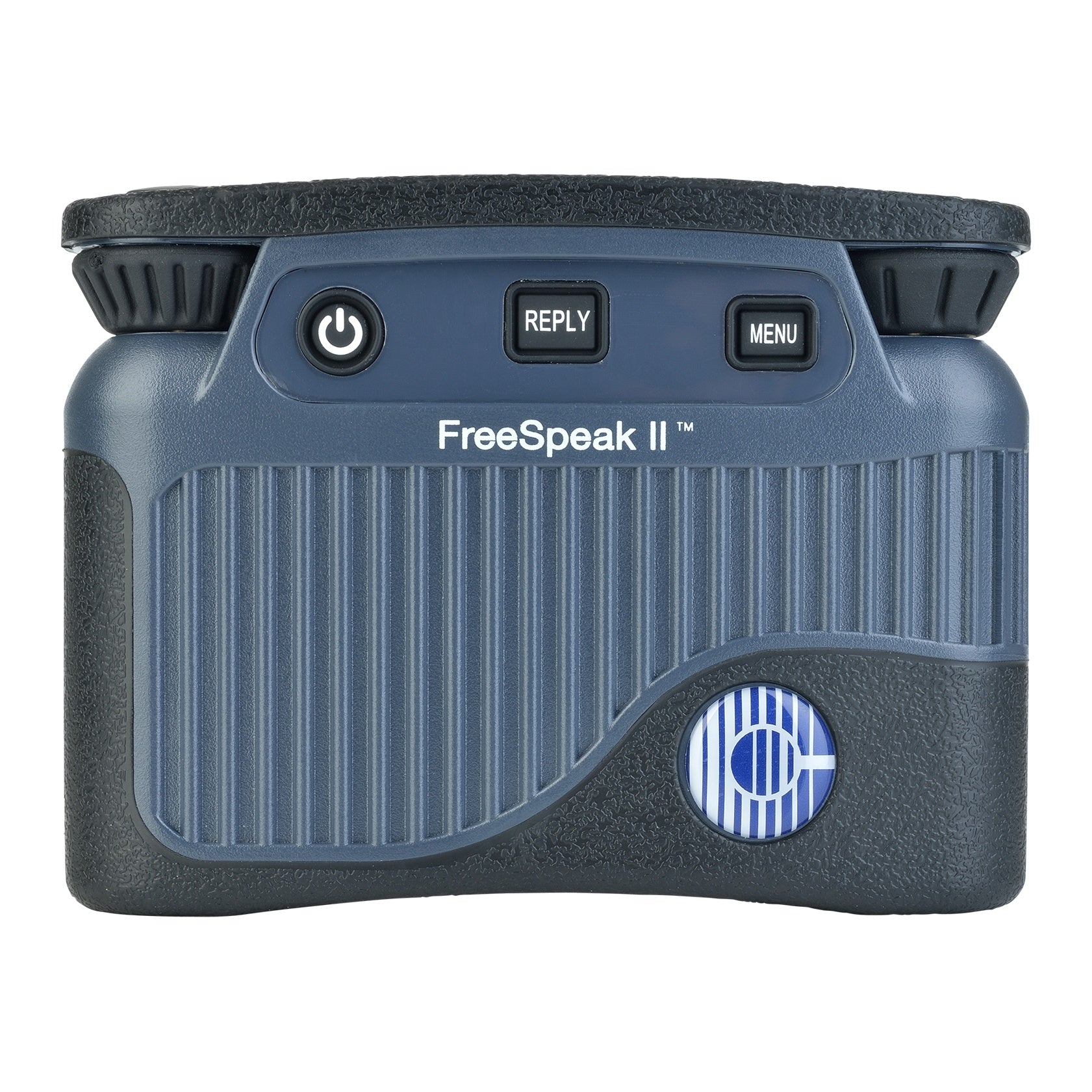

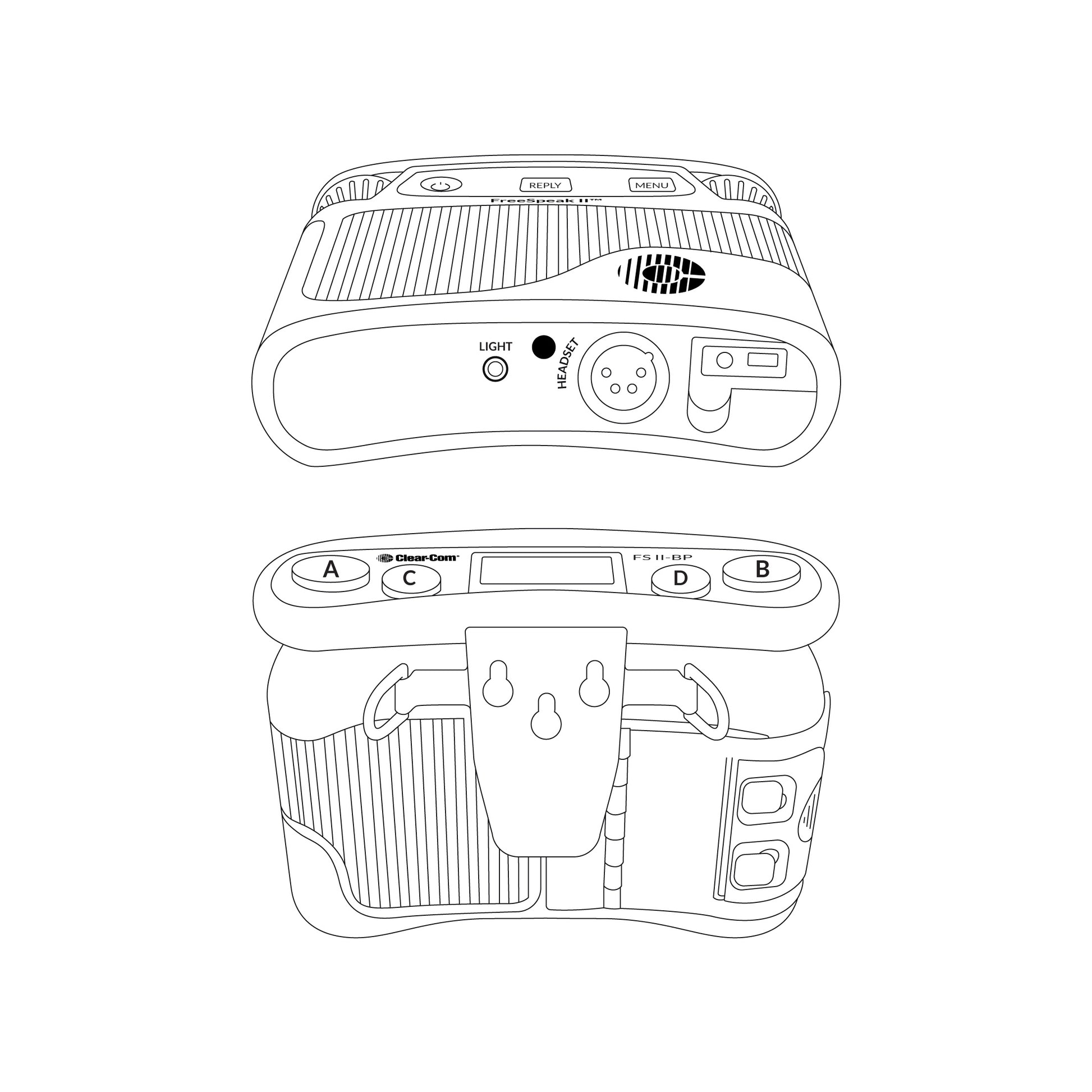

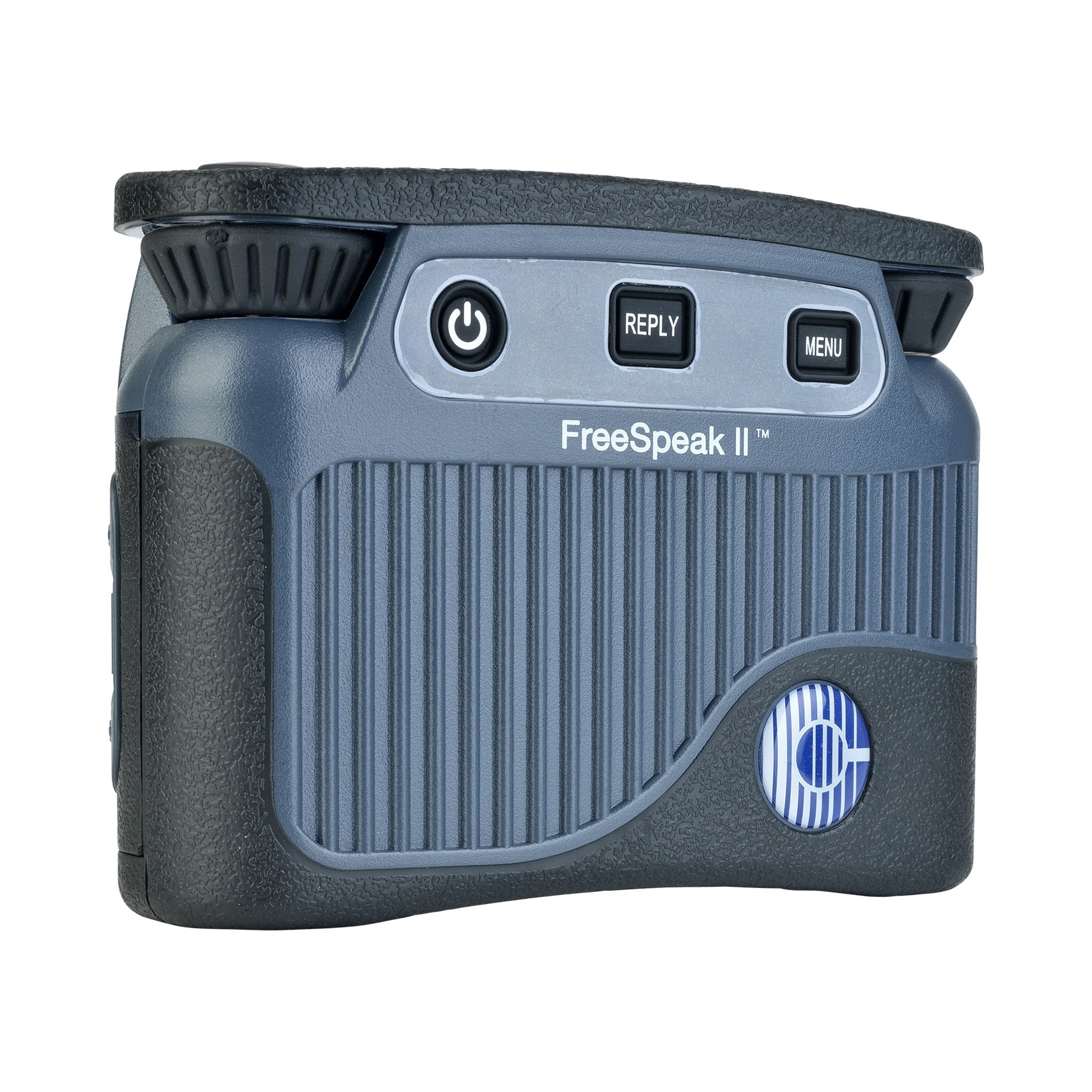

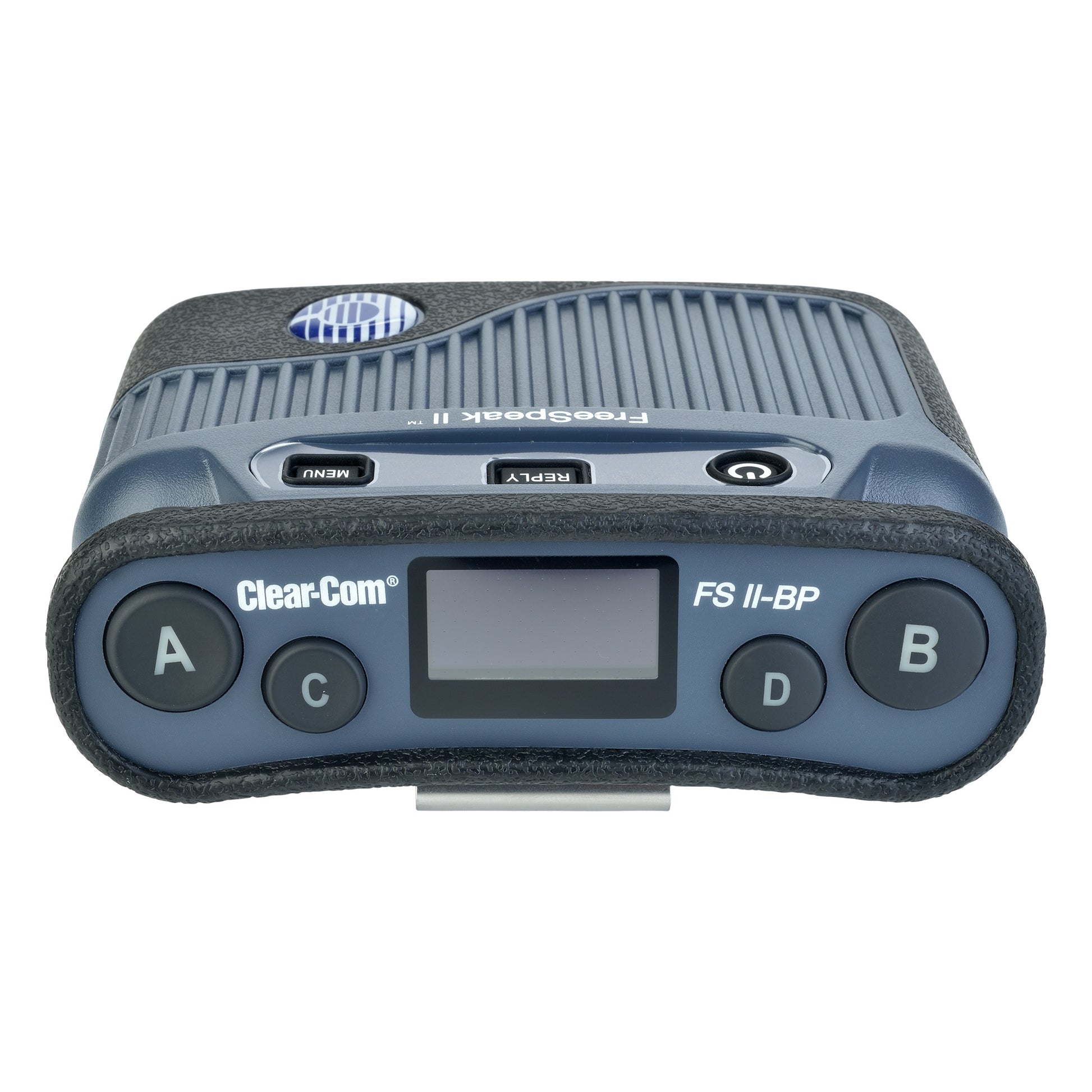

Clear-Com FSII-BP19 FreeSpeak II 1.9GHz Wireless Beltpack | Connector: X4

Clear-Com FSII-BP19 FreeSpeak II 1.9GHz Wireless Beltpack | Connector: X4

SoundPro Item: 65507 | Part Number: FSII-BP19-X4

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Operates in the 1.88-1.93GHz DECT frequency band (frequency allocation varies by country)
  • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
  • 7kHz audio wide band
  • Encoder Volume Swap between A&C and B&D
  • "Listen Again" message replay
  • Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
  • Over-the-air beltpack registration
  • 18+ hour battery life or USB port for continuous operation
  • IP-53 rating for wet and dusty conditions
  • Built-in flashlight
Log in or register for YOUR best price

The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
3.75x5x1.5" (97x130x45mm), tapered design at largest points
Electrical
Headset Voltage
Maximum of ~+8dBu as set by firmware
Microphone Voltage
Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor).
Battery
Li-Ion or 3 AA alkaline cells
Battery Charging
Drop-in charger (AC60) or local USB
Audio
Audio Bandwidth
200Hz-7.5KHz
No. of Full-Duplex Audio Paths
Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
Output Power
(EU/Russia) 10dBm average, (US) 18-20dBm
Connectivity
Transceiver Range Output Power
100mW

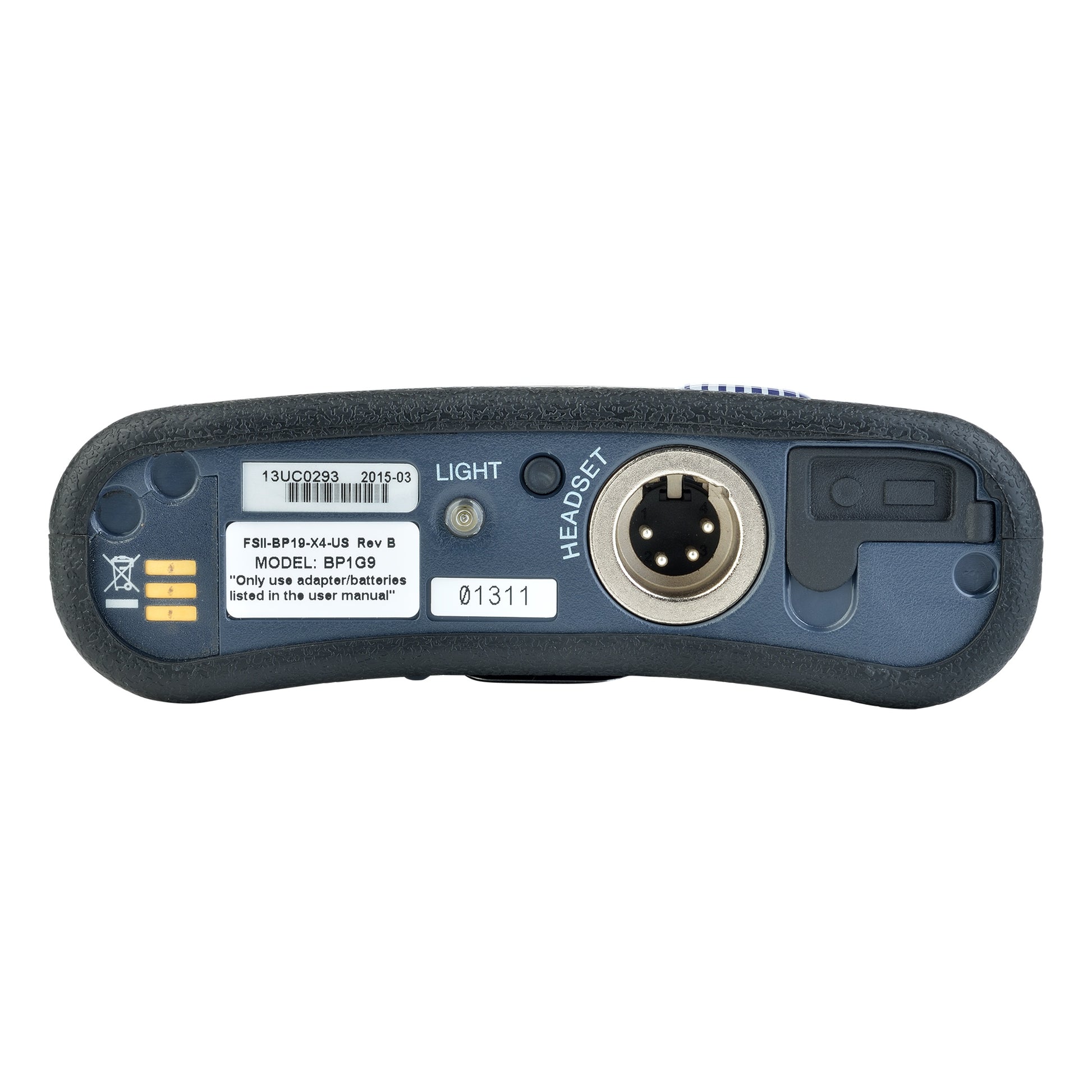

Headset Connector
4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Environmental
Humidity
Between 20% and 90%, Non-Condensing
Shipping
Weight
9oz (0.4kg) including batteries
General
Mode of Operation
Full duplex on all routes
Level/Talk Controls
4 pushbuttons, a reply button and 2 rotary controls
Enter/Answer-Back Button
1
USA, Canada, Mexico
1920-1930 MHz
Frequency Spectrum
EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1880-1900 MHz
Japan
1893-1906 MHz
Argentina
1910 MHz-1930 MHz
Brazil
1910 MHz-1930 MHz
Chile
1910 MHz-1930 MHz
Taiwan
1880-1895 MHz
Microphone Type
Electret and Dynamic, selectable in beltpack menu
Dynamic Mic
-55dBu
Headset Limiter
Selectable from beltpack menu
Range
Typical indoor range 300ft (90m), outdoor range 800ft (240m)
Environmental
IP53 water and dust resistance
Operating
32º-125ºF (0º-50ºC)
Storage
32º-150ºF (0º-70ºC)
Radio
Modulation
GFSK, TDMA frame 10ms Full and Long slot
Power
Battery Life
18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
