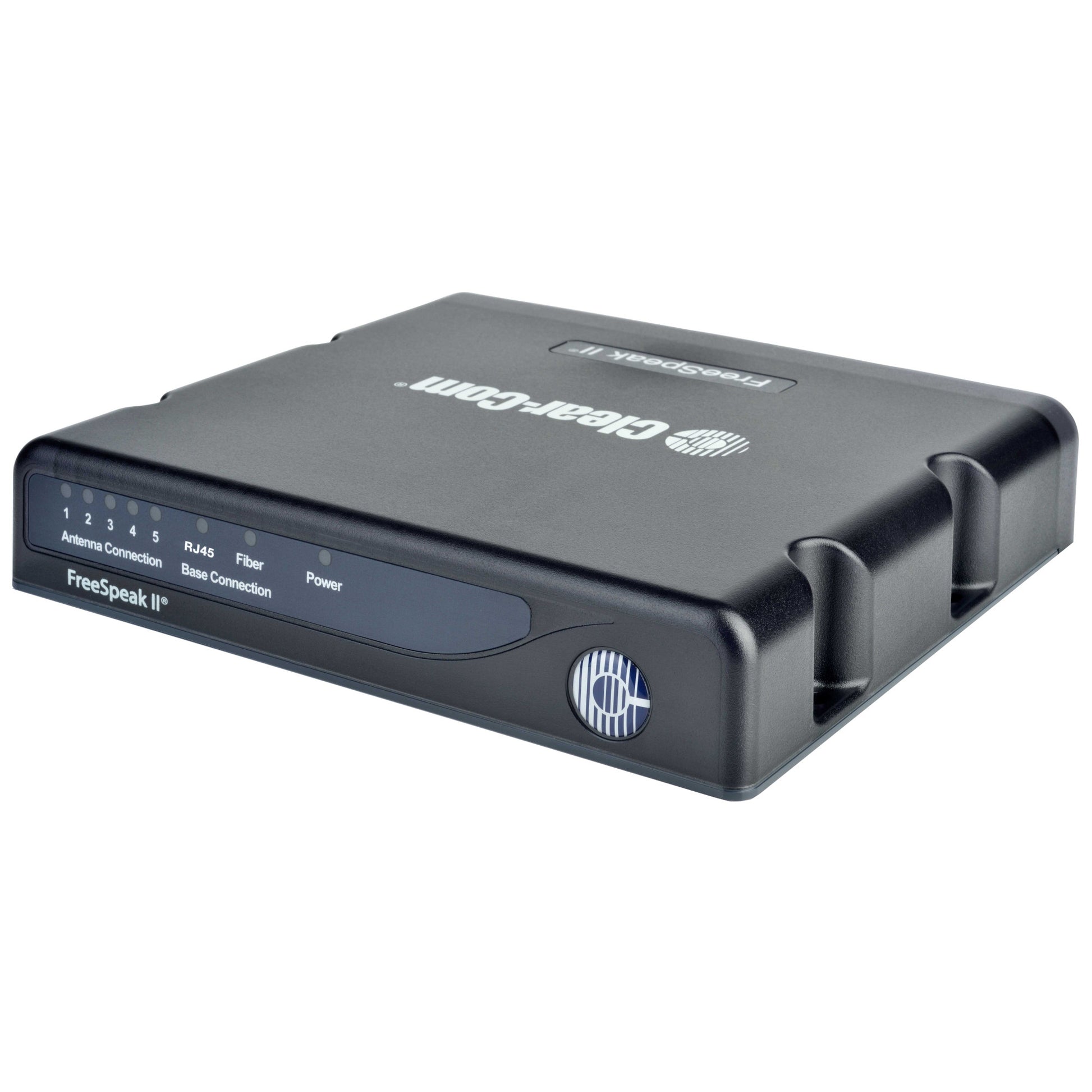

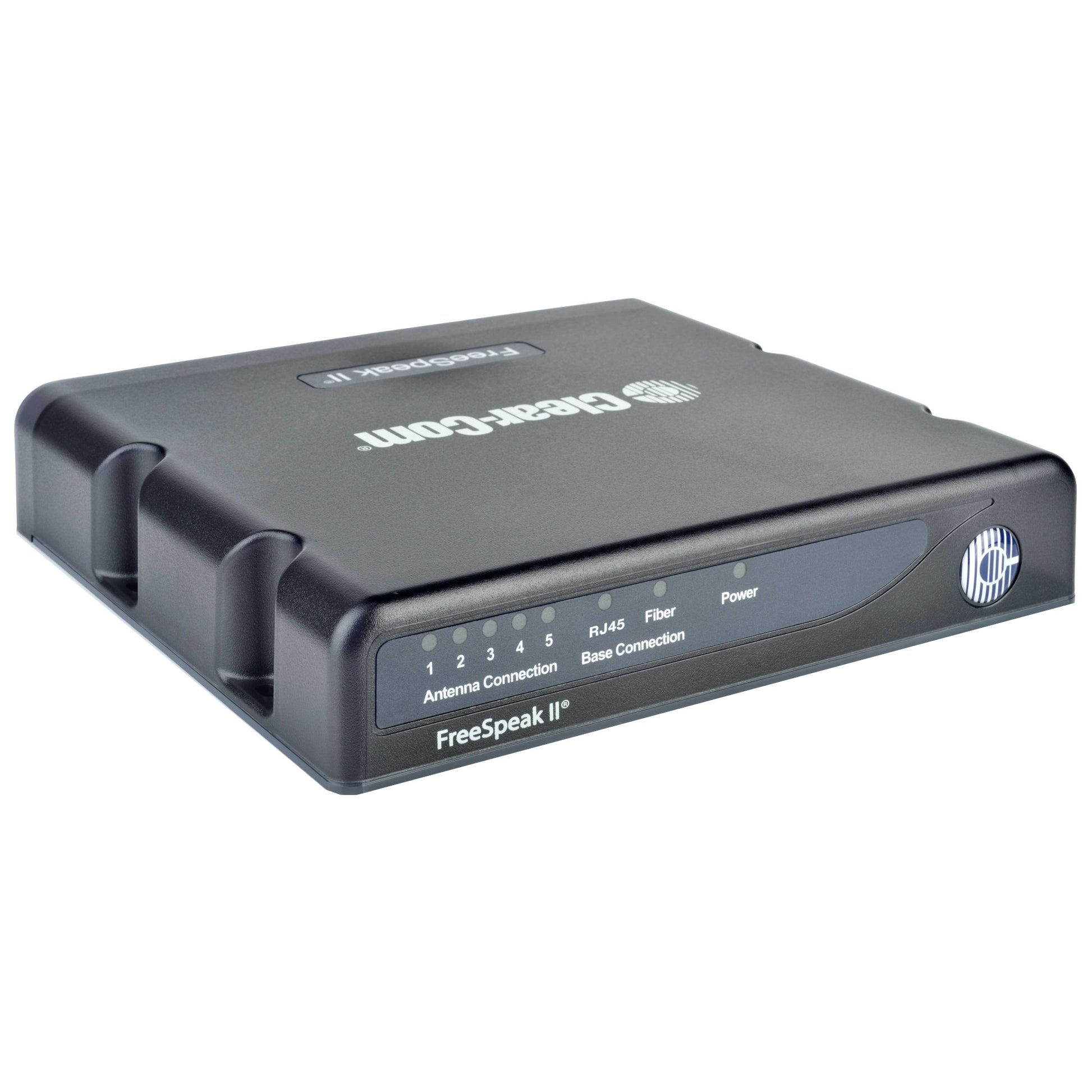

Clear-Com FSII-SPL FreeSpeak II Transceiver Splitter
Clear-Com FSII-SPL FreeSpeak II Transceiver Splitter
SoundPro Item: 89176 | Part Number: FSII-SPL
In stock and ready to ship
- Provides 5 FSII transceiver feeds on one port on FSII base station or E-QUE-HX card
- SFP fiber slot for fiber link to FSII base station or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames
- Supports both multi-mode and single-mode fiber
- Configure settings using DIP switches
- IP-63 water resistance for outdoor use

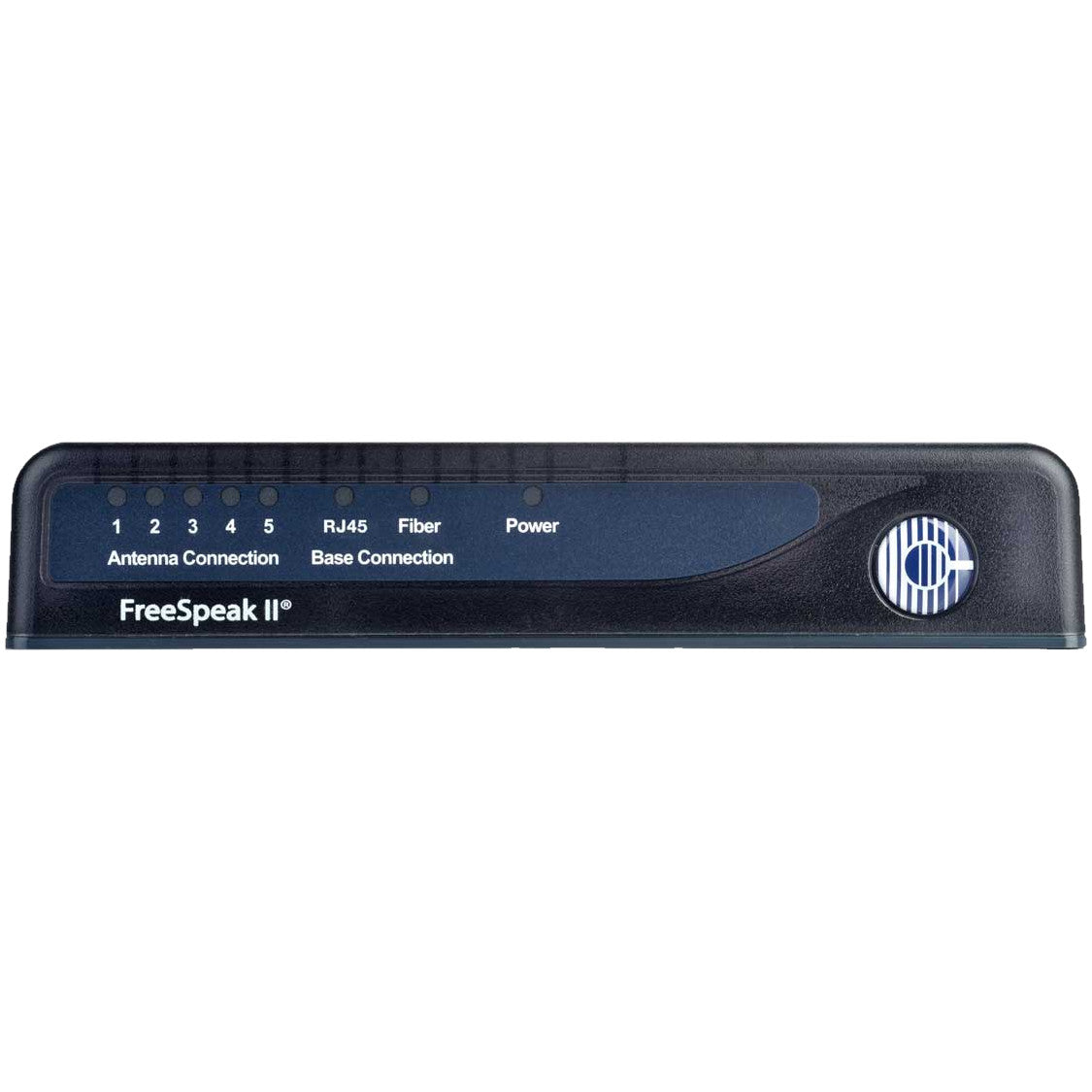

- LED status indicator on front and back
- Mic stand or wall mount orientation (metric and imperial threads)
The FSII-SPL is a splitter that connects multiple FSII transceiver antennas to an Eclipse HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. The splitter provides up to 5 antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity.

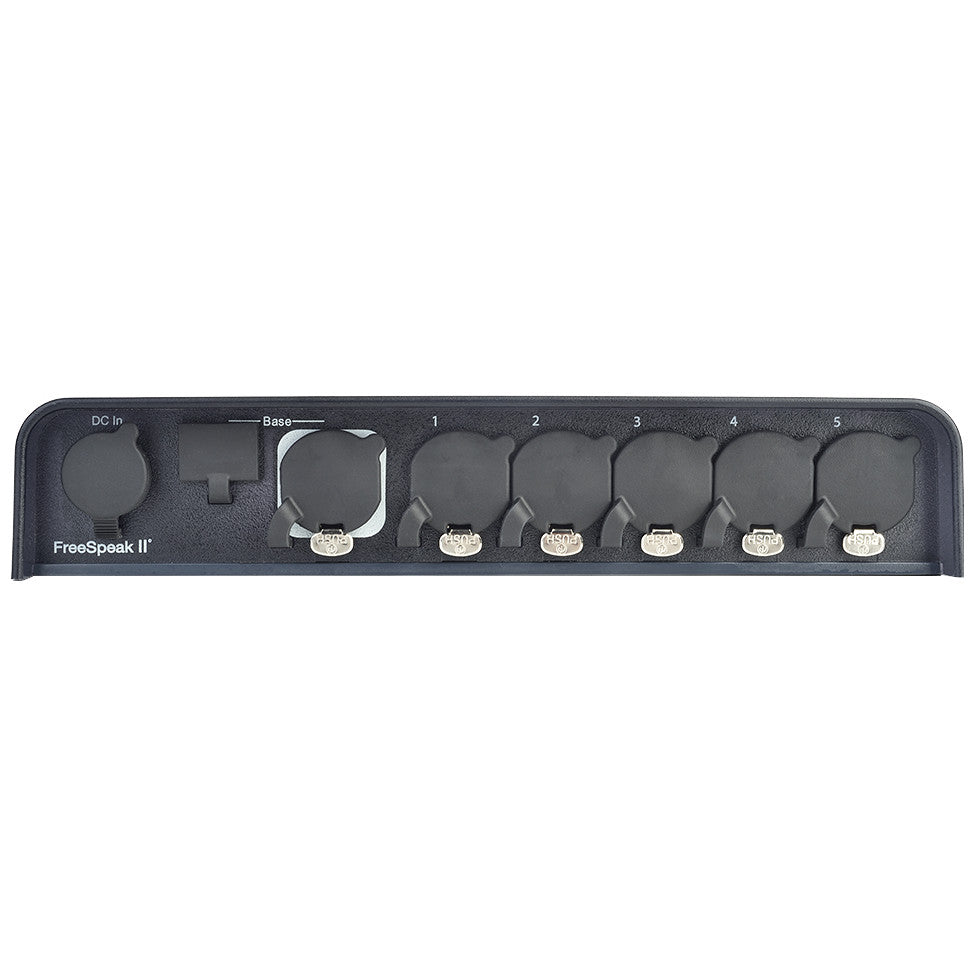

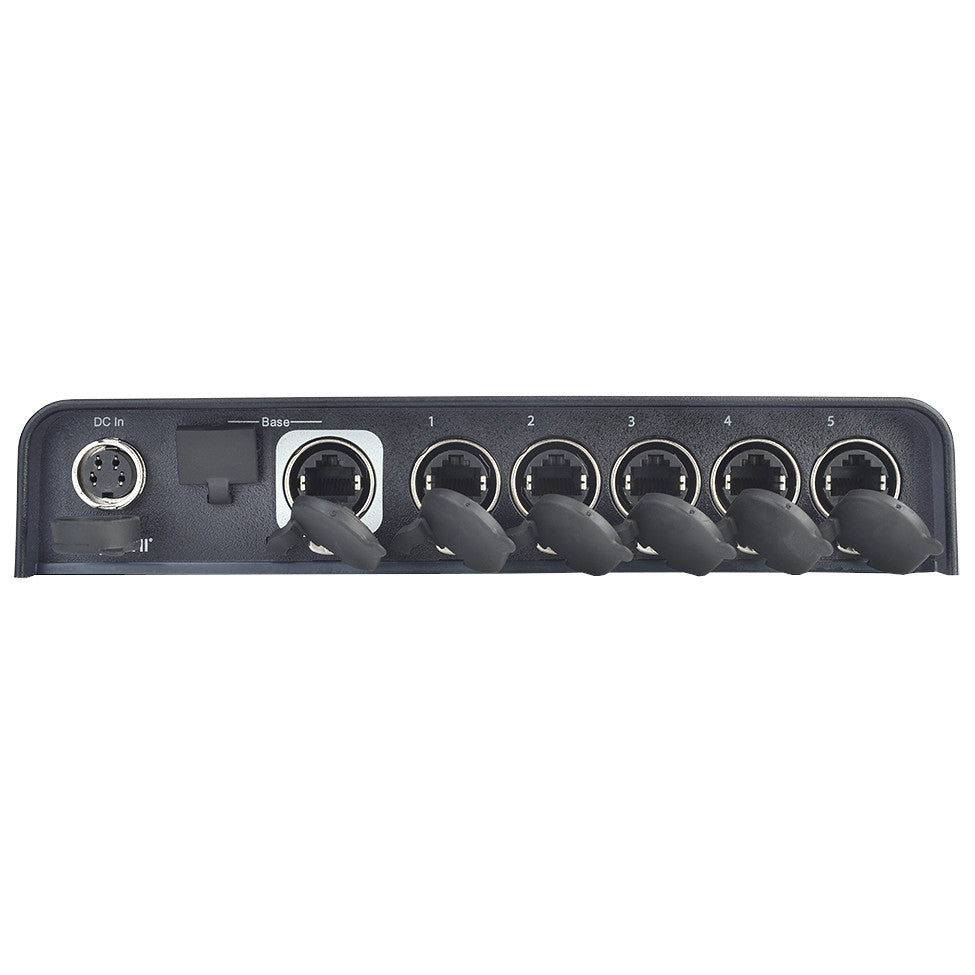

- Connections
- Transceiver Antenna: 5 Ethercon RJ-45, each with yellow LED indicators on front and back
- Matrix: 1 Ethercon RJ-45, with yellow LED indicator on front and back
- Fiber: 1 SFP port
- Power
- Splitter: Requires external power supply (included)
- Transceiver Module: Provides power to modules via RJ-45 connections
- Mounting Options
- Wall Mount with 4 mounting points
- Mic Stand Mount (metric and imperial threads)
- Environmental
- IP-63 water resistance for outdoor use
- +32° to +122°F (0° to +50°C)
- Dimensions (HxWxD)1.65x8.75x7.73" (42x223x197mm)
- Weight24.5oz (0.69kg)
