Clear-Com FSII-TCVR-19 FreeSpeak II 1.9GHz Transceiver Antenna

Clear-Com FSII-TCVR-19 FreeSpeak II 1.9GHz Transceiver Antenna

SoundPro Item: 65485 | Part Number: FSII-TCVR-19-US

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • For use with FSII base station, E-QUE-HX cards and FSII splitters
  • Supports up to 5 FSII 1.9GHz beltpacks per transceiver, or up to 65-90 beltpacks when mixed with FSII 2.4GHz transceivers
  • Up to 10 Transceivers can be connected to one FreeSpeak II base station
  • 1.9GHz transceivers can co-operate with 2.4GHz transceivers on the same system
  • IP-53 rated for water and dust resistance
  • Locally powered or powered via the FreeSpeak II base station or matrix
  • Microphone stand mounting

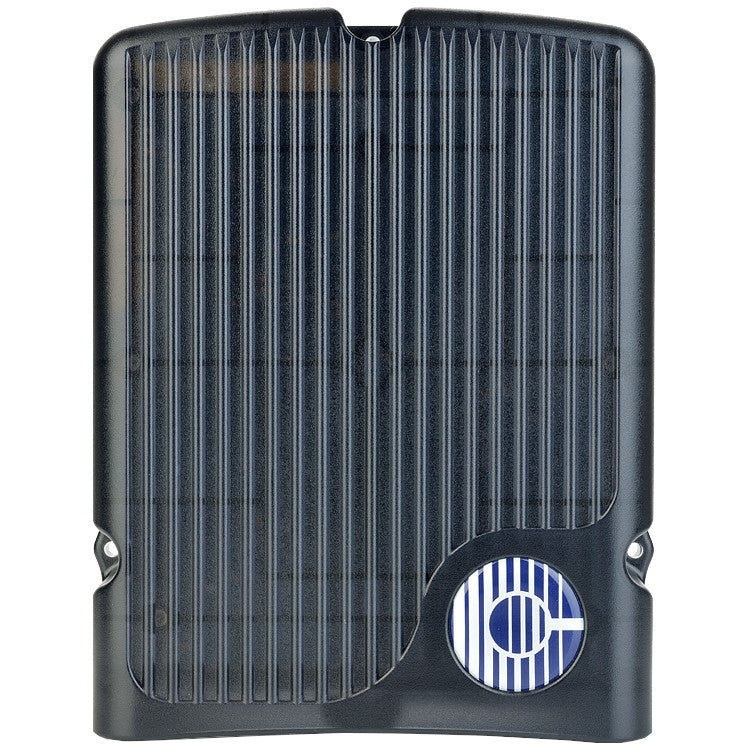

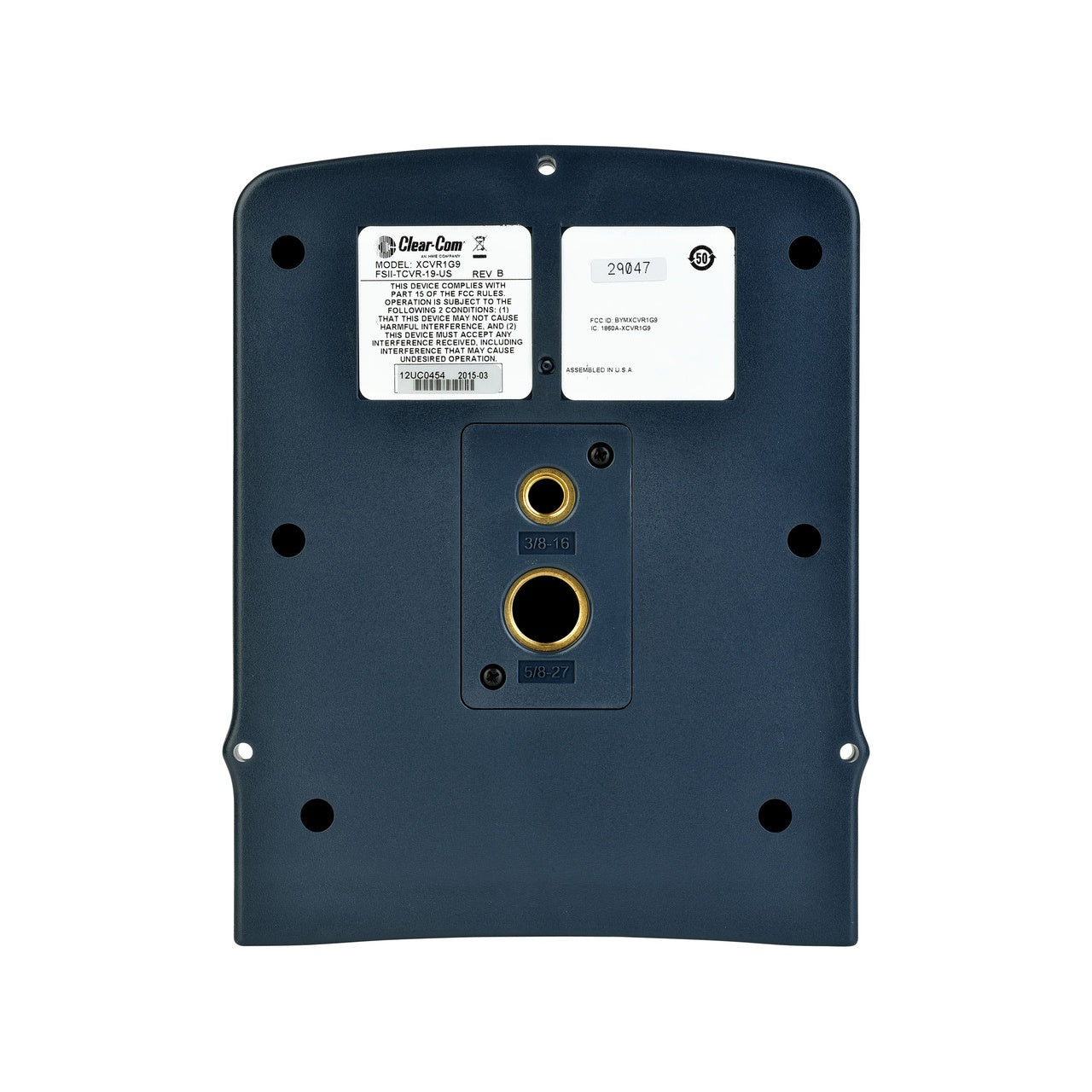

The FSII-TCVR-19 is an active transceiver antenna for the FSII-BP19 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000ft). The FSII-TCVR-19 has a mount for wall or microphone stand. A green status light is visible from either mounting orientations. When mixed with FSII-TCVR-24 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9GHz or 2.4GHz beltpacks.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
6.75x5.5x2" (173x134x52mm)
Audio
Output
(EU/Russia) 10dBm average, (US): 18-20dBm
Connectivity
Transceiver Range Output Power
100mW
Environmental
Humidity
Between 20% and 90%, Non-Condensing
Shipping
Weight
15.9oz (0.45kg)
General
USA, Canada, Mexico
1920-1930MHz
Frequency Spectrum
EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1880-1900MHz
Japan
1893-1906MHz
Argentina
1910-1930MHz
Brazil
1910-1930MHz
Chile
1910-1930MHz
Taiwan
1880-1895MHz
Environmental
IP53 water and dust resistance
Operating
32º-125ºF (0º-50ºC)
Storage
32º-150ºF (0º-70ºC)
Radio
Modulation
GFSK, TDMA frame 10ms Full and Long slot
