Clear-Com FSII-TCVR-24 FreeSpeak II 2.4GHz Transceiver Antenna

Clear-Com FSII-TCVR-24 FreeSpeak II 2.4GHz Transceiver Antenna

SoundPro Item: 75719 | Part Number: FSII-TCVR-24

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • For use with FSII base station, E-QUE-HX cards and FSII splitters
  • Supports up to 4 FSII 2.4GHz beltpacks per transceiver, or up to 65-90 beltpacks when mixed with FSII 1.9GHz transceivers
  • Up to 10 Transceivers can be connected to one FreeSpeak II base station
  • 2.4GHz transceivers can co-operate with 1.9GHz transceivers on the same system
  • IP-53 rated for water and dust resistance

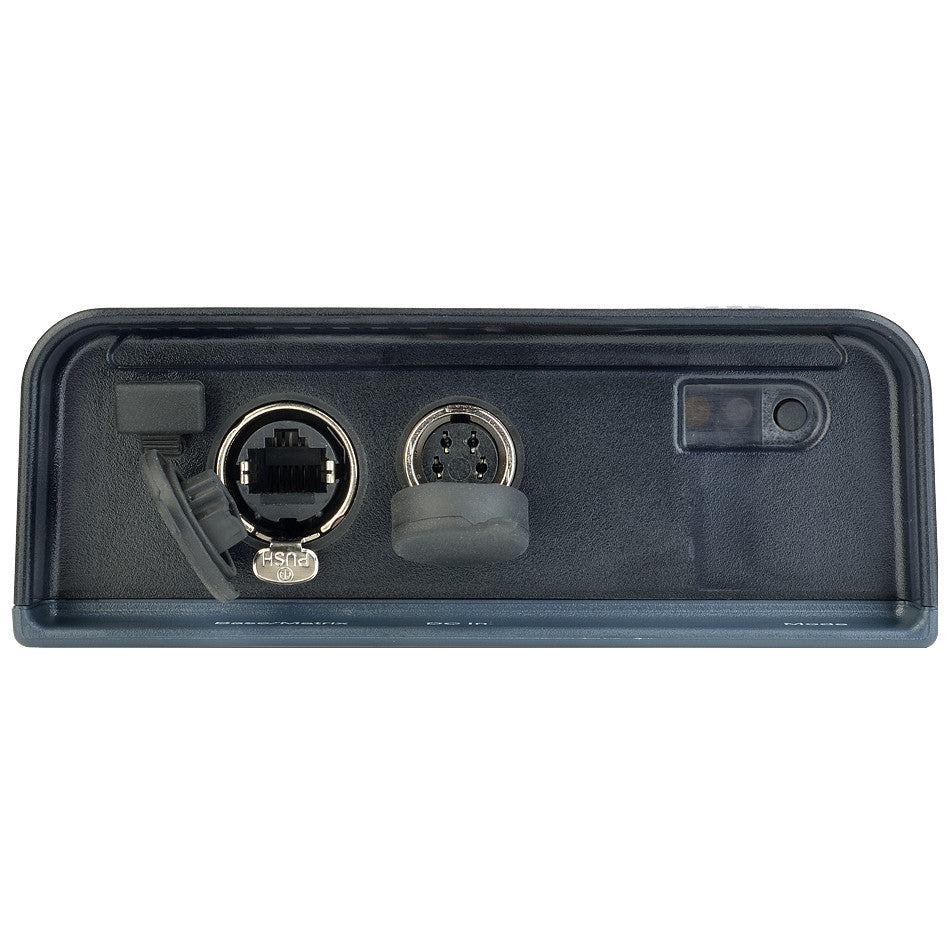

  • Locally powered or powered via the FreeSpeak II base station or matrix

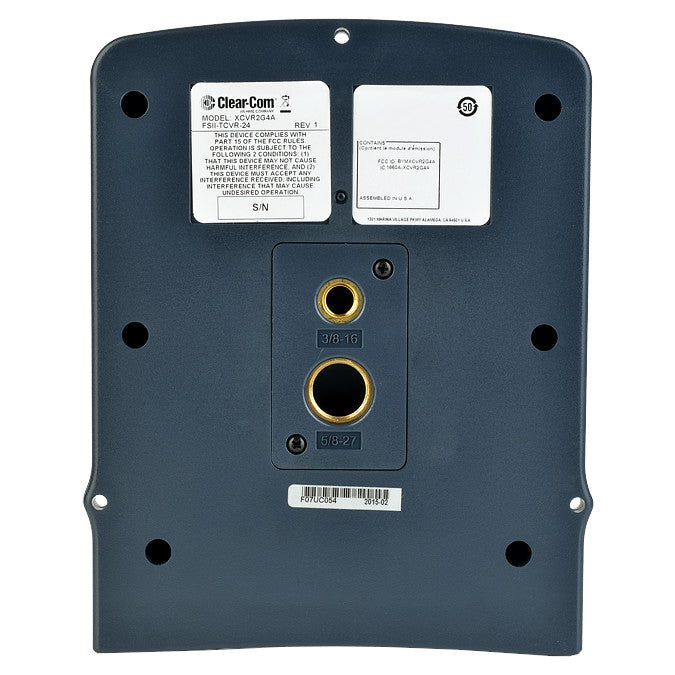

  • Microphone stand mounting

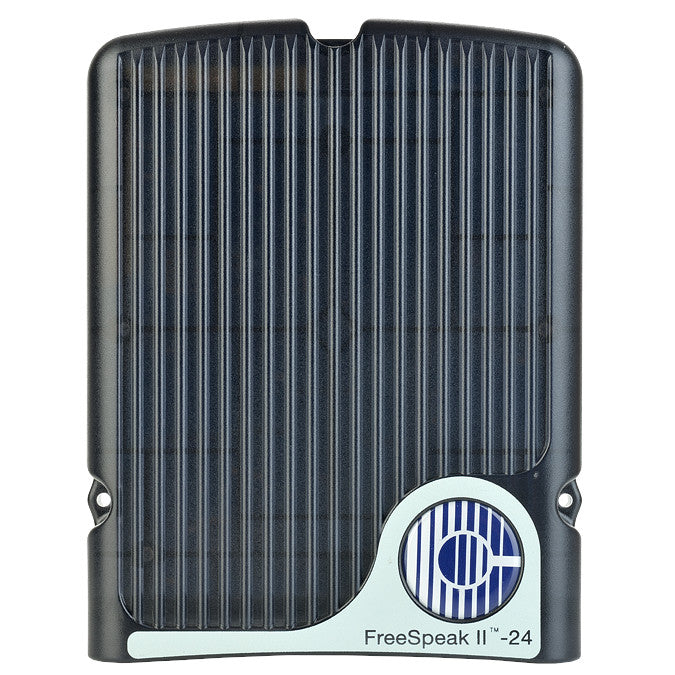

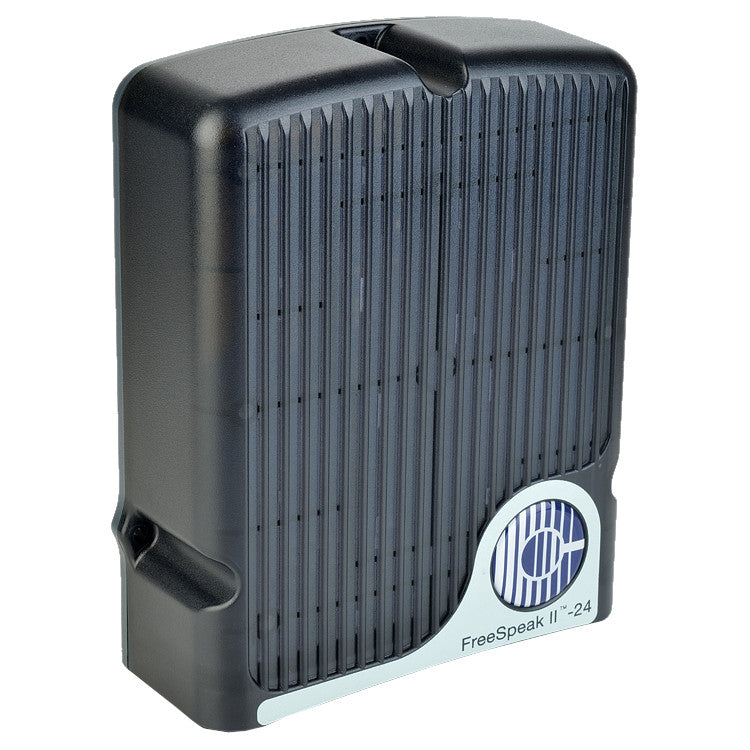

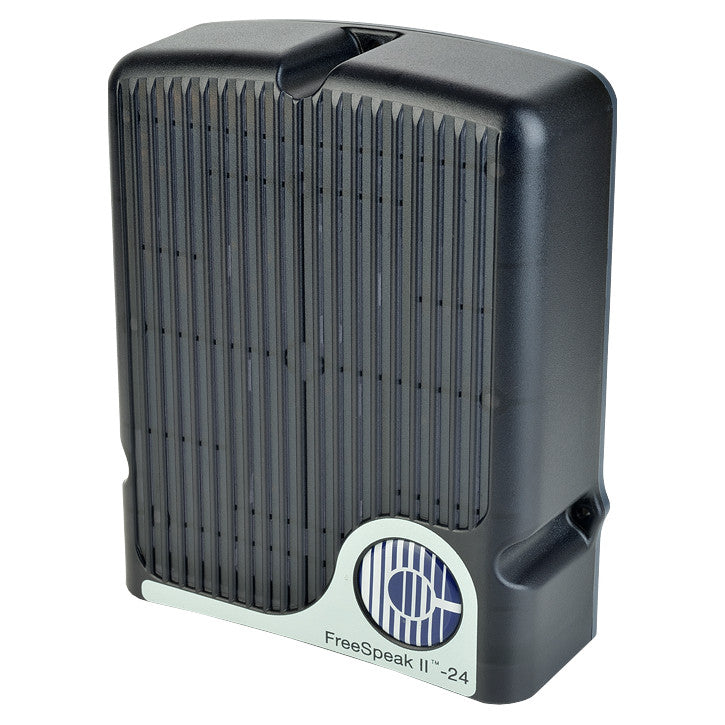

The FSII-TCVR-24 is an active transceiver antenna for the FSII-BP24 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000ft). The FSII-TCVR-24 has a mount for wall or microphone stand. A blue status light is visible from either mounting orientations. When mixed with FSII-TCVR-19 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9GHz or 2.4GHz beltpacks.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
6.75x5.5x2" (173x134x52mm)
Audio
Output Power
(EU): 18dBm, (RoW): 22dBm
Environmental
Humidity
Between 20% and 90%, Non-Condensing
Shipping
Weight
15.7oz (0.45kg)
General
Frequency Spectrum
2.400-2.483GHz for EU and US Cellular auto roaming technology
Environmental
IP53 water and dust resistance
Operating
32º-125ºF (0º-50ºC)
Storage
32º-150ºF (0º-70ºC)
Radio
Modulation
GFSK, TDMA frame 10ms full slot
