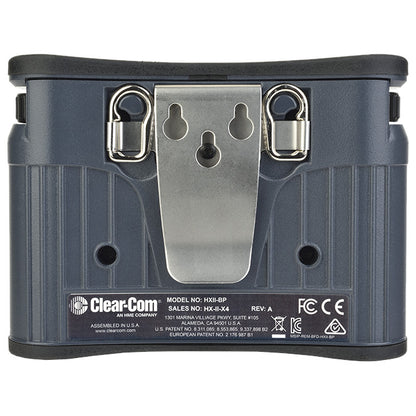

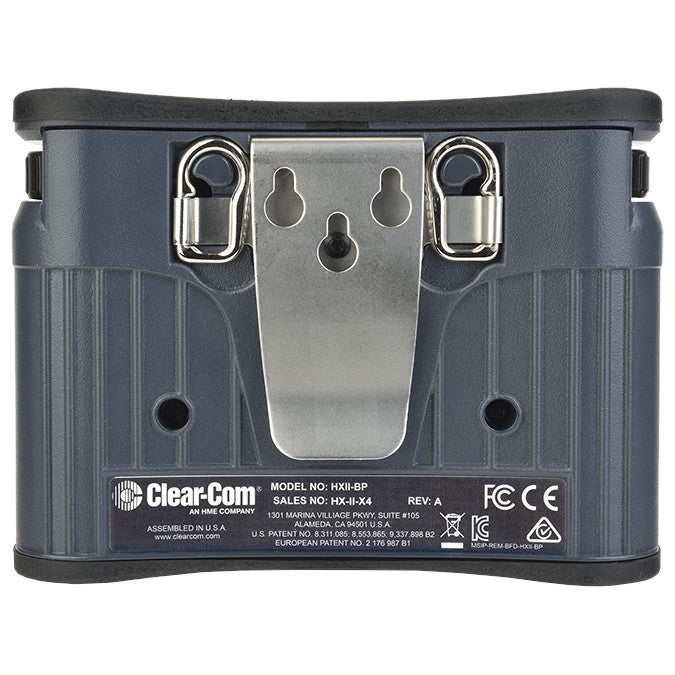

  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack bottom

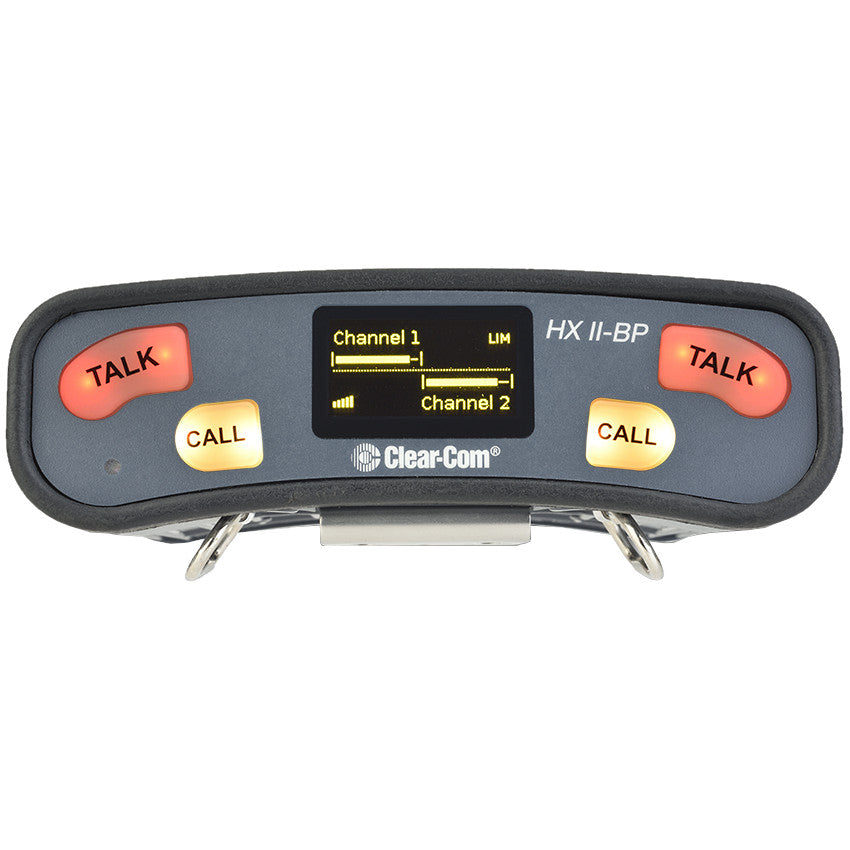

  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack front

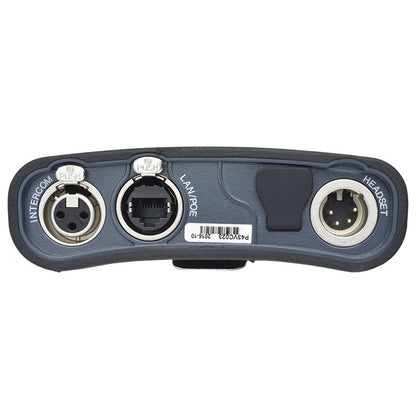

  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack back
  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack right profile
  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack left profile
  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack left

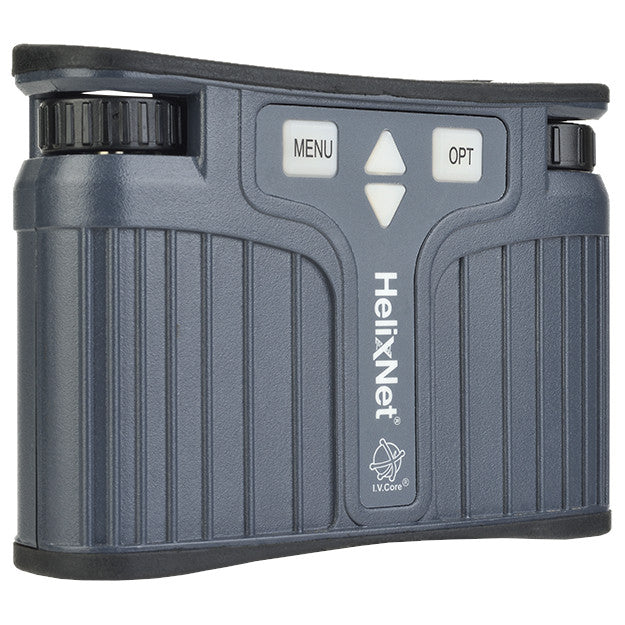

  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack right

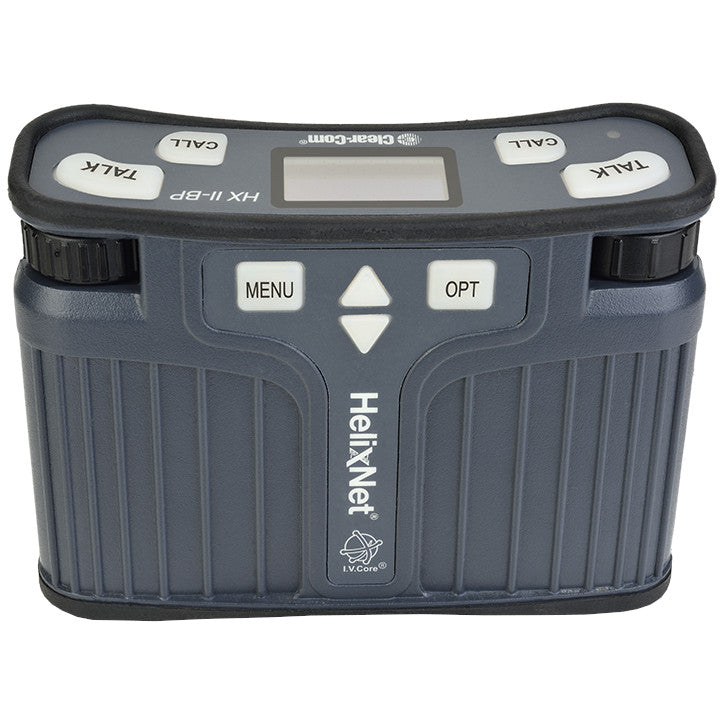

  • Clear-Com HXII-BP HelixNet 2-Channel Beltpack top front
1 9

Clear-Com HXII-BP HelixNet 2-Channel Beltpack | Connector: X5

Clear-Com HXII-BP HelixNet 2-Channel Beltpack | Connector: X5

SoundPro Item: 97839 | Part Number: HXII-BP-X5

$1,455.00
$1,455.00 $1,455.00
Your Price Sold out
MSRP: $1,455.00 | MAP: $1,455.00

Usually ships in 5-7 business days

  • XLR-4M headset jack
  • Backlit keys with high visibility OLED displays for ease of use
  • 2 Keysets freely assignable to system channels
  • Stacked keys allow unique combination of channels
  • Independent Program Audio control
  • USB call signal flasher
  • Binaural controls on HXII-BP-X5
  • Powerline connection via XLR cable
  • Ethernet Network port with PoE
  • Easy to use CCM browser configuration
  • Fast front panel control and configuration
  • Plug-and-go with auto discovery
  • Central upgrades from main station
Log in or register for YOUR best price

The HelixNet HXII-BP beltpack is a two-channel intercom user station supported by the HMS-4X main station.

The beltpack provides two keysets assignable to any intercom channel and allows multiple channels to be uniquely stacked onto a keyset. The beltpack comes with a headset connection, independent Program Audio level control and a micro-USB Flasher connection to a third-party USB light.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
3.9x5.3x1.7" (99x135x43mm)
Electrical
Headset Mic Impedance
200Ω (Dynamic)
Headset Mic Voltage
1.7V (Electret selectable)
Load Impedance
>32Ω
Voltage
48V DC
Current (Max)
0.09A
Audio
Mic Gain
60dB (Dynamic), 45dB (Electret)
Frequency Response
300Hz – 10 kHz ± 3dB, contoured for intelligibility
Distortion
<0.2% THD @ 1kHz
Sidetone
-12dB (selectable)
Max Gain
0dB
Performance
Bandwidth
300 (max) kbps from each HXII-BP to HMS1200 (max) kbps from HMS to each endpointNetwork
Connectivity
XLR Powerline(2)
3-pin XLR-F
USB
Micro AB
Output Level
+12dBu before clipping
Network
Specifications (Firmware Version 4.2+), Network Protocols Ethernet IPv4–Unicast Audio and ControlmDNS–Multicast Device DiscoveryLayer 3 routable with mDNS function limitationsHTTP–ManagementRTP–Audio TransportWavPack–Audio Codec
Network Ports Unicast
Port 80 TCP–System ManagementPort 6001 TCP–System ManagementPort 6001 UDP–Audio Streams
Shipping
Weight
12.2oz (0.35kg)
General
HelixNet System Hosts Arcadia:
Supports up to 64 HelixNet endpoints (HRM-4X, HKB-2X & HXII-BP) over Ethernet. Up to 24 Channels can be HelixNet Enabled using a Licensed Port for assignment to any HelixNet endpoints keyset. HMS-4X(3): Supports up to 64 endpoints (HRM-4X, HKB-2X, HBP-2X, HXII-BP, HLI-2W2, HLI-4W2, LQ port). User stations can connect via the 2 Powerlines (note power and data limits) or over Ethernet via optional HLI-ET2 module. HMS allows use of 12 channels which can be expanded to 24 using optional license.
LAN/PoE
RJ45 etherCON
Headset
4-pin XLR-M (-X4) or 5-pin XLR-F (-X5)
Limiter
+23dB
Microphone Pre-Amplifier
Route to 4-wire output at 0dBu out:
Noise
<-55dBu (Dynamic), <-65dBu (Electret)
Headphone Amplifier
Route from a 4-wire input at 0dBu in:
Headphone Limiter
0dB (selectable)
Power (Max)
4W
BTU (Max)
13BTU/hr
This Unit Can Be Powered Via
PoE – Power over Ethernet(1): IEEE 802.3af-2003 – Class 1PSE: 4.0W DC max @ Power Source Req.PD: 3.84W DC max @ Powered Device DrawPowerline(2): Input Voltage: ±29.5V DCInput Current (Max): 0.13APowerline Utilization: HXII-BP = 1 beltpackNote the maximum Powerline capacity of the HMS-4X(3)Use HelixNet Cable Calculator to validate load and cable distance.
Environmental
32° to +104°F (0° to +40°C), 0 – 90% relative humidity, IP53 rated
HMS-4X(3) Endpoint Resource Use
1 (-X4 variant)HMS-4X(3)
Endpoint Resource Use
2 (-X5 for binaural)
Jitter Tolerance
<= 128ms jitter buffer per audio stream receiver automatically adjusted to network performanceQoS
Tags
DSCP=41, Assured Forwarding (AF)Link-Local
Default IP Address Range
169.254.0.0/16System
Reserved IP Range
10.0.0.0/8 for endpoints
Recommended Ethernet Switches
Managed Ethernet Switch – Layer 3, 100/1000 Base-T ports for endpoints, 1000 Base IP Trunks between switches, QoS configuration, Energy Efficient Ethernet bypass option, IGMP Snooping bypass option, Please refer to the Clear-Com HelixNet Network Guide for additional switch settings and network characteristics.
Footnotes
(1) Ethernet to HMS-4X requires HLI-ET2, (2) Not available for Arcadia. Contact Clear-Com, (3) HMS-4X is a legacy product as of 2022
Network
Multicast
Port 5353 UDP–mDNS, Names, Discovery, LinkingOptional for device names and linking
