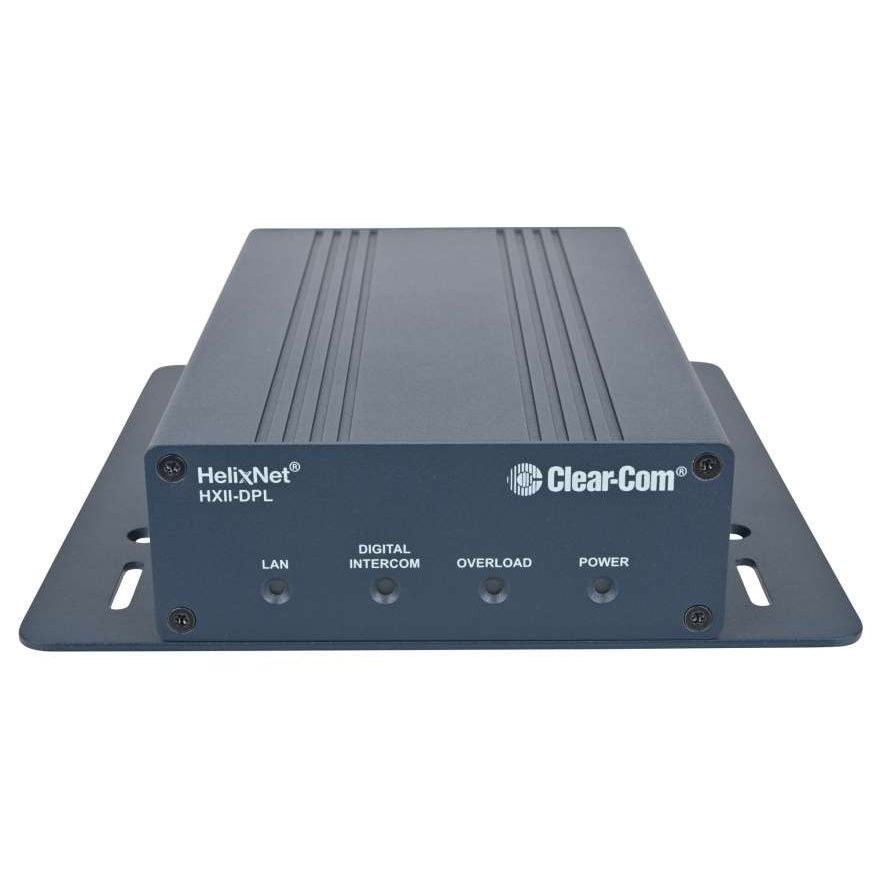

Clear-Com HXII-DPL HelixNet Powerline Bridge For User Stations

Clear-Com HXII-DPL HelixNet Powerline Bridge For User Stations

SoundPro Item: 144744 | Part Number: HXII-DPL

$1,350.00
$1,350.00 $1,350.00
Your Price Sold out
MSRP: $1,350.00 | MAP: $1,350.00

Usually ships in 5-7 business days

  • Networked Powerline Bridge Connects HelixNet User Stations To Arcadia And HMS-4X Platforms
  • Passive Cabling Infrastructure Supports Y-Splits And Daisy Chain Topologies Without Active Switches
  • Centralized Diagnostics In Arcadia CCM Simplify Troubleshooting Across Multi-Device Deployments
  • Compact Chassis Offers Portable Surface-Mount And Rack-Mount Installation Flexibility
  • Digital Over Three-Pin XLR Leverages Existing Shielded Cable Plants For Extended Runs
  • Device Status Indicators Provide Immediate Visual Confirmation Of Powerline Health And Activity
Log in or register for YOUR best price

The HXII-DPL enables professional production and installation teams to integrate HelixNet user stations into existing passive XLR cabling plants without active switching infrastructure. Designed for touring rigs, permanent venue installs, and broadcast facilities, it delivers digital intercom over standard 3-pin XLR cable with support for daisy-chaining and Y-splits across extended runs. Each unit powers and connects up to seven beltpacks or equivalent remote stations while maintaining robust signal integrity through shielded powerline technology.

Built for Arcadia and HMS-4X ecosystems, the HXII-DPL provides centralized diagnostic monitoring and status indication that simplifies troubleshooting in multi-device deployments. Compact form factor offers portable, surface-mount, or rack-mount placement options, adapting to technical racks, stage walls, or mobile carts. Systems scale to 24 powerline devices, creating flexible intercom networks that leverage both legacy cabling and modern Ethernet backbone connectivity for hybrid communication topologies.

View full details

Specifications

Certifications
Note
HelixNet User Stations must be upgraded to a compatible firmware version prior to regular use with the HXII-DPL Powerline Device. Upgrade options include: User station Network connection or HMS-4X¹ Powerline connection.
Connectivity
Digital Intercom / XLR Powerline
(1) 3-pin XLR-M
LAN Ethernet
(1) EtherCON RJ45
DC Power
(1) 3-pin KPJX-PM-3-S
Performance
Data Rate
100Mb
Frequency
1.8 - 67.5MHz
Output Voltage
±28.5V DC
Output Current (Max)
0.9A per Powerline; Protected for cable shorts or overload
Electrical
Voltage
48V DC
Current (Max)
1.8A
Power (Max)
87W
BTU (Max)
297 BTU/hr
Input Power Connector
KPJX-PM-3-S
Power Supply
Type
PSU-EXT-005 (supplied)
Input Voltage Range
100 - 240V AC
Input Frequency Range
50 - 60Hz
Input Power Connector
IEC-C14
Output Voltage
48V DC
Output Current (Max)
1.88A
Output Power (Max)
90W
Output Power Connector
KPPX-3P
Cable Length
59" (1.5m)
Dimensions (PSU)
1.3" x 2.1" x 5.23" (HxWxD); (33 x 53 x 133mm)
Weight (PSU)
0.55 lbs (0.25kg)
Construction
VESA Sockets Center-to-Center
2.95" (75mm)
VESA Thread Type
M4x10
Environmental
Operating Temperature
32° to 104°F (0° to 40°C)
Storage Temperature
-22° to 158°F (-30° to 70°C)
Humidity
20-90% Non-Condensing
Acoustical
42dB SPL A-Weighted @ 1ft (32dB SPL A-Weighted @ 1 mtr)
Dimensions
Device
1.555" x 4.213" x 7.78" (HxWxD); (39.5 x 107 x 197.58mm) – Includes handles
Shipping
5.5" x 8.5" x 12.25" (HxWxD); (140 x 216 x 311mm)
Weight
Device
1.3 lbs (0.59kg) – Excludes power supply & regional power cable
Maximum Level
5 lbs (2.25kg) – Excludes regional power cable
Capacity
Powerline Devices per System
24
Powerline per Device
1
HelixNet Beltpacks or Power Equivalent Stations
(7)
Included Items
Inline PSU 90W 48V DC
PSU-EXT-005
Rubber Feet Kit
MECH-00379
Velcro for PSU Mounting
235G032
