Clear-Com HXII-KB 4-Gang Flush-Mountable Speaker Station | X4

Clear-Com HXII-KB 4-Gang Flush-Mountable Speaker Station | X4

SoundPro Item: 146239 | Part Number: HXII-KB-X4

$2,060.00
$2,060.00 $2,060.00
Your Price Sold out
MSRP: $2,060.00 | MAP: $2,060.00

Usually ships in 5-7 business days

  • Dual OLED Displays With Backlit Keys Provide Instant Channel Status And Navigation
  • Shift Page Access Extends Control To Four Channels From Two Physical Keysets
  • Swiveling Display Panel Adapts To Varied Flush-Mount Viewing Angles
  • Dual Power Options Via PoE Or Powerline Terminal Block Simplify Installation Flexibility
  • Front Panel Configuration Enables Fast Setup Without Host Management Access
  • Headset And Hands-Free Modes Support Dynamic Or Electret Capsules With Selectable Phantom
  • Integrated Program Audio Control Manages External Source Levels At The User Station
Log in or register for YOUR best price

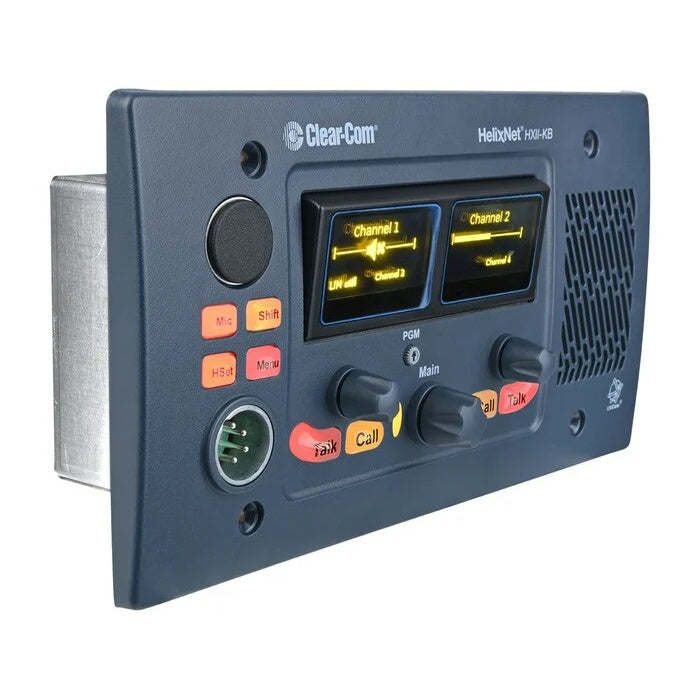

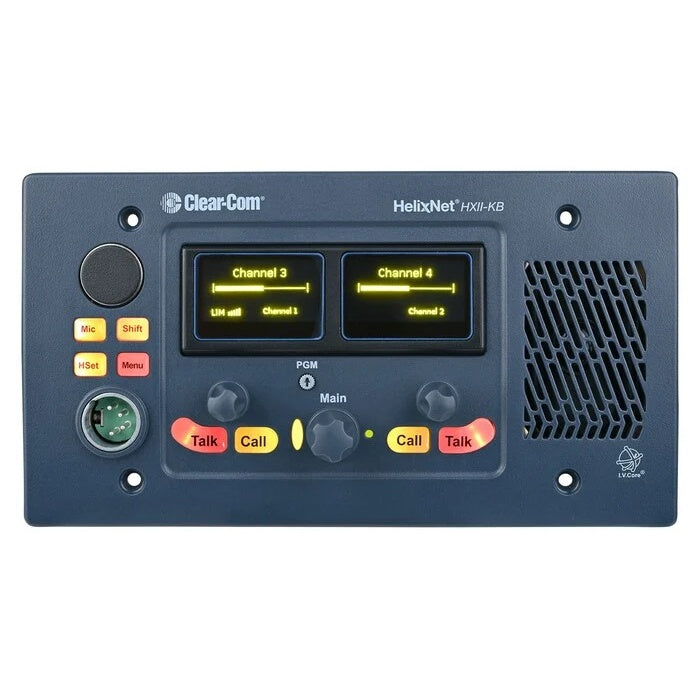

The Clear-Com HXII-KB is a 4-gang flush-mountable speaker station designed for HelixNet networked partyline systems hosted by Arcadia or HMS-4X. It provides hands-free and headset operation with backlit keys, dual OLED displays, and assignable keysets that support up to four channels via shift-page access. The unit accommodates dynamic or electret headsets via 4-pin XLR-M and integrates program audio level control for multi-source monitoring.

Dual connectivity options—PoE via RJ45 or powerline terminal block—streamline deployment in permanent installations and broadcast facilities. The swiveling display panel optimizes viewing angles in flush-mount applications, while front-panel configuration enables rapid setup without centralized management tools. Browser-based CCM configuration and central firmware upgrades via host devices reduce lifecycle maintenance overhead.

HXII-KB integrates with up to 24 licensed channels across 64 or 128 HelixNet endpoints, depending on host platform. It supports gooseneck microphones via 3-pin Tuchel connection and offers routing flexibility for four-wire input/output paths. Environmental tolerance spans 32°F to 113°F with 90% relative humidity, suited to control rooms, production suites, and remote truck installations.

View full details

Specifications

Certifications
IEEE 802.3af-2003 Power Over Ethernet
Class 0
Connectors
Powerline
Terminal Block 5 Pole, 5mm Pitch
Ethernet/PoE
RJ45
Headset
4-Pin XLR-M
Gooseneck Mic
3-Pin Tuchel
Power Connector
Terminal Block 2 Pole, 5mm
Microphone Preamplifier
Headset Mic Impedance
200Ω (Dynamic)
Headset Mic Voltage
1.7V (Electret Selectable)
Mic Gain
60dB (Dynamic), 45dB (Electret)
Frequency Response (Mic)
300Hz - 10 kHz ± 3dB
Distortion (Mic)
<0.1% THD @ 1kHz
Noise (Mic)
<-65dBu
Limiter
+23dB
Headphone Amplifier
Load Impedance (Headphone)
>32Ω
Output Level (Headphone)
+12dBu Before Clipping
Max Gain (Headphone)
0dB
Frequency Response (Headphone)
40Hz - 10kHz ±3dB
Distortion (Headphone)
<0.1% THD @ 1kHz
Noise (Headphone)
-65dBu
Sidetone
-12dB (Selectable)
Headphone Limiter
0dB (Selectable)
Loudspeaker Amplifier
Load Impedance (Speaker)
8Ω
Output Level (Speaker)
+18dBu Before Clipping
Max Gain (Speaker)
18dB
Frequency Response (Speaker)
200Hz - 10kHz ±3dB
Distortion (Speaker)
<0.1% THD @ 1kHz
Noise (Speaker)
<-50dBu
Power
Voltage
48V DC
Current (Max)
0.3A
Power (Max)
14.4W
BTU (Max)
49BTU/hr
PoE PSE
15.4W DC Max
PoE PD
12.95W DC Max
Powerline Input Voltage
±29.5V DC
Powerline Current (Speaker Off)
0.3A
Powerline Current (Max)
0.5A
Network
HMS-4X Endpoint Resource Use
1
Bandwidth From Station
300 kbps Max
Bandwidth To Station
1200 kbps Max
Network Jitter Tolerance
<= 128ms Jitter Buffer
QoS Tags
DSCP=34 Assured Forwarding (AF=41)
Link-Local Default IP Range
169.254.0.0/16
Environmental
Operating Temperature
32° - +113°F (0 - +45°C)
Relative Humidity
90%
Dimensions
Form Factor
4-Gang NEMA
Height x Width x Depth
4.5" x 8.2" x 2.4" (114 x 209 x 61mm)
Weight
HKII-KB
15.2 oz (0.43 kg)
HKB-2X
18.8 oz (0.53 kg)
Included Items
Mounting Screws
6-32 x 1/2" (280038Z), Qty 4
Screw Cover
416G054, Qty 4
Powerline Terminal Block
210085Z
DC Power Terminal Block
210369Z
