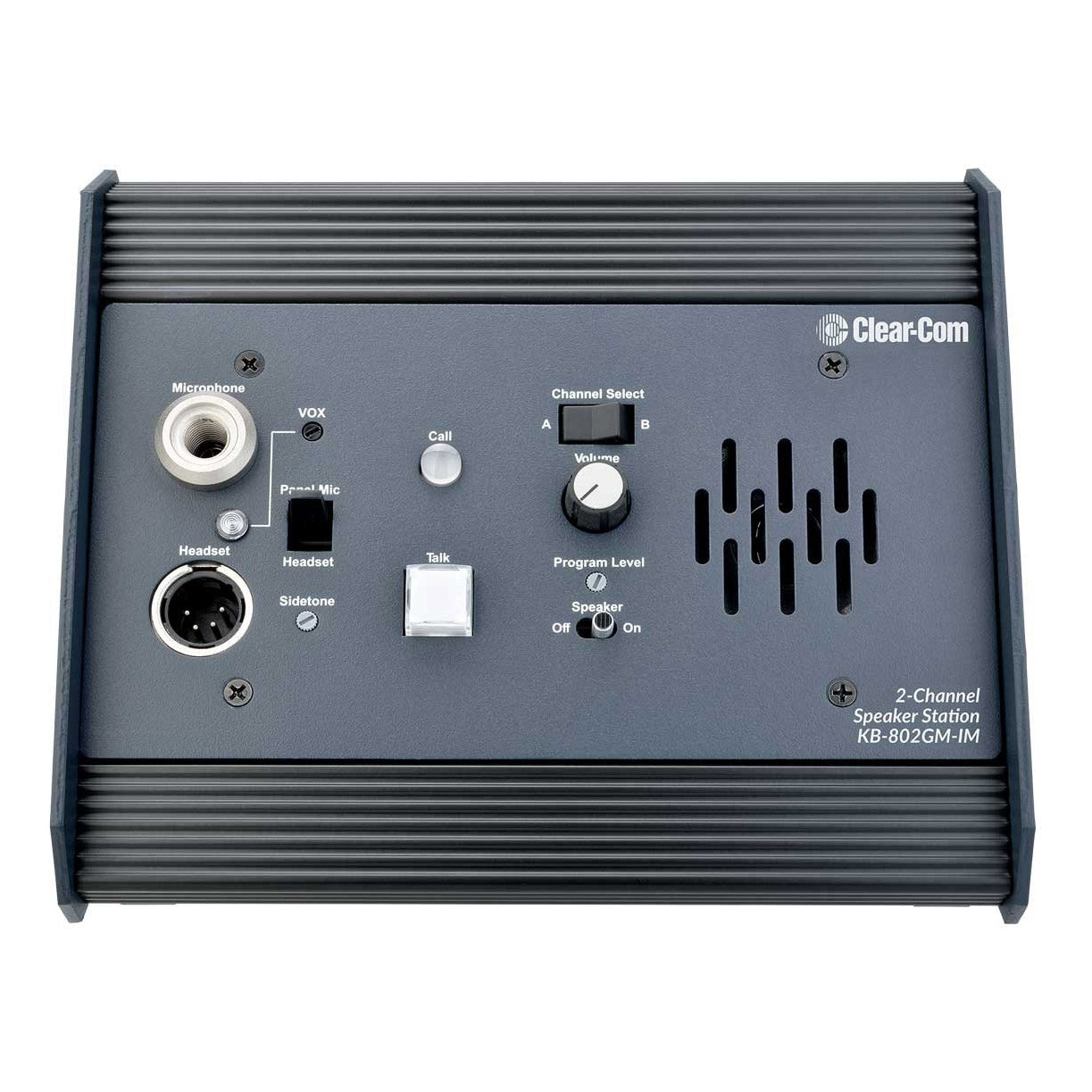

Clear-Com KB-802GM-IM Encore 2-Channel Remote Speaker Station
Clear-Com KB-802GM-IM Encore 2-Channel Remote Speaker Station
SoundPro Item: 36144 | Part Number: KB-802GM-IM
Usually ships in 5-7 business days
- Selectable one- or two-channel communication
- IP20 environmental rating
- Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
- Marine Certification compliant with DNVGL-CG-0339 (2016)
- Visual and audible call signaling with bright LED indicator
- Mic jack for gooseneck mic plus VOX circuitry
- Optional 4-wire daughter boards
- Wall or console mount, or optional V-BOX for portable or desktop use
The KB-802GM-IM remote speaker station permits the user to select between two channels of partyline communications, with the ability to talk and/or listen on the selected channel. The user can listen via the integral speaker, or may use a headset or telephone-style handset - and can talk via a gooseneck mic, headset mic, a telephone handset, or a push-to-talk microphone.
A switch allows the user to choose between the optional GM-9 or GM-18 microphone and the headset connector. The adjustable sensitivity, close-in VOX feature automatically detects the user’s voice at the mic and dips the level of the integral speaker while increasing the gain of the microphone, performing in the opposite manner when listening. The potential for acoustic feedback is minimized while permitting natural conversation levels and dynamics.
Microprocessor-controlled logic and switching yields a feature-rich intercom station in a compact format. Electronic switching for the talk button, blue-color LED (on), amber color LED (off), permits momentary or latching operation. For call signaling, a bright LED lights when a call is activated on a connected intercom channel. A defeatable audible call signal, with level control, is also provided. Separate level controls are provided for intercom level and for balanced program input. A local program source may be fed to the station, allowing the user to monitor that source while remaining in contact on the intercom system. The balanced program input can also be used in conjunction with the stage-announce output of a main station to provide a paging interrupt, allowing paging at the KB station even if the intercom volume control is turned down.
- Panel Microphone Input
- Input Type: Electret
- Input Impedance: >=2K
- Mic Limiter Threshold: -2dBu ±3dB
- Mic Limiter Range: >= 15dB
- Headset Microphone Input
- Input Type: Dynamic
- Input Impedance: >= 1K
- Mic Limiter Threshold: -2dBu ± 3dB
- Mic Limiter Range: >= 15dB
- Program Line Input
- Maximum Level before Clipping: >= 20dBu
- Input Impedance: >= 5K
- Headset Output
- Load Impedance: >= 8
- Output Impedance: <= 25
- Output Limiter Threshold: +5dBu ± 3dB
- Maximum Output Level before Distortion: >= 17dBu
- Speaker Output
- Load Impedance: >= 4
- Max Output Level before 1% Distortion: 20dBu ± 2dBu
- Partyline Output
- Off Noise: < -74dBu
- Output Impedance: >10K
- Partyline Input
- Crosstalk: < -60dB
- Max level before Clipping: >= 12dBu
- Sidetone Null Capability: > 25dB
- Frequency Response
- Panel Mic – Partyline: 300 – 16kHz ± 3dB
- Headset Mic – Partyline: 300 – 15kHz ± 3dB
- Program Input – Headset Out: 200 – 18kHz ± 3dB
- Program Input – Speaker Out: 200 – 18kHz ± 3dB
- Partyline – Headset Out: 200 – 18kHz ± 3dB
- Partyline – Speaker Out: 200 – 18kHz ± 3dB
- Max. Distortion
- Panel Mic – Partyline: <= 0.5%
- Headset Mic – Partyline: <= 0.5%
- Program Input – Headset Out: <= 0.2%
- Program Input – Speaker Out: <= 0.5%
- Partyline – Headset Out: <= 0.2%
- Partyline – Speaker Out: <= 0.5%
- Noise
- Panel Mic – Partyline: < -65dBu
- Headset Mic – Partyline: < -70dBu
- Program Input – Headset Out: < -60dBu
- Program Input – Speaker Out: < -60dBu
- Partyline – Headset Out: < -50dBu
- Partyline – Speaker Out: < -50dBu
- Max. Gain
- Panel Mic – Partyline: >= 37dB
- Headset Mic – Partyline: 41dB ± 2dB
- Program Input – Headset Out: >= 18dB
- Program Input – Speaker Out: >= 24dB
- Partyline – Headset Out: >= 34dB
- Partyline – Speaker Out: >= 40dB
- Power
- Input Voltage Range: 20-30V DC
- Input Current (Idle): <= 90mA
- Input Current (Max): <=110mA
- Internal Adjustments and Connections
- Intercom: Line Five terminal connector
- Program Input Three terminal connector Option Switches: Three DIP switches
- Call Signal Jumper3: Three sets of options jumpers
- Call Alert Tone Level Control: Level adjustment control
- Front Panel Connectors
- Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
- Headset: (1) XLR-4M
- Front Panel Controls & Indicators
- (1) Panel /headset mic switch
- (1) Program monitor level control
- (1) Sidetone null control
- (1) Talk button
- (1) Call button
- (1) Speaker ON-OFF switch
- (1) Channel select switch
- (1) Speaker volume control
- (1) VOX control
- (1) VOX indicator
- Environmental
- 32°F to 122°F (0°C to 50°C)
- Relative Humidity: 0 – 96%, non-condensing
- Vibration Frequency Range: 2 – 13.2 Hz
- Amplitude: 1.0 mm
- Peak Value Frequency Range: 13.2 – 100 Hz
- Acceleration Amplitude: 0.7 g
- EMC: DNVGL-CG-0339 – Class B
- Enclosure: IP-20
- Dimensions (HxWxD)4.5" x 8.25" x 1.75"
- Weight1.1 pounds
