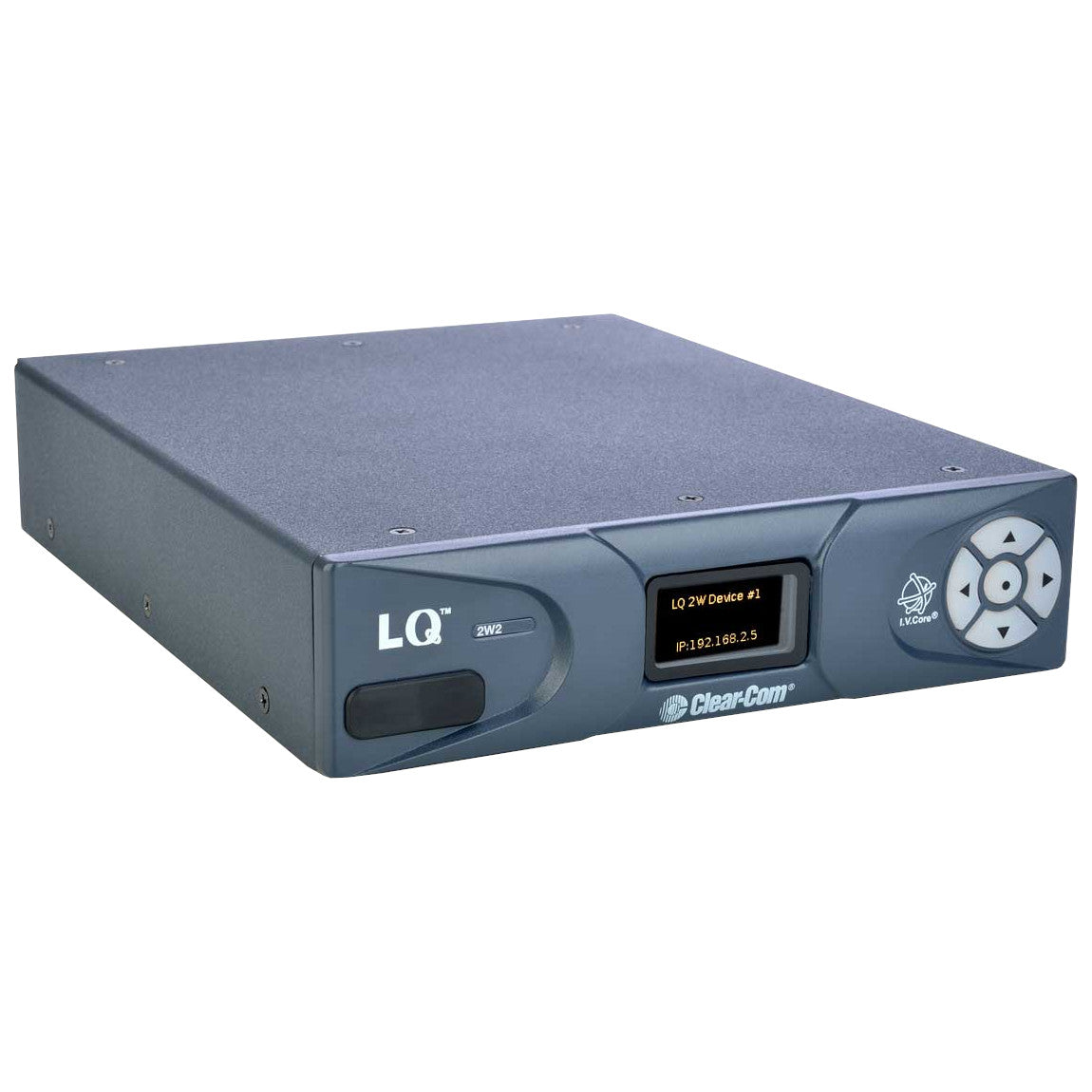

• Clear-Com LQ-2W2 IP Interface

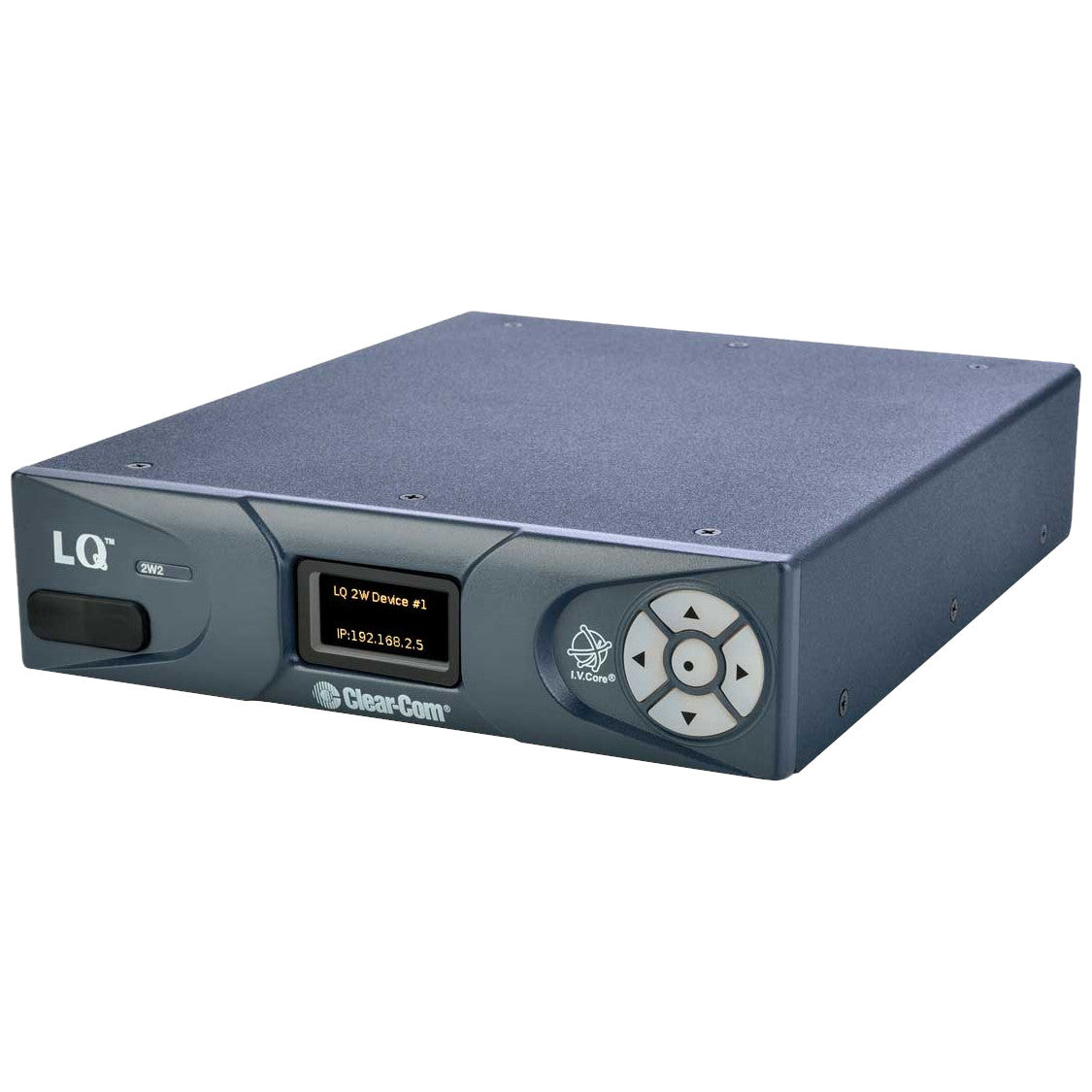

  • Clear-Com LQ-2W2 IP Interface side

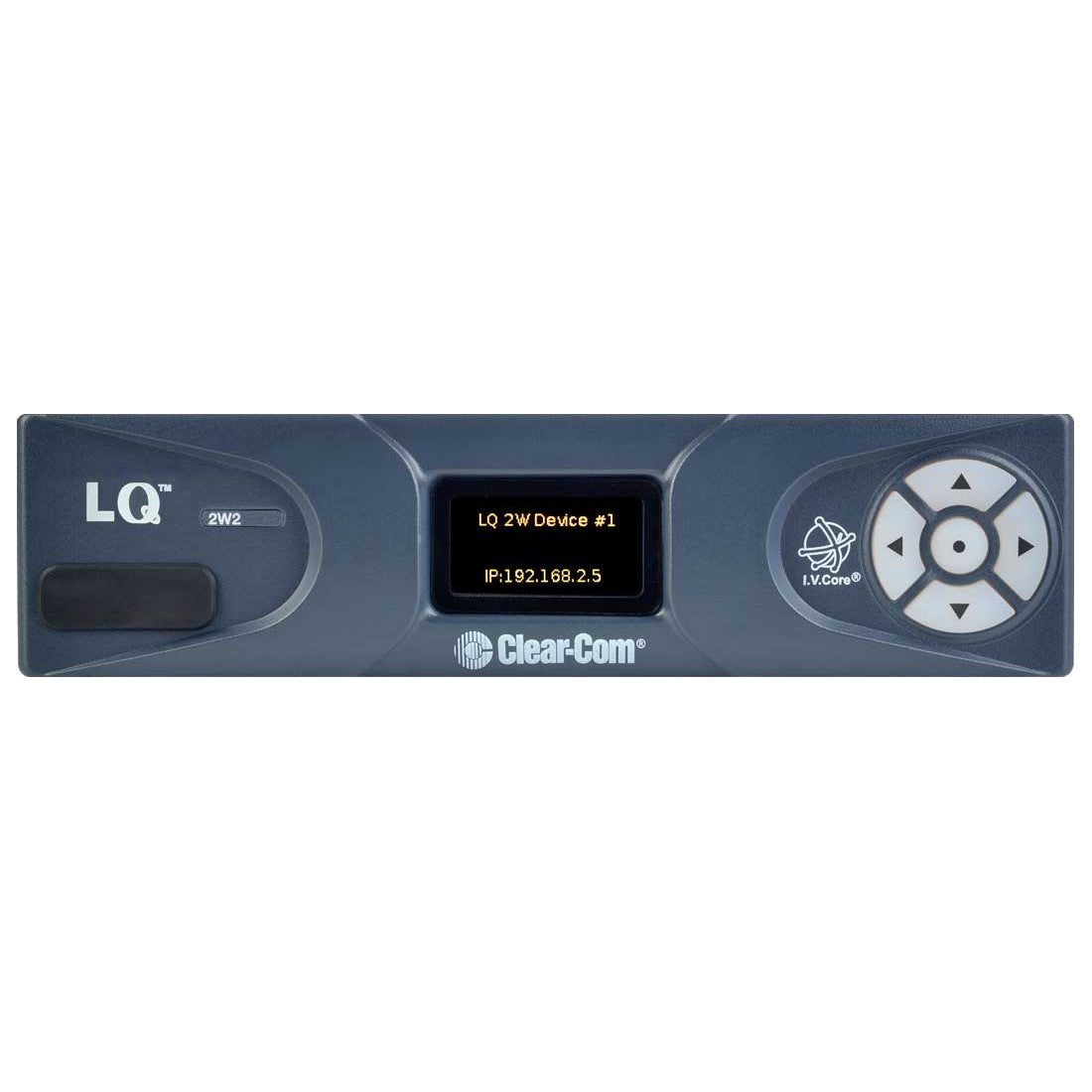

  • Clear-Com LQ-2W2 IP Interface front

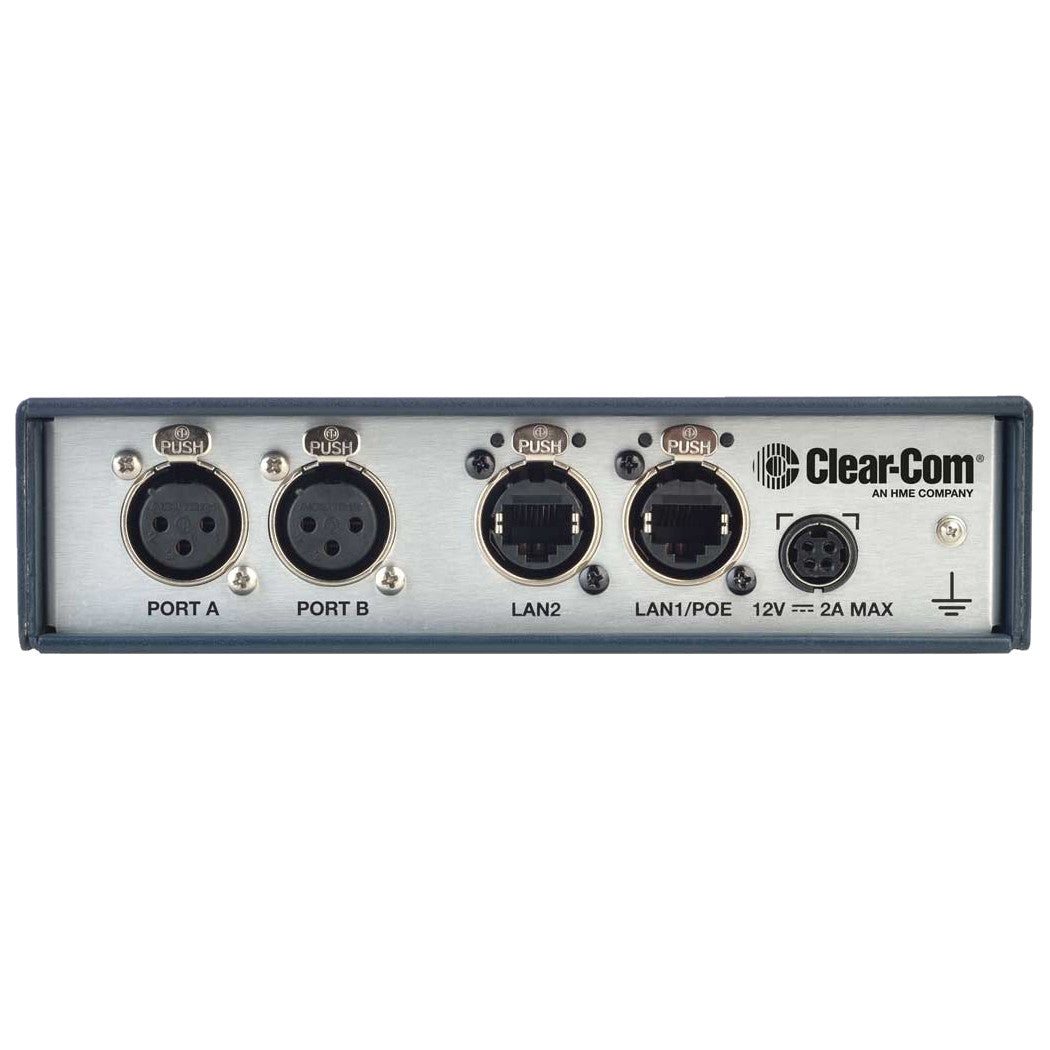

  • Clear-Com LQ-2W2 IP Interface back
1 4

Clear-Com LQ-2W2 IP Interface

Clear-Com LQ-2W2 IP Interface

SoundPro Item: 72754 | Part Number: LQ-2W2

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 2-Port Portable Unit for 2-Wire Interfacing
  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • Connect up to 6 LQ devices together to create standalone partyline intercom group
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • Adjustable bandwidth on a per port basis
  • 2-wire powering, termination and auto-nulling
  • Female and Male XLR connectors at each port
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager
  • Networked Control Events for multi-unicast one-to-many routing
Log in or register for YOUR best price

The Clear-Com LQ-2W2 IP Interface provides intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.

View full details

Specifications

Dimensions
Packet Size
5, 10, 20, 40, 60ms
Dimensions (WxHxD)
6.8x1.79x8.45" (173x46x215mm)
Audio
Sample Rate
24kHz
Frequency Response
100 – 12kHz
Input Gain
-3dB to +3dB
Output Gain
-3dB to +3dB
Output
DC 12V, 2A, 24W MAX
Connectivity
2 X 3 Pin XLR (female)
2 x Audio I/O
Input
100-240V, 47-63Hz, 0.58A MAX
Environmental
Operating Temperature
+32°F – +104°F (0°C – +40°C)
Storage Temperature
-67°F – +158°F (-55°C – +70°C)
Humidity
90%, non-condensing
Shipping
Weight
1.83lbs (.83kg)
General
Resolution
12 bit
CODEC
OPUS
Bit Rates
32, 48, 64, 128kbps
Jitter Buffers
0 – 1000ms
2 X EtherCON (female)
2 x Network
Type
Clear-Com & RTS
Local DC Powered
150mA
POE Powered
70mA
Power Supply
Plug-in adapter with sleeve locking connector, US, UK , Europe, AUS & China sockets included)
