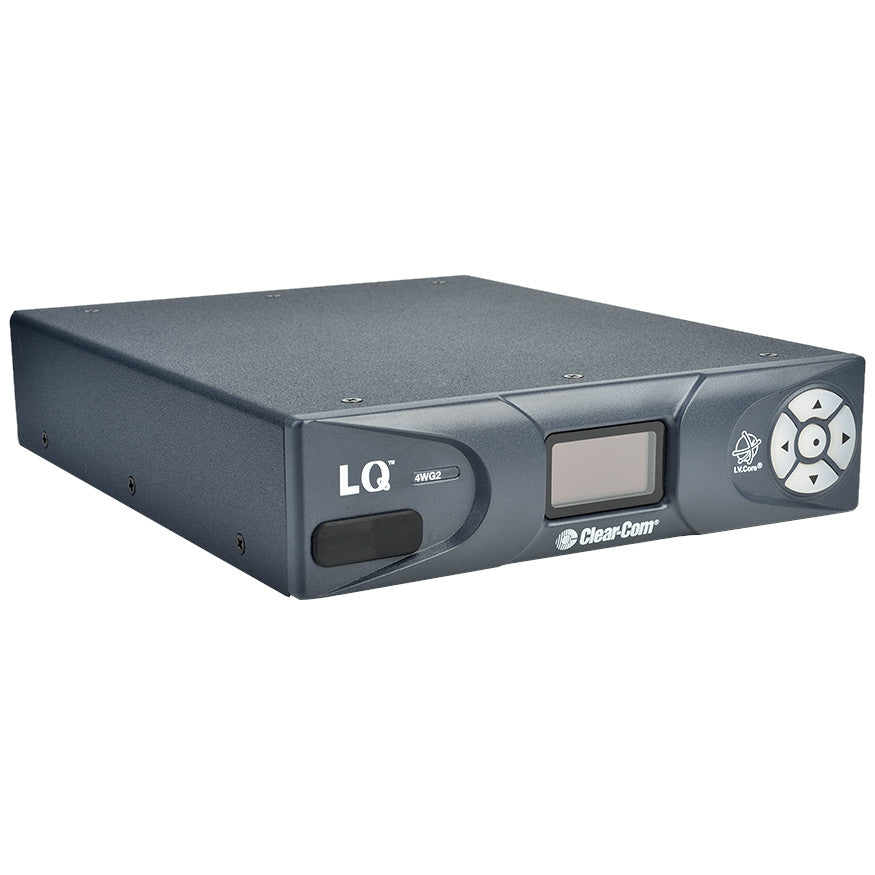

• Clear-Com LQ-4WG2 IP Interface with GPIO Audio

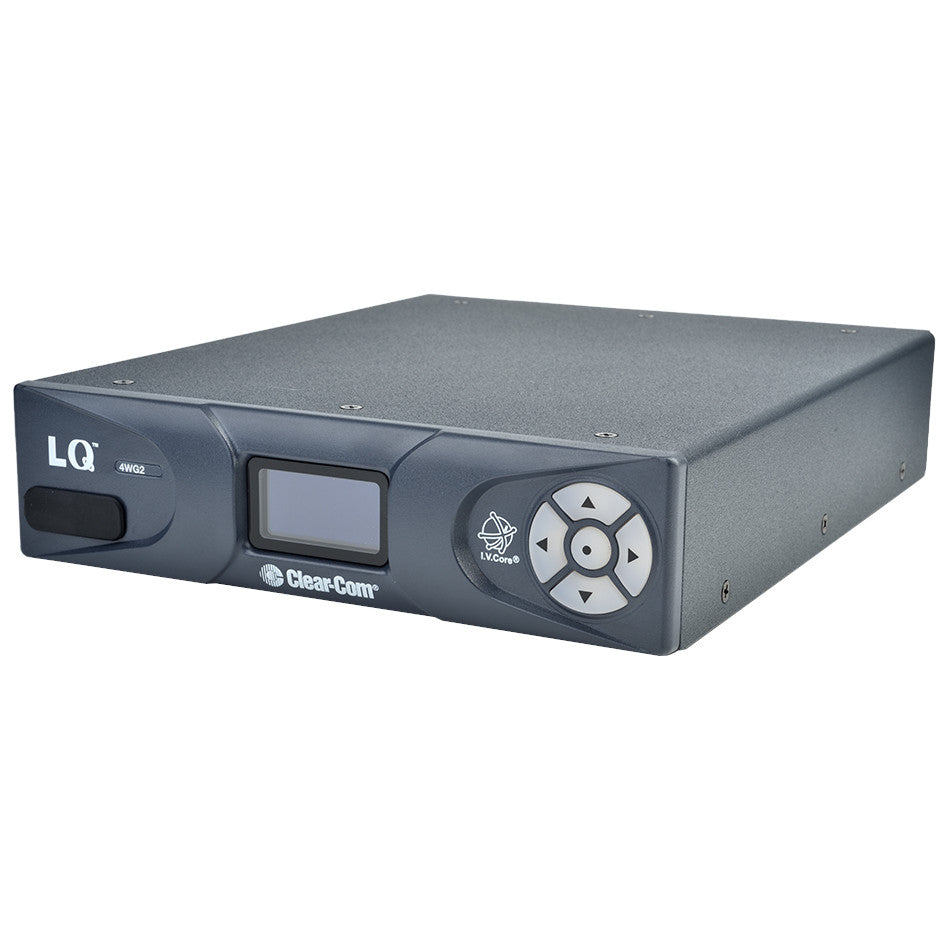

  • Clear-Com LQ-4WG2 IP Interface with GPIO Audio side

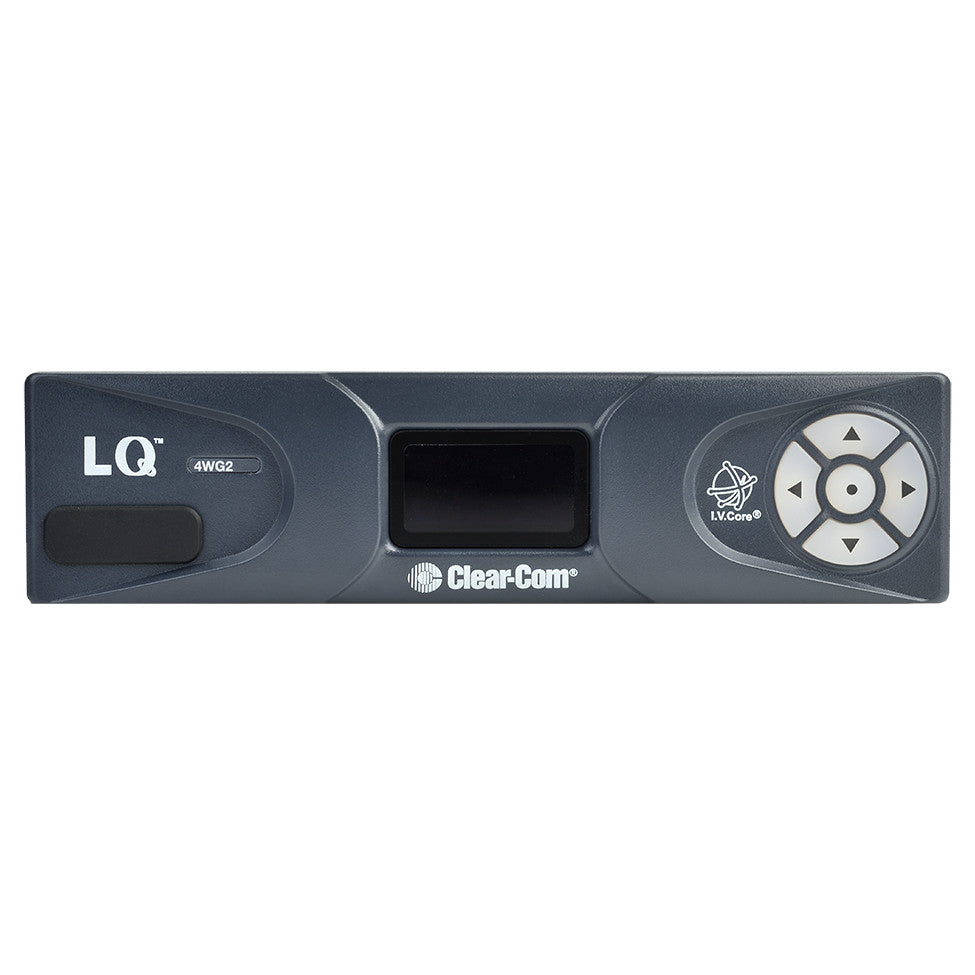

  • Clear-Com LQ-4WG2 IP Interface with GPIO Audio front

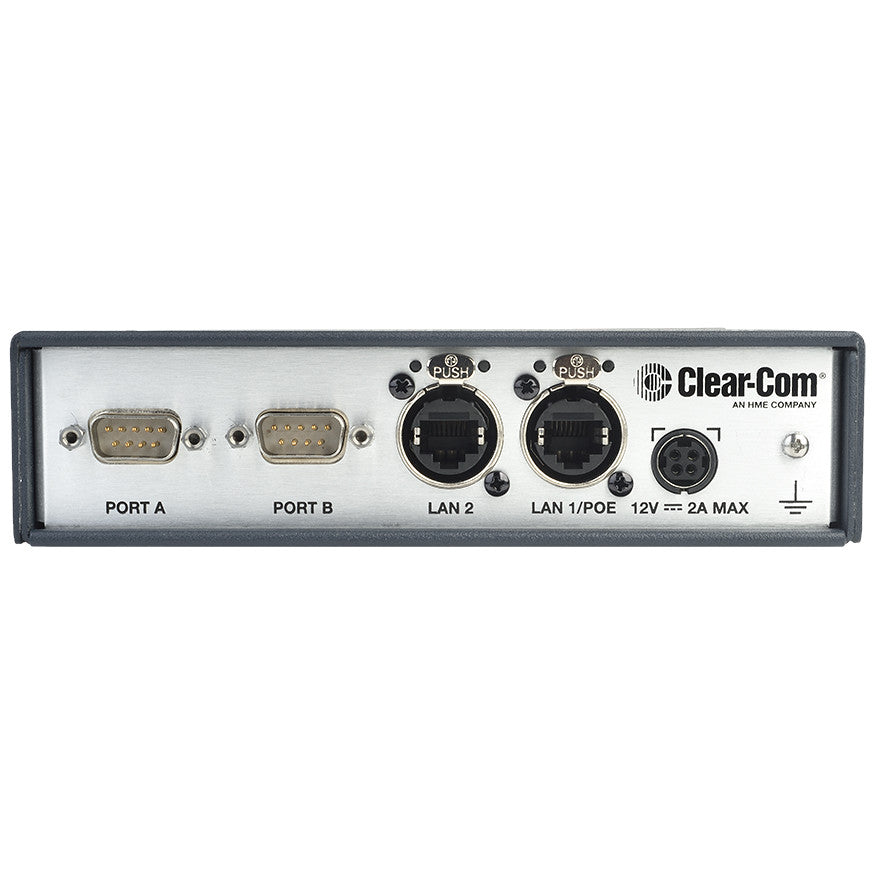

  • Clear-Com LQ-4WG2 IP Interface with GPIO Audio back
1 4

Clear-Com LQ-4WG2 IP Interface with GPIO Audio

Clear-Com LQ-4WG2 IP Interface with GPIO Audio

SoundPro Item: 89395 | Part Number: LQ-4WG2

$3,060.00
$3,060.00 $3,060.00
Your Price Sold out
MSRP: $3,060.00 | MAP: $3,060.00

Usually ships in 5-7 business days

  • 2-Port Portable Unit for Linking 4-wire with GPIO audio
  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • Connect up to 6 LQ devices together over LAN, WAN, Internet
  • Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per device
  • Connects with matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
  • Adjustable bandwidth on a per port basis
  • Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire with GPIO Audio I/O: 9-way D-type (male)
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager application
  • Networked Control Events for multi-unicast one-to-many routing
Log in or register for YOUR best price

The Clear-Com LQ-4WG2 IP Interface with GPIO Audio provides intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.

View full details
  • Audio
    • Resolution: 12, 24 bit
    • Sample Rate: 24, 48kHz
    • Frequency Response: 100 – 12kHz or 100 – 20kHz
    • CODEC: OPUS
    • Line Level: (0dB)
    • Input Gain: -12dB to +12dB
    • Output Gain: -12dB to +12dB
    • Mic Level: (-50dB)
    • Input Gain: -12dB to +12dB
    • Output Gain: -12dB to +12dB
  • Network Setting
    • Bit Rates: 16, 32, 48, 64, 128Kbps
    • Packet Size: 5, 10, 20, 40, 60ms
    • Jitter Buffers: 0 – 1000ms
  • Connectors
    • Network/LAN: EtherCON/RJ45 (female)
    • 4-wire with GPIO Audio I/O: 9-way D-type (male)
  • Partyline Output Current
    • Local DC Powered: 150m
    • POE Powered: 70mA
  • Power Supply
    • Plug-in adapter with sleeve locking connector (US, UK, Europe, AUS & China sockets included)
    • Input: 100-240V, 47-63Hz, 0.58A MAX
    • Output: DC 12V, 2A, 24W MAX
  • Environmental
    • Operating Temperature: +32°F – +104°F (0°C – +40°C)
    • Storage Temperature: -67°F – +158°F (-55°C – +70°C)
    • Humidity: 90%, non-condensing
  • Dimensions (WxHxD)6.8x1.79x8.45" (173x46x215mm)
  • Weight1.83lbs (.83kg)
