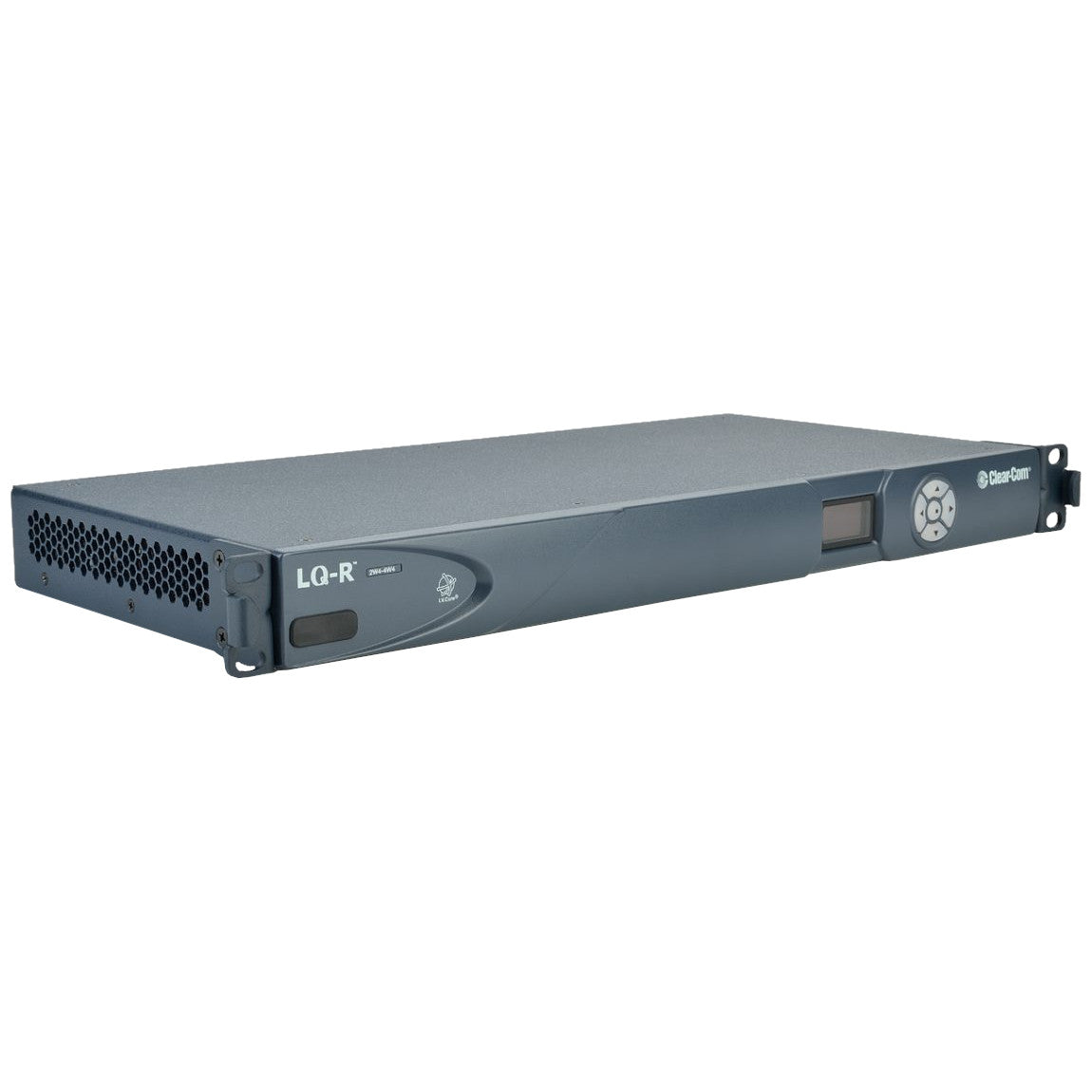

• Clear-Com LQ-R2W4 IP Interface

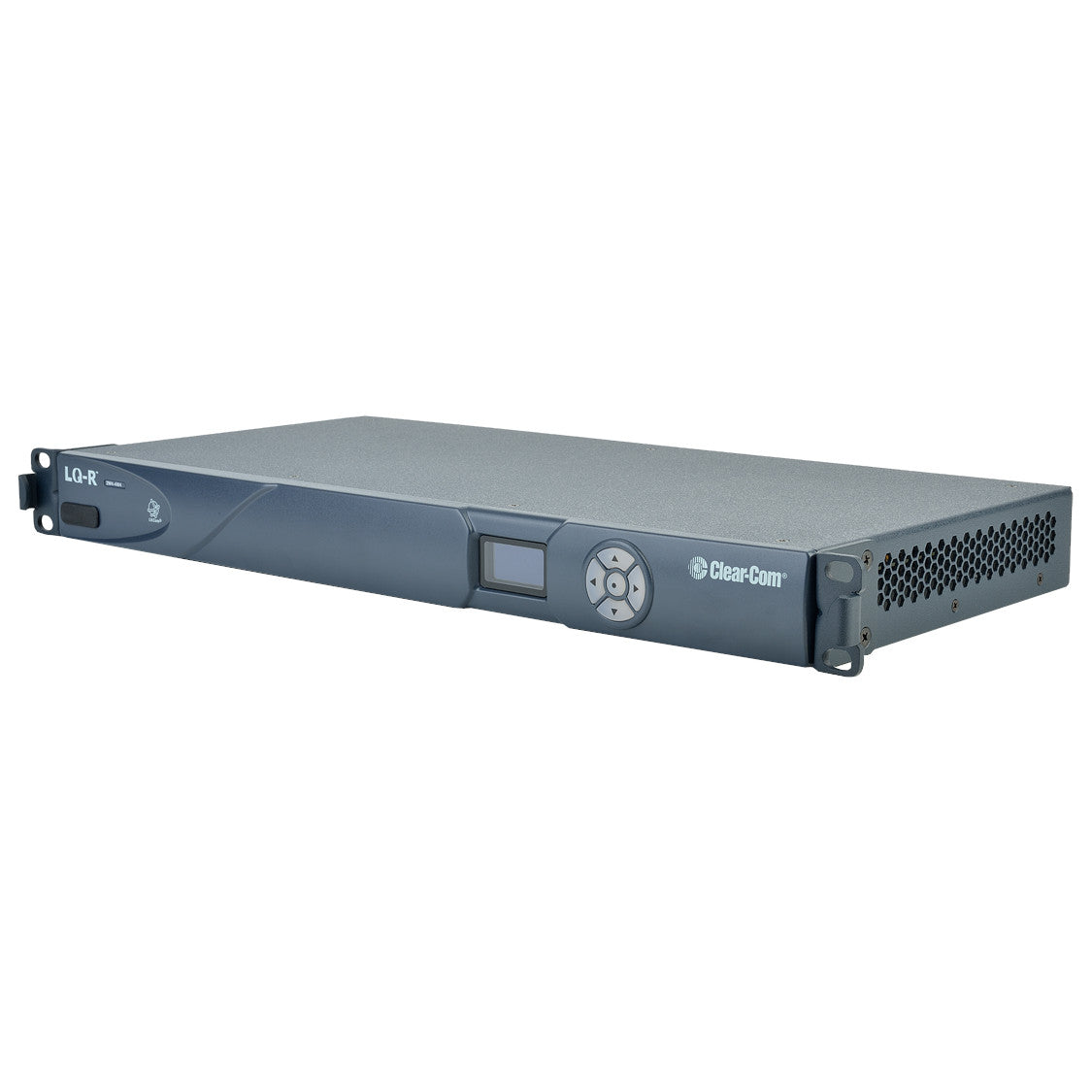

  • Clear-Com LQ-R2W4 IP Interface side

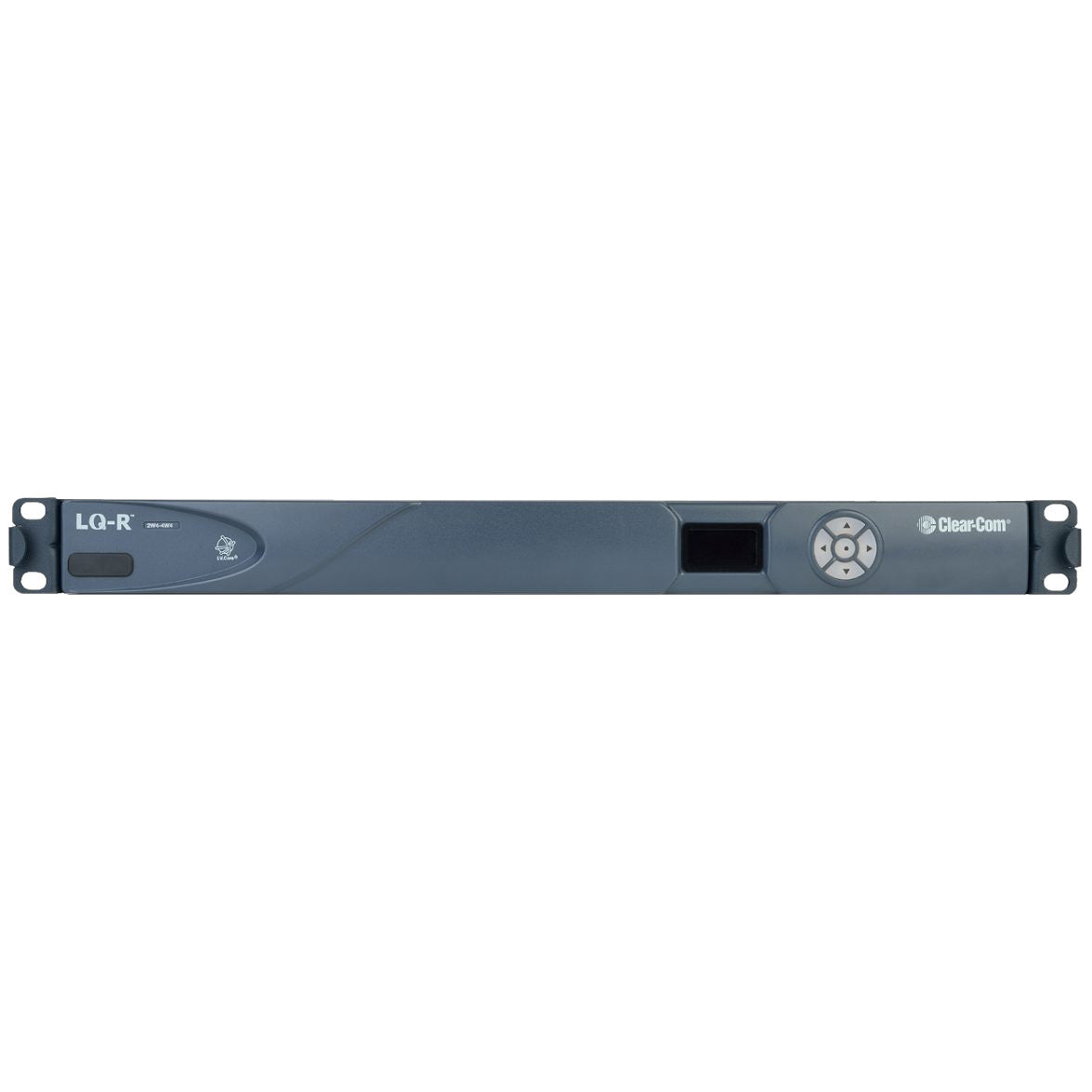

  • Clear-Com LQ-R2W4 IP Interface front

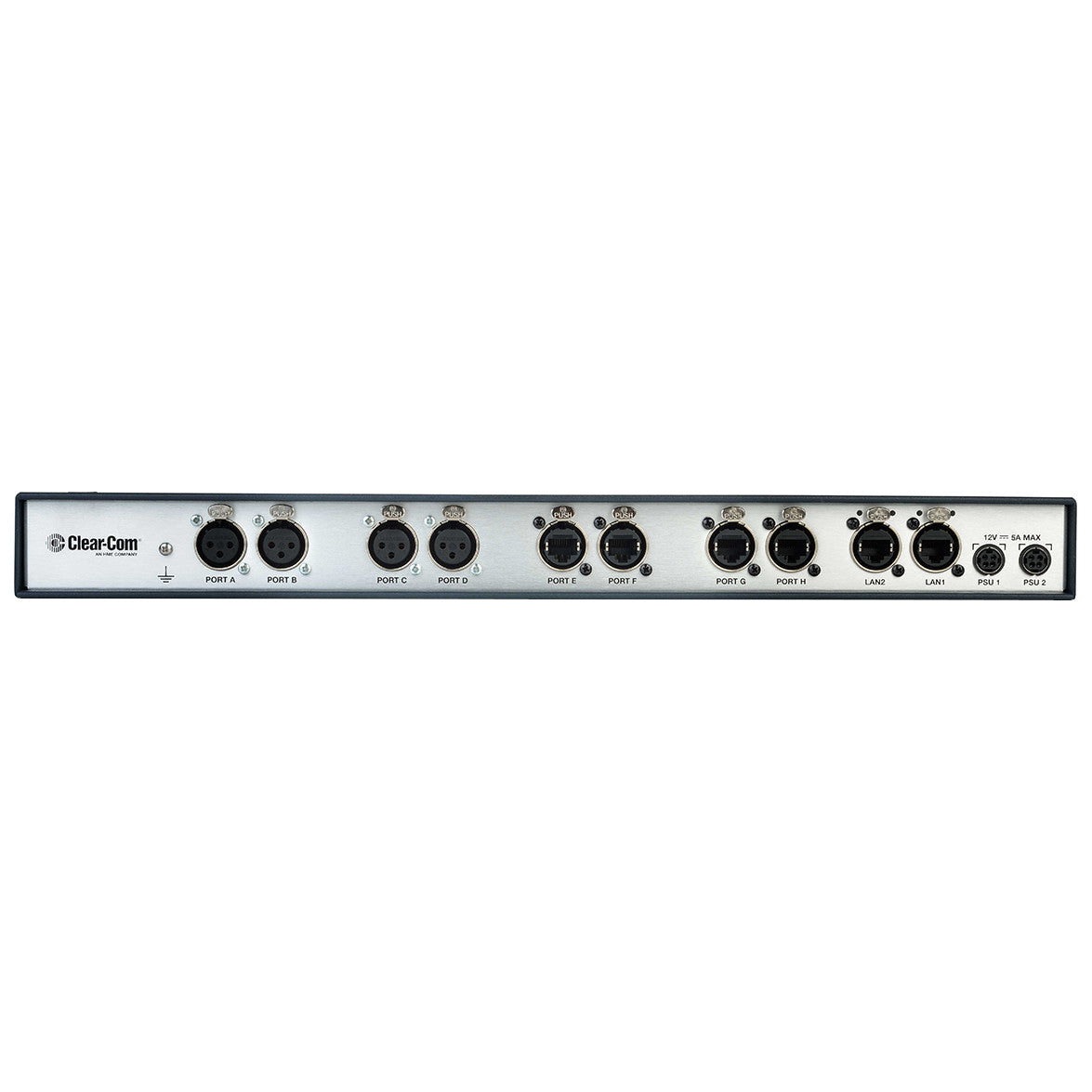

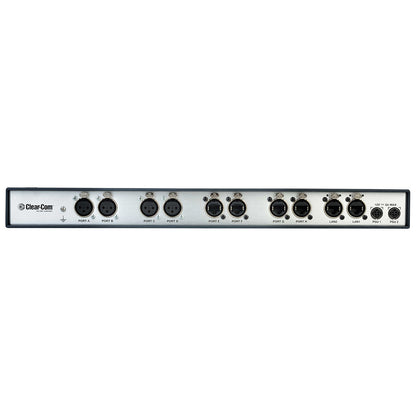

  • Clear-Com LQ-R2W4 IP Interface back
1 4

Clear-Com LQ-R2W4-4W4 IP Interface

Clear-Com LQ-R2W4-4W4 IP Interface

SoundPro Item: 72756 | Part Number: LQ-R2W4-4W4

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 8-Port 1RU Panel for Both Partyline and 4-Wire Interfacing
  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • 2-wire powering, termination and auto-nulling
  • 4-wire ports support data and audio for Clear-Com Eclipse HX and Drake 4000 panels
  • Connect up to 6 LQ devices together over LAN, WAN, Internet
  • Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per LQ device
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • Adjustable bandwidth on a per port basis
  • Connectors: Network/LAN: EtherCON/RJ45 (female); Partyline Audio I/O: 3 Pin XLR (female); 4-wire with GPIO Audio I/O: 9-way D-type (male)
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager application
  • Networked Control Events for multi-unicast one-to-many routing
Log in or register for YOUR best price

The Clear-Com LQ-R2W4-4W4 IP Interface provides intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.

View full details

Specifications

Dimensions
Packet Size
5, 10, 20, 40, 60ms
Dimensions (WxHxD)
19x1.79x8.8" (483x46x224mm)
Audio
Sample Rate
24, 48kHz
Frequency Response
100 – 12kHz or 100 – 20kHz
Input Gain
-3dB to +3dB
Output Gain
-3dB to +3dB
Partyline Audio I/O
3 Pin XLR (female)
4-wire with GPIO Audio I/O
9-way D-type (male)
Output
DC 12V, 5A, 60W MAX
Connectivity
Network/LAN
EtherCON/RJ45 (female)
Input
100-240V, 50-60Hz, 1.4A MAX
Environmental
Operating Temperature
+32°F – +104°F (0°C – +40°C)
Storage Temperature
-67°F – +158°F (-55°C – +70°C)
Humidity
90%, non-condensing
Shipping
Weight
4.29lbs (1.95kg)
General
Resolution
12, 24 bit
CODEC
OPUS
Line Level
(0 dB)
Mic Level
(-50 dB)
Bit Rates
16, 32, 48, 64, 128Kbps
Jitter Buffers
0 – 1000ms
Type
Clear-Com & RTS TW
Local DC Powered
250mA per pair of partyline ports (500mA total)
Power Supply
In-line supply with sleeve locking connector
