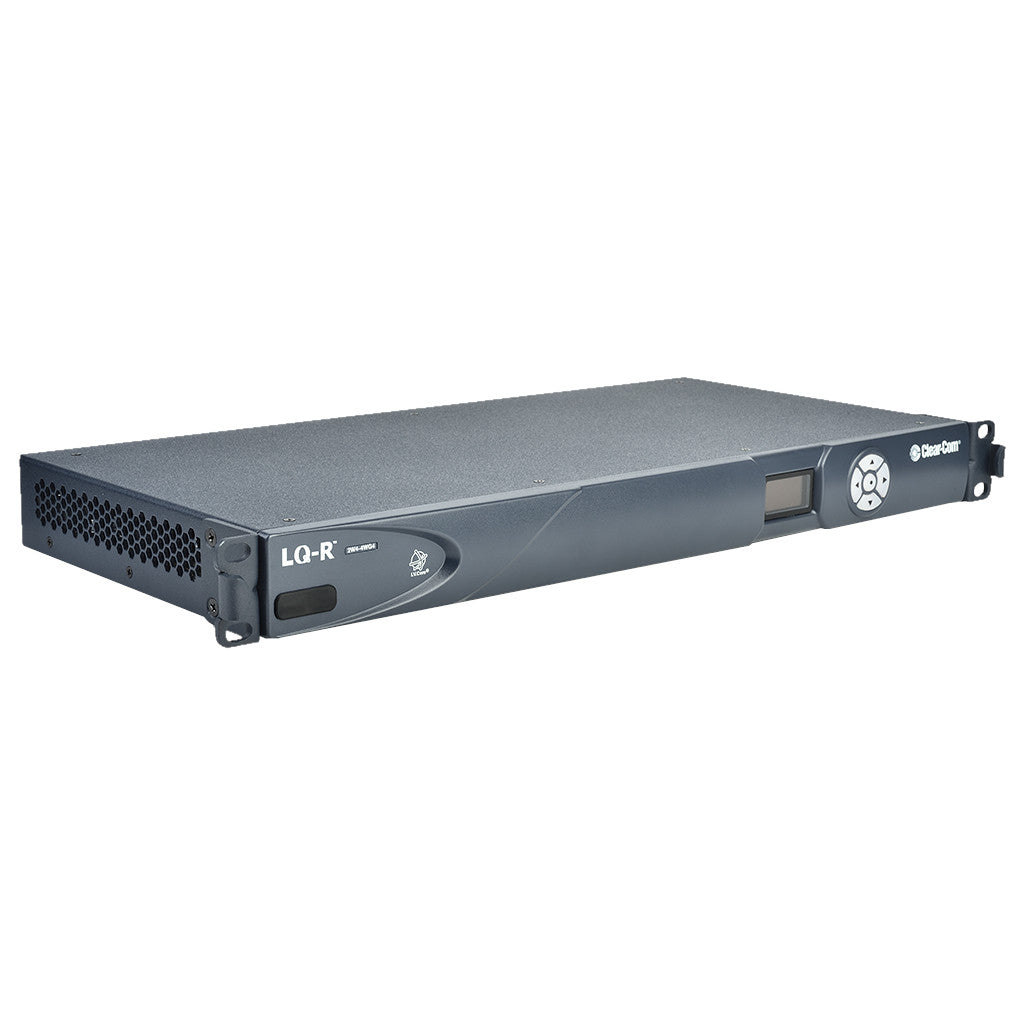

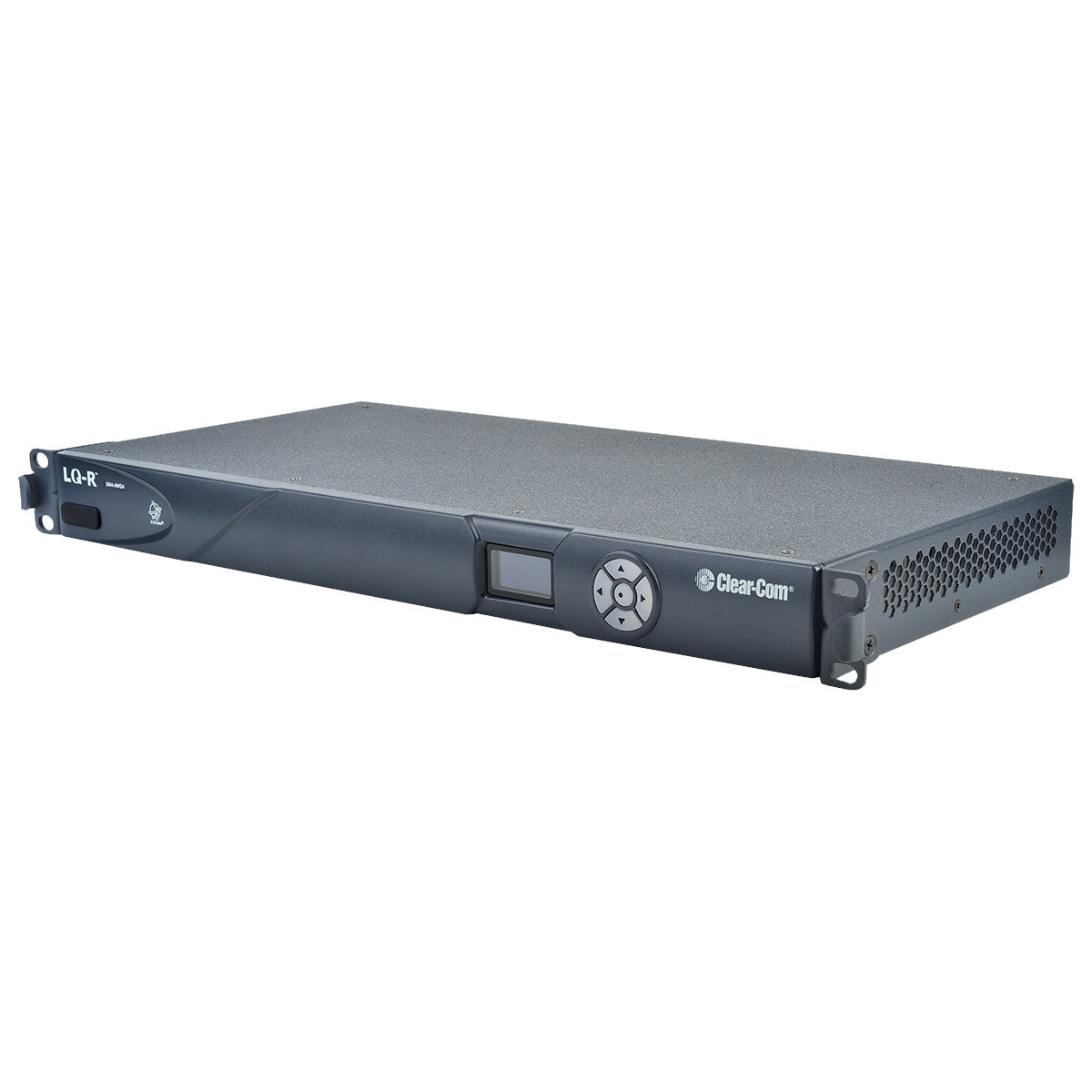

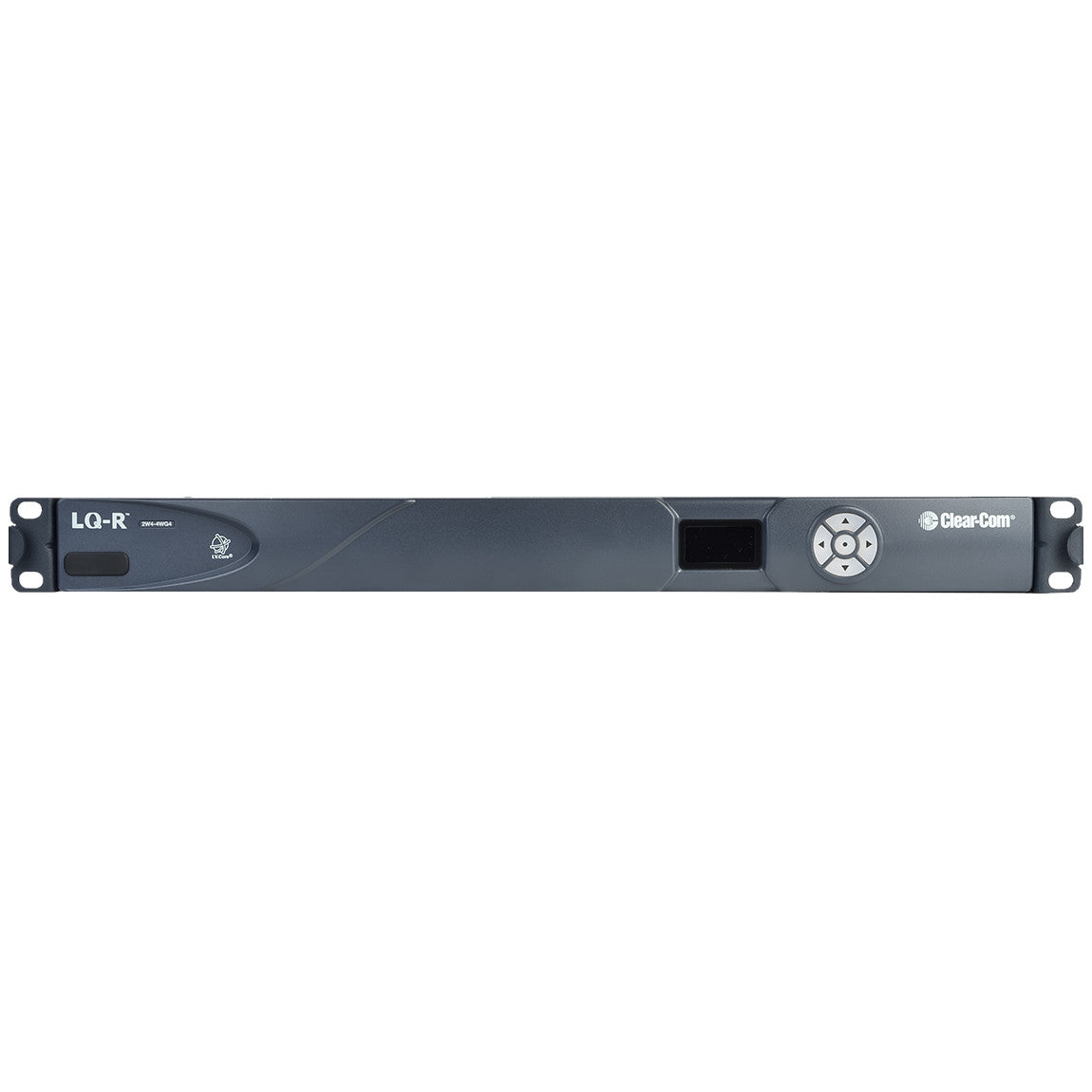

Clear-Com LQ-R2W4-4WG4 IP Interface with GPIO Audio
Clear-Com LQ-R2W4-4WG4 IP Interface with GPIO Audio
SoundPro Item: 72757 | Part Number: LQ-R2W4-4WG4
Usually ships in 5-7 business days
- 8-Port 1RU Panel for Linking Both Partyline and 4-Wire with GPIO Audio
- Intercom-over-IP: routing intercom and audio signals over IP networks
- Connect up to 6 LQ devices together over LAN, WAN, Internet
- Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per device
- Connects with matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles
- Supports up to 8 Agent-IC clients per LQ device (license required)
- Supports up to 8 SIP client connections per LQ device (license required)
- Connects to HelixNet via HLI-ET2 over LAN or WAN
- Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
- 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
- Adjustable bandwidth on a per port basis
- Connectors: Network/LAN: EtherCON/RJ45 (female); Partyline Audio I/O: 3 Pin XLR (female); 4-wire with GPIO Audio I/O: 9-way D-type (male)
- Network-friendly OPUS Codec
- Browser-based Core Configuration Manager application
- Networked Control Events for multi-unicast one-to-many routing
The Clear-Com LQ-R2W4-4WG4 IP Interface with GPIO Audio provides intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.
- Audio
- Resolution: 12, 24 bit
- Sample Rate: 24, 48kHz
- Frequency Response: 100 – 12kHz or 100 – 20kHz
- CODEC: OPUS
- Partyline Audio
- Input Gain: -3dB to +3dB
- Output Gain: -3dB to +3dB
- 4-Wire with GPIO Audio
- Line Level: (0dB)
- Input Gain: -12dB to +12dB
- Output Gain: -12dB to +12dB
- Mic Level: (-50dB)
- Input Gain: -12dB to +12dB
- Output Gain: -12dB to +12dB
- Network Setting
- Bit Rates: 16, 32, 48, 64, 128Kbps
- Packet Size: 5, 10, 20, 40, 60ms
- Jitter Buffers: 0 – 1000ms

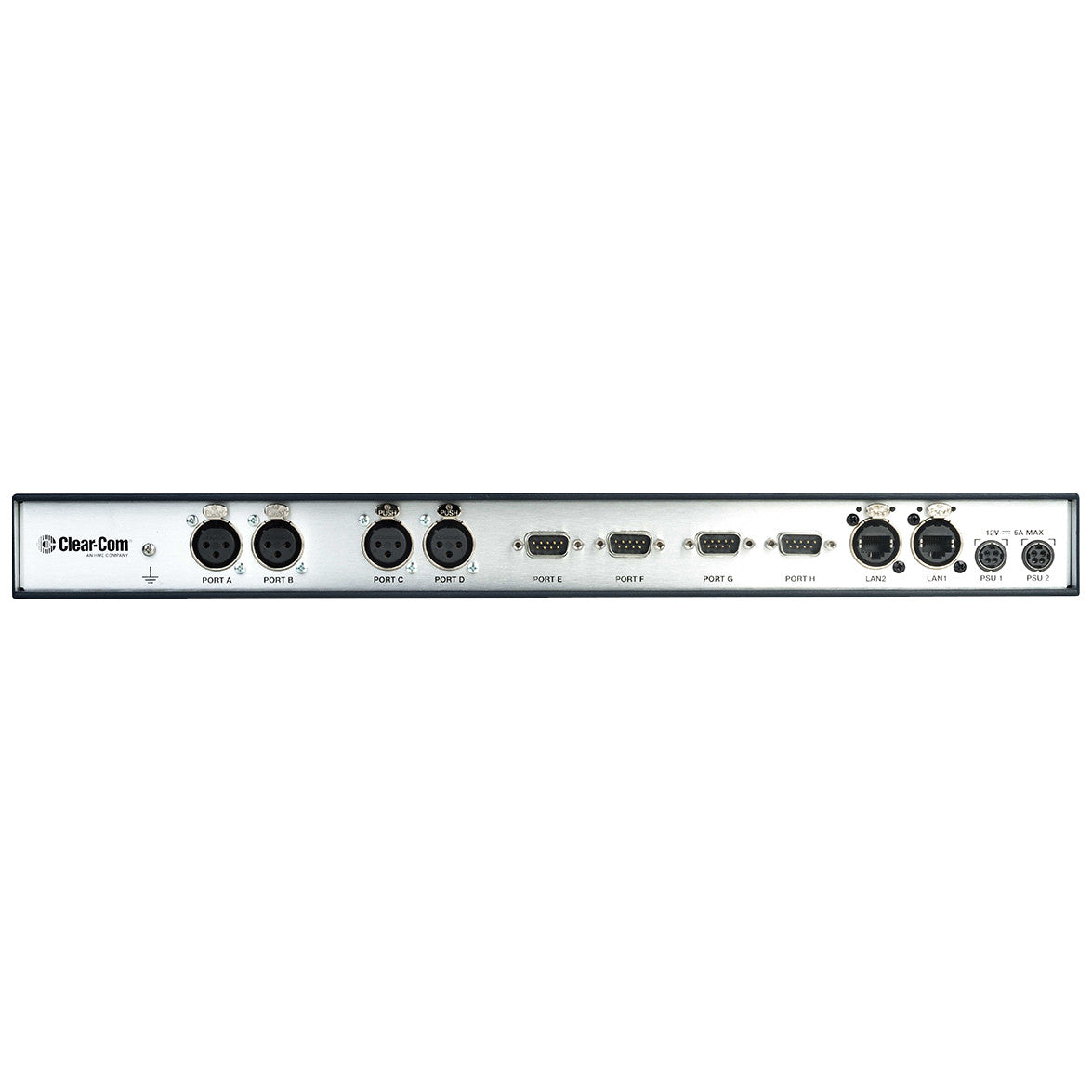

- Connectors
- Network/LAN: EtherCON/RJ45 (female)
- Partyline Audio I/O: 3 Pin XLR (female)
- 4-wire with GPIO Audio I/O: 9-way D-type (male)
- Partyline Output Current
- Type: Clear-Com & RTS TW
- Local DC Powered: 250mA per pair of partyline ports (500mA total)
- Power Supply
- In-line supply with sleeve locking connector
- Input: 100-240V, 50-60Hz, 1.4A MAX
- Output: DC 12V, 5A, 60W MAX
- Environmental
- Operating Temperature: +32°F – +104°F (0°C – +40°C)
- Storage Temperature: -67°F – +158°F (-55°C – +70°C)
- Humidity: 90%, non-condensing
- Dimensions (WxHxD)19x1.79x8.8" (483x46x224mm)
- Weight4.29lbs (1.95kg)
