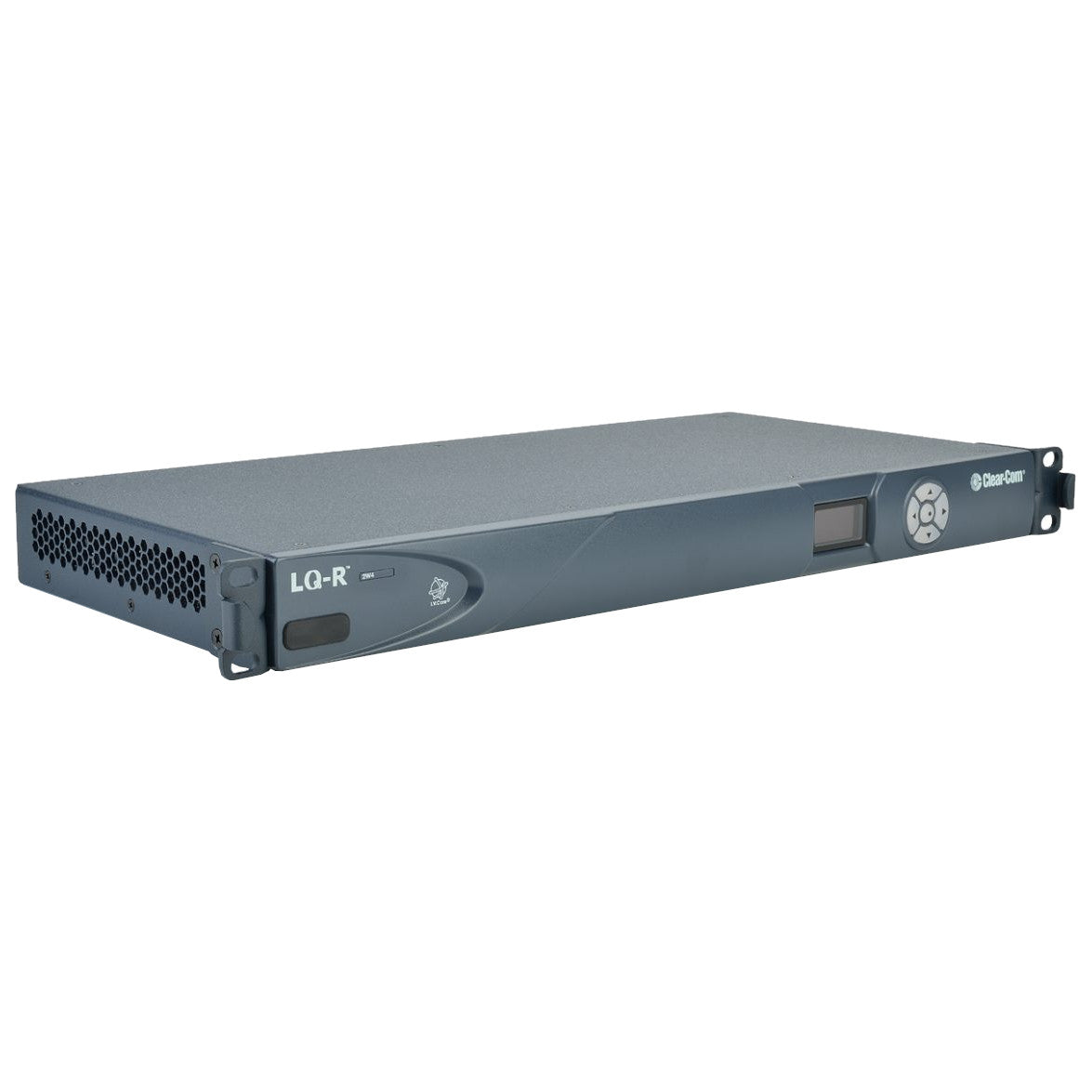

• Clear-Com LQ-R2W4 IP Interface

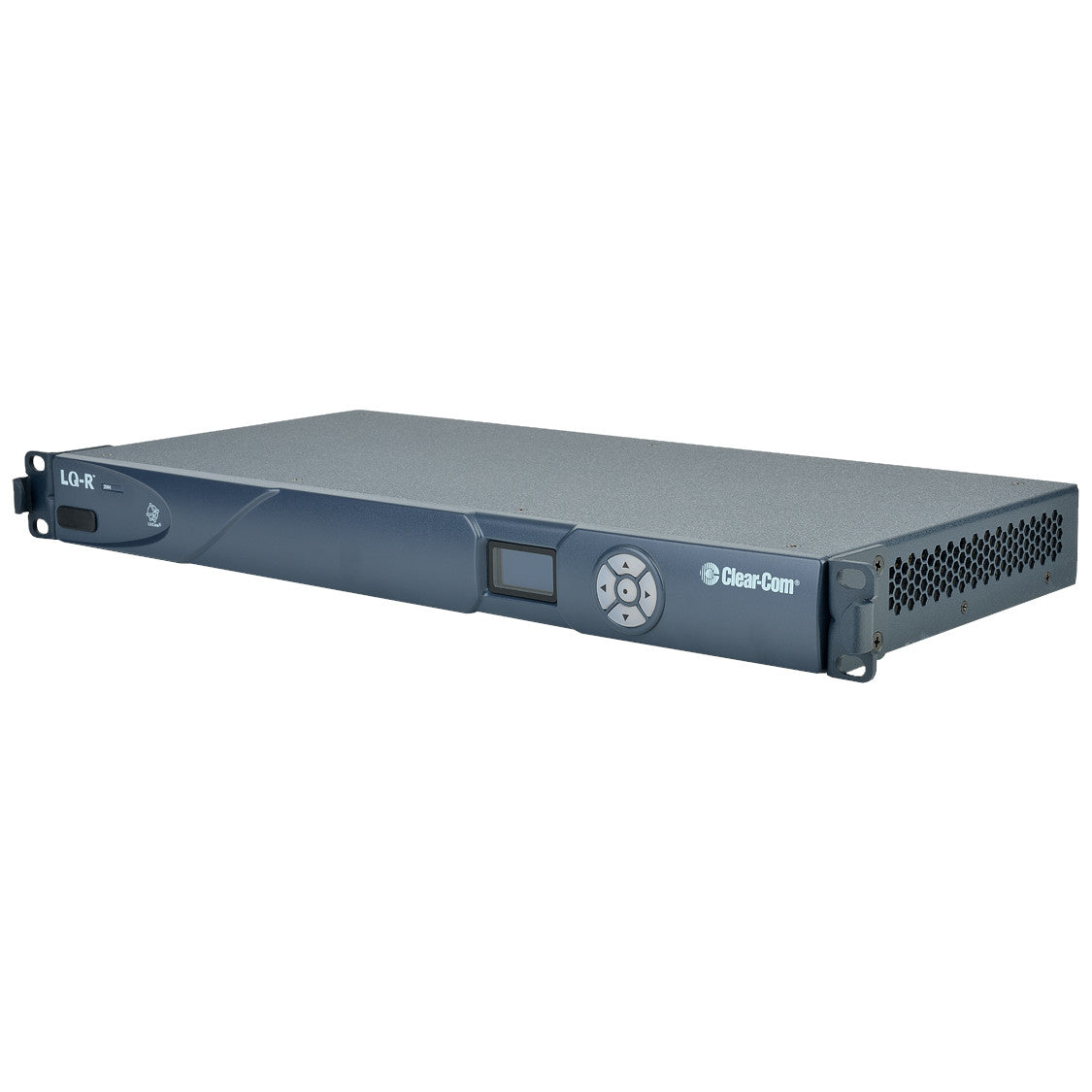

  • Clear-Com LQ-R2W4 IP Interface side

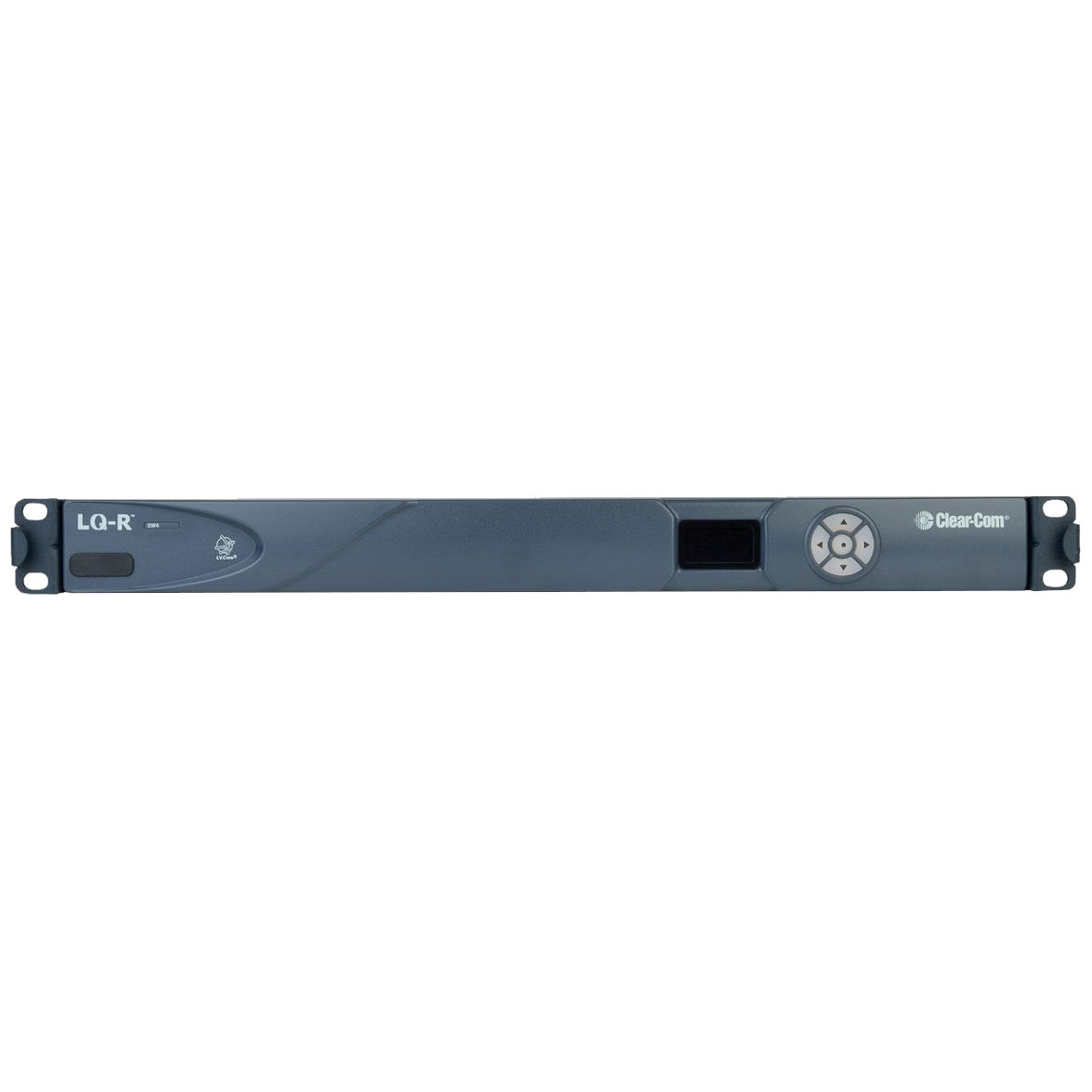

  • Clear-Com LQ-R2W4 IP Interface front

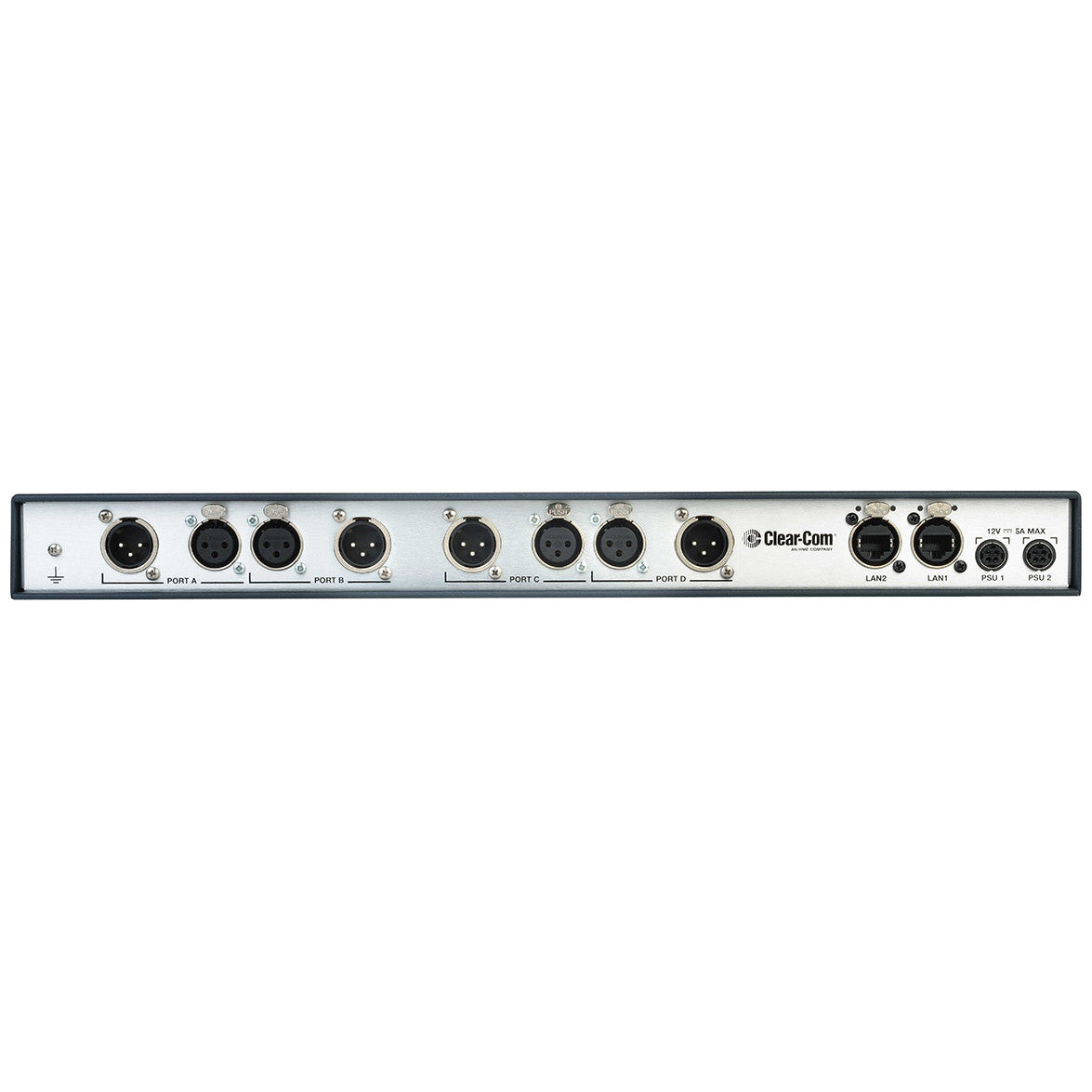

  • Clear-Com LQ-R2W4 IP Interface back
1 4

Clear-Com LQ-R2W4 IP Interface

Clear-Com LQ-R2W4 IP Interface

SoundPro Item: 89396 | Part Number: LQ-R2W4

$5,070.00
$5,070.00 $5,070.00
Your Price Sold out
MSRP: $5,070.00 | MAP: $5,070.00

Usually ships in 5-7 business days

  • 4-Port 1RU Panel for 2-Wire Interfacing
  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • Up to 6 LQ devices can be networked to create standalone partyline intercom group
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • Adjustable bandwidth on a per port basis
  • 2-wire powering, termination and auto-nulling
  • Compatible with Clear-Com and RTS systems
  • Female and Male XLR connectors at each port
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager application
  • Networked Control Events for multi-unicast one-to-many routing
Log in or register for YOUR best price

The Clear-Com LQ-R2W4 IP Interface provides intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.

View full details

Specifications

Dimensions
Packet Size
5, 10, 20, 40, 60ms
Dimensions (WxHxD)
19x1.79x8.8" (483x46x224mm)
Audio
Sample Rate
24kHz
Frequency Response
100 – 12kHz
Input Gain
-3dB to +3dB
Output Gain
-3dB to +3dB
Partyline Audio I/O
3 Pin XLR (female)
Output
DC 12V, 5A, 60W MAX
Connectivity
Network/LAN
EtherCON/RJ45 (female)
Input
100-240V, 50-60Hz, 1.4A MAX
Environmental
Operating Temperature
+32°F – +104°F (0°C – +40°C)
Storage Temperature
-67°F – +158°F (-55°C – +70°C)
Humidity
90%, non-condensing
Shipping
Weight
4.29lbs (1.95kg)
General
Resolution
12 bit
CODEC
OPUS
Bit Rates
16, 32, 48, 64, 128Kbps
Jitter Buffers
0 – 1000ms
Type
Clear-Com & RTS TW
Local DC Powered
250mA per pair of PL ports (500mA total)
Power Supply
In-line supply with sleeve locking connector
