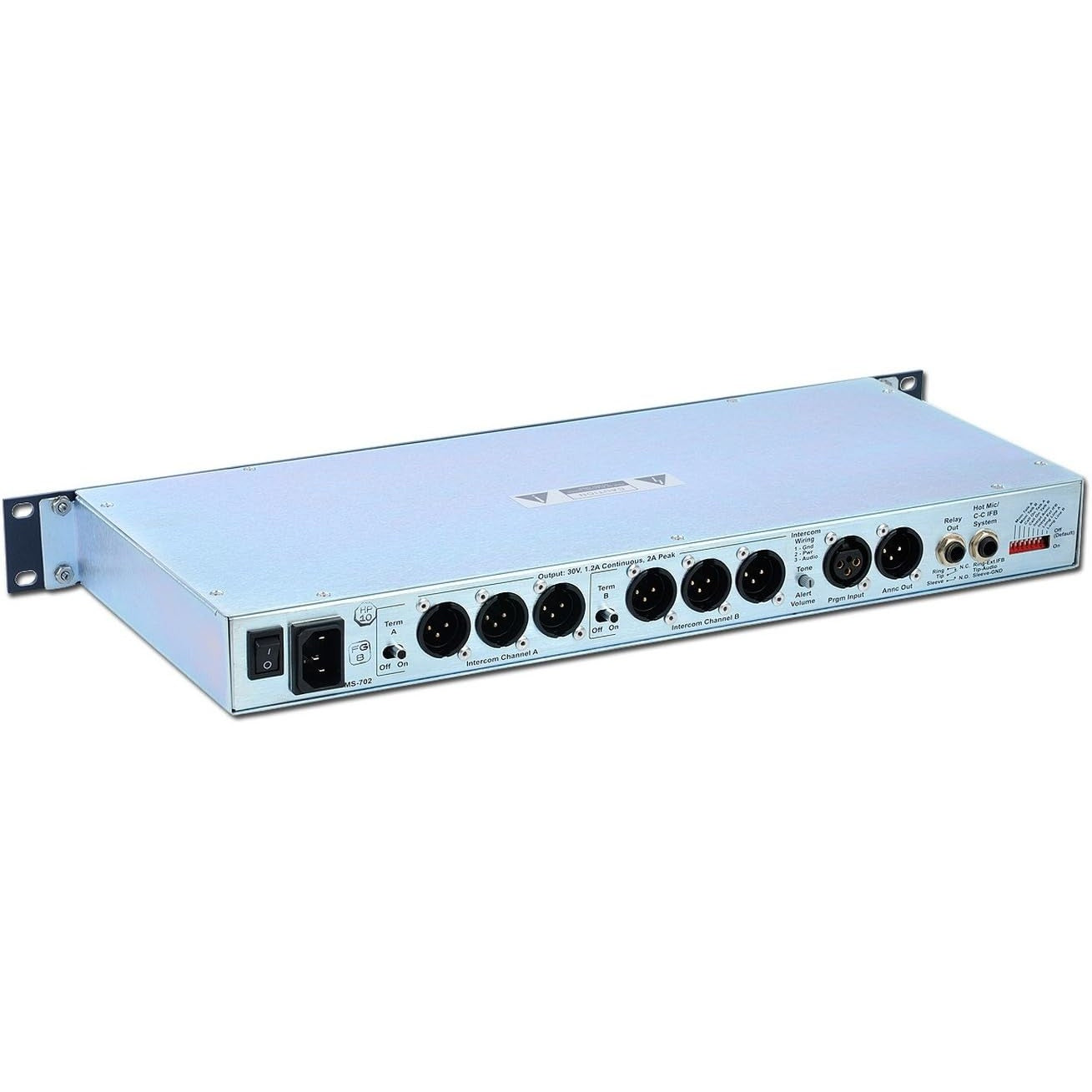

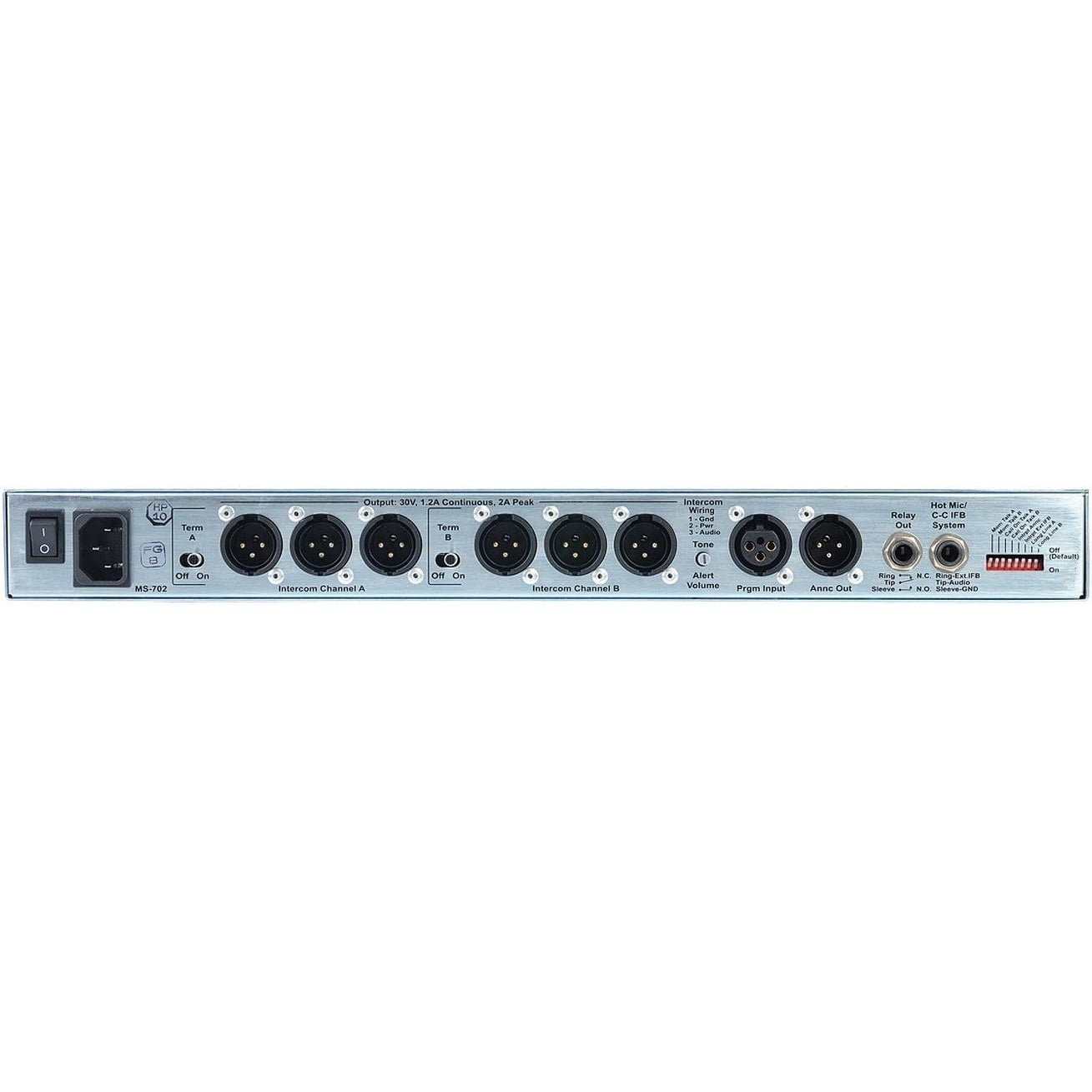

Clear-Com MS-702 Encore 2-Channel Main Station
Clear-Com MS-702 Encore 2-Channel Main Station
SoundPro Item: 53764 | Part Number: MS-702
In stock and ready to ship
- 2-channel 1RU main station with built-in speaker
- Supports up to 55 beltpacks or 10 speaker stations on 2 channels
- Automatic short-circuit protection and reset with LED indicators
- Visual and audible call signaling
- Individual volume controls for each channel
- Program feed to both channels with selectable Program Interrupt
- Remote mic kill
- Stage announce with relay
- Channel A & B Link switch
- Built-in speaker
- Universal voltage power supply

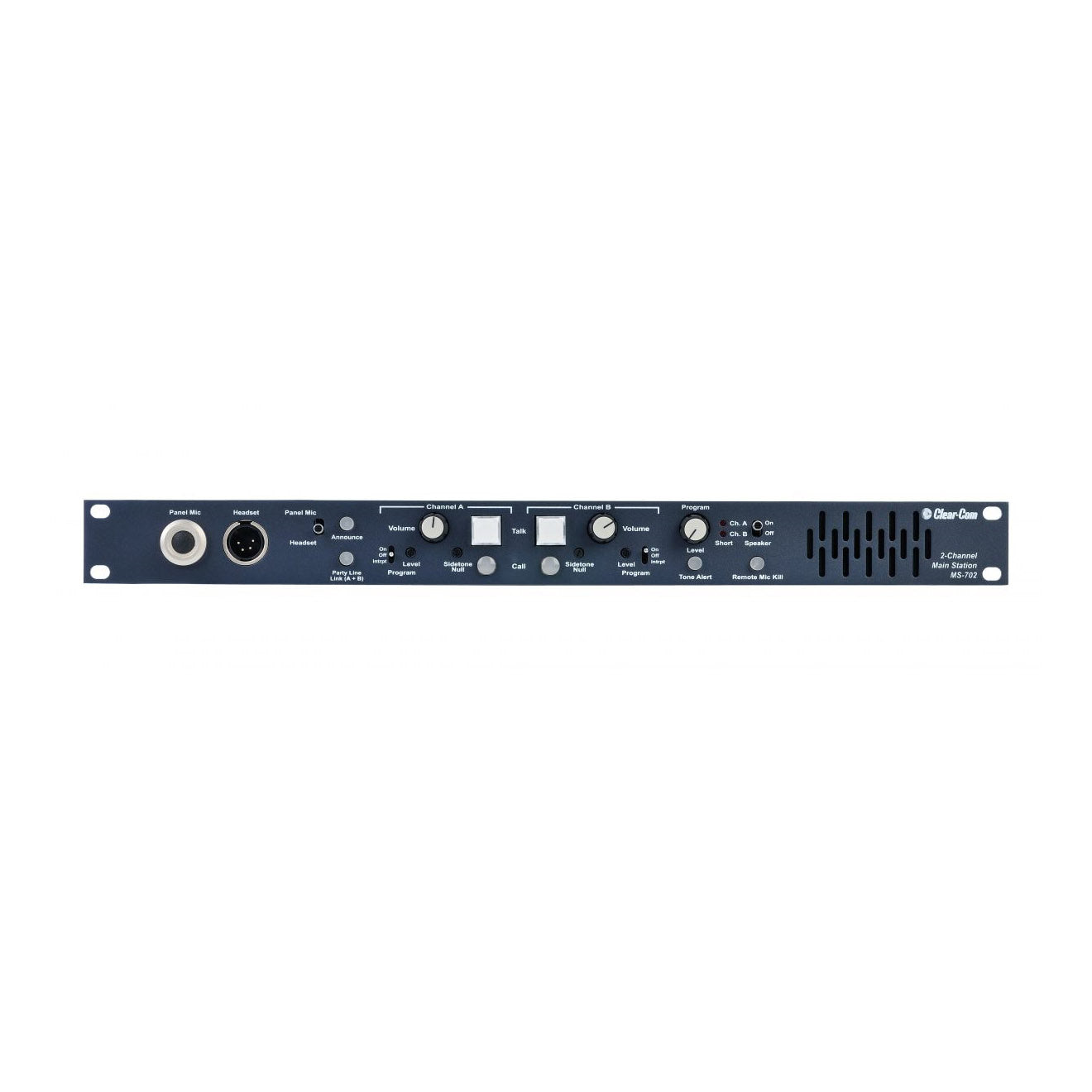

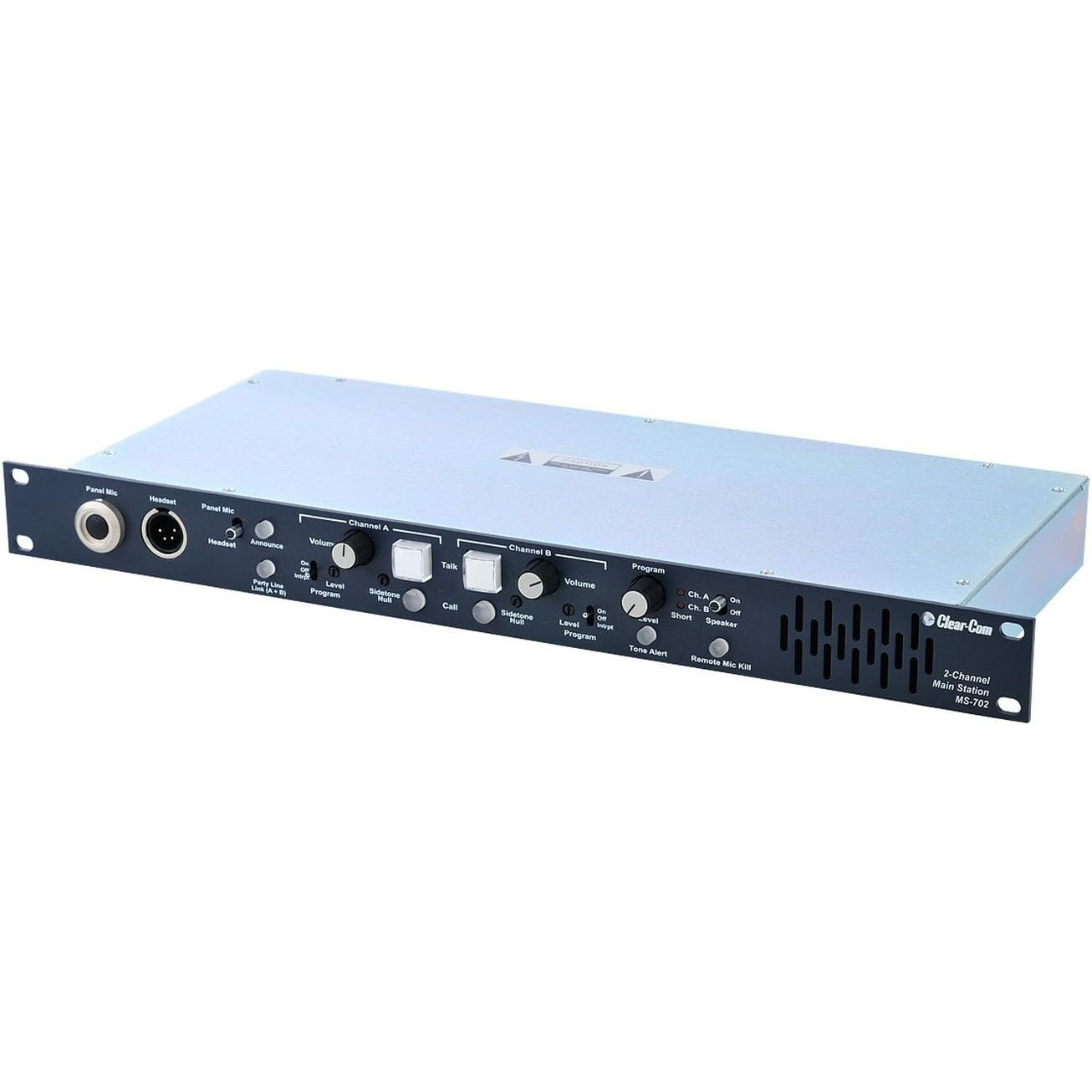

The MS-702 is a 1RU two-channel main station with programmable front panel buttons, individual channel short-circuit protection, individual channel volume control, and a regulated fail-safe power supply. The MS-702 supports up to 55 beltpacks or 10 speaker stations.
The MS-702 can monitor intercom activity on one or both channels with individual listen-level controls. Monitoring intercom activity is possible through a headset or the internal loudspeaker.
The MS-702 has mic pre-amps with limiters and speech-shaping circuits. An individual electronic momentary/latching Talk button is available for each channel. Illuminated dual-action Talk buttons light an LED dimly when latched: blue-color while in standby, amber-color when latched. The latching feature can be disabled. The channels can be accessed separately or simultaneously without tying them together. A selector switch toggles between the headset or microphone. The Talk buttons can also be controlled with a footswitch.
- Panel microphone input
- Input type: electret
- Input impedance: >=2K
- Mic limiter threshold: 0dBu ± 3dB
- Mic limiter range: >= 20dB
- Headset microphone input
- Input type: dynamic
- Input impedance: >= 1K
- Mic limiter threshold: 0dBu ± 3dB
- Mic limiter range: >= 15dB
- Program line input
- Max level before clipping: >= 20dBu
- Input impedance: >= 5K
- Headset output
- Load impedance: >= 8
- Output impedance: <= 25
- Output limiter threshold: +5dBu ± 3dB
- Max output level before distortion: >= 17dBu
- Speaker output
- Load impedance: >= 4
- Max output level before 1% distortion: 20dBu ± 2dBuv
- Partyline output
- O noise: < -74dBu
- Output impedance: >10K
- Partyline input
- Crosstalk: < -60dB
- Max level before clipping: >= 12dBu
- Sidetone null capability: > 25dB
- Stage announce/balanced line out
- Type: balanced
- Output impedance: >= 200
- Load impedance: >= 600
- IFB/hot mic
- Type: unbalanced
- Output impedance: 180
- Load impedance: >= 600
- Frequency response
- Panel mic - partyline: 600 – 10KHz ± 3dB
- Headset mic - partyline: 200 – 12kHz ± 3dB
- Headset mic - line out: 200 – 12kHz ± 3dB
- Program input - partyline: 100 17kHz ± 3dB
- Program input - headset out: 200 – 10kHz ± 3dB
- Program input - speaker out: 300 – 10kHz ± 3dB
- Partyline - headset out: 200 – 10kHz ± 3dB
- Partyline - speaker out: 300 – 10kHz ± 3dB
- Mains power
- Input voltage range: 100 - 240V AC
- Input frequency range: 50-60Hz
- Input power: <= 60V AC
- Output voltage: 30V DC ± 0.5V
- Output current per channel (continuous): 1.2Av
- Output current per channel (peak): 2A (do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
- Short circuit recovery time (1st short): <= 0.5 sec
- Short circuit recovery time (>= 20 shorts in 20sec): <= 20 sec
- Dimensions (HxWxD)1.75" x 19" x 6.5"
- Weight6.1 pounds (2.8 kg)
