• Clear-Com PS-704 Intercom Power Supply
1 4

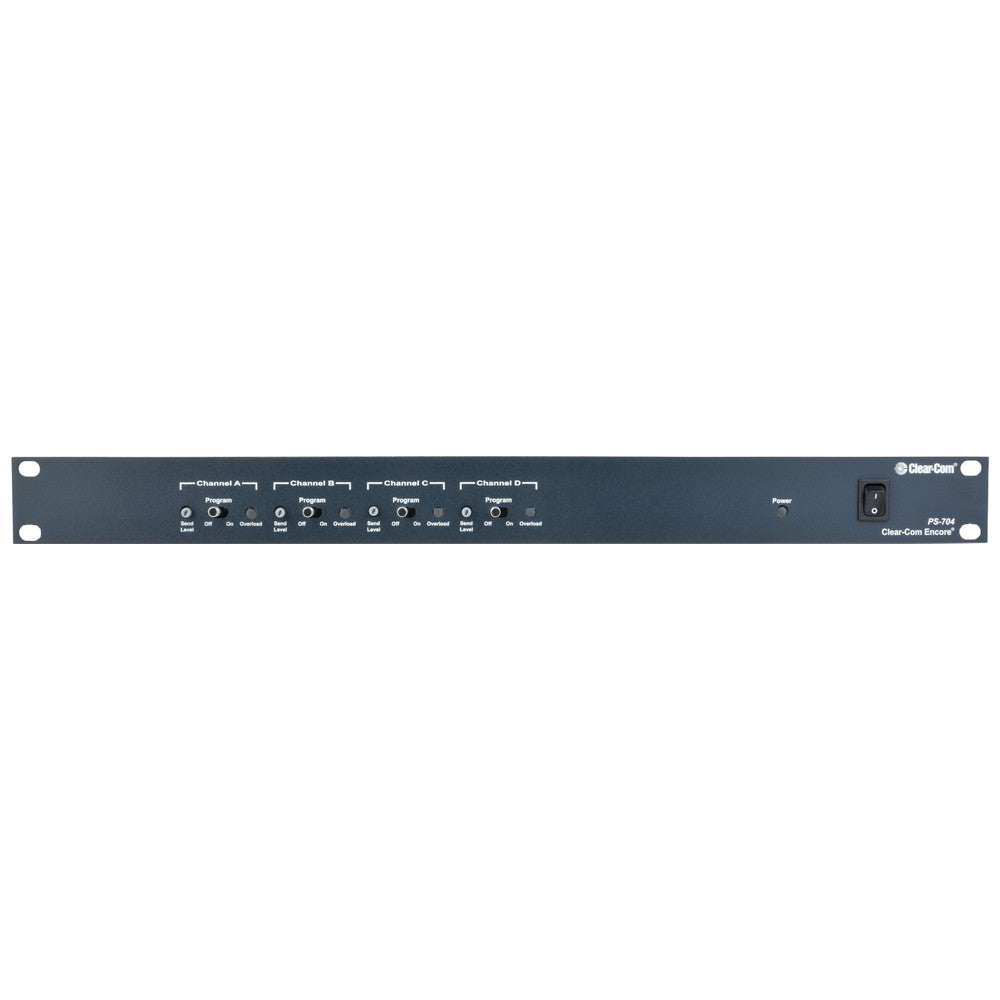

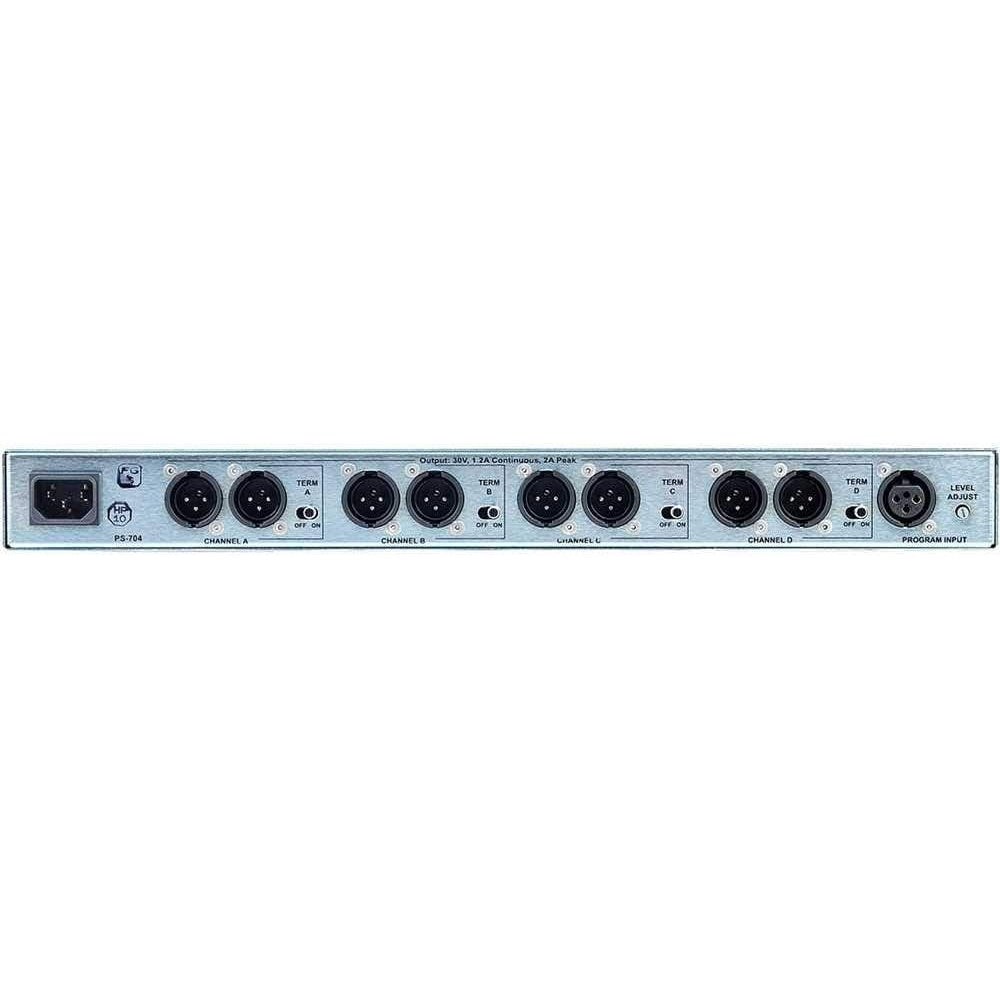

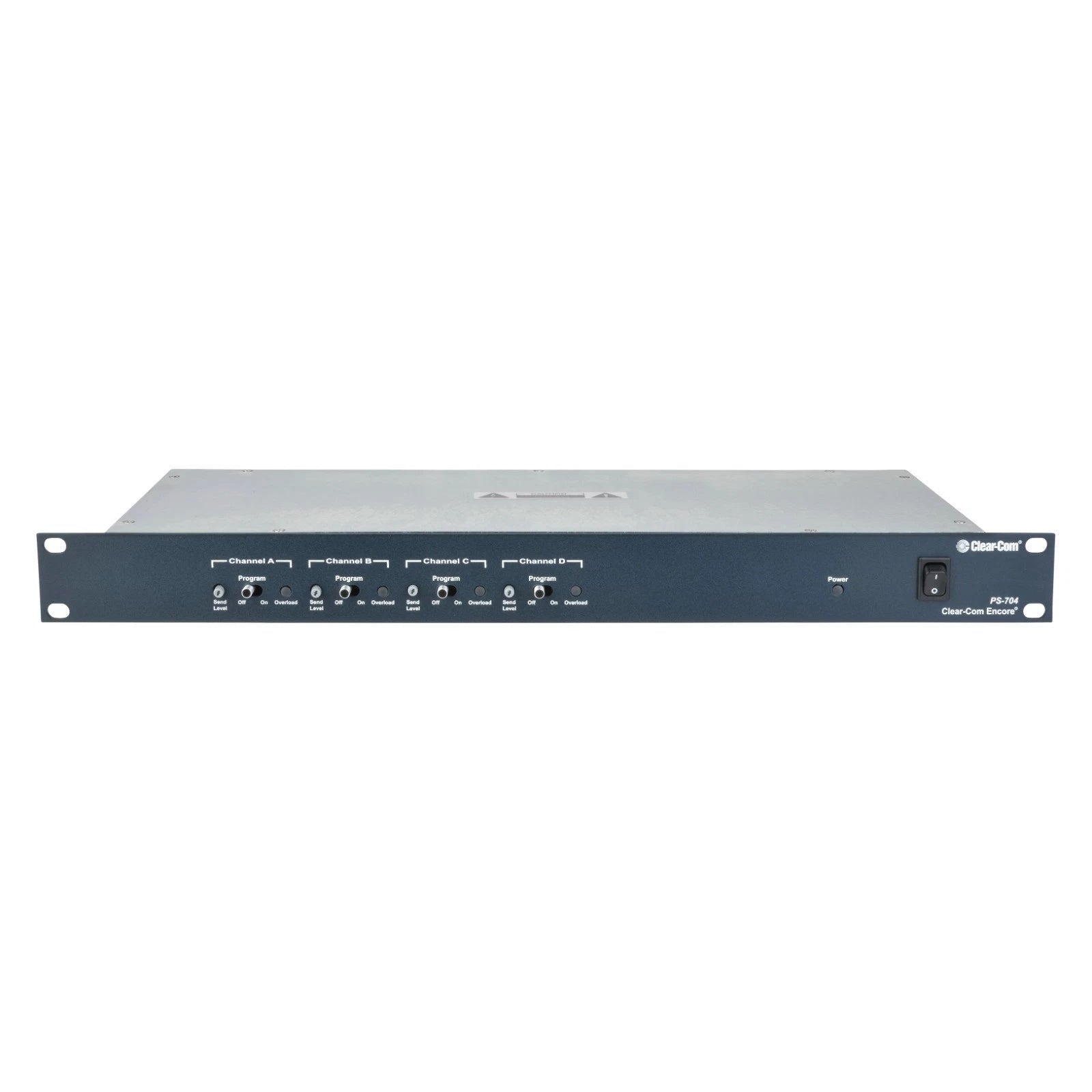

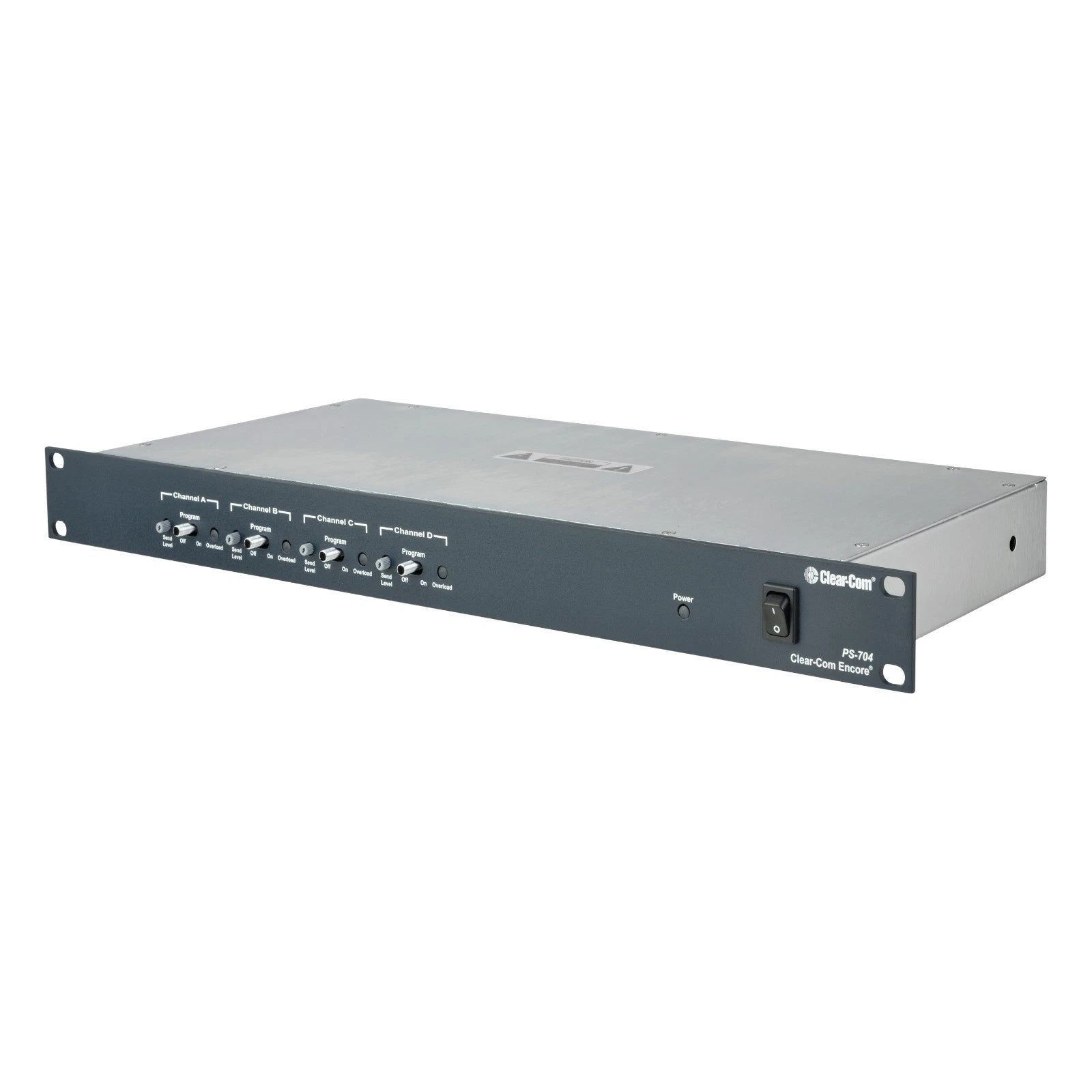

Clear-Com PS-704 Encore 4-Channel Power Supply

Clear-Com PS-704 Encore 4-Channel Power Supply

SoundPro Item: 41672 | Part Number: PS-704

$1,825.00
$1,825.00 $1,825.00
Your Price Sold out
MSRP: $1,825.00 | MAP: $1,825.00

Usually ships in 5-7 business days

  • Provides up to 2 amps at 30 Volts
  • Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations
  • Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset
  • Switchable line terminations for each channel
  • Built-in test tone generator for set up and diagnostics
  • UL listed and CE certified
  • Line and load regulated
  • Short-circuit protected
Log in or register for YOUR best price

The PS-704 is a four-channel, single-rack-space intercom power supply that features Clear-Com's "fail-safe" design for maximum reliability. The power supply delivers 2 amps at 30 volts, supplying power for one to four channels of intercom. It will support up to 40 beltpacks, 10 speaker stations or 12 headset stations.

View full details

Specifications

Dimensions
Dimensions(HxWxD)
1.75x19x7.5" (44x483x190mm)
Electrical
Input Voltage Range
100 – 240V AC
Output Current per Channel (Continuous)
1.2A
Output Current per Channel (Peak)
2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Audio
Input Impedance
>= 5K
Frequency Response
Program Input – Party Line: 200 – 20kHz ± 3dB
Max Gain
Program Input – Party Line: >= -16dB
Min Gain
Program Input – Party Line: <= -20dB
Output Voltage
30V DC ± 0.5V
Connectivity
Input Frequency Range
50 – 60Hz
Input Power
<= 60V AC
Shipping
Weight
6.16lbs (2.80kg)
General
Maximum Level Before Clipping
>= 20dBu
Max Distortion
Program Input – Party Line: <= 0.2%
Noise
Program Mic Input – Party Line: < -70dBu
Short Circuit Recovery Time (1st short)
<= 0.5 sec Short Circuit Recovery Time: >= 20 shorts in 20sec) <= 20 sec
Environmental
32° – 122°F (0 – 50°C)
