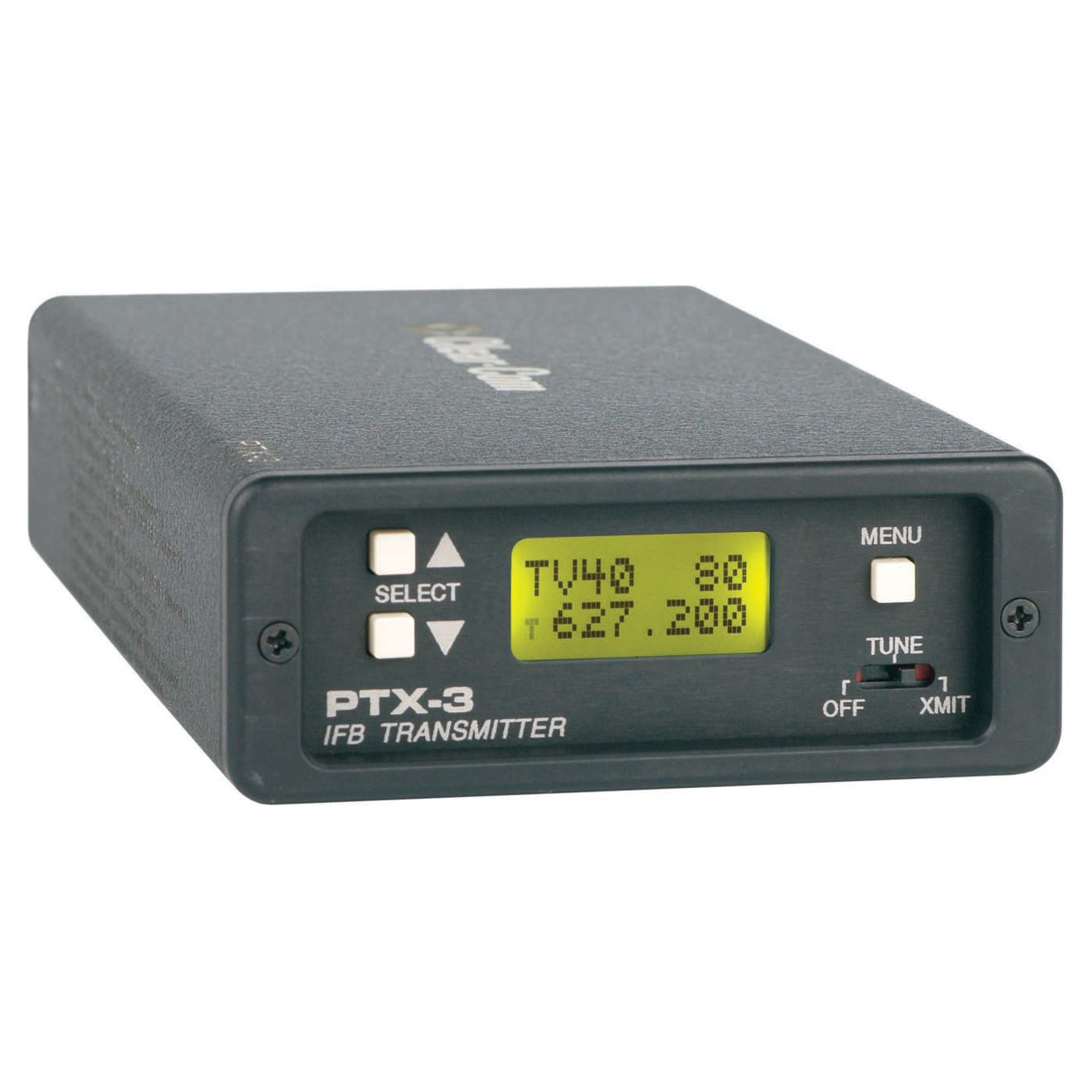

Clear-Com PTX3-19 UHF IFB Transmitter With DSP and LCD Display

Clear-Com PTX3-19 UHF IFB Transmitter With DSP and LCD Display

SoundPro Item: 33398 | Part Number: PTX3-19

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • DSP Processing Reduces Compandor Artifacts For Cleaner IFB Audio
  • Selectable Low-Frequency Rolloff Improves Intelligibility Across Listening Conditions
  • Backlit LCD Shows Modulation, Frequency, Mode, And Rolloff Status At A Glance
  • Locked Setting Prevents Accidental Channel Changes During Live Production
  • Multiple Compatibility Modes Support IFB, Digital Hybrid Wireless, And Legacy Formats
  • Balanced And Unbalanced Rear-Panel Input Config Supports Multiple Signal Sources
  • Tough Machined Aluminum Case Withstands Repeated Setup And Tear-Down
Log in or register for YOUR best price

The Clear-Com PTX3-19 is a UHF IFB transmitter designed for broadcast directors, production sound mixers, and live event engineers who need dependable wireless program feed and cue delivery to talent on the floor. Operating in the 486.4 to 511.9 MHz range within Block 19, it pairs directly with the IFBR1B-A1 beltpack and provides 250 mW RF output with 50-ohm output impedance for consistent coverage in complex RF environments.

DSP-based processing addresses common IFB pain points head-on. Selectable low-frequency rolloff and compandor artifact reduction keep cue audio intelligible even in noisy RF conditions. The backlit LCD shows modulation level, frequency, mode, and rolloff status at a glance, while a lockable setting prevents accidental channel changes during a live show. Multiple compatibility modes including IFB, Digital Hybrid Wireless, and 200, 400, 100, Mode 3, and Mode 6 give this transmitter the cross-brand flexibility to slot into mixed-manufacturer workflows without a dedicated infrastructure overhaul.

The machined aluminum housing is built for the demands of repeated setup and tear-down. It operates standalone or mounts in a standard rack with the optional PRK-2 kit. Balanced and unbalanced audio input configurations are rear-panel selectable, with XLR input supporting line, mic, RTS, and Clear-Com levels. Input power runs on 12 to 14 VDC, making it compatible with common rack power solutions used in broadcast trucks and installed production facilities.

View full details

Specifications

RF Performance
Operating Frequency Block 19
486.4 to 511.9 MHz
Full Operating Range
486.4 to 639.9 MHz
Channel Spacing
100 kHz (0.1 MHz)
RF Power Output
250 mW (nominal)
Output Impedance
50 Ohms
Spurious and Harmonic Suppression
37 dBc above 1 GHz
Frequency Stability
+/-.001% (10 ppm) @ 25°C
Temperature Stability
+/-.001% (10 ppm) from -30°C to +50°C
Modulation
FM, +/-20 kHz deviation IFB and 100 Mode; +/-75 kHz 200 and 400 Mode; +/-50 kHz Mode 3 and Mode 6
Pilot Tone
29.997 kHz IFB Mode; 32.765 kHz 200 Mode and 400 Mode step selected; 32.768 kHz Mode 6
Audio
Audio Frequency Response
100 Hz to 8 kHz +/-1 dB (IFB Mode); 30 Hz to 20 kHz +/-1 dB (200 and 400 Mode)
Rolloff
Menu selectable, 3 dB down at 35 Hz or 50 Hz
Signal to Noise Ratio
90 dB typical (A-weighted)
Audio Input Levels
0 dBu Line/RTS1/RTS2; -10 dBu Clear-Com; -42 dBu mic dry; +/-50 VDC max
Audio Input Configuration
Balanced and Unbalanced, rear-panel selectable for Line, Mic, RTS 1, RTS 2, and Clear-Com
Audio Input Impedance
Greater than 2K balanced; greater than 1K unbalanced at any gain setting
Control Range
-18 dB to +24 dB (0 dB nominal center), software selectable
Audio Input Jack
Standard XLR female connector
Compatibility
Compatibility Modes
IFB, Digital Hybrid Wireless; 400 Mode, 200 Mode, 100 Mode, Mode 3, Mode 6
Channel Selection
Momentary pushbutton switches, TUNE Up and Down
Controls

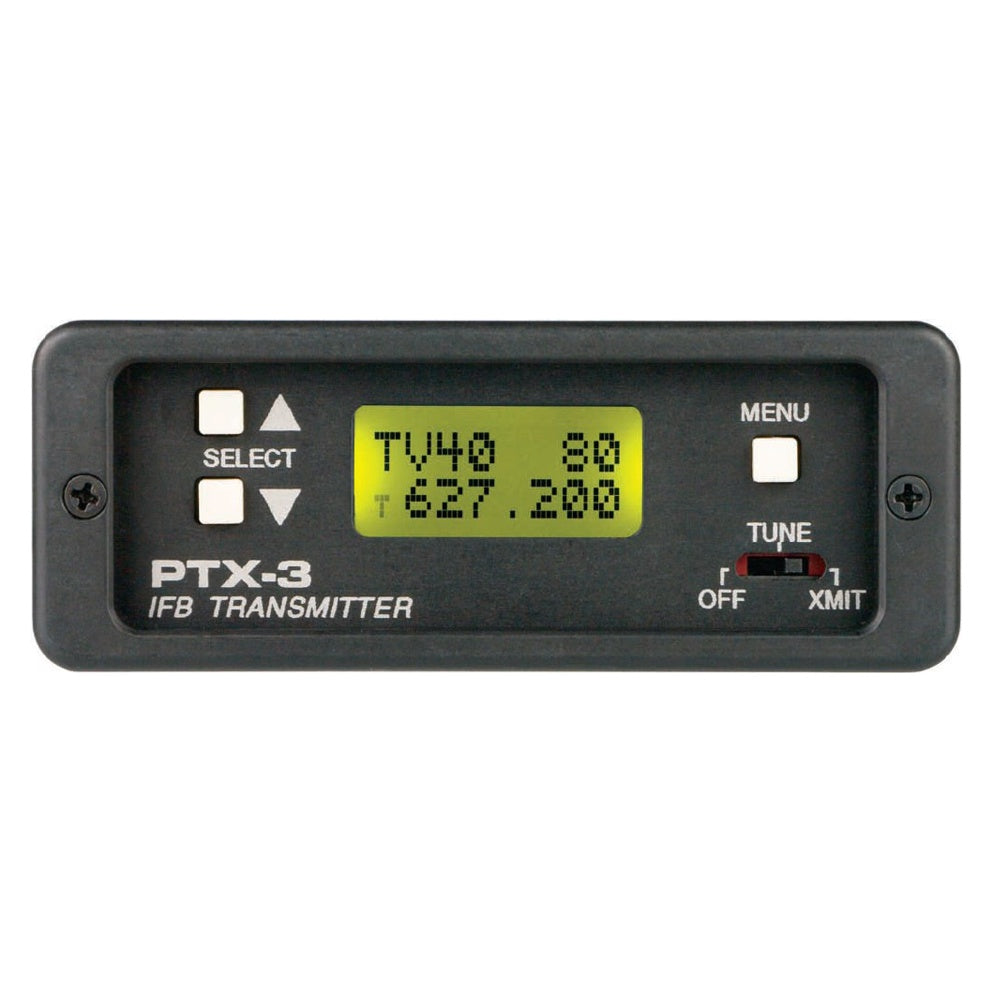

Front Panel Controls
MENU momentary pushbutton; Power OFF-TUNE-XMIT 3-position slide switch; Select Up and Select Down momentary pushbutton switches

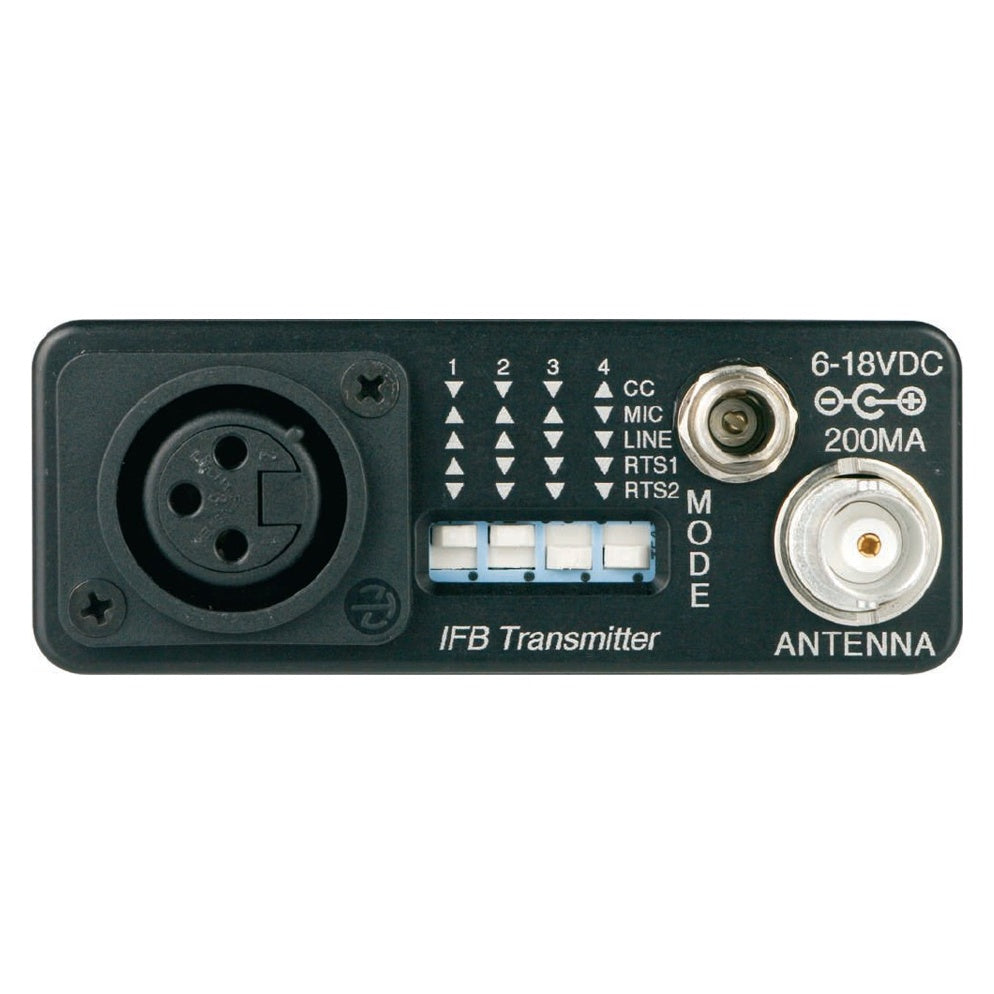

Rear Panel Controls
Input Mode Select, 4-section DIP switch
Indicators
Backlit LCD displaying modulation meter, frequencies, modes, rolloff, audio level, and tuning groups
Electrical
Input Power
12 to 14 VDC typical, 200 mA max; input range 6 to 18 VDC
Power Input Jack
Coax type, locking LZR RL26AE
Dimensions
Unit Dimensions (L x W x H)
5.25 x 3.25 x 1.25 in (including connectors)
Identifiers
Emission Designator
180KF3E
