• Clear-Com RS-801-IM Encore Single-Channel XLR-3 Beltpack
1 1

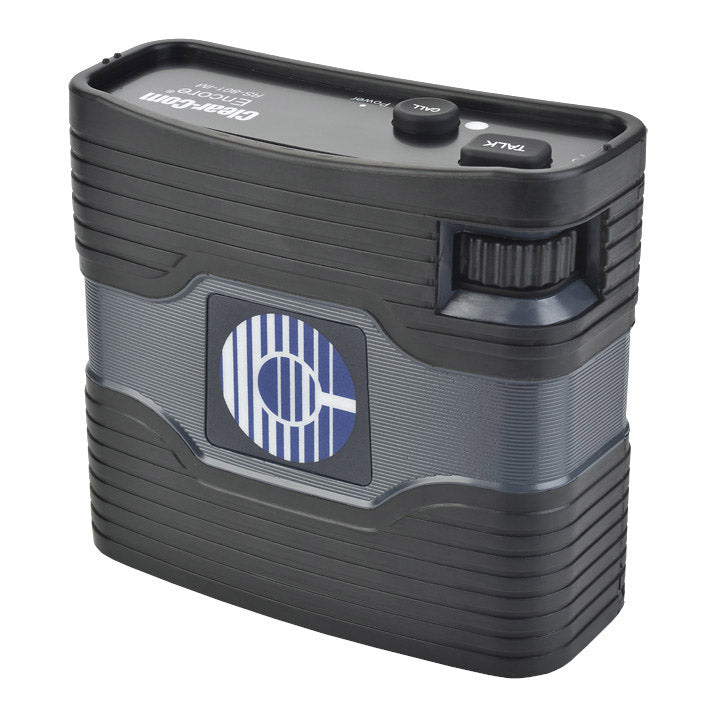

Clear-Com RS-801-IM Encore Single-Channel XLR-3 Beltpack

Clear-Com RS-801-IM Encore Single-Channel XLR-3 Beltpack

SoundPro Item: 36162 | Part Number: RS-801-IM

$820.00
$820.00 $820.00
Your Price Sold out
MSRP: $820.00 | MAP: $820.00

Usually ships in 5-7 business days

  • IP53 environmental rating for weather-proofing
  • Sealed for salt-mist and humidity
  • Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
  • Marine Certification compliant with DNVGL-CG-0339 (2016)
  • XLR-3 line connectors for two-channel + Program Audio
  • Consealed, programmable DIP Switches
  • Low operating current for more beltpack daisy-chaining
  • Rugged and strong construction
  • “Clear-Com Sound” for intelligible audio
Log in or register for YOUR best price

The RS-801-IM is a single-channel analog beltpack that can carry power and audio through the XLR-3 line connector. Each beltpack combines high headroom, low-noise audio and shaped frequency contour (the “Clear-Com Sound”) to deliver clear audio.

The RS-801-IM features LEDs on the top of the beltpack for visual indication of incoming and outgoing call signaling. A mic preamp enables intelligible voice communication for every volume level. Recessed rotary volume control, Talk and Call keys guard against accidental activation. The RS-801-IM has a low operating current to allow for more beltpacks in a daisy-chain.

A concealed DIP switch panel on the back of the beltpack allows the capability to select audio and key options quickly and easily. DIP switches can control features such as switching between electret or dynamic headsets, setting a minimum or off level for headphone output, adjusting volume settings, enabling or disabling LED signals, having Call on Talk or latching the Talk key. A green LED indicates that the beltpack is powered and a green LED on the Talk key indicates that the microphone is active (Talk is latched). An amber LED indicates a Call signal on the channel.

The RS-801-IM is designed in a rugged, reliable, IP53 water, salt-mist, and dust resistant casing. A belt clip allows a variety of ways to use the beltpack; users can clip it to a belt or lanyard, or users can mount the belt clip to a wall, pole or desk for fixed installations.

The RS-801-IM is compatible with all Clear-Com Encore® partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces.

View full details
  • Microphone Pre-Amplifier
    • Mic to Line (without limiter acting)
    • Frequency Response: 280 – 15kHz ± 3dB
    • Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
    • Microphone output to line – Distortion: <0.1%
    • Microphone output to line – Signal to Noise: >65dB
  • Headphone Pre-Amplifier
    • Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB
    • Headphone input from line – Audio Level (-9dBm Electret input): 3.5dBm
    • Headphone input from line – Distortion: <0.5%
    • Headphone input from line – Signal to Noise: >50dB
    • Earphone to Mic – Crosstalk: >80dB
    • Sidetone – Adjustment Range (-80db mic input): >45dB
  • Keypad Indicators
    • Power: Green LED
    • Talk: Green LED
    • Call: Orange LED
  • Connectors
    • Intercom Line: (2) 3-pin XLR–M–F Ch. 1 2-Wire
  • Intercom Channel
    • Pin 1: Common
    • Pin 2: PL Power (+28VDC)
    • Pin 3: Line (Audio)
    • Headset: 4-pin XLR–M
  • Headset Connector
    • Pin 1: Mic – (Mic Common)
    • Pin 2: Mic +
    • Pin 3: Spkr-
    • Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
  • Power Requirements
    • Input Voltage Range: 12-30V DC
    • Input Current (Idle): <=12mA
    • Input Current (Max): <=28mA
  • Call Voltage
    • 16.5V DC
    • Minimum Voltage Needed: 3.3V
  • Environmental
    • 32°F to 140°F (0°C to 60°C)
    • Relative Humidity: 0 – 96%, non-condensing
    • Vibration Frequency Range: 2 – 13.2Hz,
    • Amplitude: 1.0mm
    • Peak Value Frequency Range: 13.2 – 100Hz,
    • Acceleration Amplitude: 0.7g
    • EMC: DNVGL-CG-0339 – Class A
    • Enclosure: Salt-mist IP-53
  • Dimensions (HxWxD)3.4" x 4.5" x 1.7"
  • Weight10.5 oz (0.3 kg)
