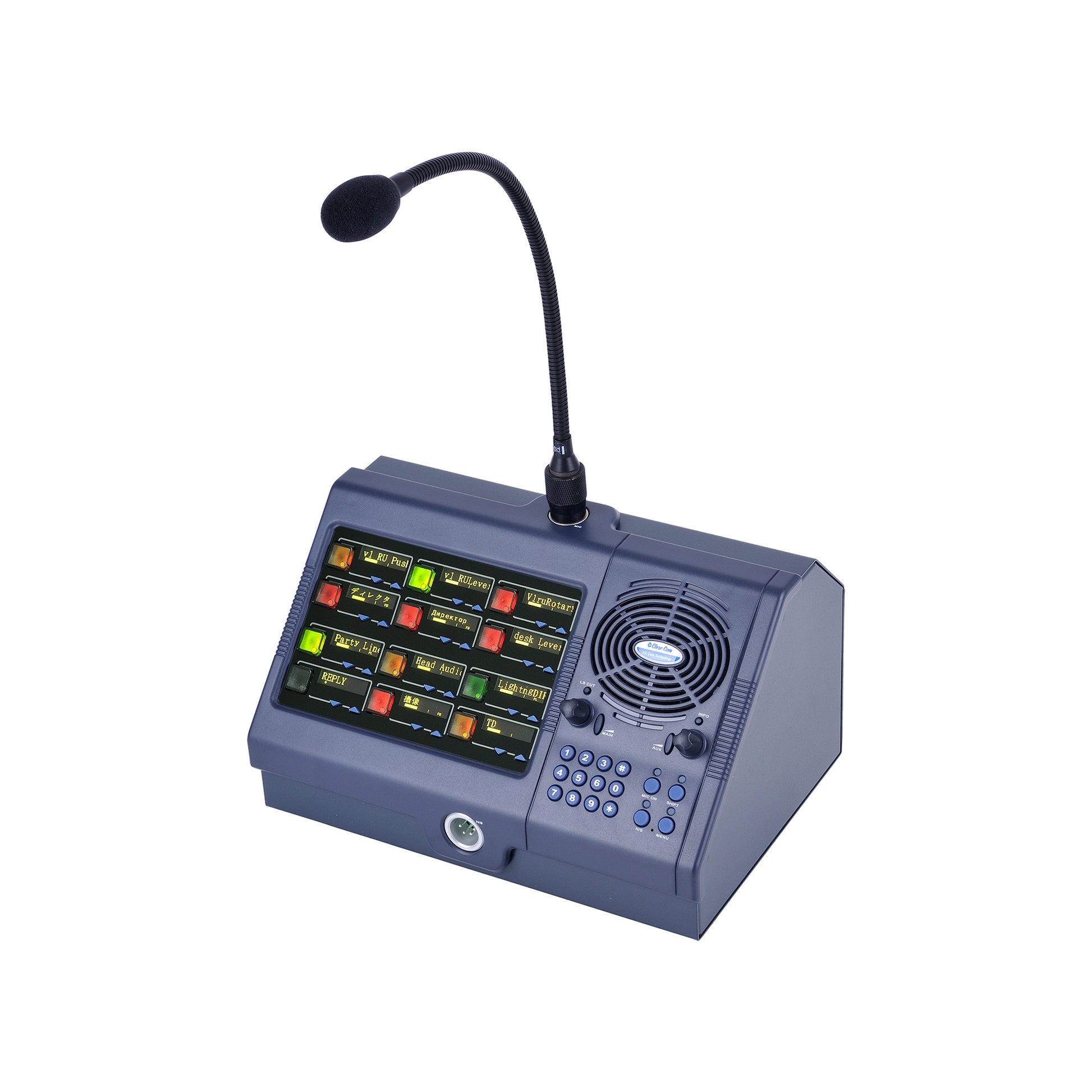

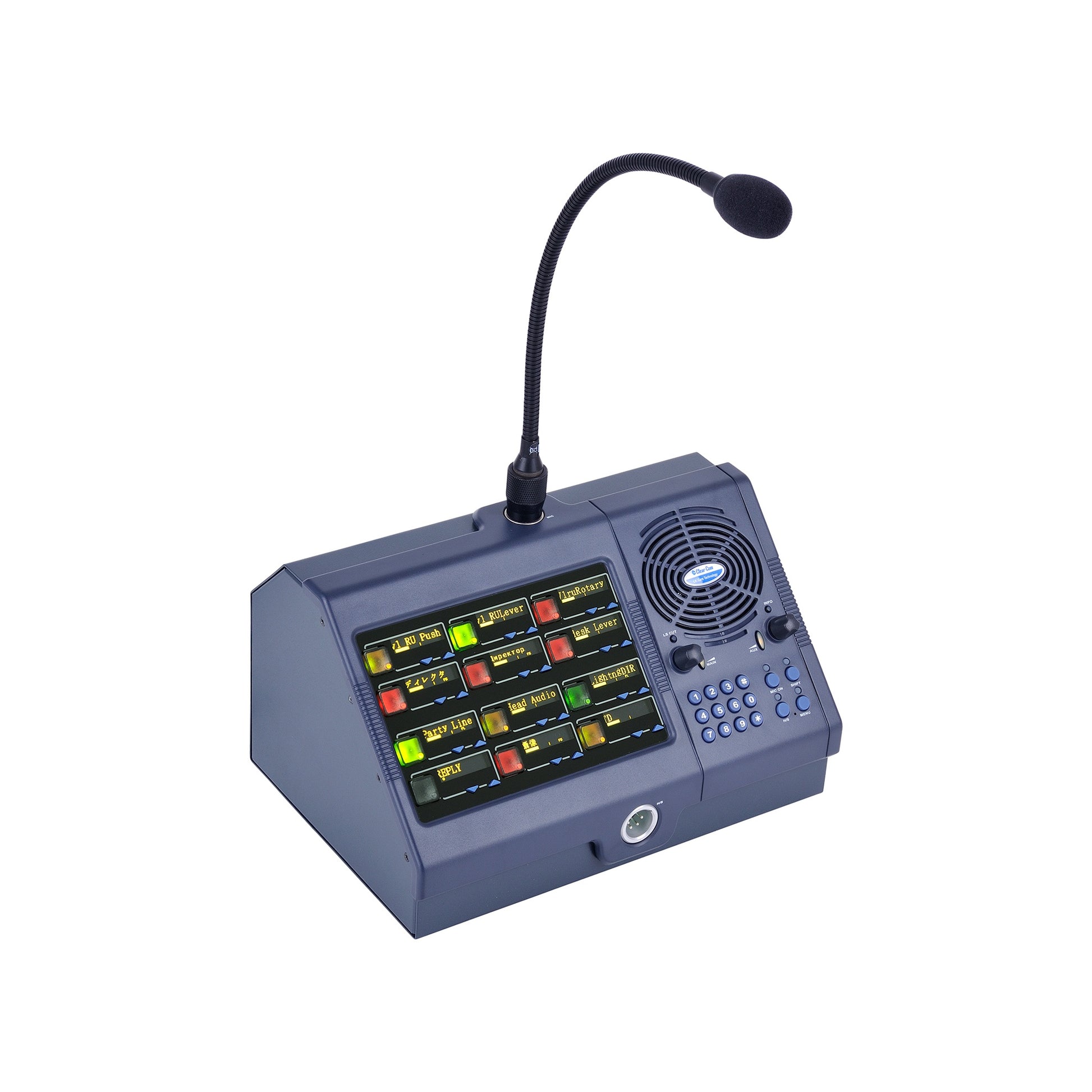

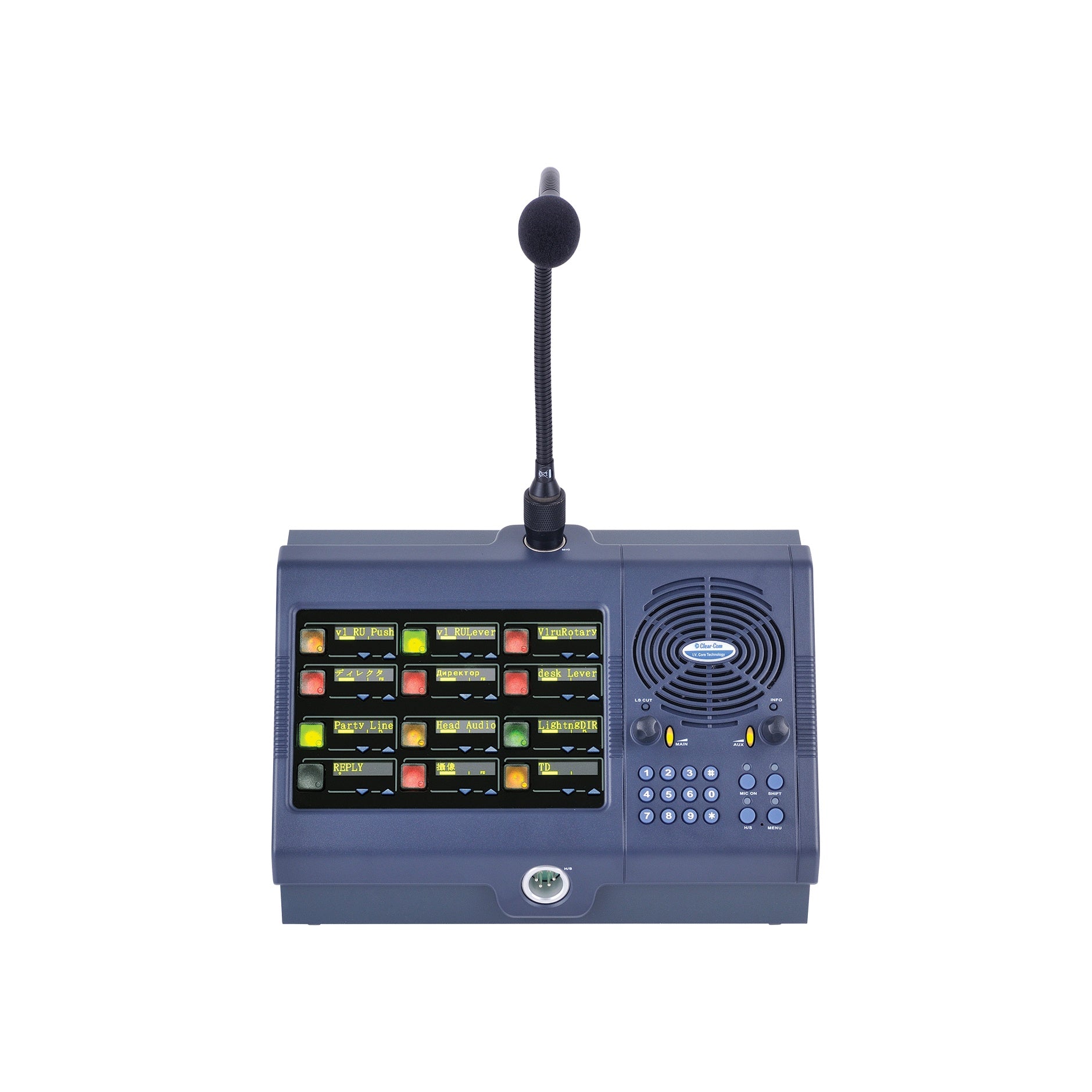

Clear-Com V12PDDX4Y-IP 12-Key Pushbutton Intercom Panel Desktop
Clear-Com V12PDDX4Y-IP 12-Key Pushbutton Intercom Panel Desktop
SoundPro Item: 207664 | Part Number: V12PDDX4Y-IP
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- 12 Configurable Pushbuttons And 24 Level Buttons For Eclipse-HX Matrix Frames
- Yellow OLED Display Provides Superior Contrast In Low-Light Production Environments
- Listen Again Function Lets Operators Replay Missed Calls Without Disrupting Routing
- Digital Signal Processing Covers Audio Routing, EQ, Dynamics, And IFB Routing Onboard

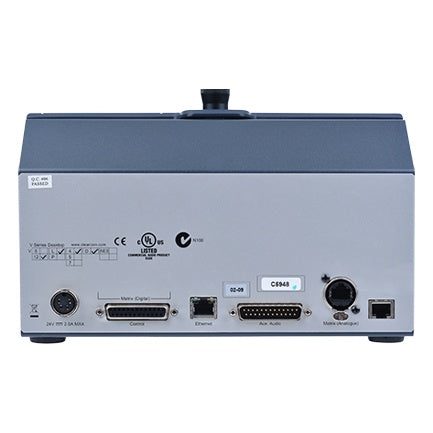

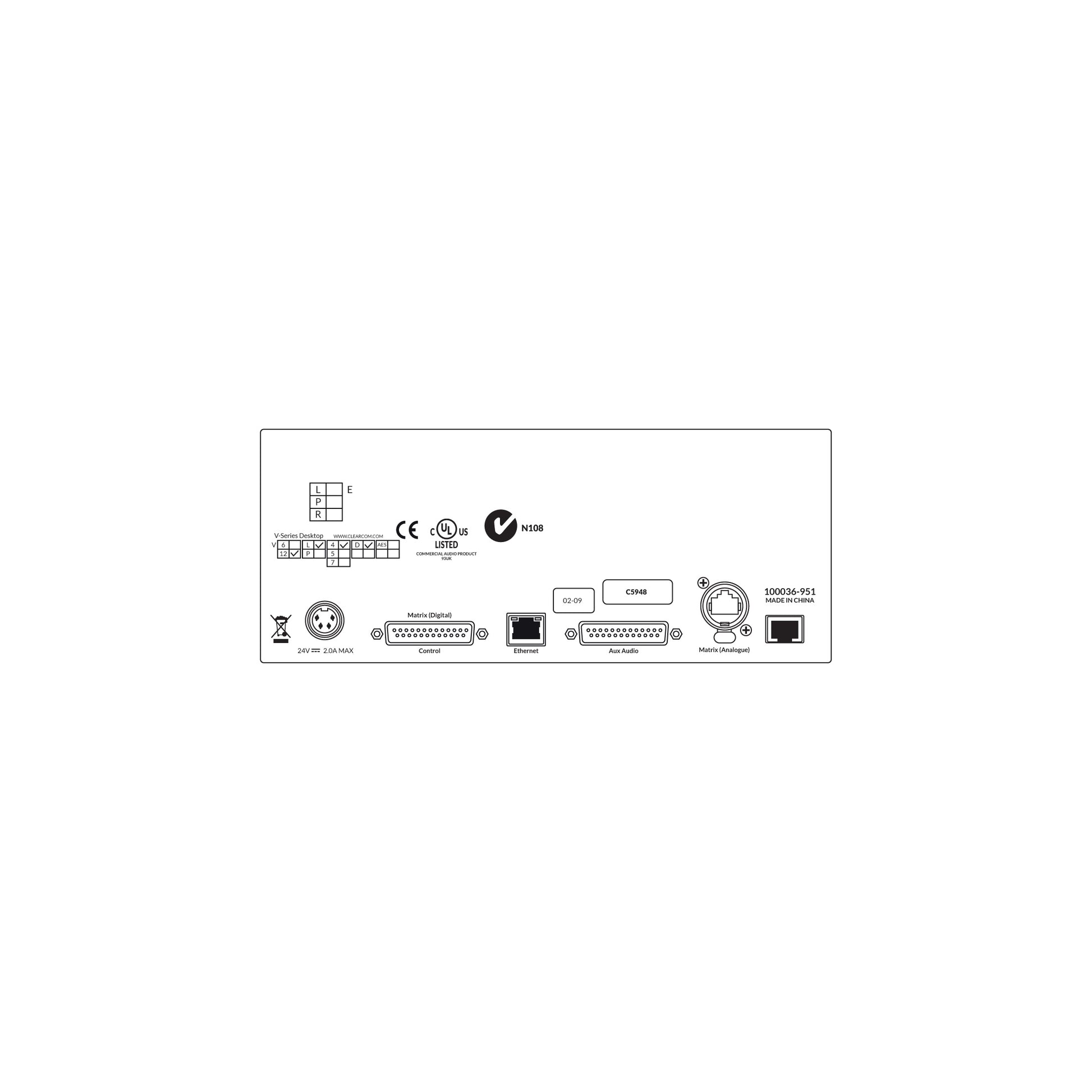

- Multi-Channel Matrix Connection Via Direct, AES-3, Or IP For Infrastructure Flexibility
- Fast Key Assignment From Scroll Lists Or Keypad Accelerates Complex Production Setup
- International Alphanumeric Font Support For Globally Deployed Intercom Systems
The Clear-Com V12PDDX4Y-IP is a desktop V-Series intercom panel built for broadcast, live production, and installed AV environments where operators need direct, configurable access to a large number of intercom routes. With 12 talk/listen keys and 24 individual up/down level controls, engineers can manage personal mixes without disrupting program audio. The yellow OLED display offers superior contrast in low-light production environments such as broadcast galleries, stage management positions, and FOH control rooms.
Designed for use with Eclipse-HX Delta, Delta-Lite, Median, Omega, and Arcadia matrix frames, this panel supports direct, AES-3, and IP multi-channel matrix connection types, giving system designers flexibility when planning wiring infrastructure. The Listen Again function lets operators replay missed calls without interrupting current routing. Fast key assignment from pre-defined scroll lists and an integrated keypad reduces setup time during complex production builds. International 10-character alphanumeric font support, including Cyrillic, Hangul, Hebrew, Kanji, Katakana, and Arabic, makes this panel appropriate for globally deployed systems.
Onboard Digital Signal Processing handles audio routing, EQ, dynamics, IFB routing, and local loudspeaker dimming, reducing the need for external processing hardware. Optional AES-3 or AES-6 cards expand connectivity to CAT5, coax, EMADI-64, or AES-6 interfaces. For production teams standardizing on Clear-Com Eclipse-HX infrastructure, the V12PDDX4Y-IP offers a dense, operator-ready panel with the connectivity and processing depth that complex intercom systems demand.
