ClearSonic A2448 CSP 48-Inch Acrylic Shield Add-On Panel | Model: A2448x3

ClearSonic A2448 CSP 48-Inch Acrylic Shield Add-On Panel | Model: A2448x3

SoundPro Item: 74418 | Part Number: A2448x3

$361.99
$481.45 $361.99
Your Price Sold out
MSRP: $481.45 | MAP: $361.99

Usually ships in 5-7 business days

  • Modular and can be expanded into a full isolation booth similar to the IsoPac D
  • Great for studio, stage, and House of Worship
  • Perfect for drums, amps, and other sound sources lower than 4’
  • Cuts down on mic bleed and gives soundperson greater control over the mix
  • Each panel provides 8 square feet of coverage
  • Durable, transparent acrylic offers superior sound isolation and visibility
  • Cable cutouts allow for easy cable routing to your gear
Log in or register for YOUR best price

The ClearSonic A2448 CSP 48-Inch Acrylic Shield Add-On Panel will reflect mid-to-high sound frequencies (snare drum, guitar, etc.) and diffuse them so that your audience’s ears won’t get overwhelmed. ClearSonic’s 48-inch high A2448 CSP is commonly used on drum kits that have lower cymbals or when communication between musicians outweighs higher coverage.

Each panel is made of the highest quality ¼” thick acrylic material and features smooth finished edges, Clearsonic’s proprietary ‘tooth in groove’ mechanical locking hinge system to ensure secure and long-lasting panel connection, and cable cutouts to easily organize cables running to your gear. Best of all, Clearsonic’s drum shields are modular, so you can expand the width of your shield with additional A2448 panels and add Sorber sound absorption baffles to bring volume levels down.

Use the A2448 drum panel to expand your existing A2448 drum shield. A hinge is included with the panel for attachment. Additionally, you can create a single panel barrier or gobo with Clearsonic AS24 stabilizers (sold separately).

View full details

Specifications

Dimensions
Dimensions
1-section ClearSonic Acrylic Drum Shield: 24” W x 48” H
General
Acrylic Drum Shield Features
Routered edges – provide clean and smooth edge that won’t cut your hands., ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio to cut down on mic bleeding and allows everyone to hear themselves and the mix better. Adds stability that allows for modular set up to support acrylic height extenders and Sorber baffles on top, such as a LidPac, and attachment of Sorber panels, such as the S2224, directly to the acrylic panels with adhesive-backed Velcro., Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear. Also allows less sound to escape compared to mouse hole cutouts.
Hinge Features
Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape., Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge., Low profile – allows for better aesthetics as hinge blends into the shield better., Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.
A2448x1
24-inch wide x 48-inch high, 1-section Add-On w/Hinge (old A4-1). Commonly used as an ‘add-on’ to increase the width of an existing A2448 system by 24 inches.
A2448x2
48-inch wide x 48-inch high, 2-section Add-On w/Hinge (old A4-2). Commonly used as an ‘add-on’ to increase the width of an existing A2448 system by 48 inches.

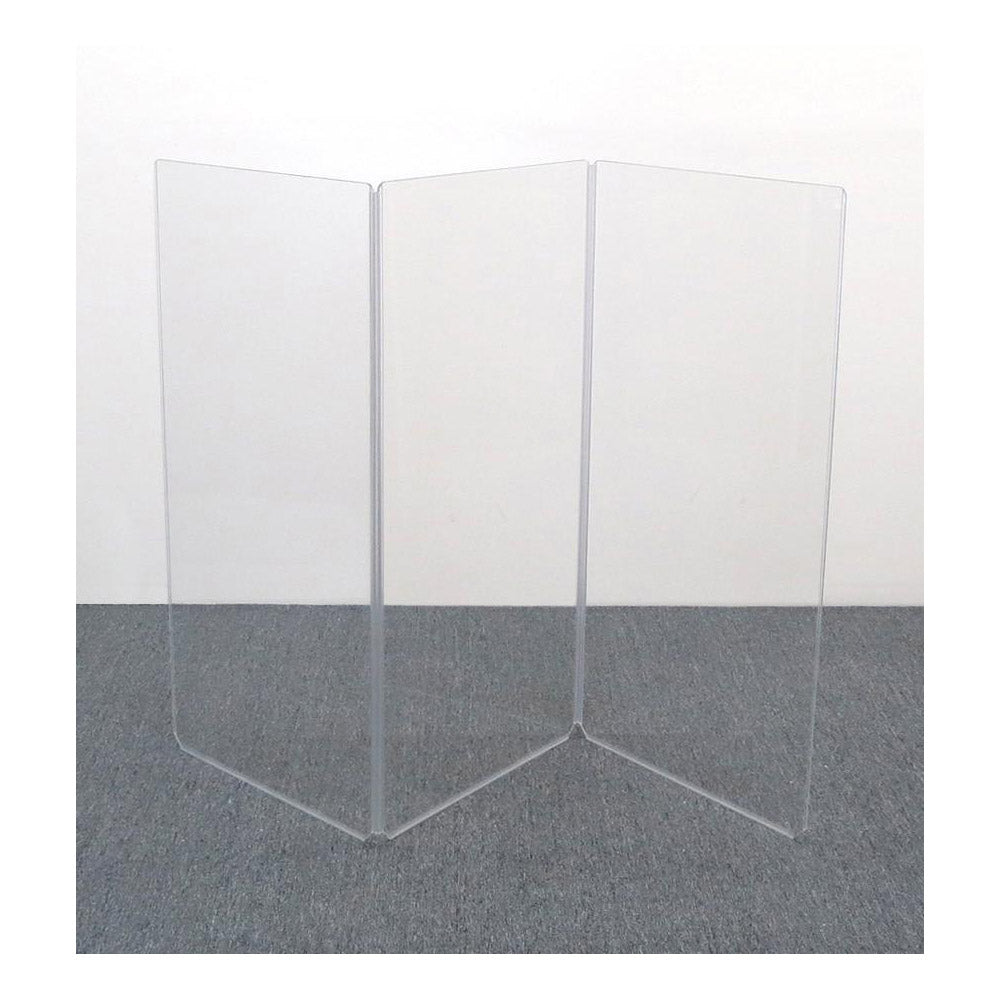

A2448x3
72-inch wide x 48-inch high, 3-section CSP (old A4-3). Commonly used as an ‘add-on’ to increase the width of an existing A2448 system by 72 inches or as a small stand-alone system.
A2448x4
96-inch wide x 48-inch high, 4-section CSP (old A4-4). Provides about 140 degrees of coverage around a 5-piece drum kit.
A2448x5
120-inch wide x 48-inch high, 5-section CSP (old A4-5). Provides about 160 degrees of coverage around a 5-piece drum kit.
A2448x6
144-inch wide x 48-inch high, 6-section CSP (old A4-6). Provides about 180 degrees of coverage around a 5-piece drum kit.

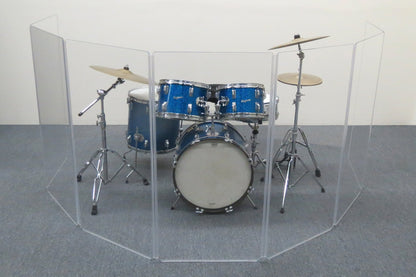

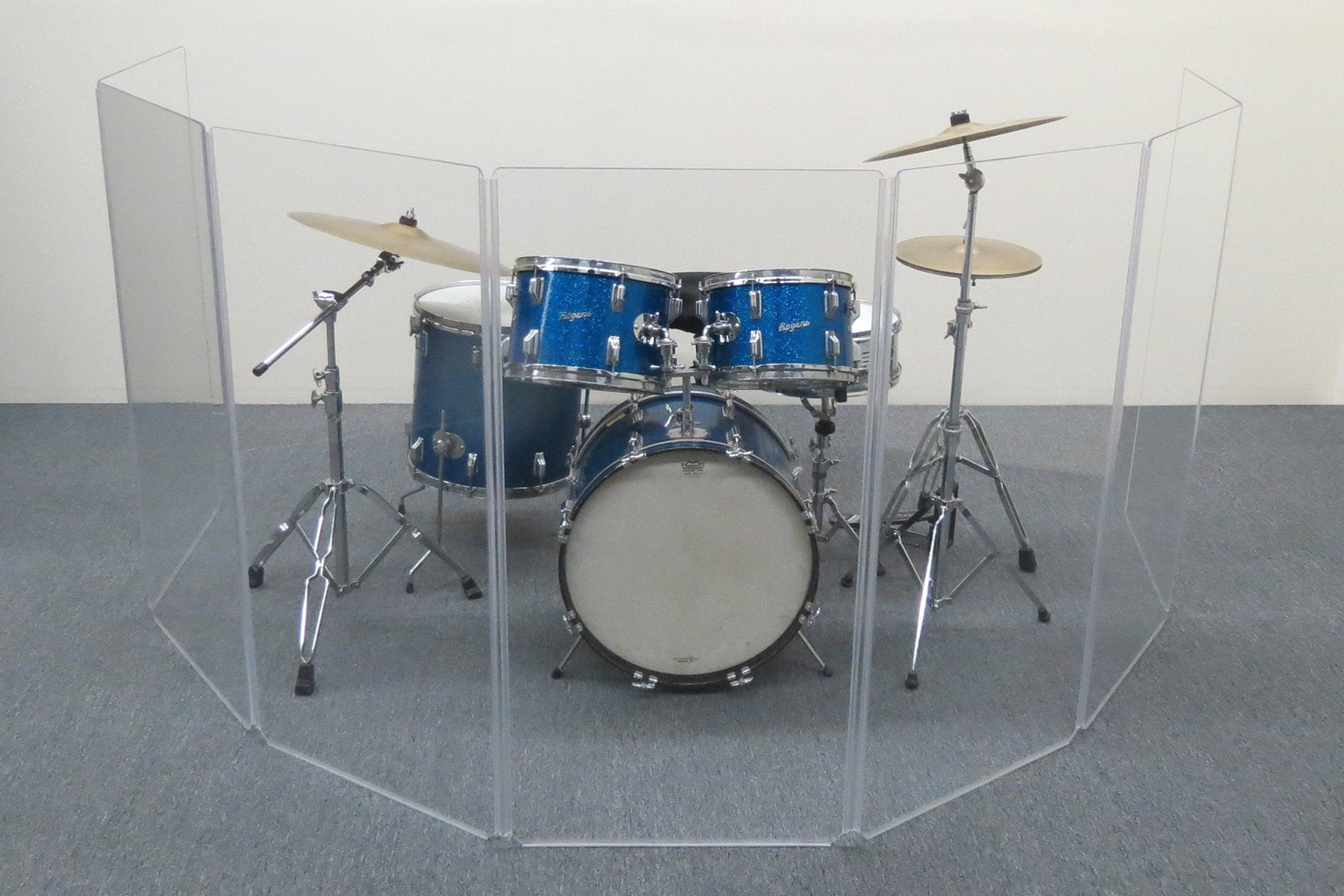

A2448x7
168-inch wide x 48-inch high, 7-section CSP (old A4-7). Provides about 200 degrees of coverage around a 5-piece drum kit.
