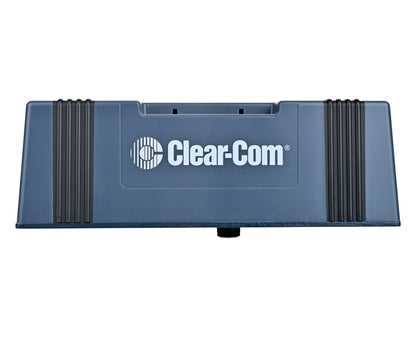

Clear-Com U-BOX-X6 Surface Mount Enclosure for KB Speaker Stations | Dual-Channel

Clear-Com U-BOX-X6 Surface Mount Enclosure for KB Speaker Stations | Dual-Channel

SoundPro Item: 133051 | Part Number: U-BOX-X6

Regular price $460.00
Regular price $460.00 Sale price $460.00
Your Price Sold out
MSRP: $460.00 | MAP: $460.00

In stock and ready to ship

  • Enclosure for KB speaker station
  • Permanently installed or portable
  • Integrated handles
  • Vertical or angled KB installation
  • Desktop or wall mount
  • VESA 75 mounting option
  • Rugged enclosure

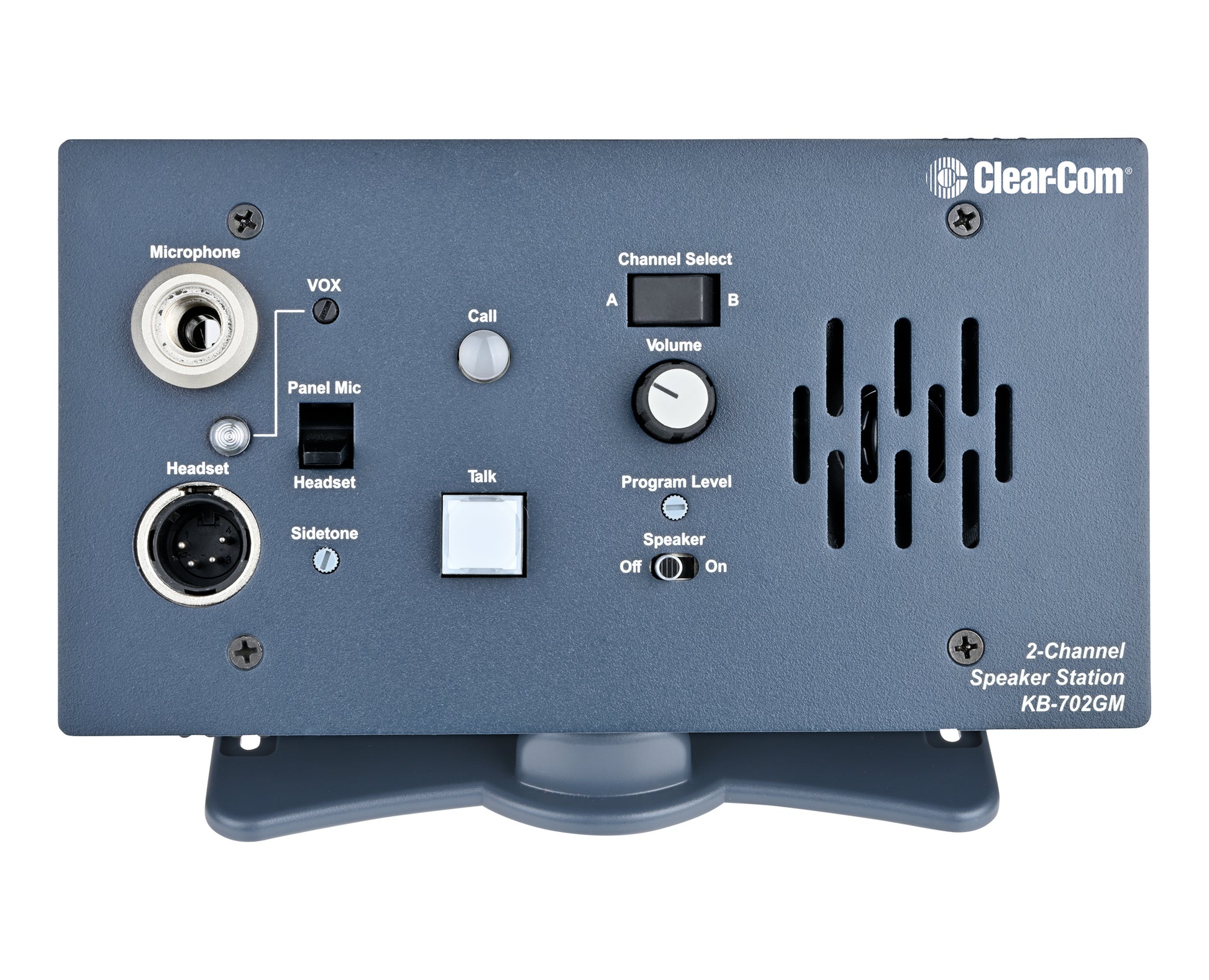

The Clear-Com U-Box is a versatile and rugged enclosure designed to convert any Clear-Com KB 4-gang sized speaker station into a desktop, shelf, or wall-mounted unit for portable or permanent installations.

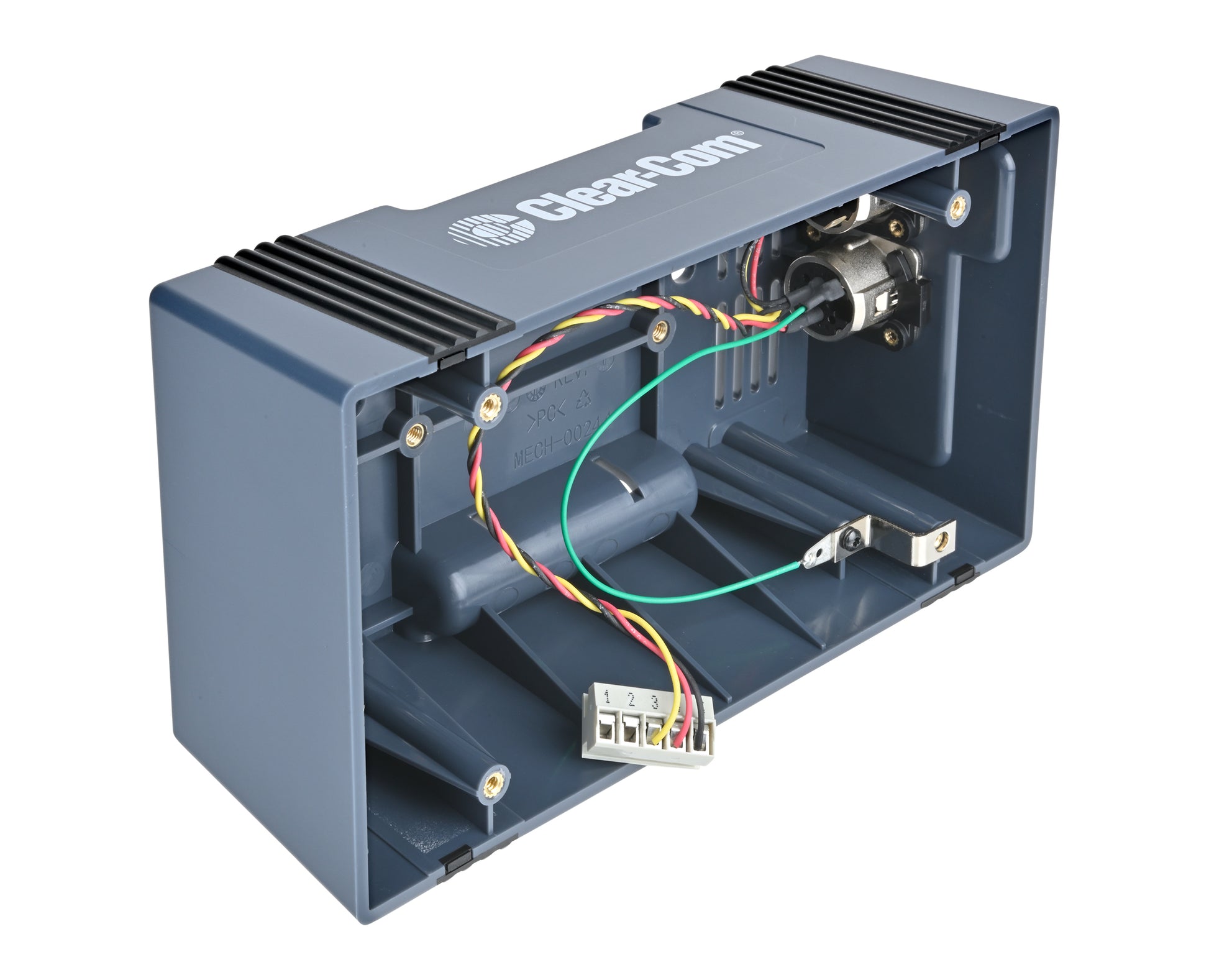

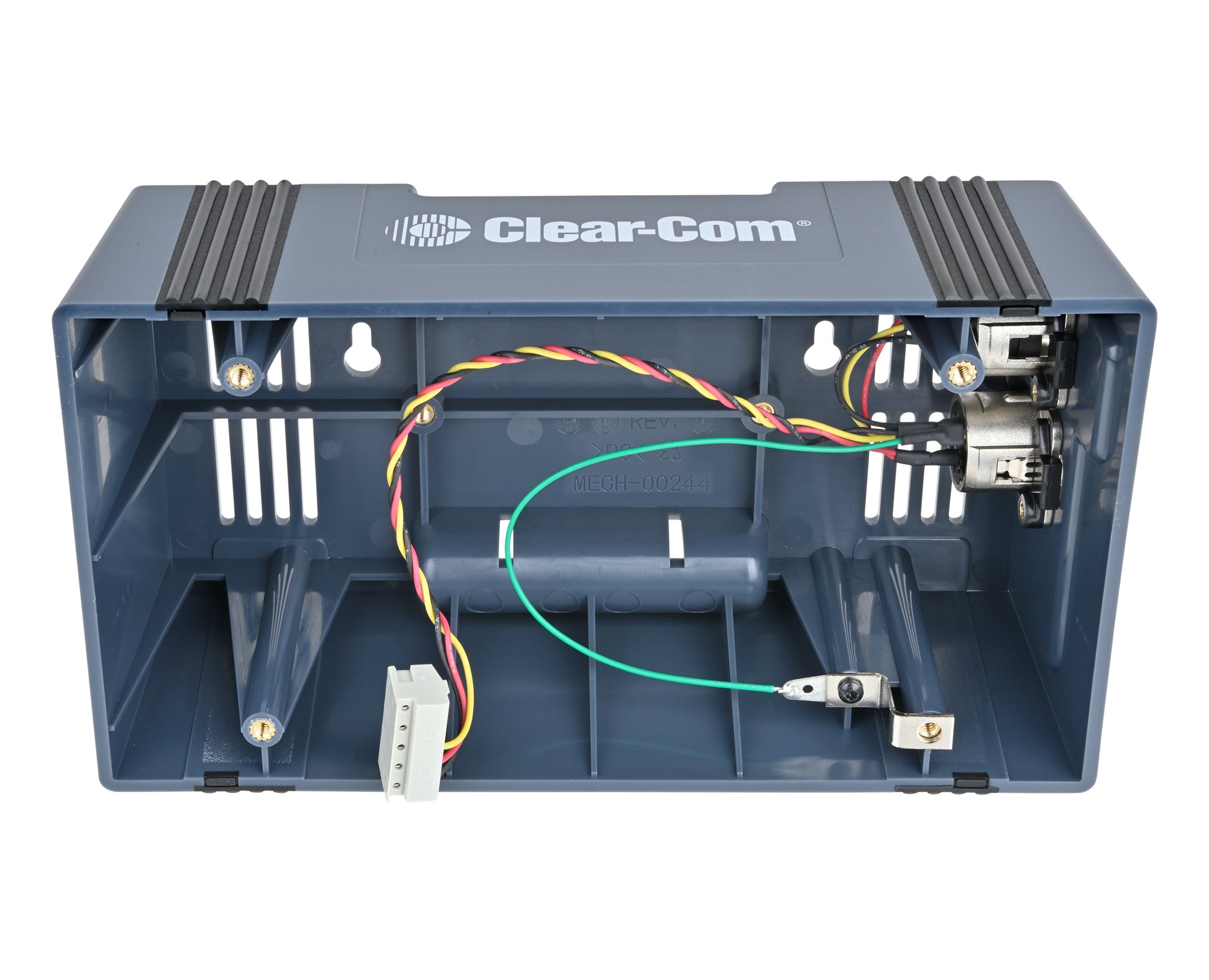

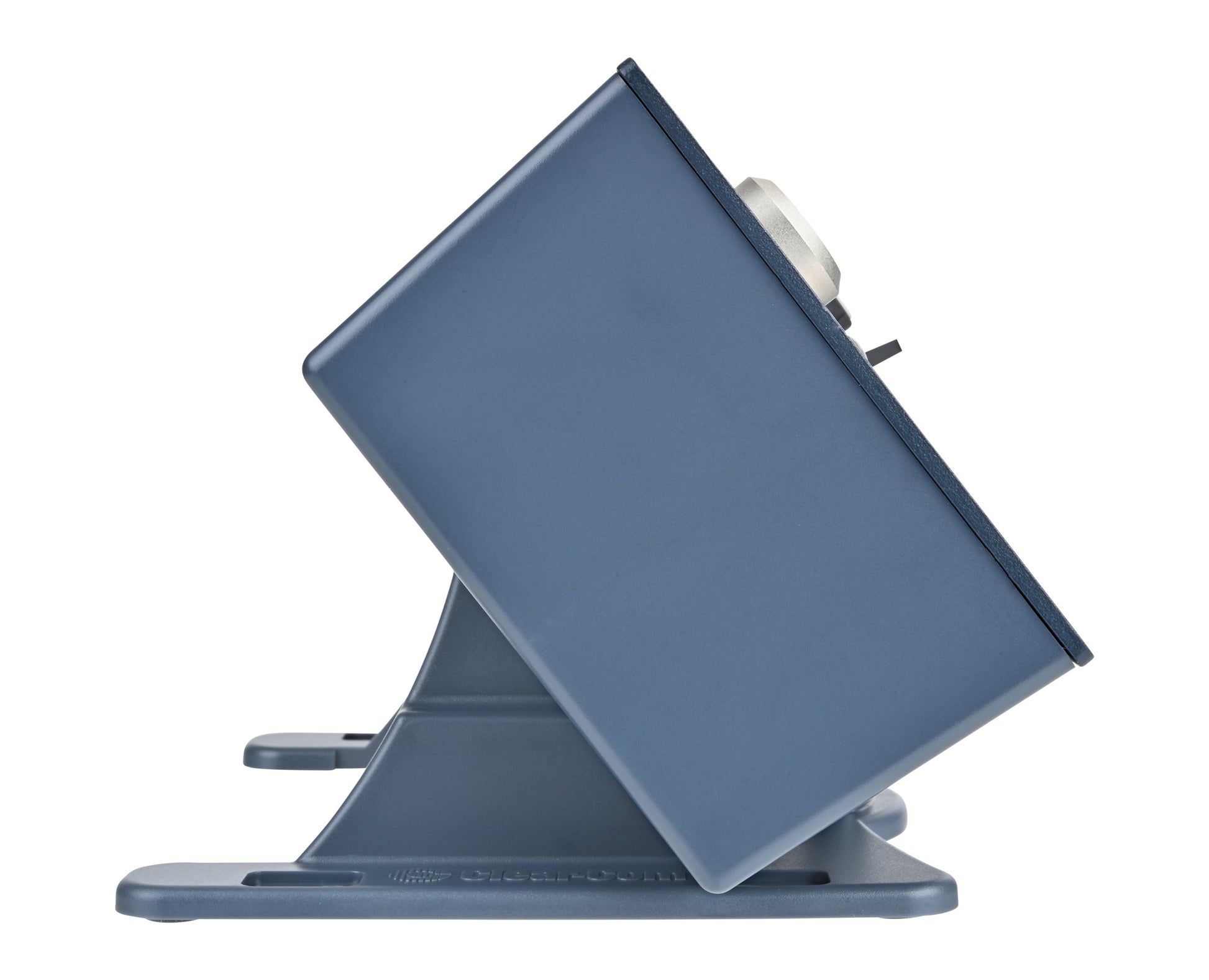

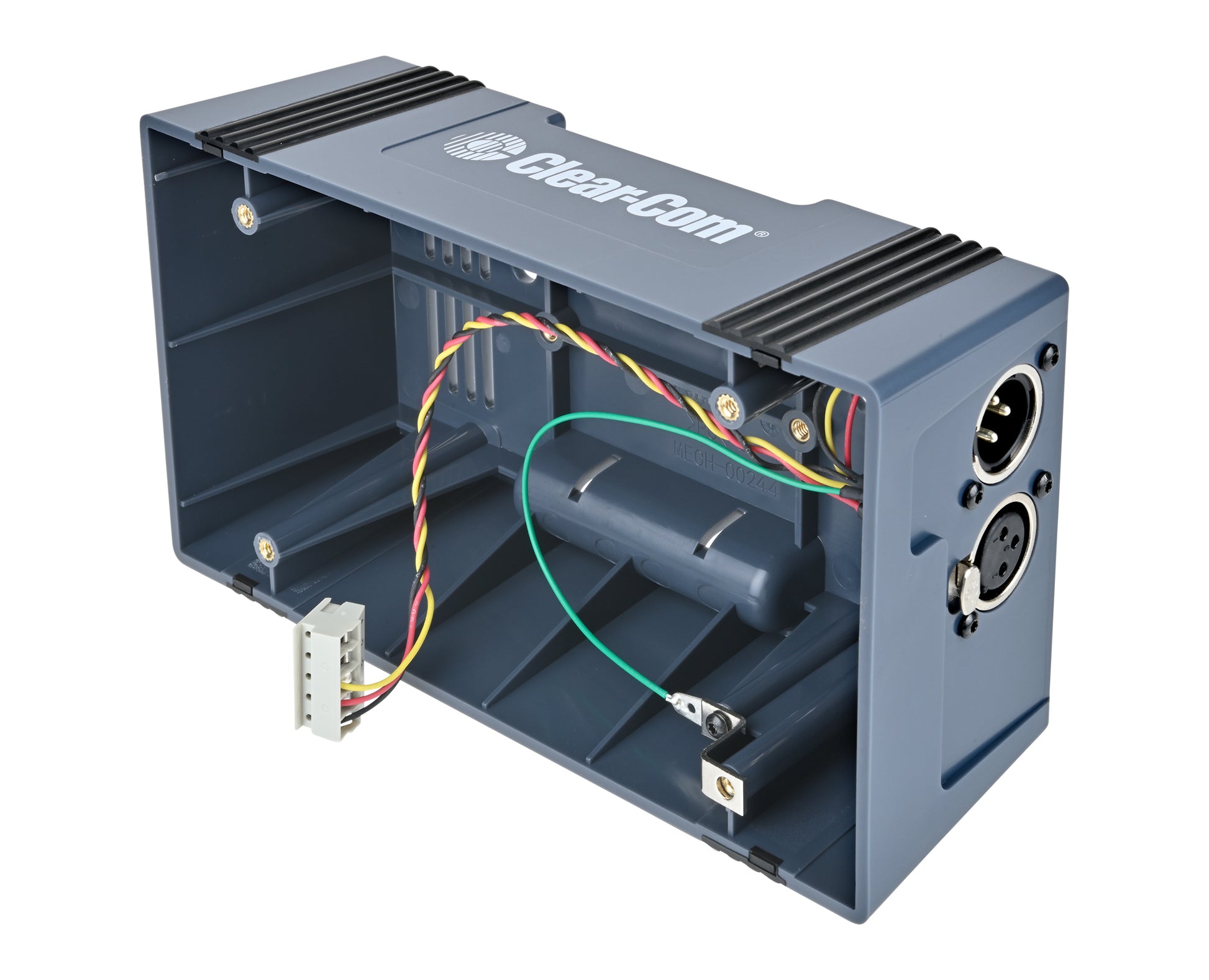

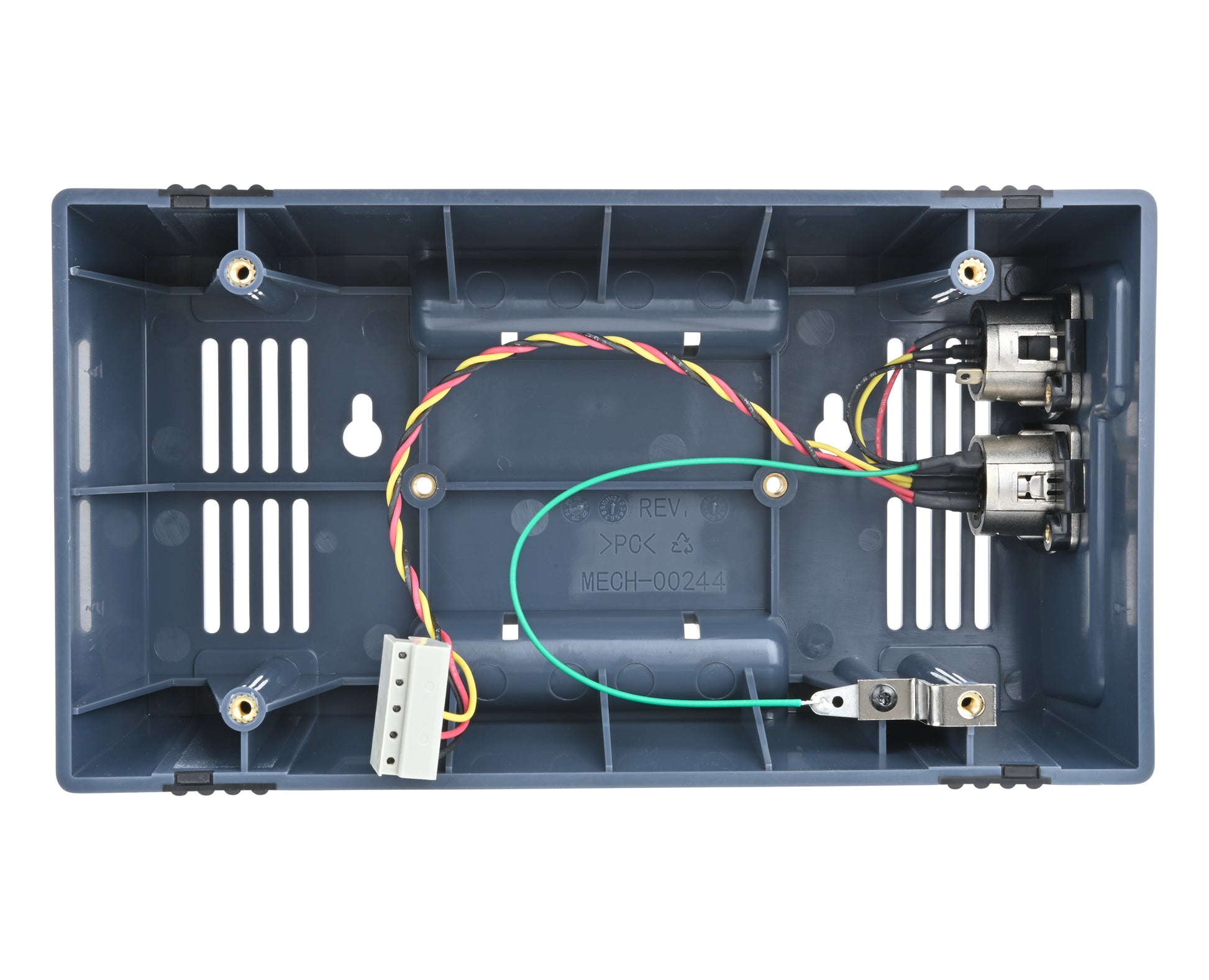

Each U-Box version includes the wiring required to connect a compatible KB speaker station. The enclosure can be mounted flush to a wall or desk using the included angled mounting bracket, which allows operation at a 45° angle from horizontal or vertical surfaces.

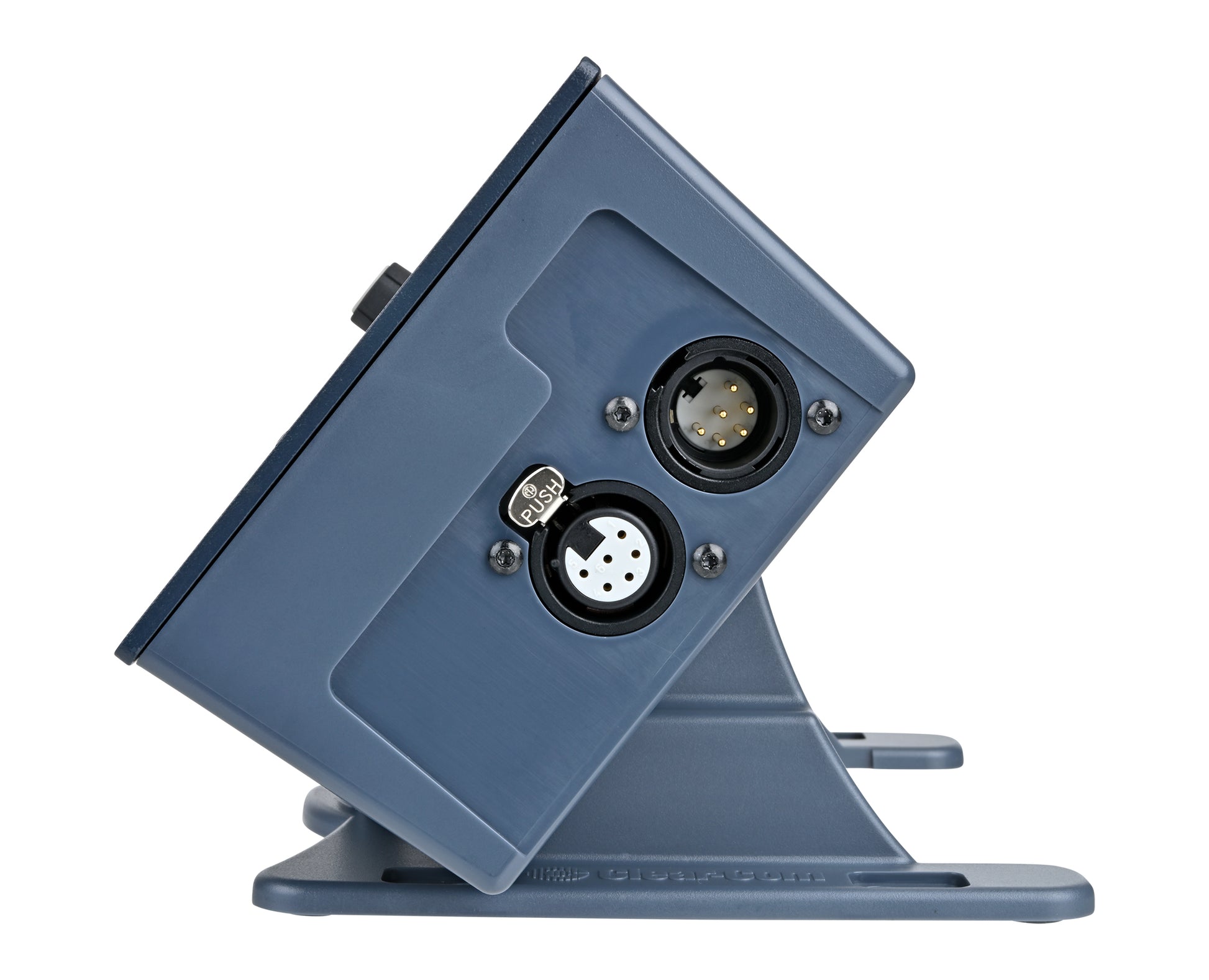

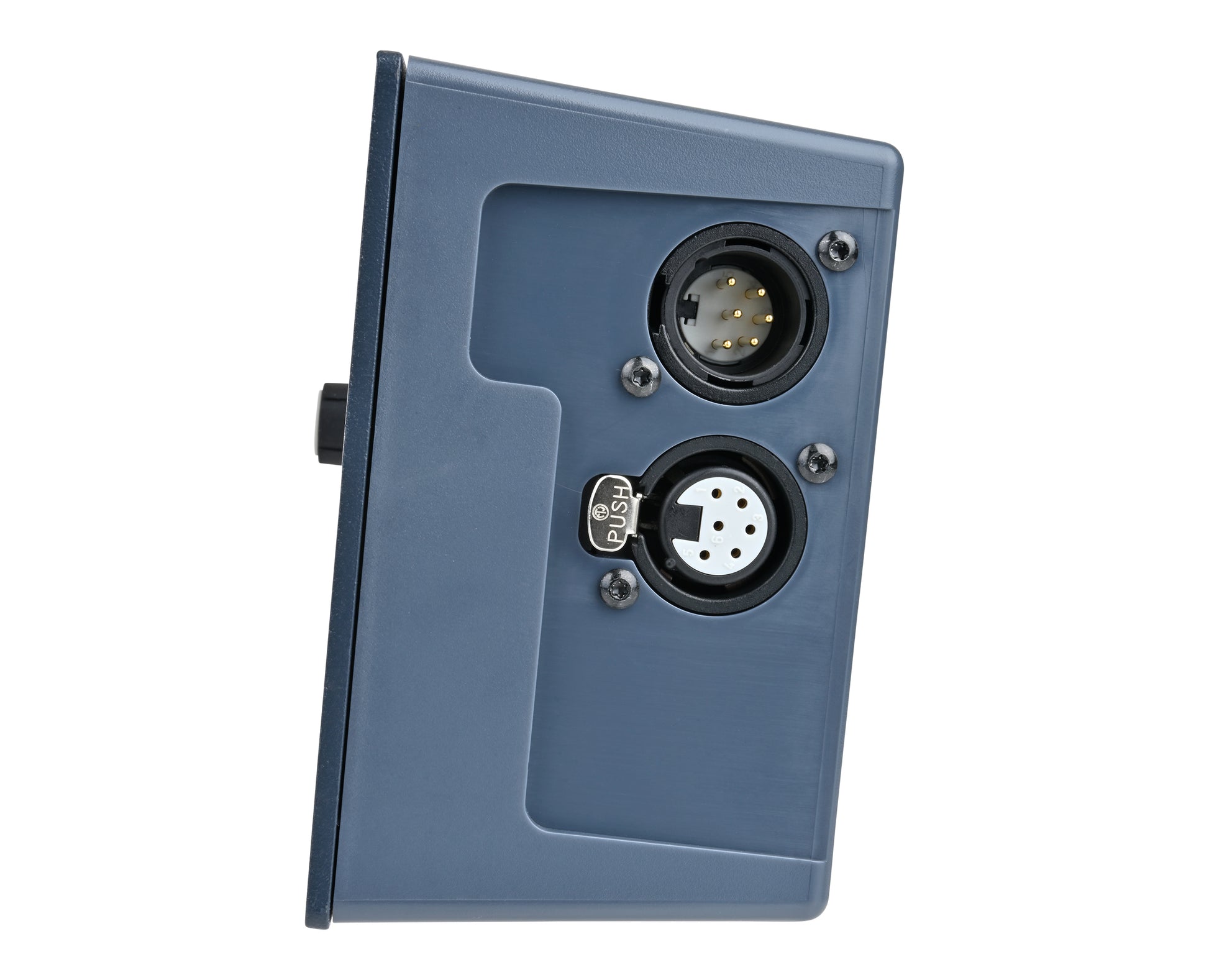

The U-BOX-X6 model supports dual-channel partyline intercom connectivity using 6-pin XLR connectors and can be series-connected with compatible Clear-Com stations and accessories.

View full details

Specifications

Connector Type
6-pin XLR male/female (“Switchcraft-style”)
System Type
Analog partyline intercom enclosure
Environmental Operating Range
32°–158°F (0–70°C)

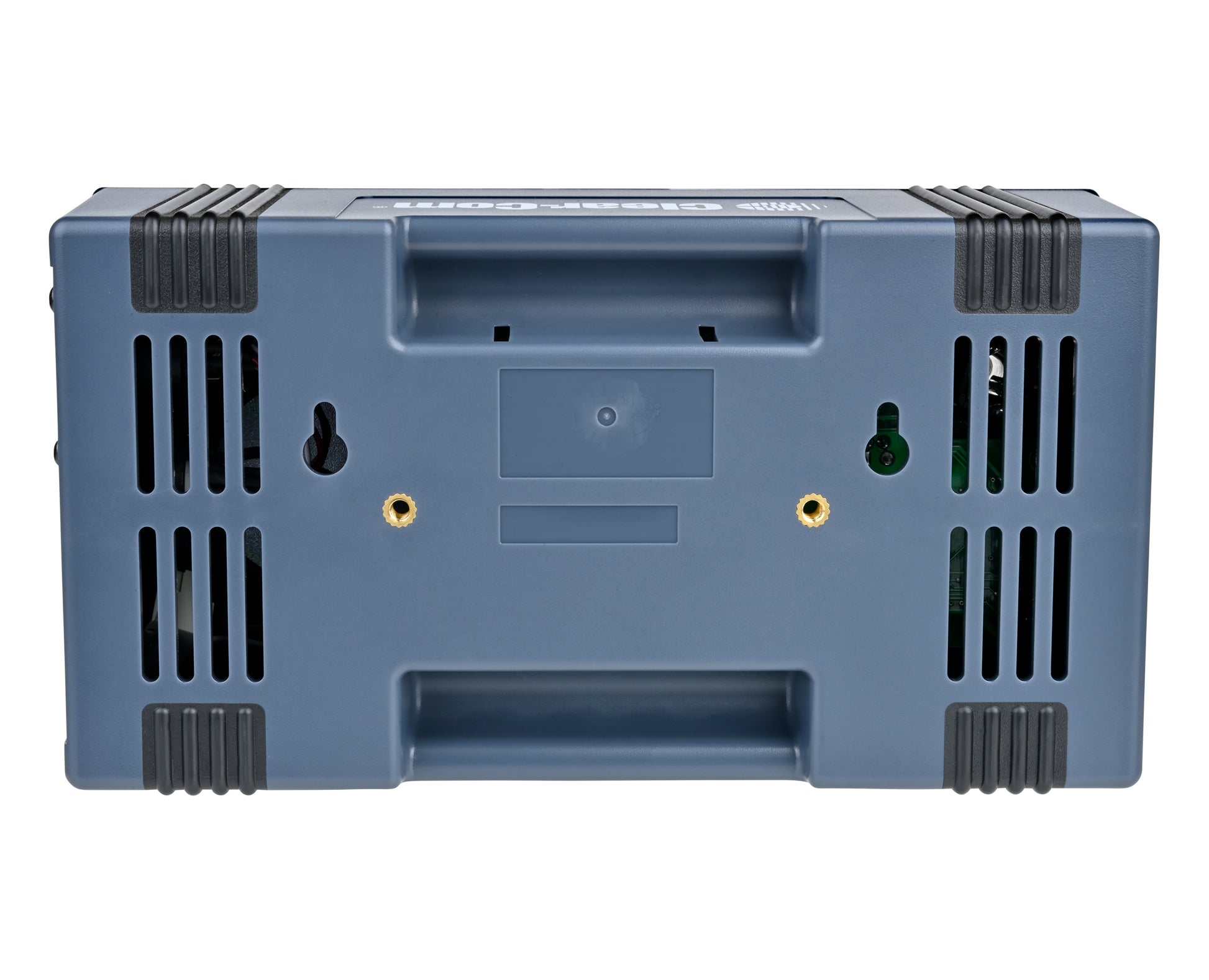

Mounting Keyholes Center-to-Center
4.0 in (101.6 mm)
Keyhole Diameter
0.318–0.159 in (8.08–4.04 mm)
VESA Mount Pattern
75 mm
VESA Thread Type
M4 x 10
Dimensions
4.5 × 8.2 × 2.8 in (HxWxD)
Dimensions With Mounting Bracket
5.4 × 8.3 × 6.1 in (HxWxD)
Weight (U-Box Only)
0.71 lb (0.32 kg)
Weight With Mounting Bracket
0.90 lb (0.41 kg)
Weight With KB Speaker Station
1.97 lb (0.89 kg)
