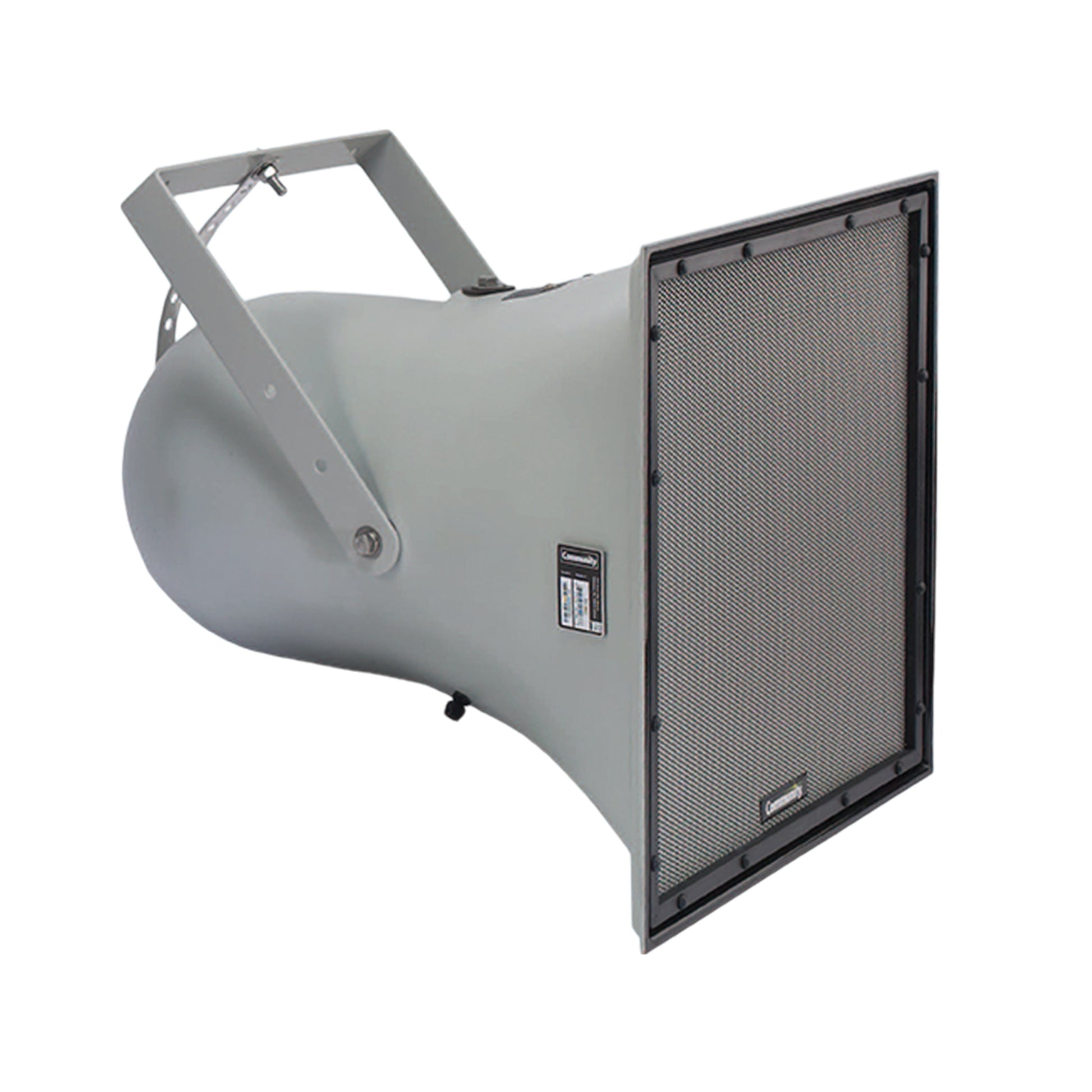

Community R1-64Z 12" 2-Way Horn-Loaded Weather-Resistant Speaker

Community R1-64Z 12" 2-Way Horn-Loaded Weather-Resistant Speaker

SoundPro Item: 62681 | Part Number: 911.1265.900

$3,034.00
$3,034.00 $3,034.00
Your Price Sold out
MSRP: $3,034.00 | MAP: $3,034.00

Usually ships in 5-7 business days

  • Coaxial Horn-Loaded Architecture Maintains Pattern Control Below 500 Hz
  • IP55W And MIL-STD-810G Ratings Suit Permanent Outdoor And Touring Deployments
  • All-Fiberglass Enclosure Resists Weather Without Sacrificing Structural Rigidity
  • Zinc-Rich Epoxy Dual-Layer Powder Coated Grille And Yoke Prevent Corrosion
  • High-Power Passive Crossover Supports Full-Range Reproduction With Low Distortion
  • Integral Mounting Points Enable Flexible Rigging Without Additional Hardware
  • TAA Compliant For Inclusion In GSA Schedule Federal Government Bids
Log in or register for YOUR best price

The Community R1-64Z is engineered for integrators and production teams who need consistent pattern control and high output in acoustically challenging spaces. Its 12-inch, 2-way coaxial architecture with large-format horn loading makes it the right tool for indoor sports venues with heavy reverberation or small to mid-sized outdoor stadiums where intelligibility margins are tight. The 60° x 40° coverage pattern and LF directivity control extending below 500 Hz allow precise energy management that conventional box speakers cannot match at this output class.

Weather resistance is built into the structure, not added as an afterthought. The all-fiberglass enclosure and zinc-rich epoxy dual-layer powder coated aluminum grille and yoke are rated IP55W per IEC 60529 and designed to MIL-STD-810G, making the R1-64Z a credible choice for permanent outdoor installs and touring rigs that move between exposed environments. The high-power passive crossover and large diaphragm 1-inch exit HF driver extend HF reach beyond what the R.5HP platform offers.

TAA compliance makes the R1-64Z available to GSA Schedule contractors bidding U.S. federal projects. Community recommends the ALC404D amplified loudspeaker controller for this model, with compatibility extending to higher-power ALC configurations. The integral mounting points and yoke assembly support flexible rigging solutions without additional hardware.

Downloads

View full details

Specifications

Certifications
TAA Compliant
Yes
Environmental Rating
IP55W per IEC 60529
Design Standard
MIL-STD-810G
Dimensions
Height
24.8"
Width
24.8"
Depth
29.8"
Weight
Product Weight
55.5 lbs
Audio
Impedance
8Ω
Sensitivity
105 dB (1W/1m)
Maximum SPL
128 dB at 1m
Peak SPL
134 dB at 1m
Operating Range
90 Hz - 16 kHz
Dispersion (H x V)
60° x 40°
Power
Continuous Power Handling
200W
Peak Power Handling
800W
Construction
Enclosure Material
All-Fiberglass
Grille Material
Zinc-Rich Epoxy Dual-Layer Powder Coated Aluminum
Finish
Grey RAL 7038
Loudspeaker
Configuration
2-Way, Large Format, Horn-Loaded, Coaxial
LF Driver
1 x 12"
HF Driver
1 x 1" exit
Identifiers
MPN
911.1265.900
