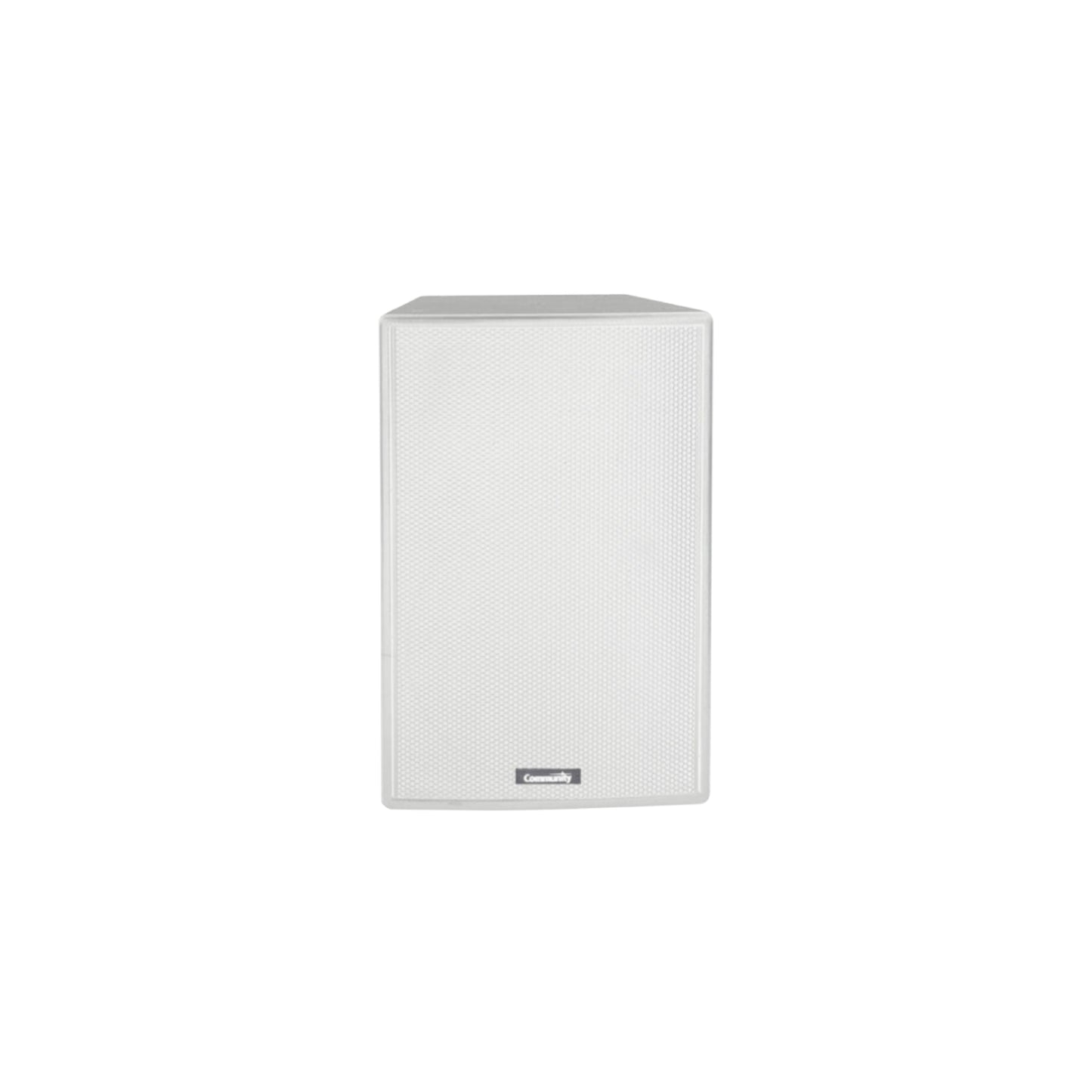

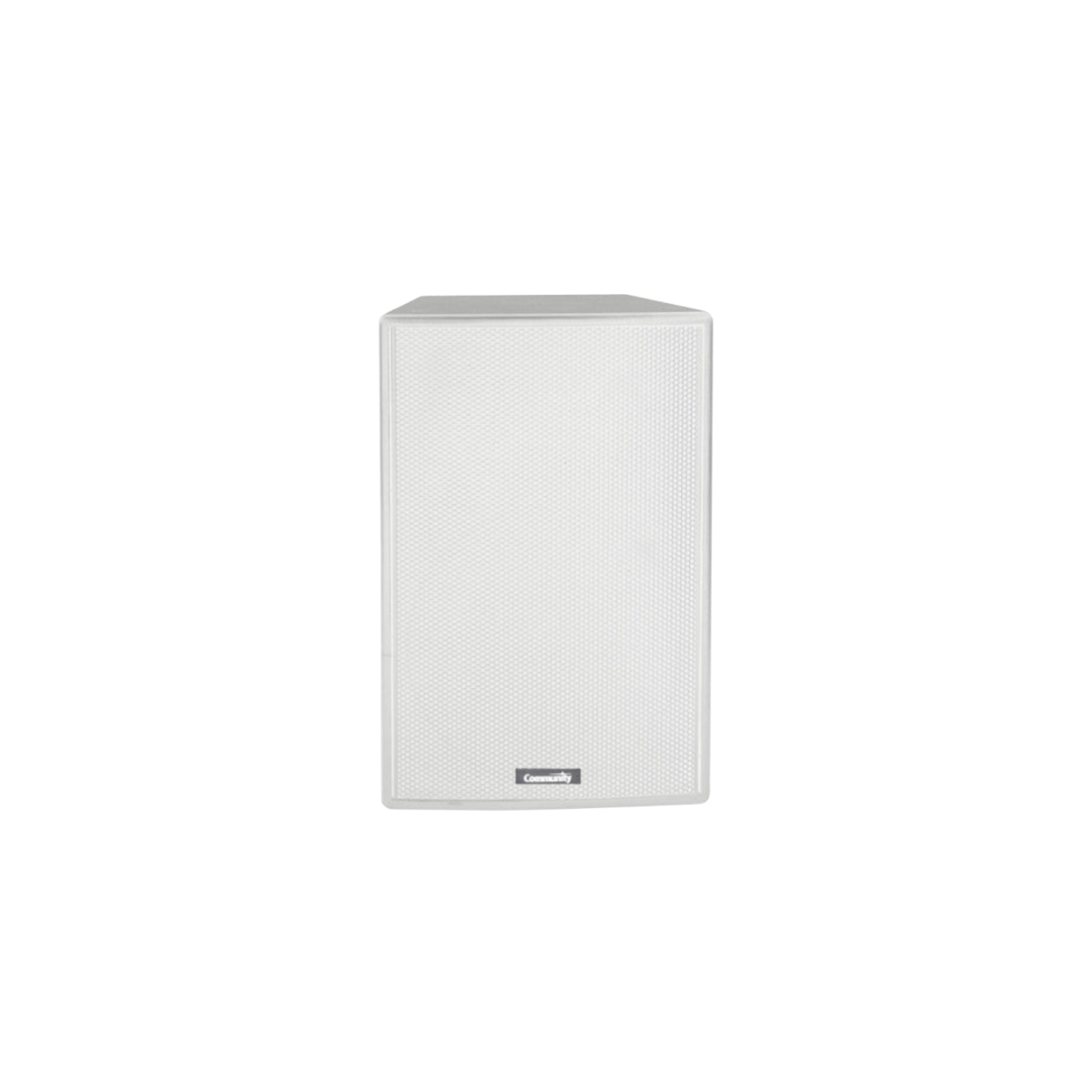

Community R1-94Z 90x40 Horn Loaded 2-Way 12" Passive PA Speaker | Grey

Community R1-94Z 90x40 Horn Loaded 2-Way 12" Passive PA Speaker | Grey

SoundPro Item: 62684 | Part Number: 911.1269.900

$3,034.00
$3,034.00 $3,034.00
Your Price Sold out
MSRP: $3,034.00 | MAP: $3,034.00

Usually ships in 5-7 business days

  • Weather-Resistant All-Fiberglass Enclosure Withstands Permanent Outdoor Deployment
  • Corrosion-Resistant Dual-Layer Powder Coated Aluminum Grille And Yoke For Long-Term Durability
  • Horn-Loaded Coaxial Design Delivers High-Fidelity Music And Intelligible Speech Reproduction
  • Pattern Control Below 500 Hz Maintains Consistent Coverage In Reverberant Environments
  • High-Power Passive Crossover Eliminates External Processing For Straightforward System Integration
  • Integral Mounting Points Support Flexible Flown Or Bracket-Mounted Deployment
  • TAA Compliant Construction Qualifies For GSA Schedule And U.S. Federal Government Projects
Log in or register for YOUR best price

The Community R1 series is engineered for large-format installed and touring applications where pattern control, weather resistance, and extended bandwidth are non-negotiable. Systems integrators, touring engineers, and venue install teams specifying coverage for reverberant indoor arenas, outdoor stadiums, or climate-exposed environments will find the R1's full-range, two-way, horn-loaded coaxial architecture delivers consistent, predictable coverage with minimal off-axis coloration.

The all-fiberglass enclosure and IP55W-rated construction allow permanent or semi-permanent outdoor deployment without the compromises typical of non-weatherized cabinets. The large deep LF horn combined with a large-diaphragm 1-inch exit HF driver extends both low-end output and high-frequency reach beyond what smaller-format alternatives can provide, and the 105 dB sensitivity rating reduces amplifier headroom demands in demanding fixed-install or festival contexts.

Three horn pattern options — including 60x40, 60x60, and 90x40 — allow integrators to select the appropriate coverage geometry for a given venue without swapping driver configurations. TAA compliance makes the R1 eligible for GSA Schedule contract vehicles, making it a straightforward specification for U.S. federal and government facility projects. The Community ALC404D loudspeaker controller is the recommended amplified controller for this system, with compatibility extending to higher-power ALC models.

Downloads

View full details

Specifications

Certifications
Environmental Rating
IP55W per IEC 60529
Design Standard
MIL-STD-810G
TAA Compliant
Yes
Dimensions
Height
24.8"
Width
24.8"
Depth
29.8"
Weight
Product Weight
55.5 lbs
Audio
Impedance
8Ω
Operating Range
94 Hz - 16 kHz
Sensitivity
105 dB (1W/1m)
Maximum Output
128 dB SPL at 1m
Peak Output
134 dB SPL at 1m
Dispersion (H x V)
90° x 40°
Power
Continuous Power Handling
200W
Peak Power Handling
800W
Construction
Finish
Grey RAL 7038
LF Driver
1 x 12"
HF Driver
1 x 1" exit
