Specifications
Dimensions
Dimensions (HxWxD)
10.4x10.8x14.5" (263x275x397mm)
Electrical
Minimum Impedance
5.7 ohms @ 230 Hz
Audio
Sensitivity (1W/1m)
96 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands), 96 dB SPL (250 Hz to 4 kHz speech range)
Crossover Frequency
1.3 kHz
1. Sensitivity
Free field pink noise measurement at 6 ft (1.8 m) at 20% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
Connectivity
Max Input Ratings (Passive)
150W continuous, 375W program, 35 volts RMS, 77 volts momentary peak
Maximum Output
118 dB SPL / 125 dB SPL (peak)
Input Connection
(2) paralleled NL4-compatible locking connectors internally looped to one 2-terminal barrier strip
Construction
Enclosure
11-ply cross-laminated birch
Handles
(1) Ergo-Grip™ rear pocket handle
Finish
Black finish
Grille
16-gauge perforated steel, black powder coated
Shipping
Weight
17 lbs (8 kg)
General
Loudspeaker Type

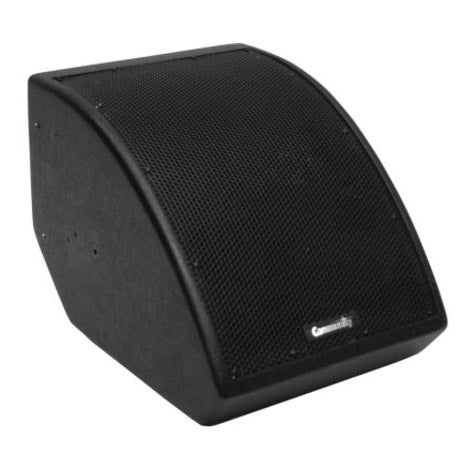

Two-way, full-range coaxial floor monitor
Operating Range
80 Hz to 18 kHz, 90 Hz to 16 kHz (±3 dB)
Recommended Power Amplifier
300W to 450W @ 8 ohms
Nominal Impedance
8 ohms
Nominal
–6dB
Axial Q / DI
5.7 / 7.6, 500 Hz to 6 kHz
Recommended Signal Processing
90 Hz high pass filter
Drivers
LF (1) 8-inch cone, HF (1) 1.25-inch exit
Driver Protection
DYNA-TECH™ driver protection system
Required Accessories
24 dB/Octave 100 Hz high pass filter
Supplied Accessories
(4) rubber feet with mounting screws
Optional Accessories
MX-Y8B mounting yoke bracket, black
2. Watts
All wattage figures are calculated using the rated nominal impedance.
RF
Beamwidth
115° H (+46º / -46º, 500 Hz to 6 kHz), 115° V (+46º / -46º, 500 Hz to 6 kHz)
